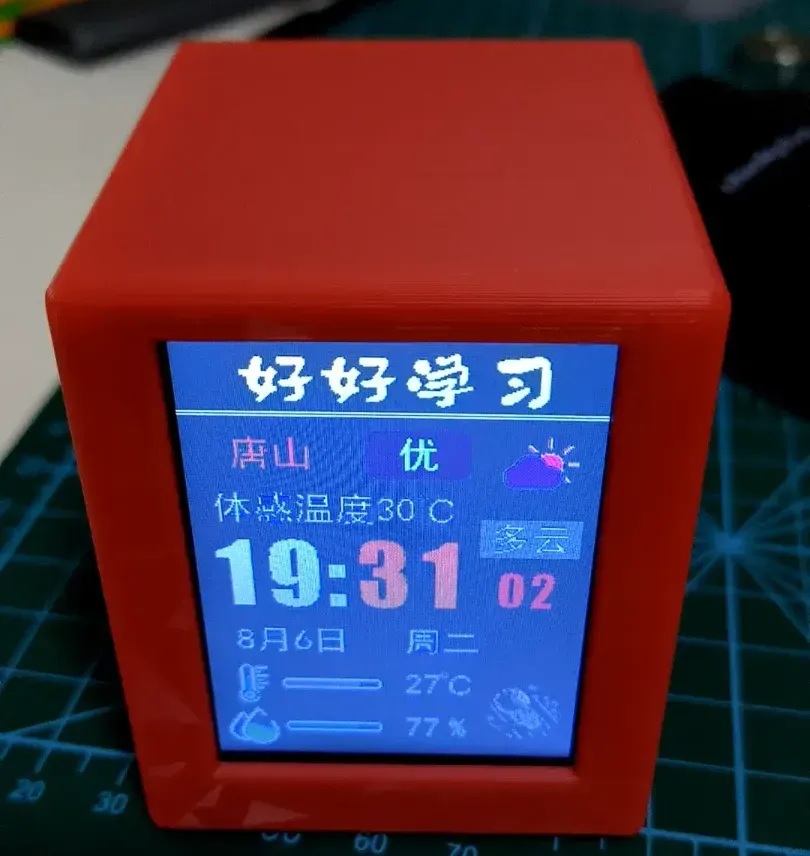

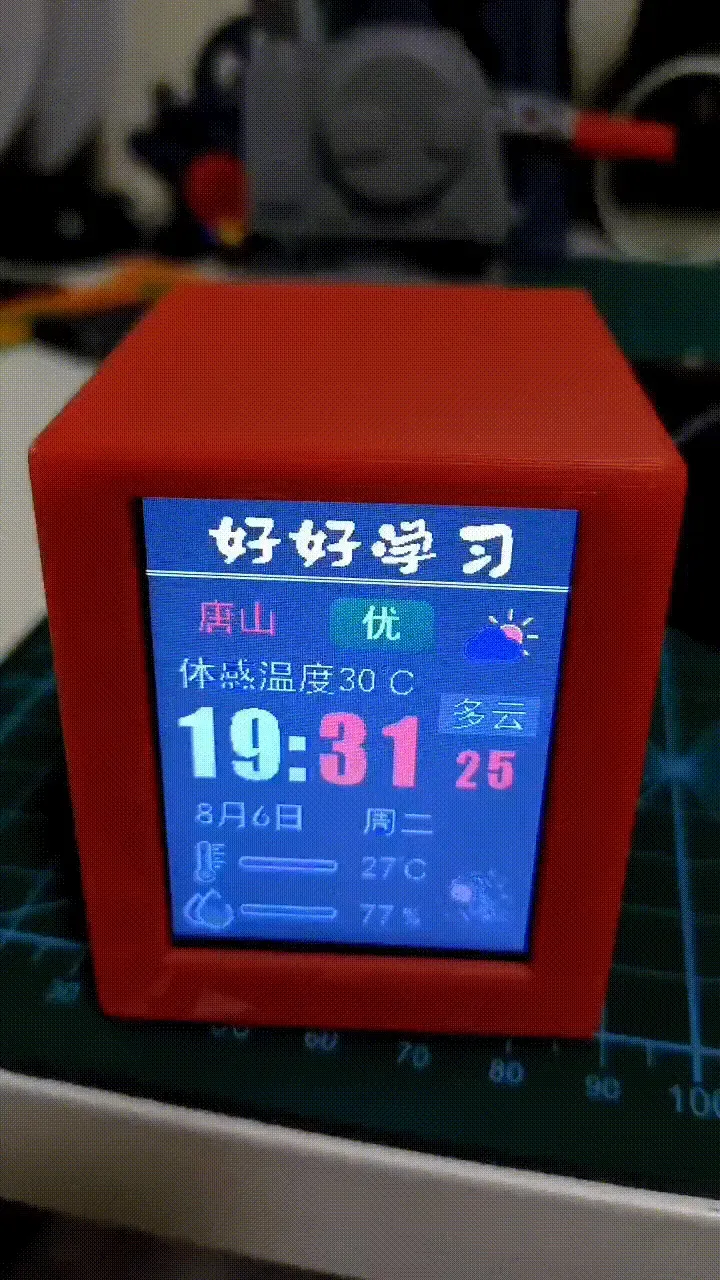

Replicating the DuDuClock Desktop WIF Weather Clock 2.0 Version
Print Profile(1)
Description
Replicating the DuDuClock Desktop WIF Weather Clock 2.0 Version with a cost of around 20 yuan.
DuDuClock Desktop WIF Weather Clock 2.0 version, thanks to the B station’s DaCongMing’s used brain, uploaded the model file, for everyone to replicate.
Video tutorials can be found on B station by searching for “Hand-in-hand replication of 2.4-inch Dudu Weather Clock” or by searching for the original author ID “DaCongMing’s used brain”.
The video introduces the production process in great detail, from material procurement, wiring methods, software installation and configuration, program compilation and download, step-by-step introduction is very detailed. Once again, thanks to the original author for their selfless dedication.
In the last video, the author also introduced how to modify the fonts and images on the screen.
Attached is a complete set of materials:
DuDuClock Desktop WIF Weather Clock Complete Materials https://pan.quark.cn/s/0e2091ce3d4b
Production material cost
1、Mainboard 9.9 yuan
2、Screen 10.5 yuan
3、Adapter board 1.6 yuan
4、Buttons (20 pieces with free shipping) 2.8 yuan.
5、Resistor (100 pieces with free shipping) 1.3 yuan.
I am modifying a version that uses a single 18650 battery for power.
If you have any questions, please leave a message and we can discuss and exchange ideas together.
Once again, thanks to the original author for their selfless dedication.
I’m planning to modify a version that uses a single 18650 battery for power, currently undergoing testing to see how long a single 18650 battery can power it.
Printing configuration for the ErWei 18650 battery powered housing.
Battery powered production material cost
1、Mainboard 9.9 yuan
2、Screen 10.5 yuan
3、Adapter board 1.6 yuan
4、Buttons (20 pieces with free shipping) 2.8 yuan.
5、Resistor (100 pieces with free shipping) 1.3 yuan.
6、Charging module 1.5 yuan
7、18650 battery These are widely available online, prices vary.
