EGPU Enclosure
Print Profile(1)
Description

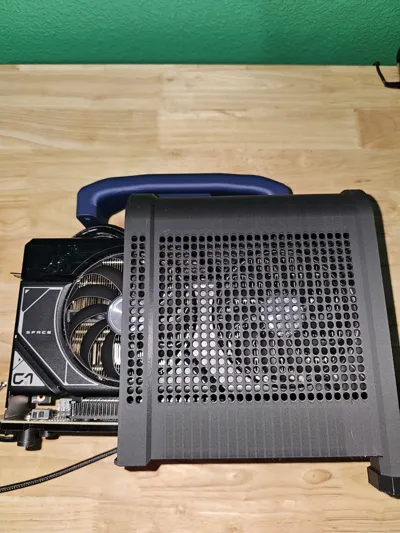

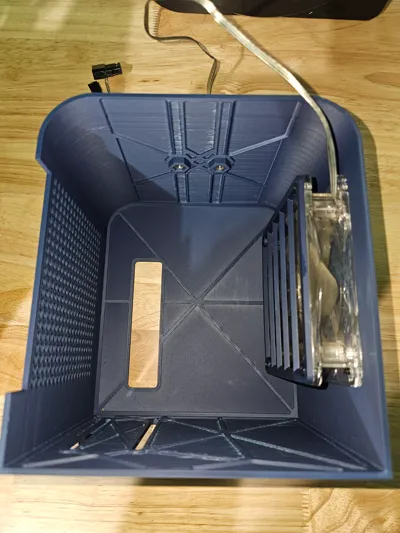

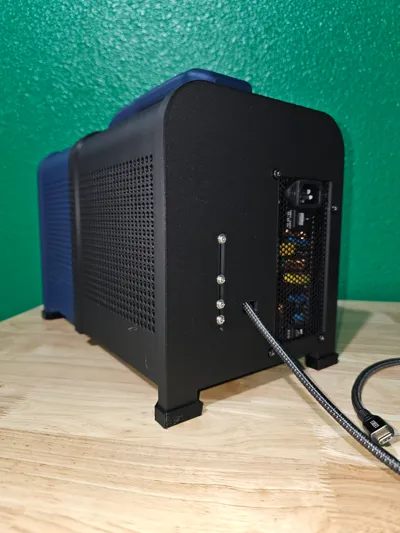

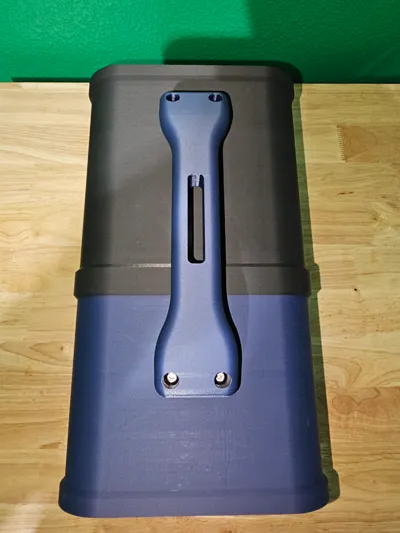

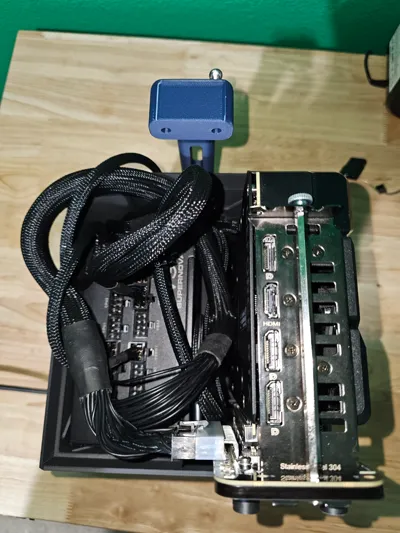

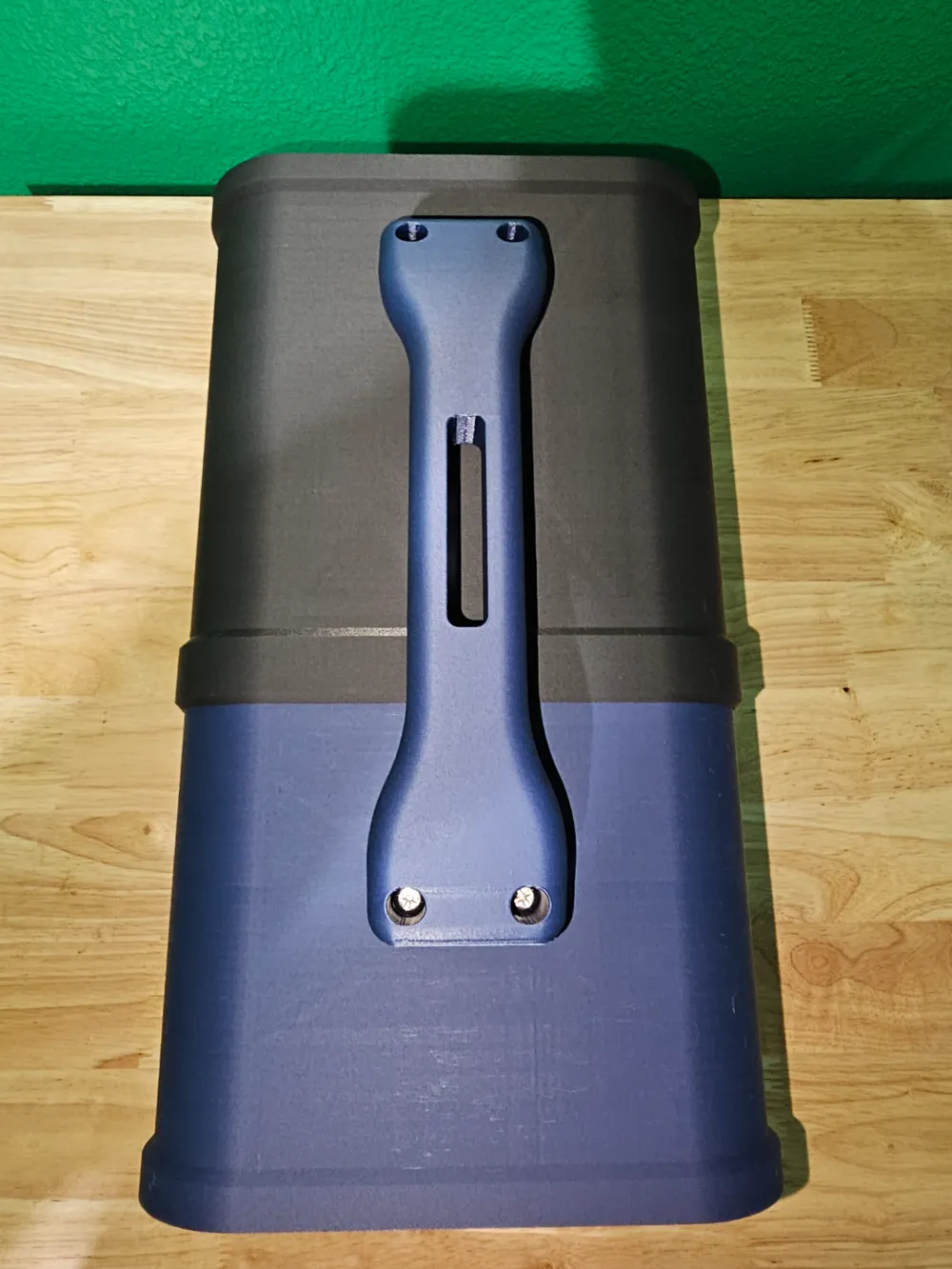

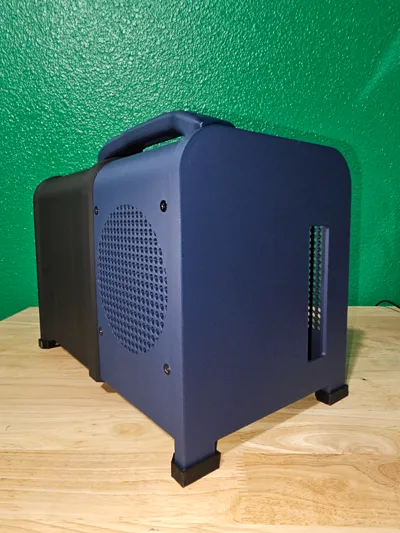

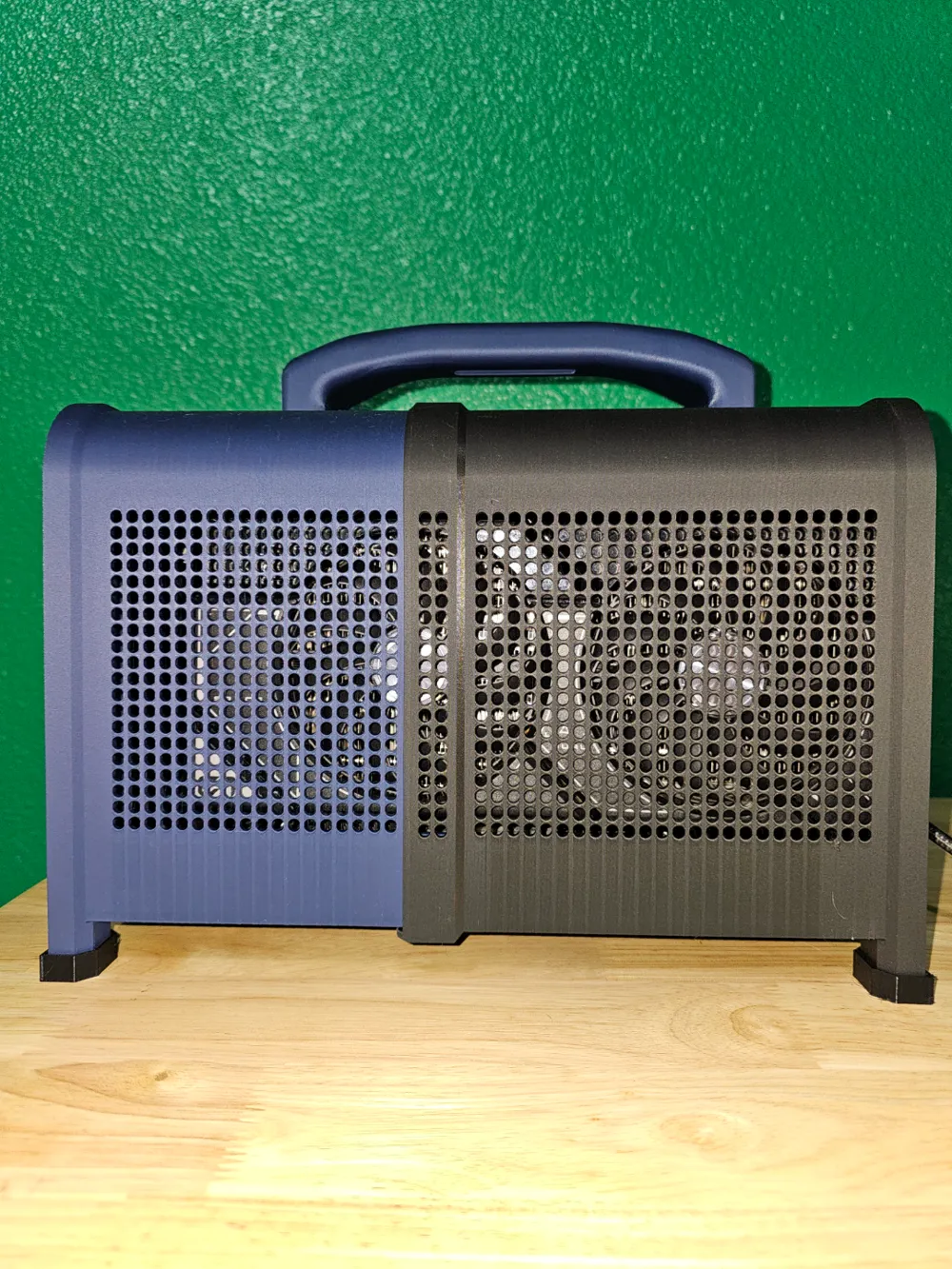

An EGPU is an external graphics card. They are used for giving more gaming performance to underpowered computers, and/or more recently Gaming handhelds like the Asus ROG Ally X. There are not a lot of available enclosures on the market, and if you find one it's $300 USD. This is my first version. I'm taking suggestions on how to improve my design. This particular enclosure is designed for an ADT-UT3G Board and an ATX power supply unit. In the photos I'm using an Asus Dual 4070 Super, so you should be able to use a 2.5 slot by 12-inch GPU. Right now, the handle is required because it's part of the connection system, but the TPU feet are optional
None 3D parts:
- 4 (M5 x 25mm Pan Head Bolts)
- 4 (M5 Nuts)
- 4 (M3 x 12mm Pan Head Bolts)
- 4 (M3 x 16mm Pan Head Bolts)
- 8 (M3 Nuts)
