Description

UPDATE!!!!: NEW PROFILE ADDED!

A1 Mini Profile Added!!

This update is for different door direction, BE CAREFUL which profile you are downloading!!!!!

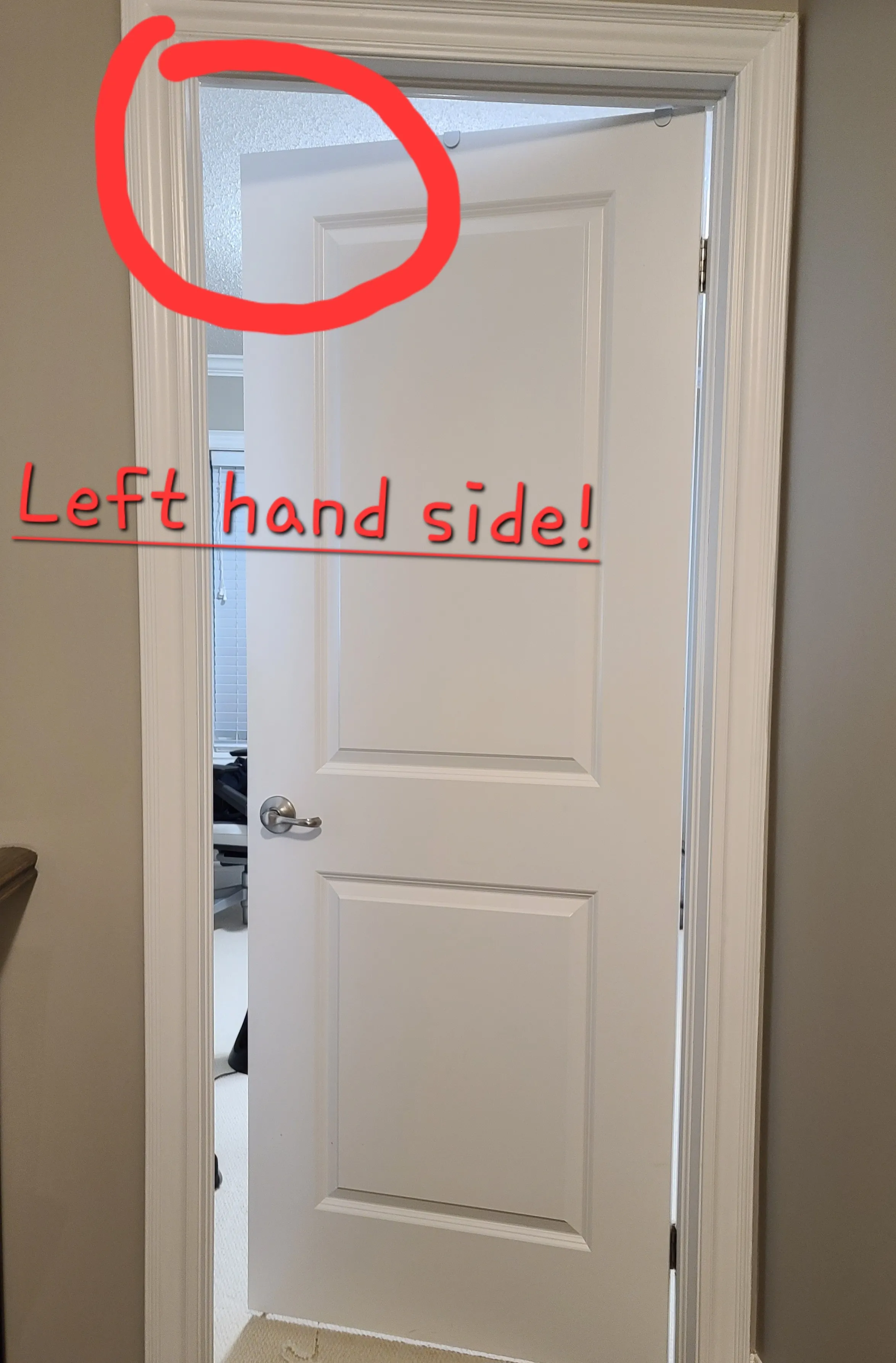

Left hand side install position:

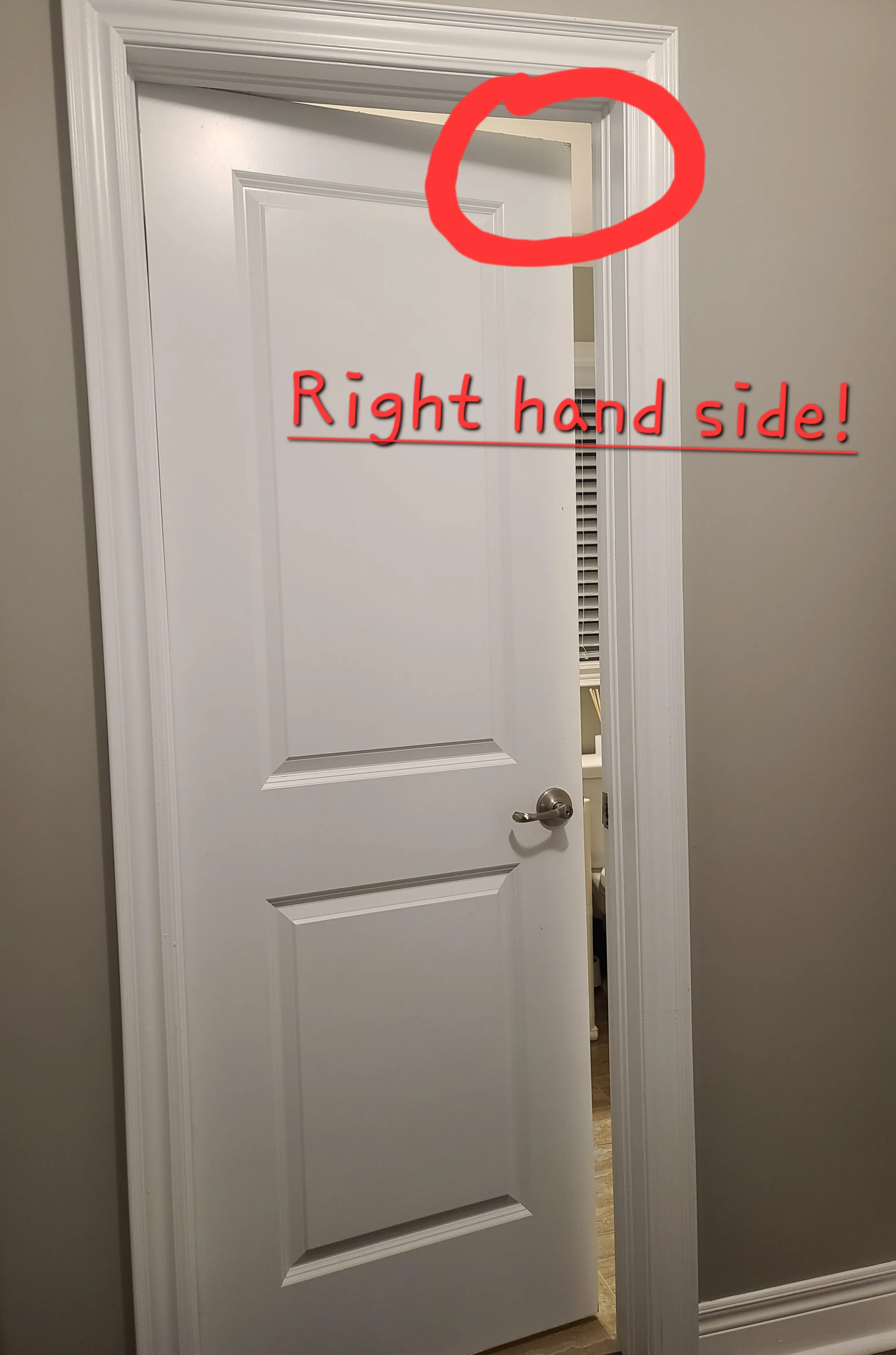

Right hand side install position:

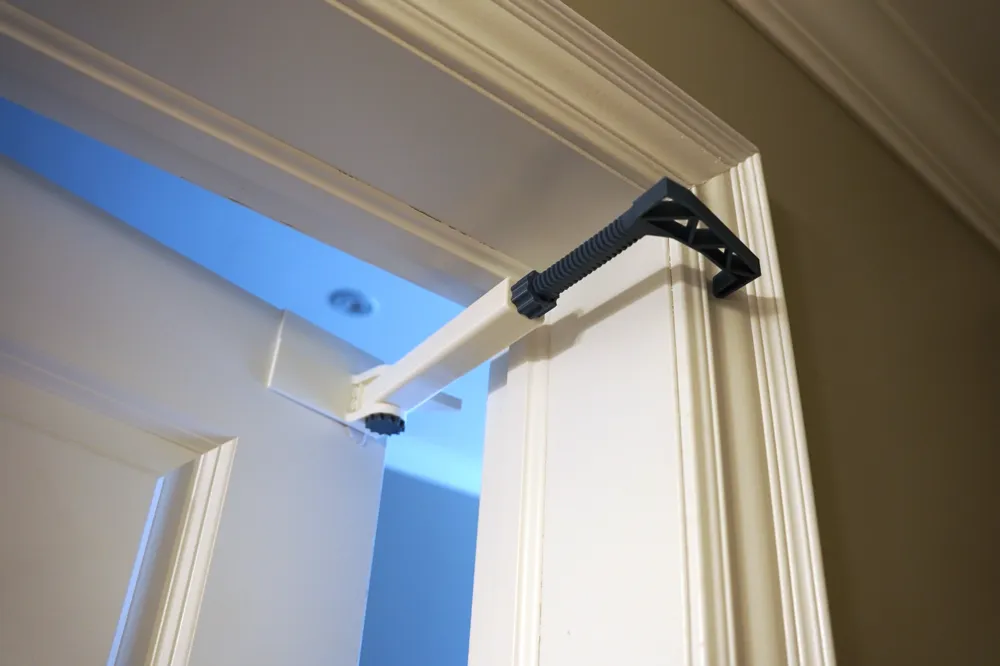

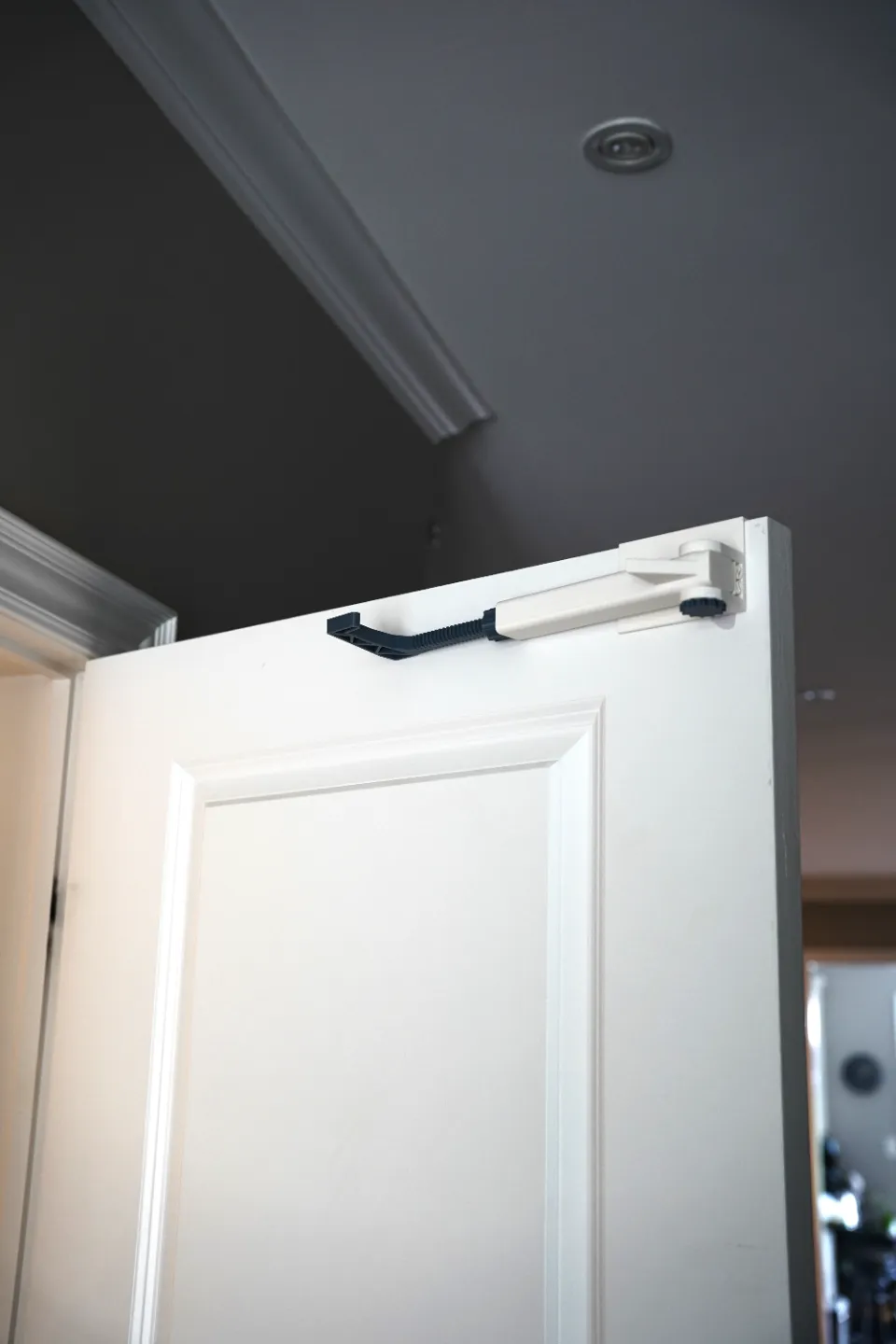

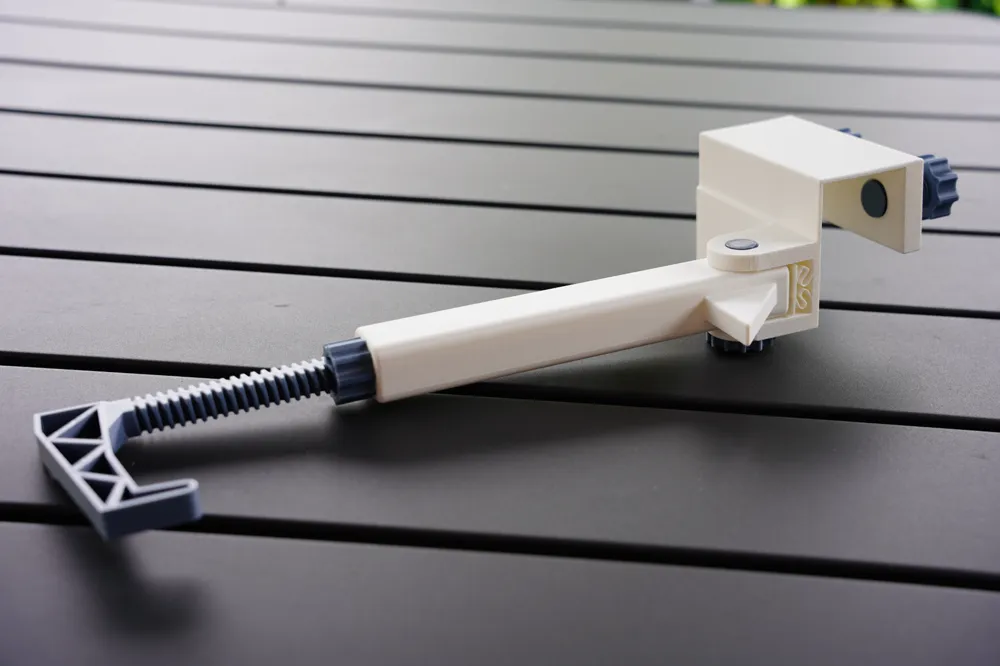

This Door Stopper is to control the door be opened in a certain angle. The door won't be closed neither be opened widely. The initial purpose is to let my cat enter the room but not my dog (she will eat cat litter!). This can also be used for keeping your kids away from a certain area.

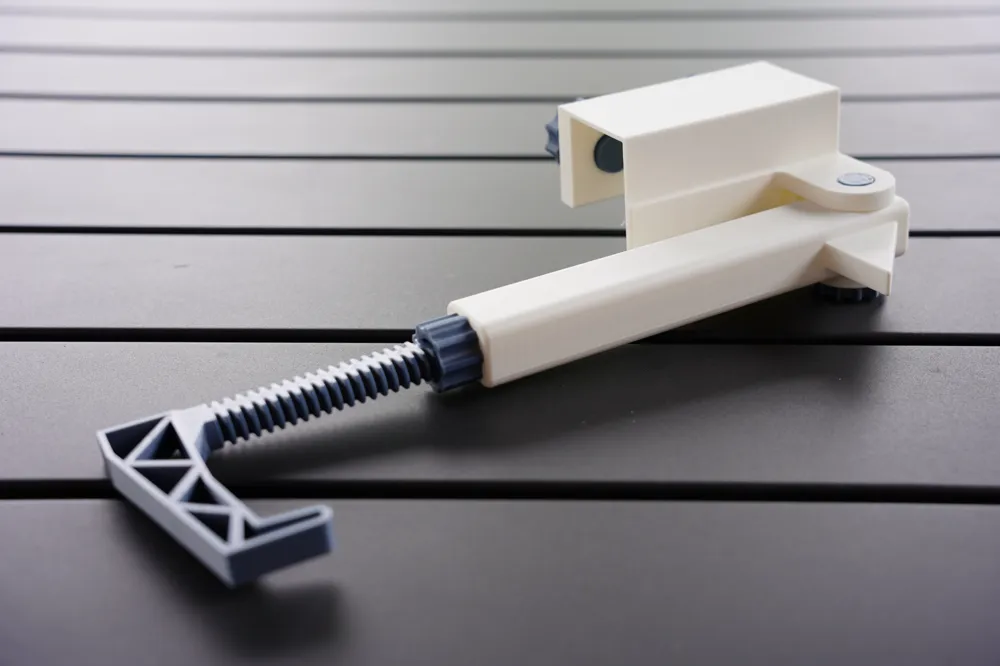

The length of Stopper can be adjustable based on your cat size.

PETG will be a better material for this design, as it is more flexiable.

Let me know your experience, and comment below, let's make it better!

TIPS: Use a double tape between the part and door will help it more stable and stronger!

Boost Me (for free)

Thanks for your support to my design, if you like it feel free to give me a boost, your support will be my motivation contribute more nice design to our community!

Comment & Rating (130)

@GRAVES

dog lives matter

@The_Kiwi_Daily

lol

@user_552113290

what is the point we all know dogs are better then cat🐶🐕🦮🐩🐕‍🦺🐾🦴🦮🦮🐩🐕

@gpak1977

yes!!!

@SupWithDeez

👎

@Alex_Prints

arguing on a 3d printing app is crazy xd

@Darramaker

Boosted

Print Profile

Left Hand Side!!! 0.2mm layer, 2 walls, 15% infill

May need to increase resolution for the threads on the back but it's seels like it's hold ok

The profile uploader has replied

@user_1591271630

wow that's a nice print! Will absolutely consider your feedback and that is valuable! Also I use PETG for the hooker part cause I realize PLA is a little brittle, PETG will hold it for sure :)

(Edited)

@Darramaker

Boosted

oh I used ABS, just what I had in the AMS at the time

(Edited)

@OhPaleez

Boosted

This is exactly what I need! Two 8 month old Alaskan Malamutes and two rather old kitties in the house right now can be a little chaotic. The girls have gotten big enough that they can push the weight and door open without an issue and the kitties are not happy with me. Thank you for creating such a useful thing, I will be printing this today! I printed the original and realized the wrap around arm was too short for my trim (smooth, wide trim) so I made a longer arm that wraps around the face of the trim and grabs the side of it. With two malamute puppies always following my cats, this give the cats a safe place to go. Thank you so much for this print, it's going to make my kitties much happier and less stressed!

(Edited)

The designer has replied

@user_1591271630

Haha similar situation with me! Glad this can help people like us! Be careful about the direction, i uploaded two profile of different direction, cause door might be installed in different way, take a look of the update in my description. Enjoy your print and hope ur furry friends will be happy then!

@OhPaleez

Boosted

Replying to @user_1591271630 :

This works perfect, thank you for sharing the design. I tried posting a photo but I am too old to figure out what I'm doing wrong, lol.

@70nyd

how did this go? I need something similar and I don't think this is close to strong enough for my amstaff

@ScaduFax

Boosted

It worked perfectly so my beloved puppy couldn't eat her favorite truffles anymore thank you

Show original

@user_3366108933

bro what do u have against dogs

@user_1465217692

dogs deserve to be in more than the cats do 😡

@JMClaser

lol it’s to keep them out of a room. like when they eat cat poo. settle down.

@user_2342896004

no, cats are under rated

@naklsonofnakkl

Print Profile

Right hand side!!! 0.2mm layer, 2 walls, 15% infill

Printed the hook and screws in ABS and the rest in PLA and it works perfectly.

The profile uploader has replied

@user_1591271630

That's a perfect combination :)

@Mavrickguitarsx

Boosted

Print Profile

Left Hand Side!!! 0.2mm layer, 2 walls, 15% infill

printed beautifully!

@simple_jack

Print Profile

A1 MINI!!! Left Hand Side !!0.2mm layer, 2 walls, 15% infill

what an awesome invention. unfortunately it doesnt work with my situation.. make sure to check for something like this before you print it. i tried redesigning the door attachment so i could have it hook up towards the ceiling but it didnt really work. prints great and would be perfect if my door frame was built different!

@user_182739372

Print Profile

Left Hand Side!!! 0.2mm layer, 2 walls, 15% infill

Nice, thank you
