Calibration and Compensation Precision Tool
Print Profile(1)
Description
Wanted a model that I could use to test X-Y hole compensation and X-Y contour compensation as well as dimensional accuracy before printing a complex print for an assembly.

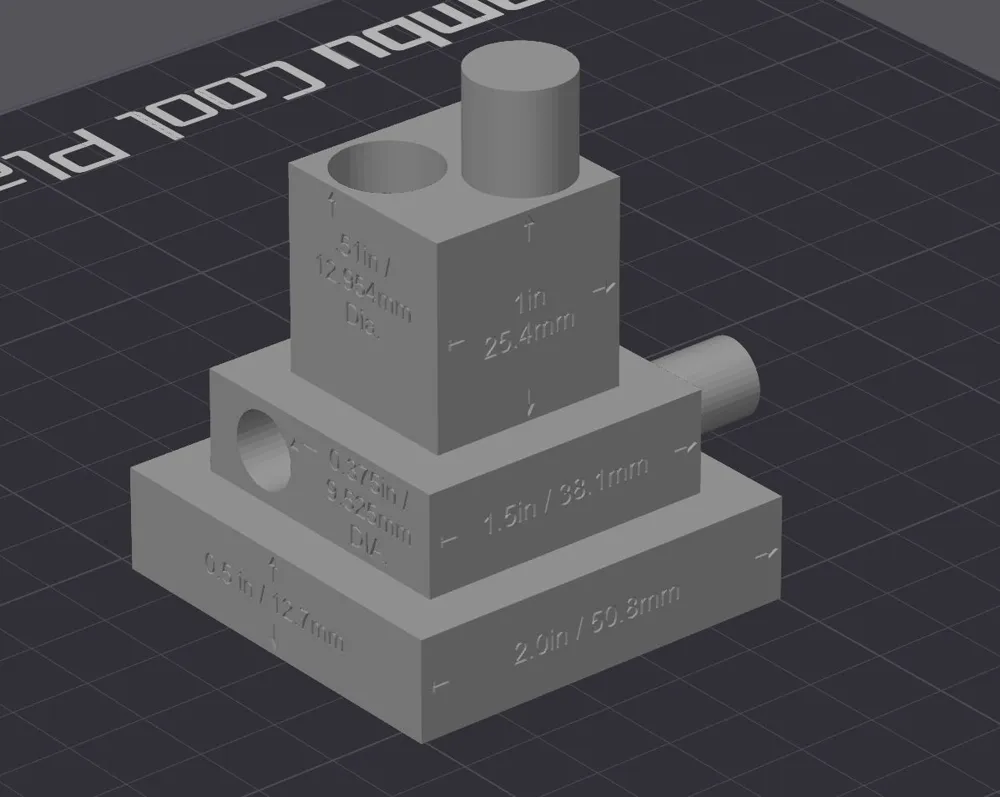

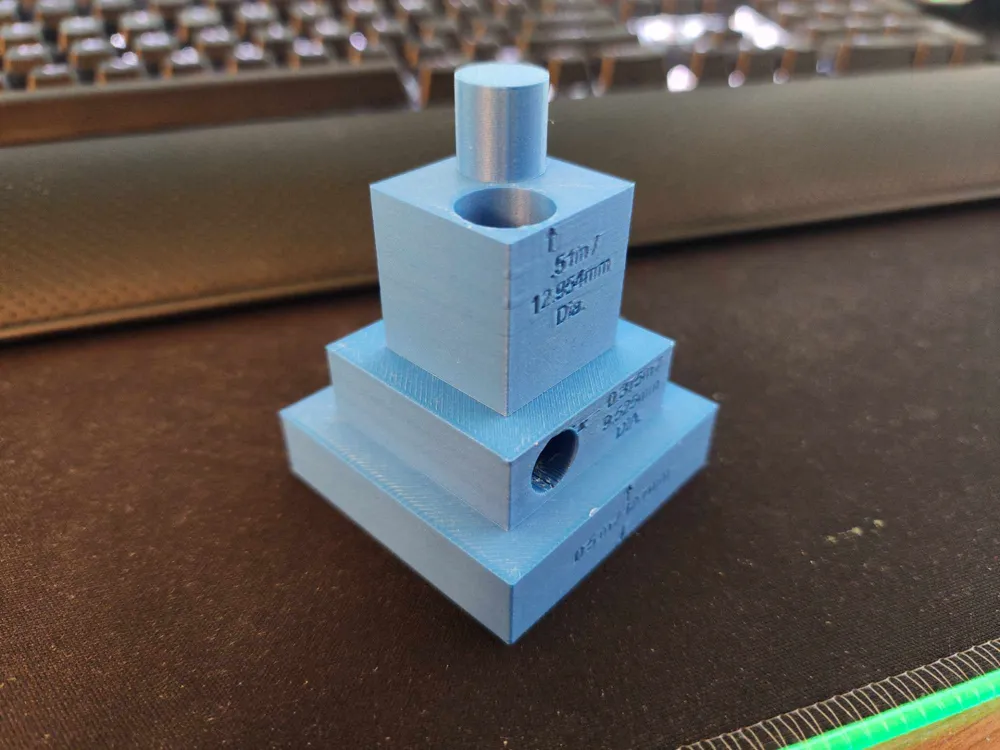

This part has the dimensions engraved right in the model;

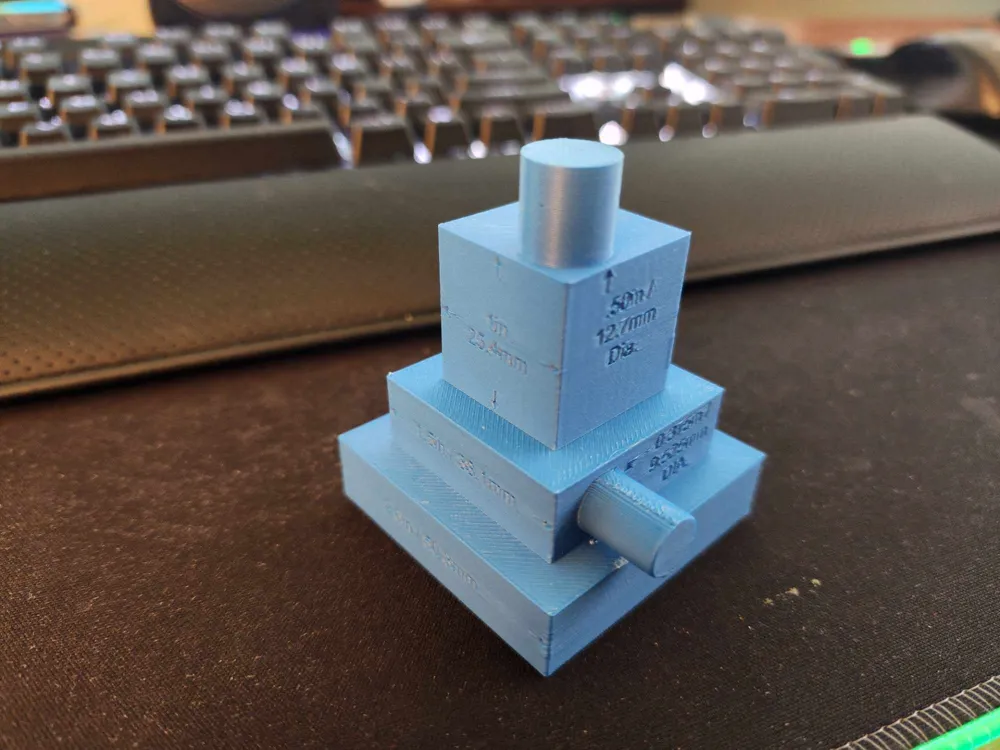

there is a boss as well as a hole on both the horizontal and vertical planes.
The top hole is oversized by .01 inches to allow for a standard normal slip fit for testing.
Can dial the model in using these settings.
