Summary

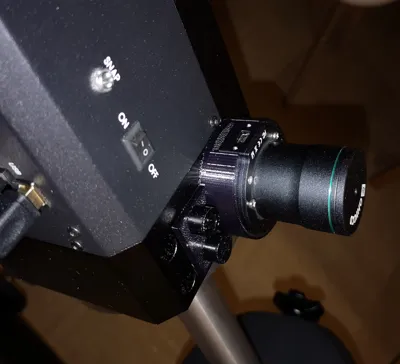

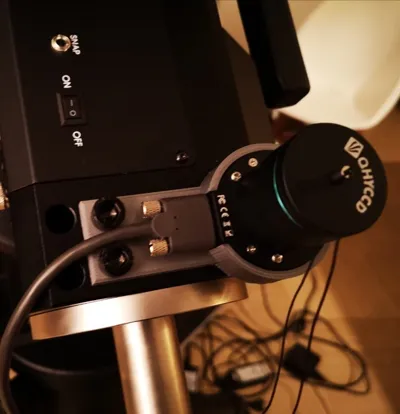

2 adapters QHY Polemaster to EQ8-R. One short adapter for vertical USB port placement and one long adapter for left alignment of the USB port. Left alignment of the USB port is required, per QHY manual, for advanced alignment features such as correction of atmospheric refraction.

1 quick and dirty adapter for the HEQ5 Pro.

Print Settings

Printer:

Dremel 3D45

                                            Rafts:
Doesn't Matter

Supports:

Doesn't Matter

                                            Resolution:
0.1mm

Infill:

20%

                Filament: Dremel PLA                doesn't matter
                        Notes:
EQ8-R requires 3 M3 nuts that may need to be glued in the hex holes.
HEQ5 is "tight" on purpose.
