Duct #14 - X1C
Print Profile(1)
Description

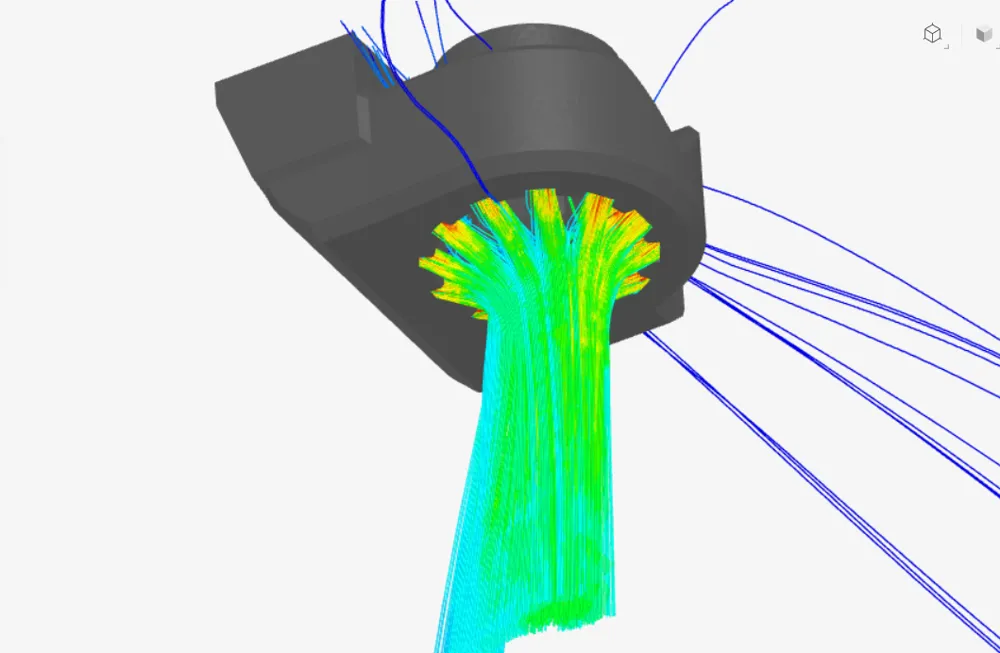

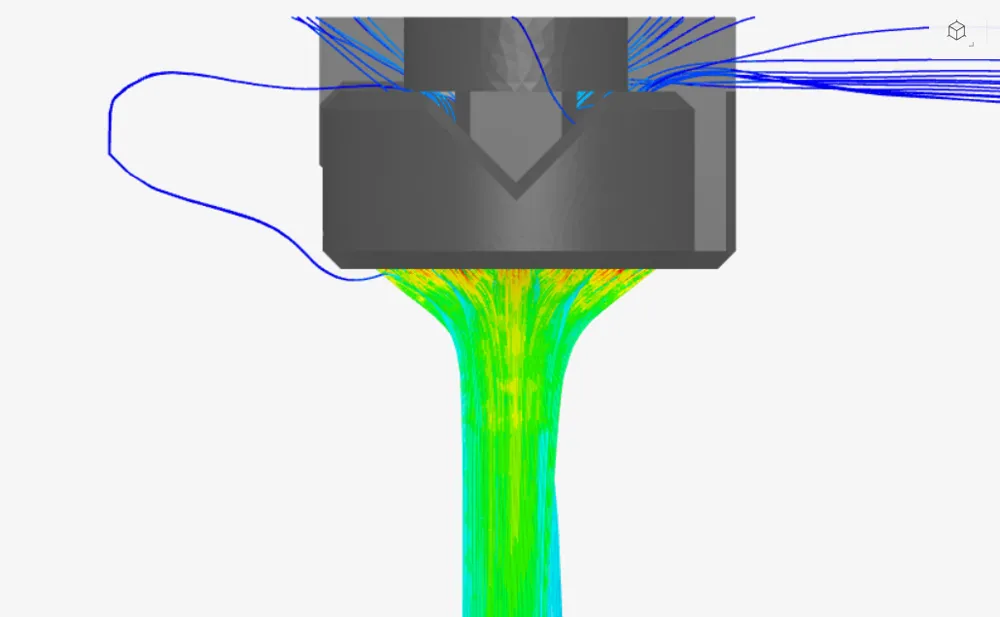

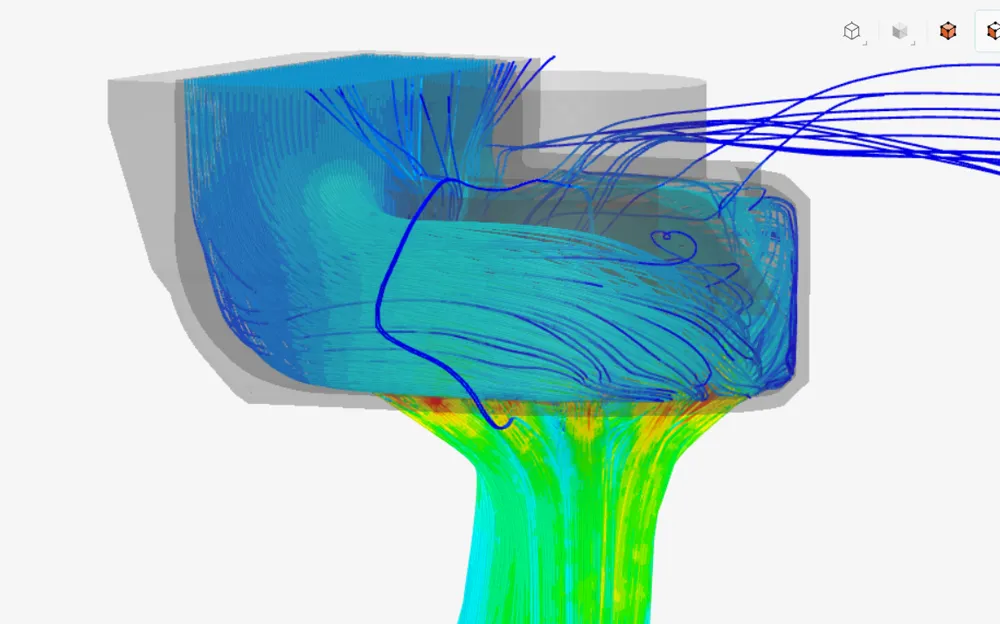

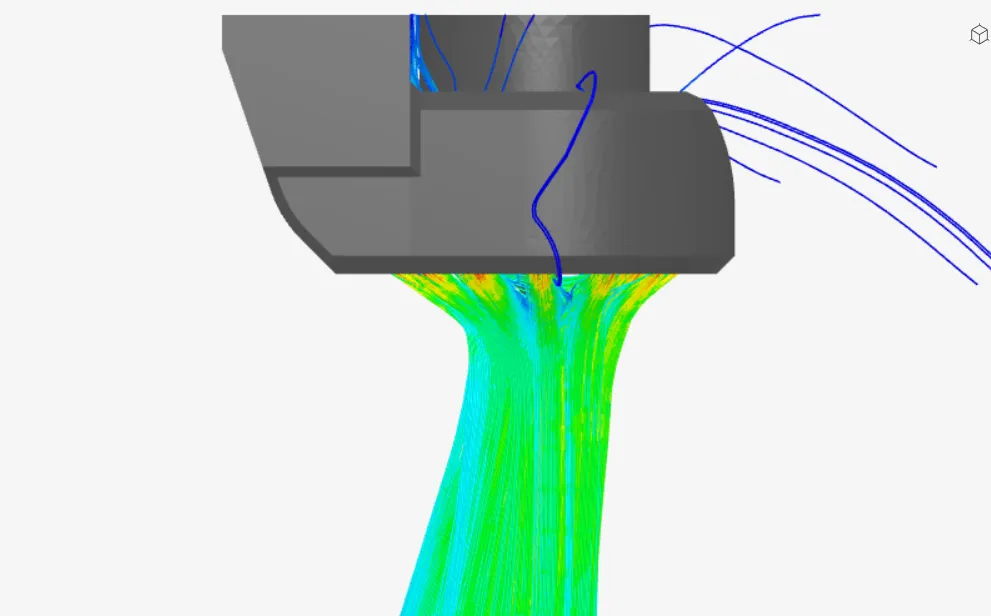

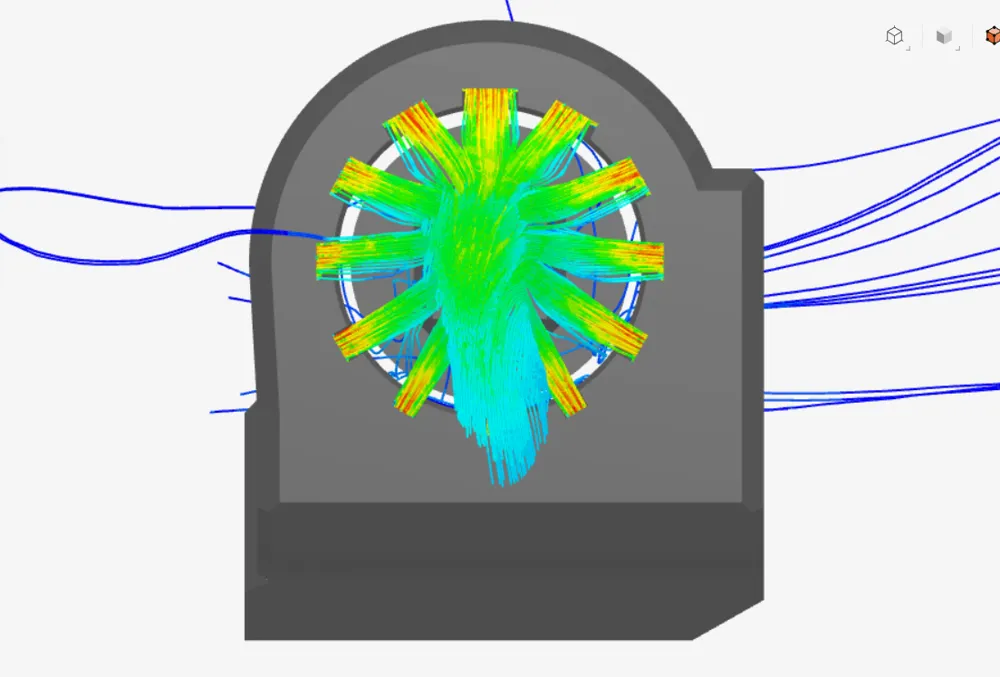

UPDATE - 25/08/2024: Used SimScale to visualize flow & improved in a couple places.
#14 because that was the number of ducts I had printed until I got one I was happy with.

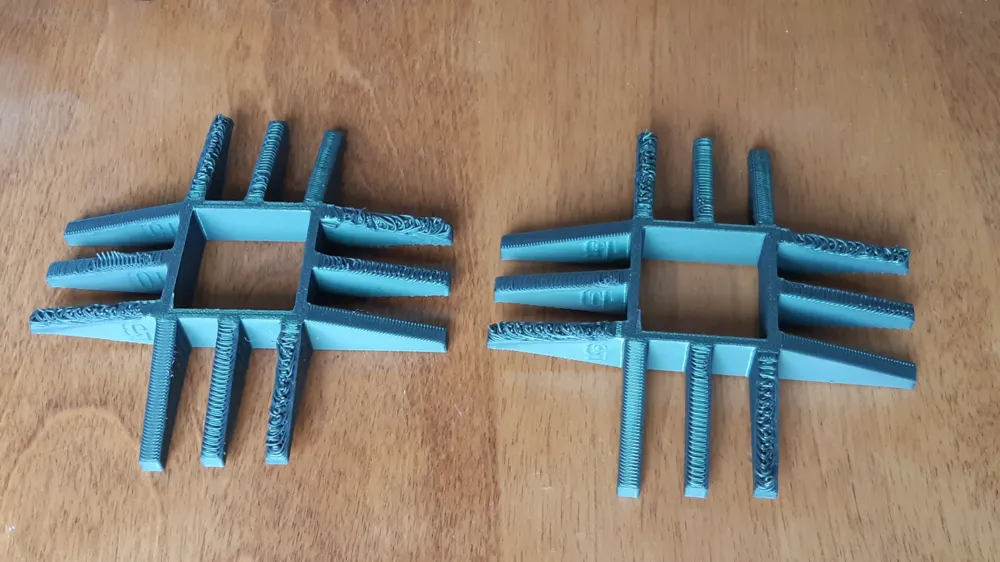

Gif of smoke-through to see the flow. Overhang test is stock on the left, #14 on the right.

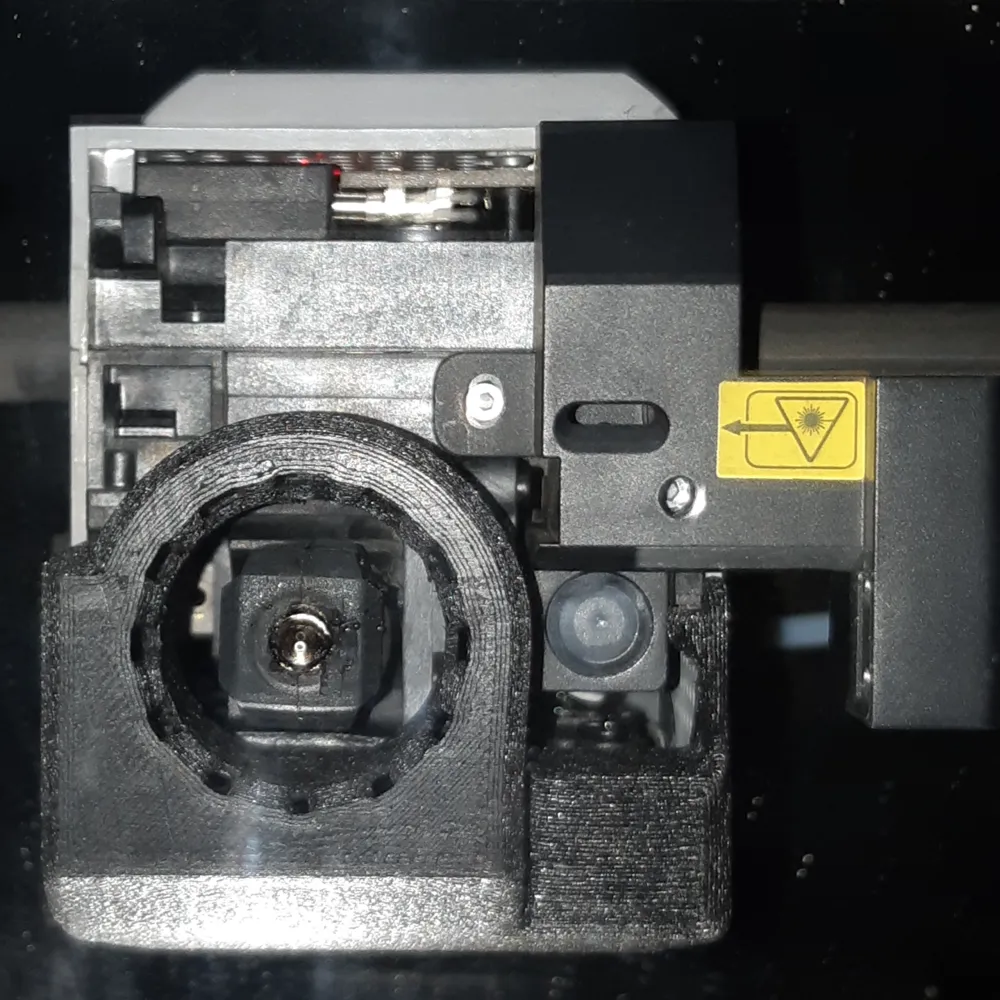

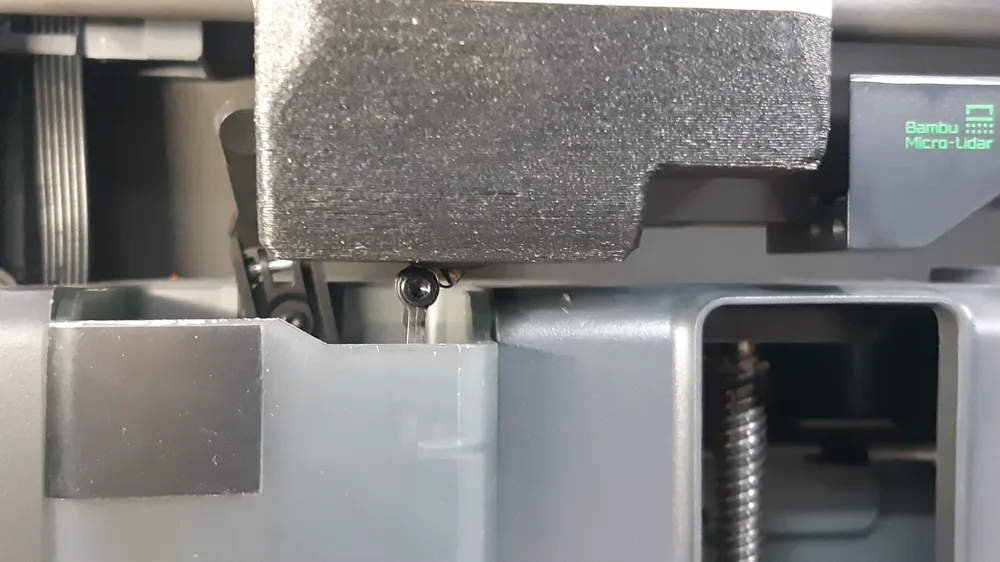

Not a lot of space under the toolhead to work with. I lowered the bottom of this one 1.5mm from stock, it now just clears the cleaner.

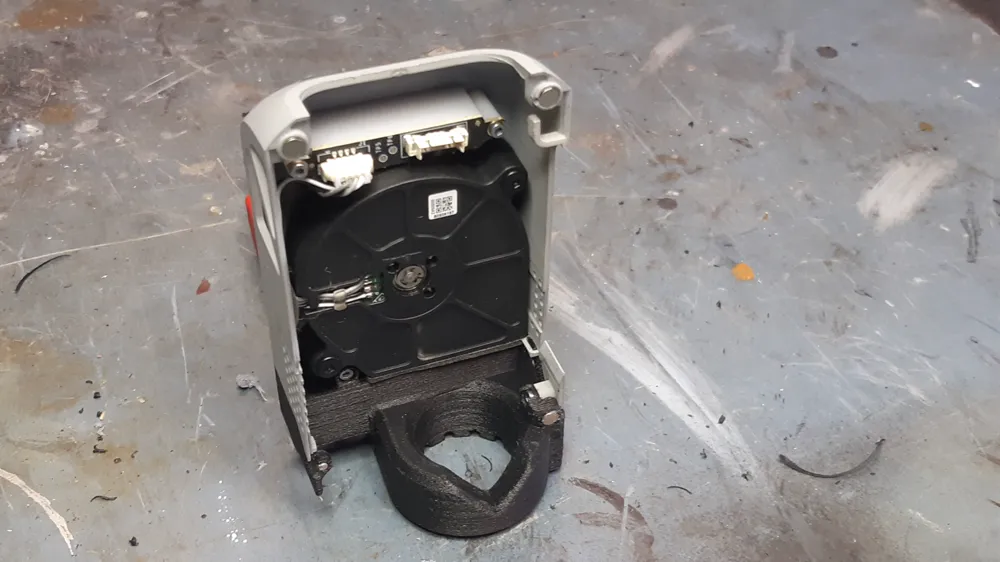

You'll need the magnets from the stock duct, and glue them in. (4x2mm & 2x2mm)

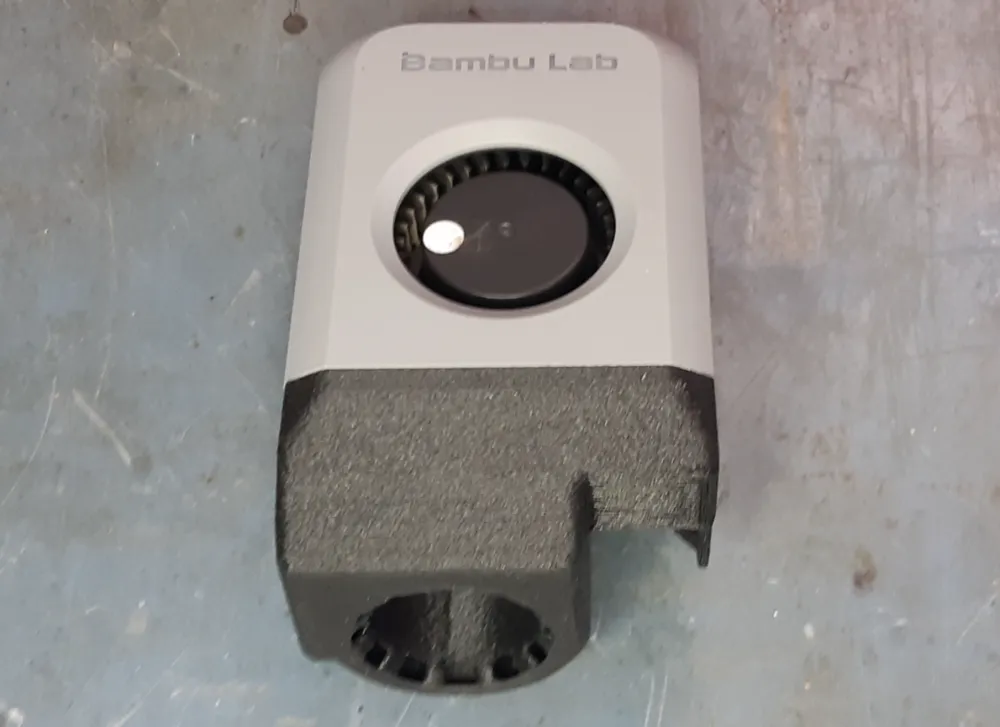

Printed here in PAHT-CF. You might get away with PETG.

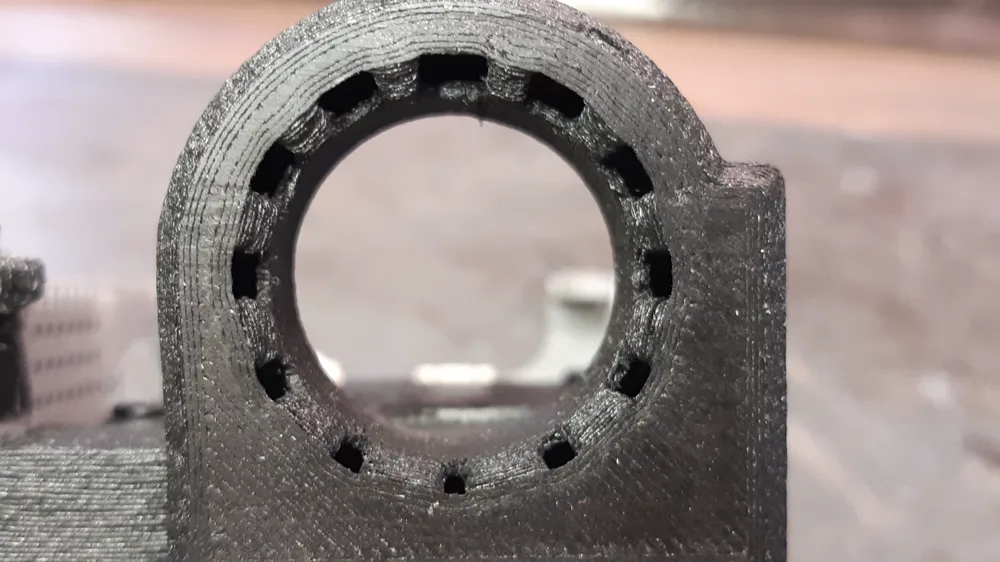

The little 5-sided hole on the left as you look at it, is to allow extra airflow from the nozzle fan, and it seems to have signifigant flow coming out of it.
