0.2mm layer, 2 walls, 15% infill

Teimo





Same print profile as the original, with added text for customization on the plate, a 0.2mm nozzle will yield the best results, though a 0.4mm nozzle will still ensure the text remains readable.0.4 15 min-ish0.2 50 min-ish&nbsp;Click on “Objects” then right click “text_x” and click “edit text” &nbsp;PS excuse the bad quality pictures in real life its very easily seable

WITH TEXT 0.2/0.4mm nozzle, 0.1mm layer, 4 walls, 15% infill

PETG


user_396609330


JMC17




AMS ready, print 4 swatches per plate and stackable (total size same as original). Flush optimized if you go for the full print plate. Steps are set for 0.08mm layer height.  How to use?Load your AMS with 4 spools.Open this profile in Bambu Studio. Sync Info. Continue to sync filaments.Overwriting, Synchronize now.Edit Text. Slice Plate, Print.  InstructionsTo edit text, go to Process&gt;Objects and look for the items below “Color Swatch #1” or whichever you need to change.Select, for example, Manufacturer, then Right Click&gt;Edit Text. You may have to adjust its horizontal position after modifying the text.&nbsp;To change text color, change the modifier cube&#39;s filament. To do that, go to Process&gt;Objects and select a modifier cube then Right Click&gt;Change Filament.&nbsp;To change the swatch color, go to Process&gt;Objects and select “Color Swatch #1” or any other similarly named item. Right Click&gt;Change Filament. Additional InfoIt prints object by object, from the top swatch (#1) to the bottom swatch (#4).Flush optimized means, for example, it will print the white swatch then switch to yellow to color the text, then prints the yellow swatch, saving a few additional purges for the whole print. You can of course, change that yourself if you want proper color contrast. I&#39;ve chosen less than optimal color combinations on purpose in my picture to show what you can expect from this profile.&nbsp;&#34;Total size same as original&#34;To save on flushing, the text must exceed the swatch&#39;s height. Instead of making the text bigger, I made the swatch thinner. To make it stackable, I added the corners. The thickness of the swatch plus the corner(or text) equals to the original size of the swatch. I did it so that it remains compatible with boxes and containers you may be using for the original swatch.&nbsp;Difference between plate 1 and plate 2 is that the first plate has colored text. Second plate prints the swatch and text with the same color.&nbsp;Steps info: Step 1 (2 layers, 0.16mm)Step 2 (4 layers, 0.32mm)Step 3 (6 layers, 0.48mm)Step 4 (8 layers, 0.64mm)Step 5 (10 layers, 0.80mm)Step 6 (12 layers, 0.96mm)Step 7 (14 layers, 1.12mm)

AMS, 0.08mm layer with text, stackable, same total size.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

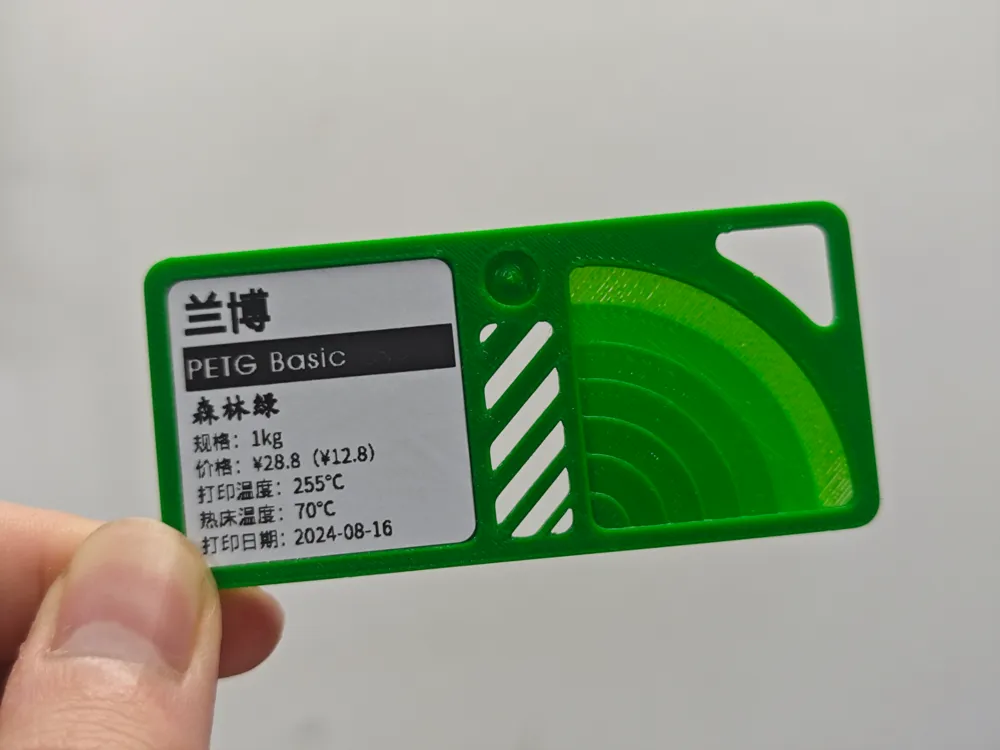

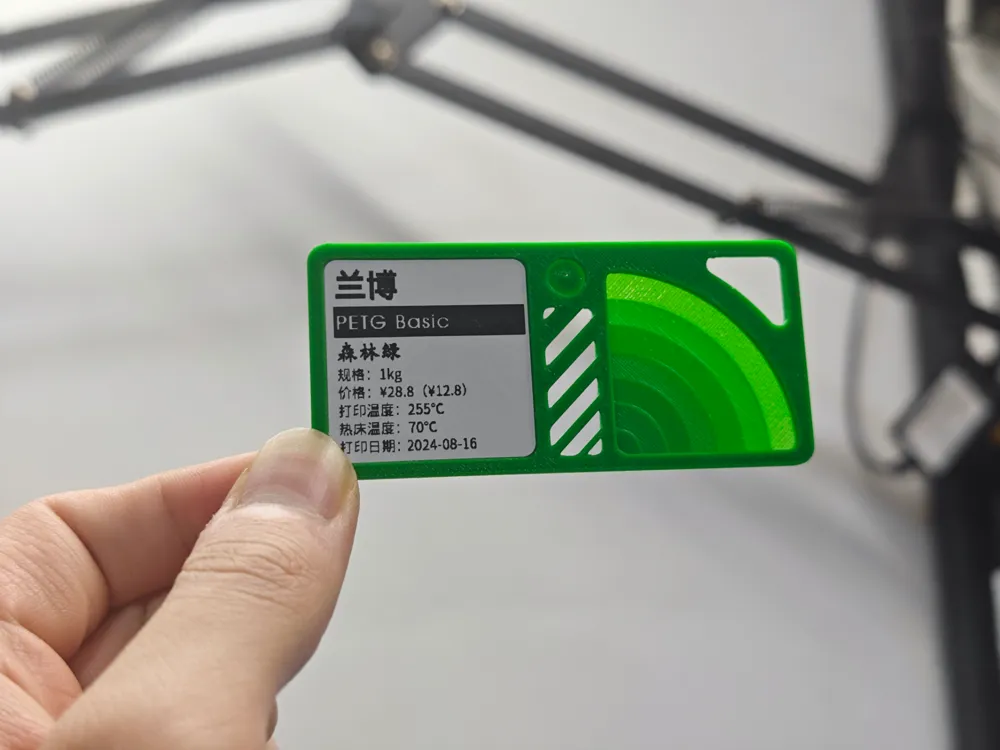

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you like this, please boost me.</boostcontent></boostme>Filament color card with transparency, thin-walled and conical tests.&nbsp;Matching Storage Box: <a target="_blank" href="https://makerworld.com/en/models/642884" rel="nofollow noopener">Magnetic Pull-Out Color Card Box</a>&nbsp;The thin-walled sections, from bottom to top, are 1mm, 1.5mm, 2mm, 2.5mm, and 3mm in thickness. The transparency sections are 1, 2, 3, 4, 5, 6, and 7 layers, corresponding to 0.2mm, 0.4mm, 0.6mm, 0.8mm, 1mm, 1.2mm, and 1.4mm respectively, using a 0.2mm layer height for printing.&nbsp;Use 30*30mm thermal labels to record detailed information.

Filament Color Card With Tests
