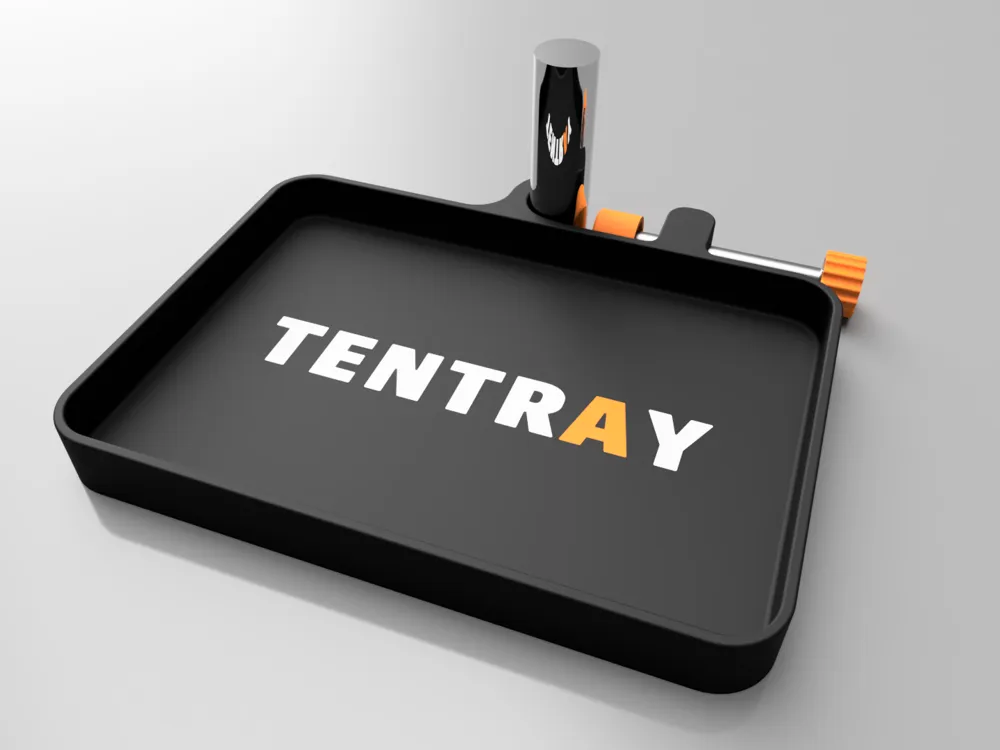

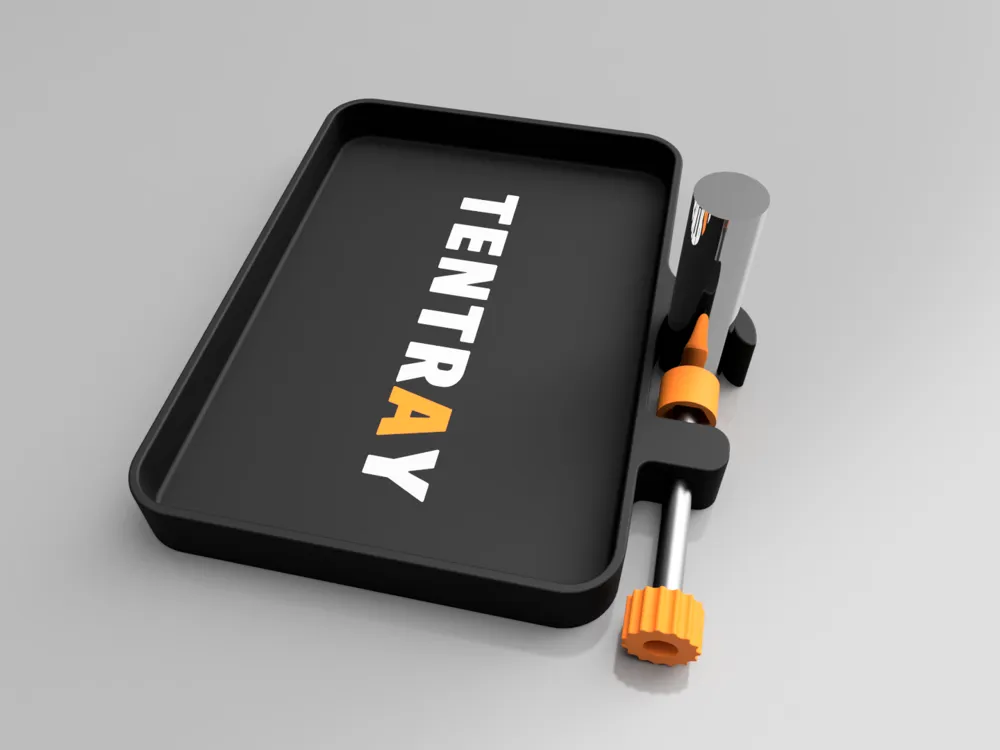

TENTRAY - Camping tray for vertical poles.

Features:

- 230mm x 160mm x 20mm tray
- Fully 3D printed apart from one 80mm long M10 bolt and two M10 nuts.
- Designed to mount to 25mm and 16mm vertical poles (16mm - with included adaptor) - These are the standard sized poles used in TENTBOX lite models
- Easy to print.
Bambu studio painted 3MF included as well as STL for other brands requiring debossed text.

Assembly:
- Press the M10 nut into the underside of the tray.
- Thread in the M10 bolt.
- Thread the second M10 nut onto the end of the bolt until it sits flush.
- Glue on the cap and knurled knob.

The 16mm pole adaptor is in the RAW model files

Thanks for looking!

Please rate and review your printing experience :)

Boost Me (for free)

If you like this design, please consider giving it a boost :)

Every single boost is very much appreciated!

Thank you.
