Can dispenser for 33cl SlimCans-PrintArea210x210mm
Print Profile(2)
Description

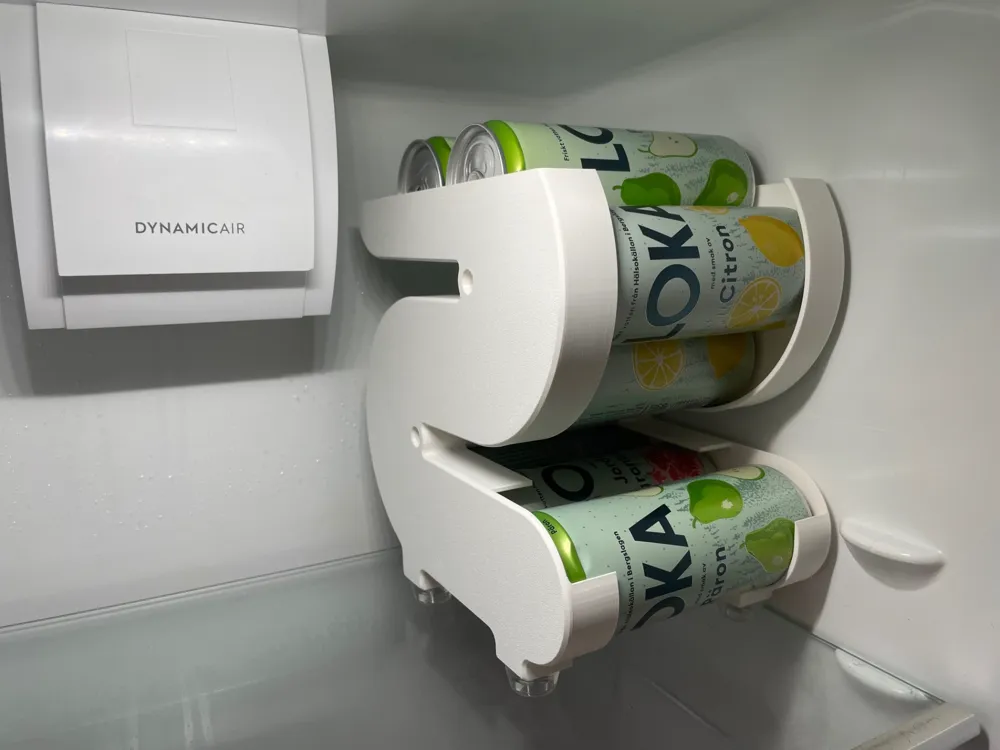

This is a can dispenser for 33cl cans, Slim type. The print area needed is 210x210mm which makes it suitable for Ender 3´s and all other printers with a print bed larger than 210x210mm. The sides are screwed together with threaded M5 inserts OR standard M5 Hex Nuts. I designed for using a countersunk screw but in the profile there are two cones that act as as an adapter for those who want to use a flat head screws. The feet are optional but the feeling is better with some kind of friction under it. I bought the feet and submit the link in the attached .pdf but I also submit a file for those who want to print the feet in TPU.
NOTE! The base model fits European standards of cans Drink can - Wikipedia
Base model fits cans with width 58mm and height 145mm.
If you live in North America you also need to print the spacer: "Spacer 10mm for North America 12FLoz (355ml) SlimCan.stl".
I made a print profile separately for these spacers.
Fit the spacers with longer screws between the gables to fit the American standard.
The European 33cl can is often confused with the American 12FLoz (355ml) can.
They have the same diameter but the 355ml is taller.
