SCX24 - Meus MB24 rear bracket replacement

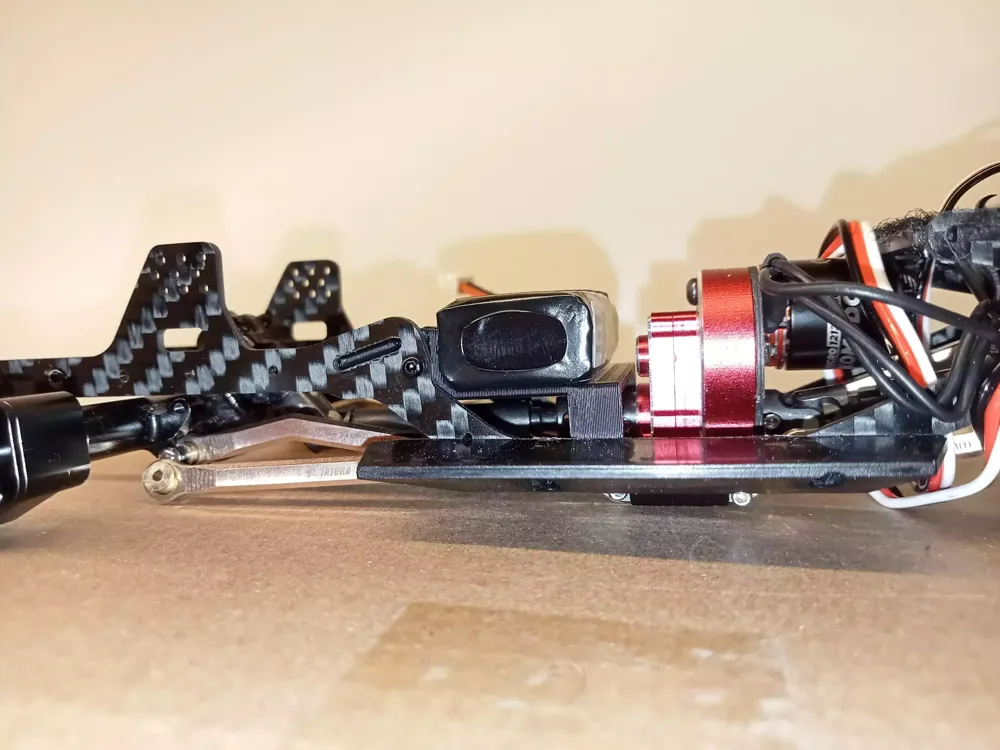

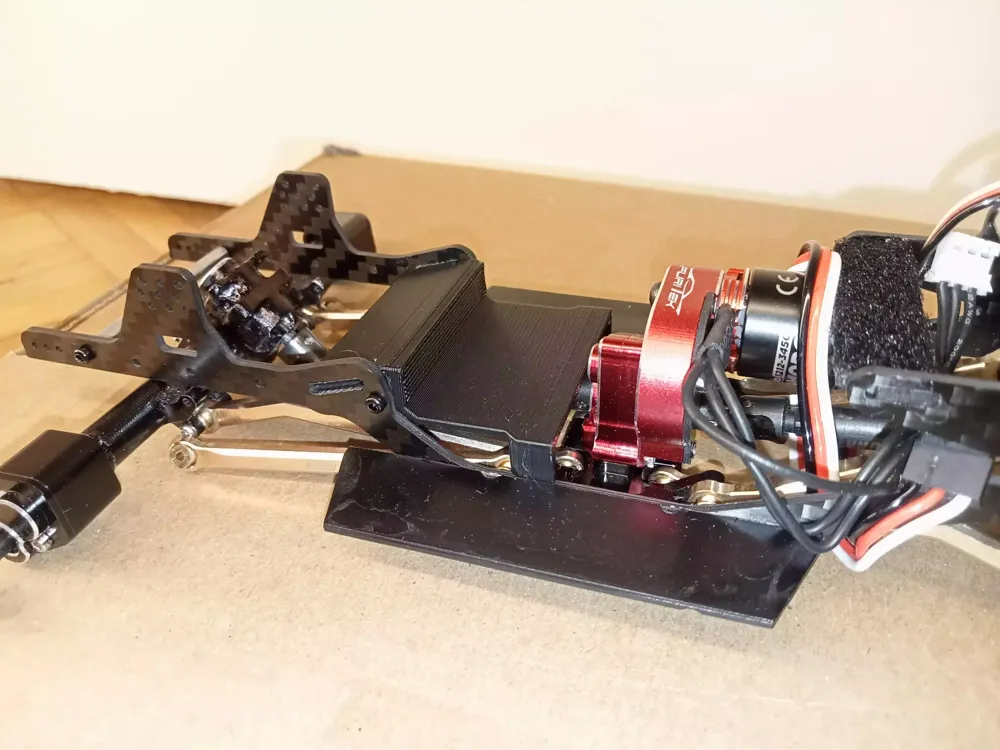

Rear bracket replacement for Meus MB24 that allows to mount a small battery very low in the chassis (there is just enough room for the drive shaft) designed to work with the Furitek Stellar transmissions with forward mounted motors (i suspect most forward mounted transmission should fit aswell).

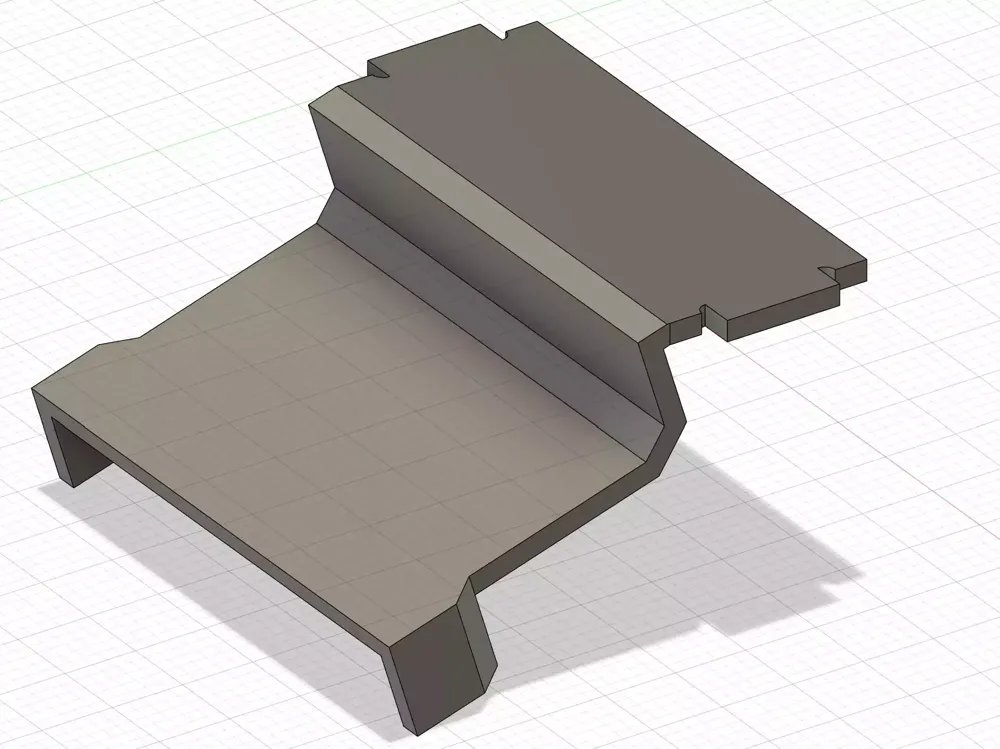

Added Fusion 360 file in case anyone wants to change something.

Print Settings

• Material: Bambulab PLA Basic
• Nozzle Size: 0.4mm
• Layer Height: 0.2mm
• Walls: 4
• Top Layers: 5
• Bottom Layers: 5
• Infill: Gyroid, 25% but doesnt matter, its just walls
• Wall Generator: Arachne
• Supports: Yes
• Raft: Yes
