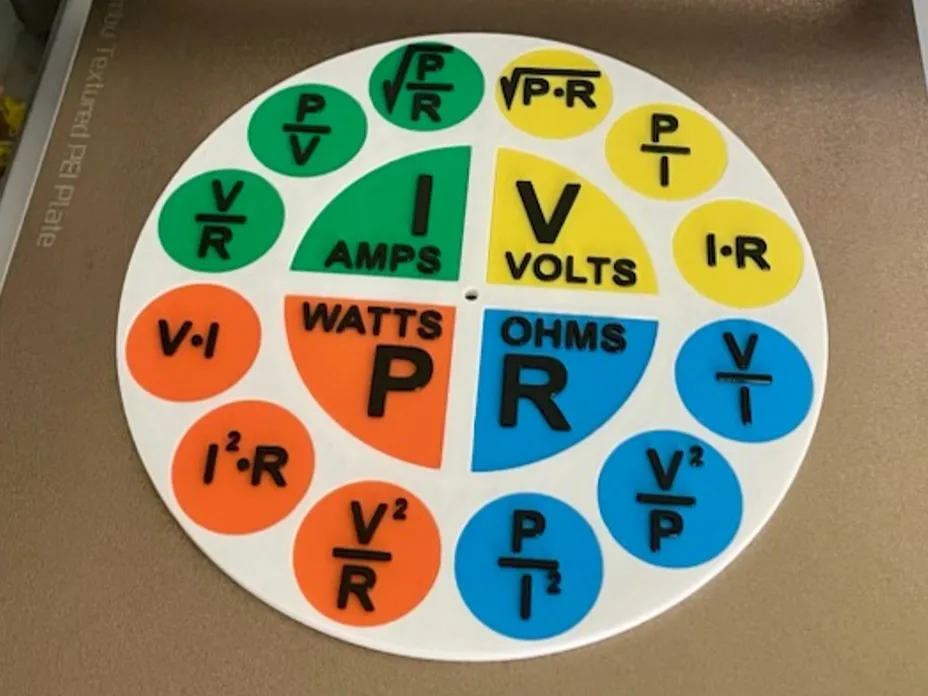

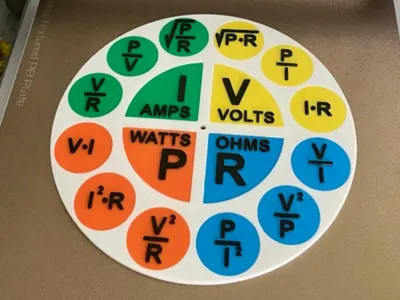

Ohm's Law Circle Wheel

What is it? The Ohm's Law circle or wheel is a pedagogical tool. The purpose of the Ohm's Law circle is to provide an easy-to-understand visual representation of the mathematical relationships in Ohm's Law, making it easier to solve for one variable when the other two are known.

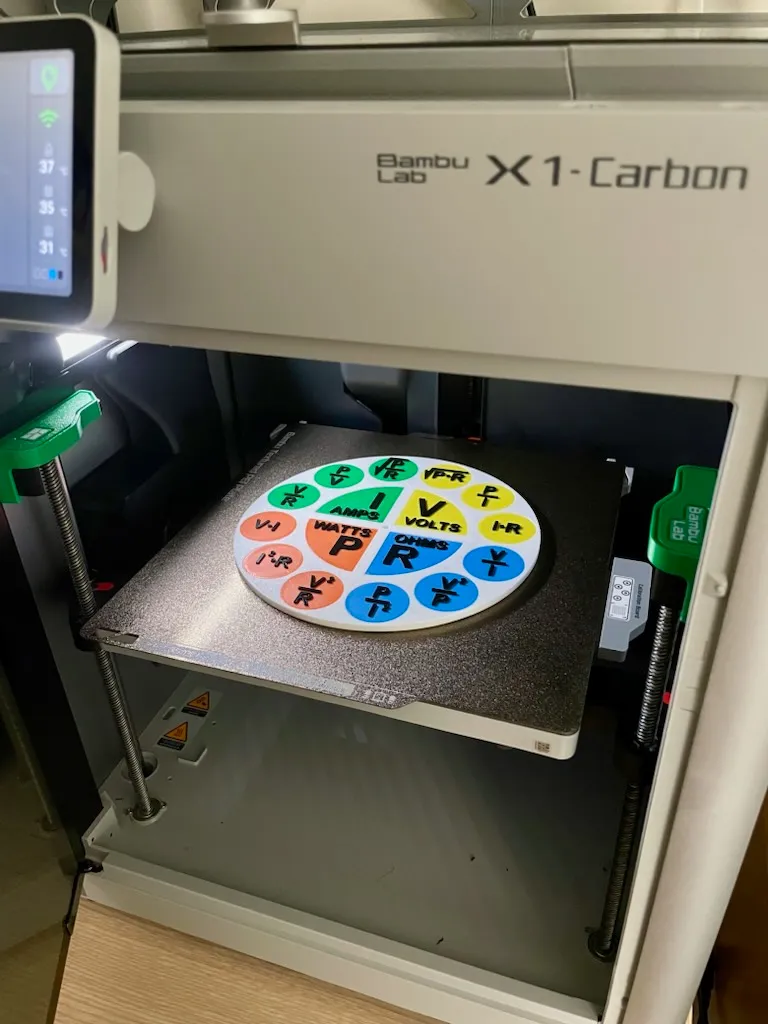

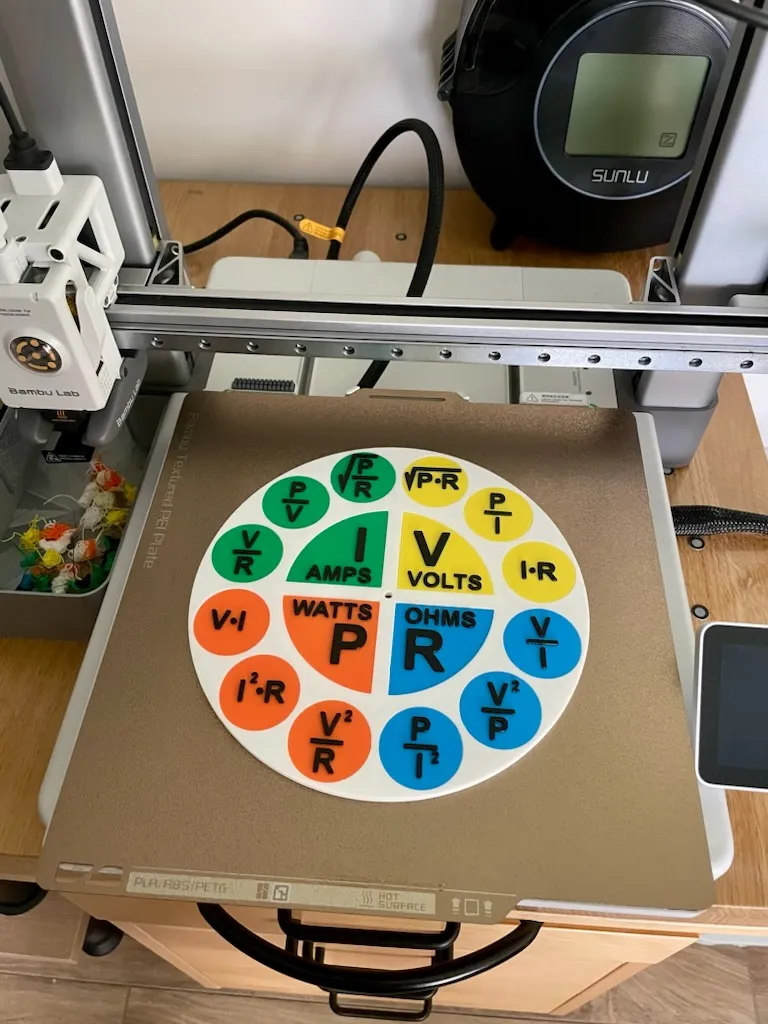

Printing: All the clearances are pre-made in the model for a standard printing with layer height of 0.2mm. The fit might vary depending on the printer used, but is designed with glue-in in mind. It can also be printed for a tight press-fit if the coins scale is appropriately adjusted. There are keys in the coins to ensure the text appears straight. Some fine-cleaning and removal of print residue might be required depending on your setup.

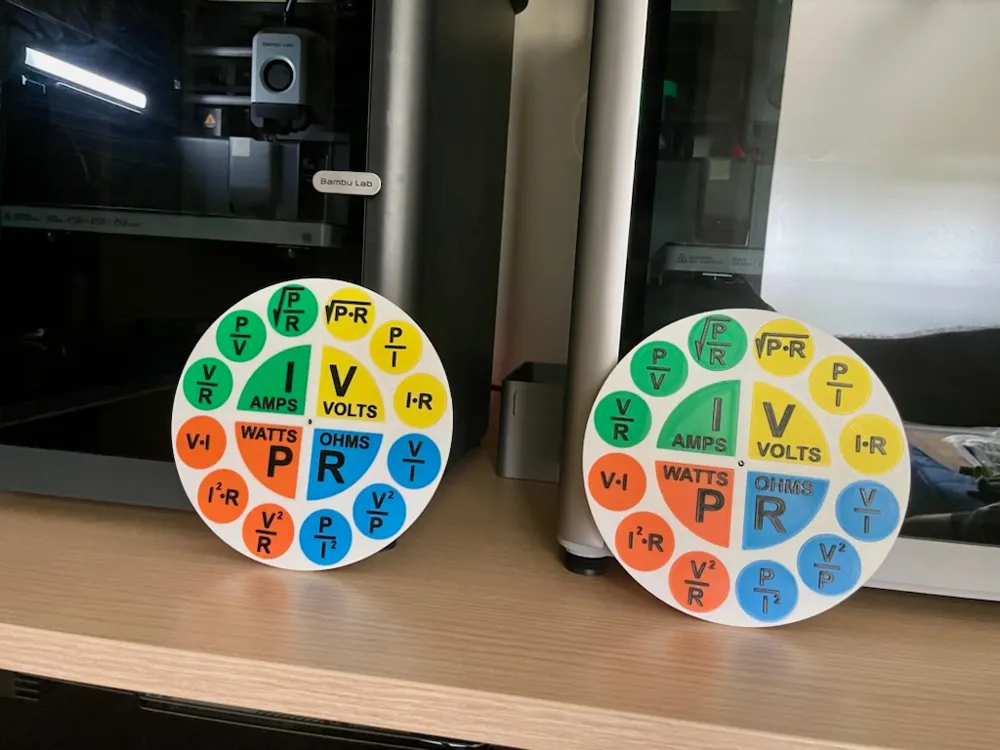

Impress your classmates or colleagues with this Ohm's Law Wheel. Show off your creativity with your best color combination!

Otherwise the print is straightforward.

There is a mounting hole of 4mm in the middle for a board pin.

Diameter appr.- 190 mm.
Total thickness - 5mm
