Compact Nintendo Switch Dock
Remixed by
IP Report
Print Profile(2)

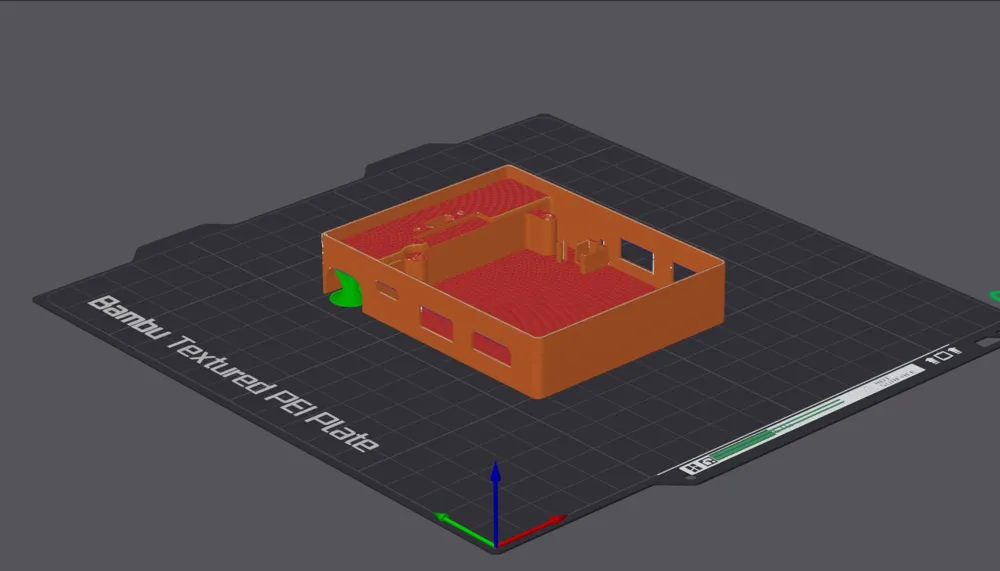

PETG, 0.16mm layer, 2 walls, 15% infill
Designer
1.9 h
2 plates
PLA, 0.16mm layer, 2 walls, 15% infill
Designer
1.8 h
2 plates
Open in Bambu Studio
Boost
104
222
29
25
273
199
Released
Bill of Materials
List other parts

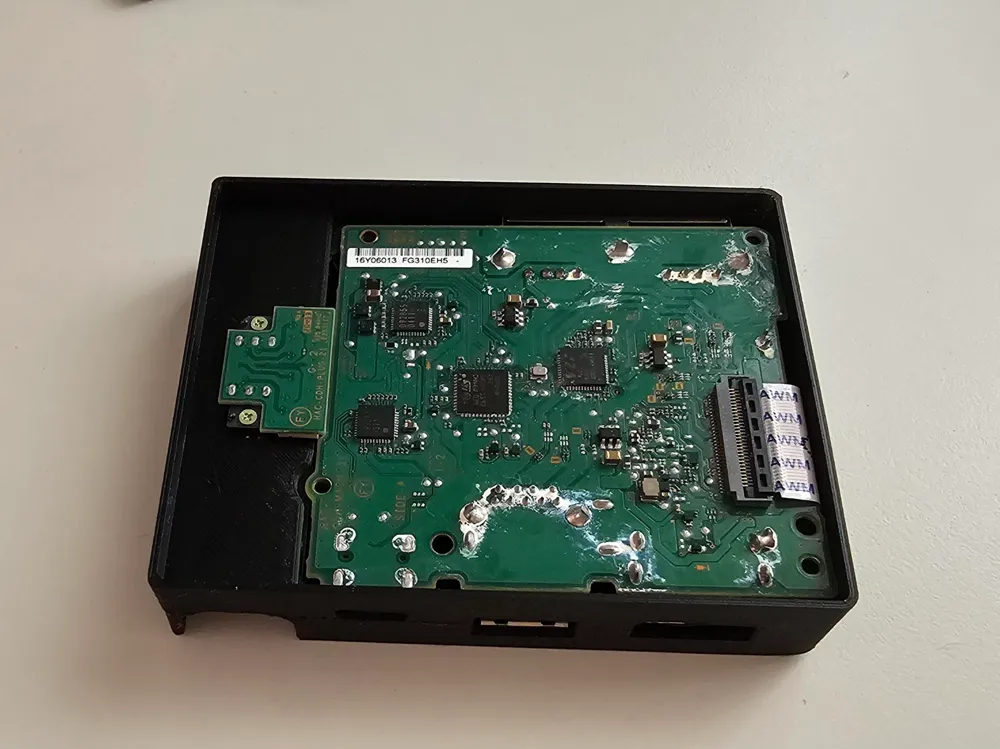

- Nintendo-Switch-dock-board x 1: Original
- Nintendo-Switch-dock-USB-c-board x 1: Original
- Nintendo-Switch-dock-Ribbon-cable x 1: Original
- Nintendo-Switch-dock-LED-board x 1: Original
- Nintendo-Switch-dock-LED-diffuser x 1: Original
- Nintendo-Switch-dock-screws x 4: Any_4_screws_from_the_case
- Nintendo-Switch-dock-USB-c-board-screws x 2: Original
Description

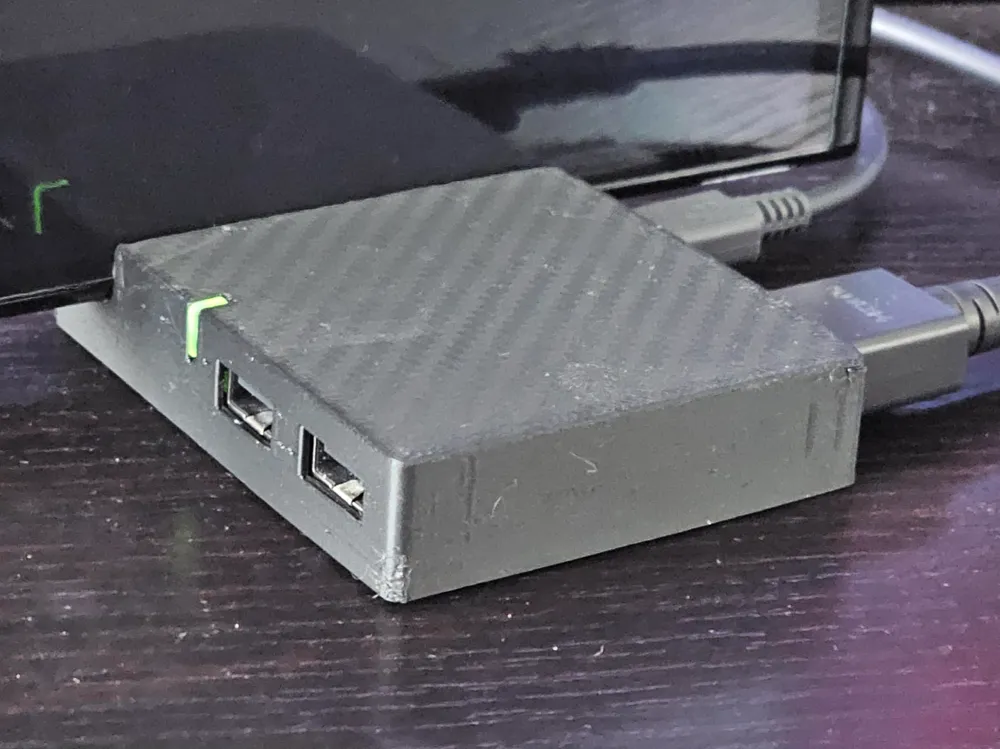

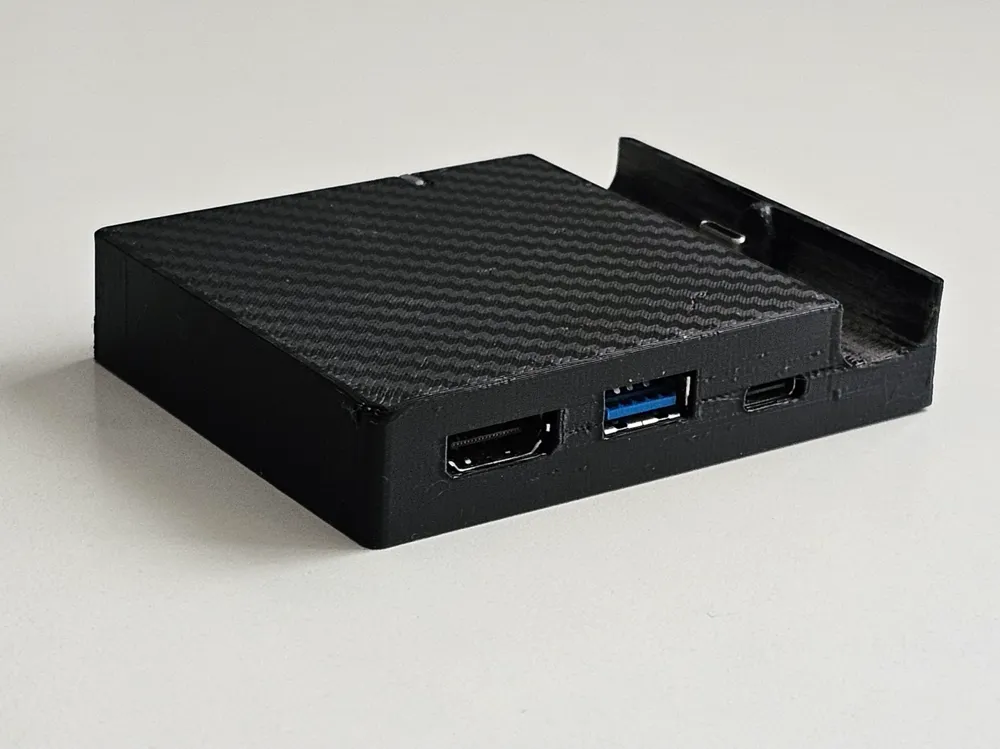

Compact Nintendo Switch dock station.
Disclaimer
This is a Remix of a Model by @Aaron_193620 on Pritnables.com

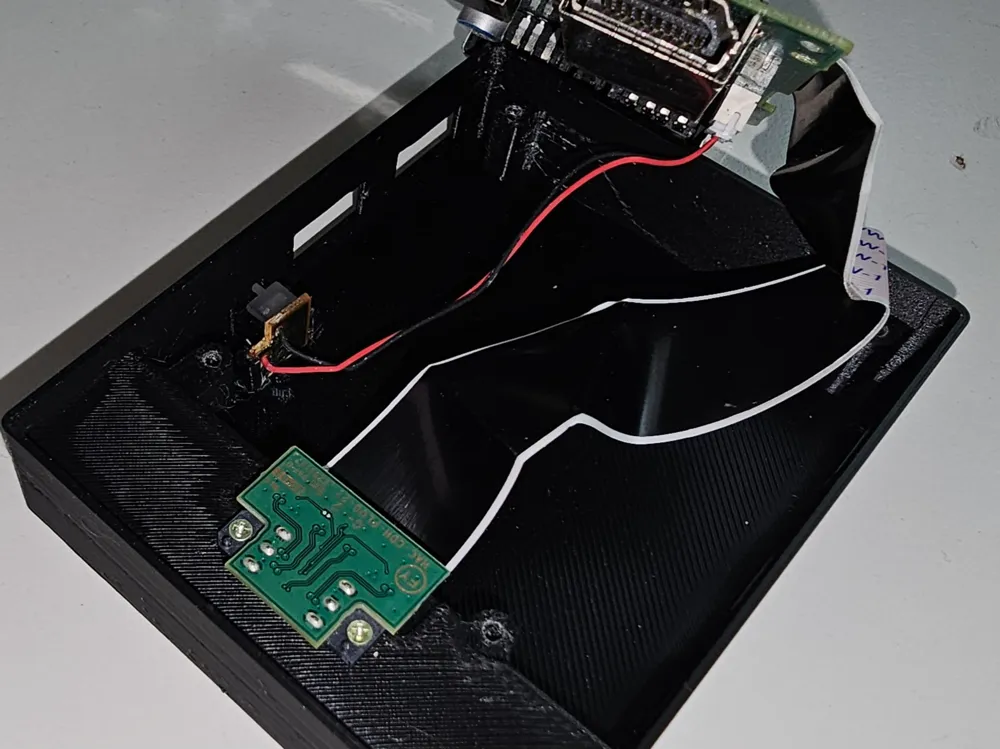

I added a daughterboard mount in the Top part of the enclosure as well as a notch in which you can put the LED light diffuser, something that is not included in the original.
Model Dimensions (Assembled)
* Length 85 mm
* Width 66 mm
* Height 17 mm
Note:

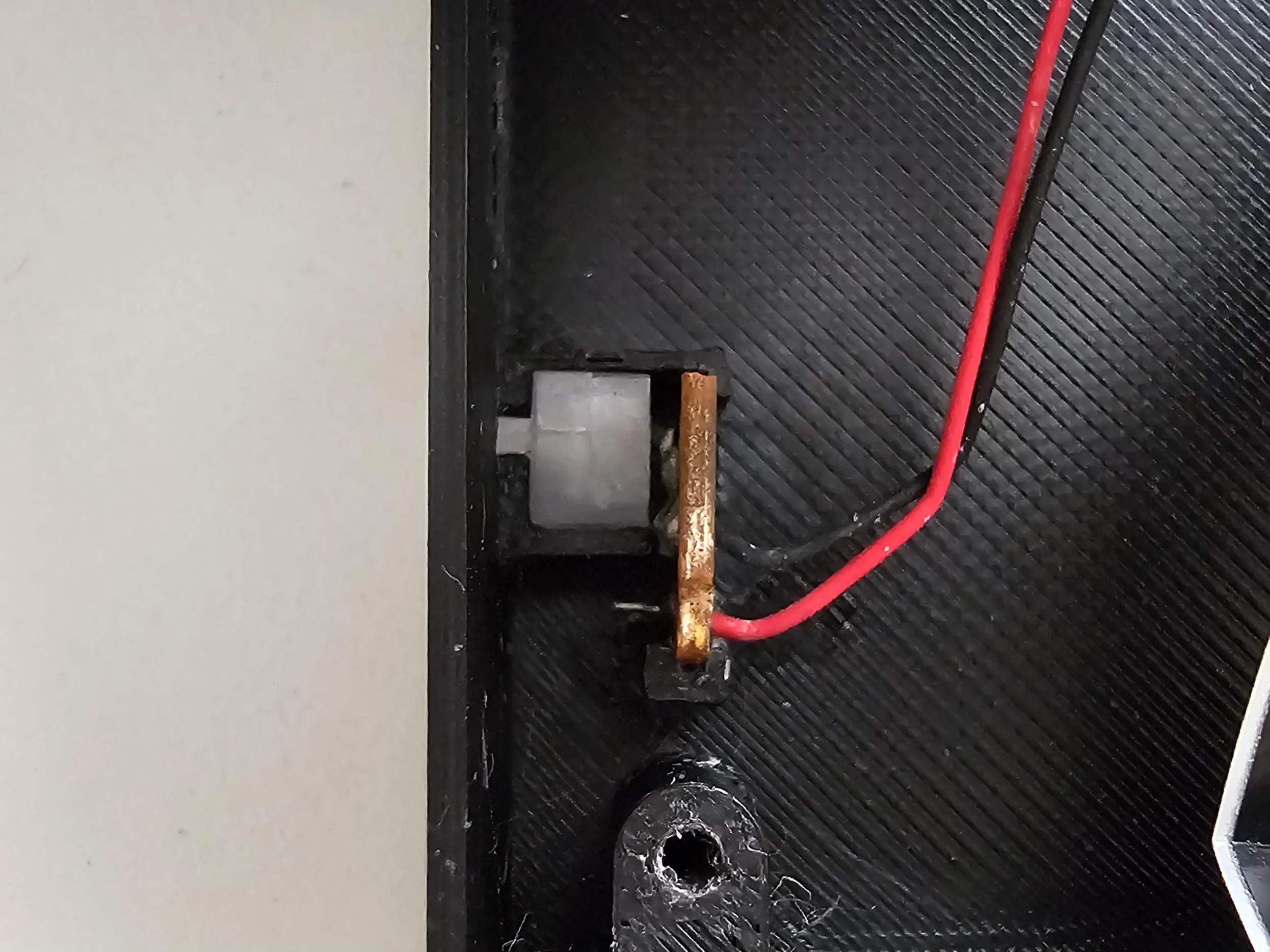

Be careful when inserting the LED daughterboard into the mounting point. If the LED is too close to the Light diffuser, the LED may get ripped off the board if you push it down too hard (Luckily, I Managed to solder mine back on the board).
-You may want to consider gluing both diffuser and board to the enclosure, just in case.
