Small Parts Storage Box

Designer

22.4 h

8 plates

4.9(864)

Storage Tray

Designer

18.5 h

2 plates

4.8(143)

PLA Print - 0.16mm layer, 2 walls, 30% infill

1.1 h

1 plate

4.9(240)

P1S, fast print, 0.24mm layer, 2 walls, 100% infill

1.2 h

1 plate

4.9(82)

Click to see more

Open in Bambu Studio

Boost

7385

24568

1590

1.3 k

17.4 k

9.5 k

Released

Bill of Materials

Bambu Filaments

Select all

PETG Translucent

PLA Matte

Description

[2024-09-20 - Update]

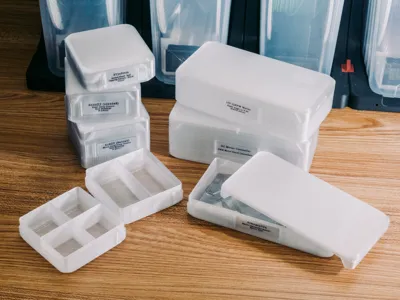

I've added some size variations! There's 2 tall variations, a double wide with tall variations, and two standard sizes that include dividers. There's also an added tray for the double wide bins.

[Introduction]

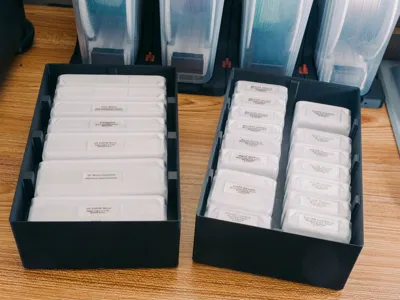

I wanted a system to help organize my growing screw and small part collection, and thus this project was born. It aimed to address a few of my own personal needs. Mainly, I wanted self contained boxes that I could take with me to wherever I'm working on something. Having a lid and everything to keep things tidy when I'm done, or when they're in transport. I wanted to still be able to store them in a tidy manner back at the storage closet too, so paired them with a Gridfinity compatible tray.

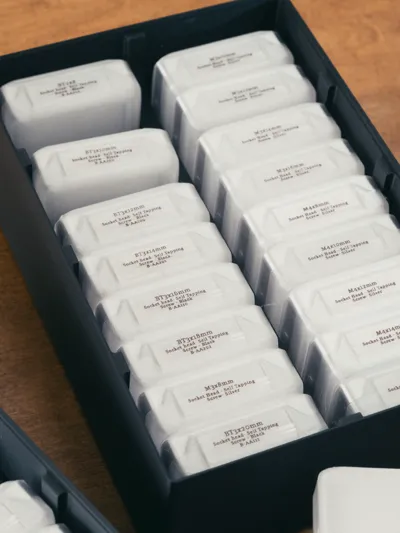

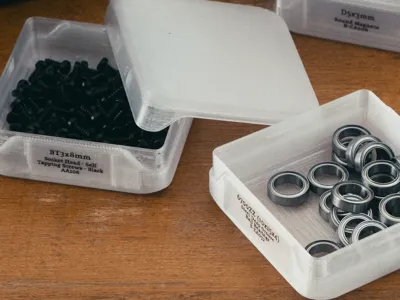

The boxes are sized to provide easy access while providing enough room for a wide variety of small parts. There's a section on the box sized for a 14x40mm label. The intent was for the boxes to be printed with transparent PETG, and to use transparent labels.

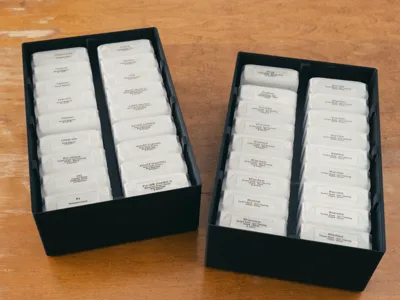

The storage tray fits onto the Gridinfity system, and is stackable. Each tray can hold a total of 18 boxes. There's a little wiggle room to help with removing boxes. Otherwise things got a little too tight! The lids should hold well enough to keep secured even while stored in a vertical orientation.

[Hardware & Filament]

Featured Filaments:

Bambu PETG Translucent Clear

Bambu PLA Matte Charcoal
