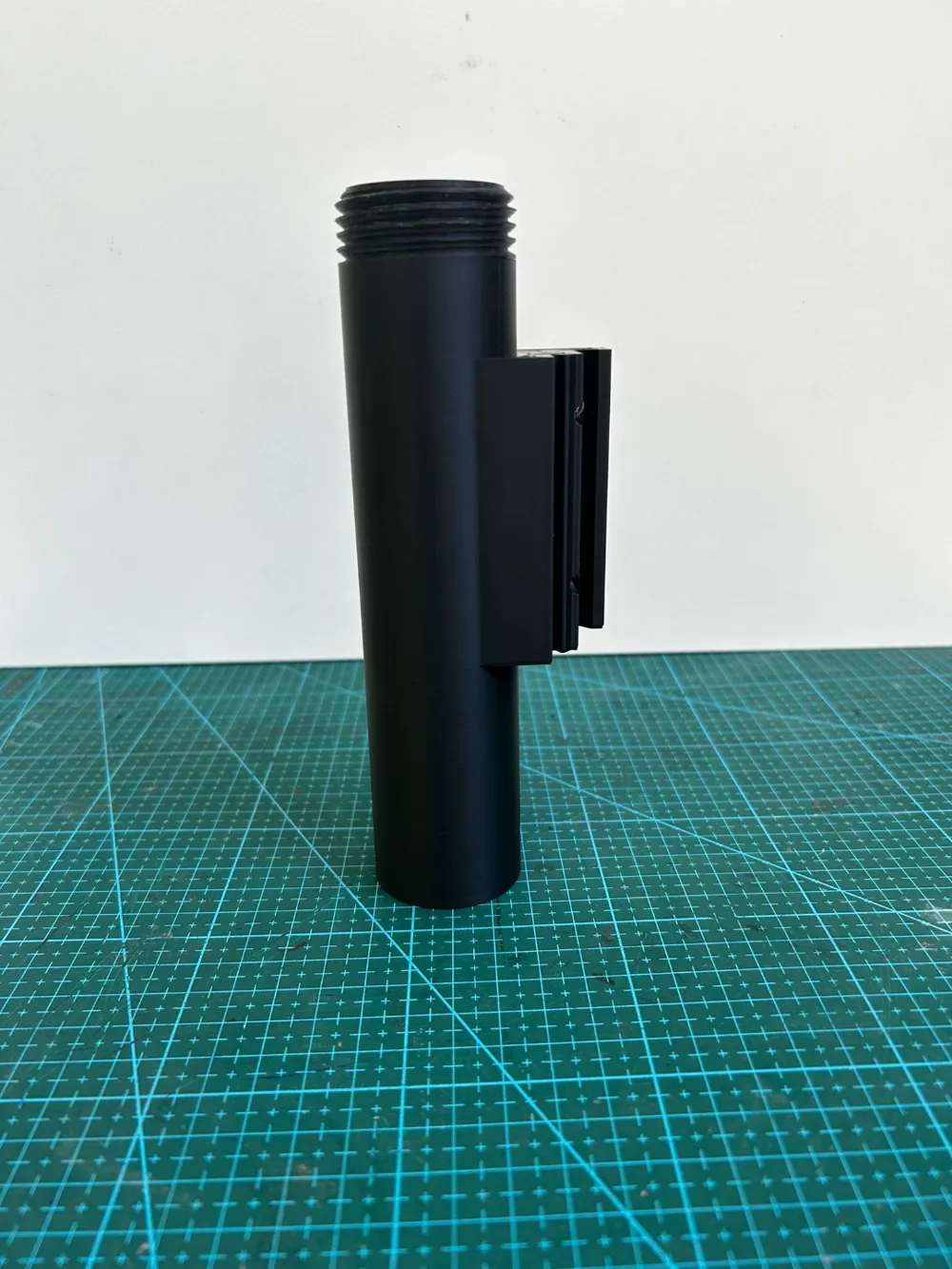

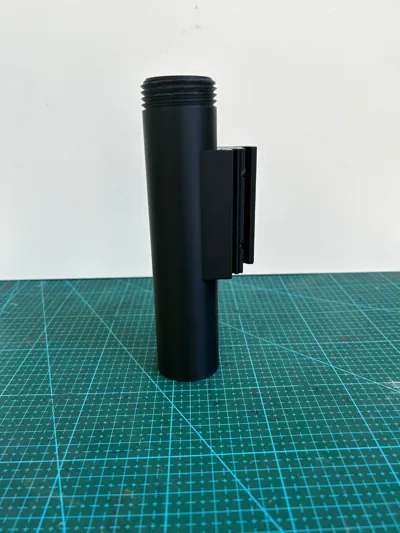

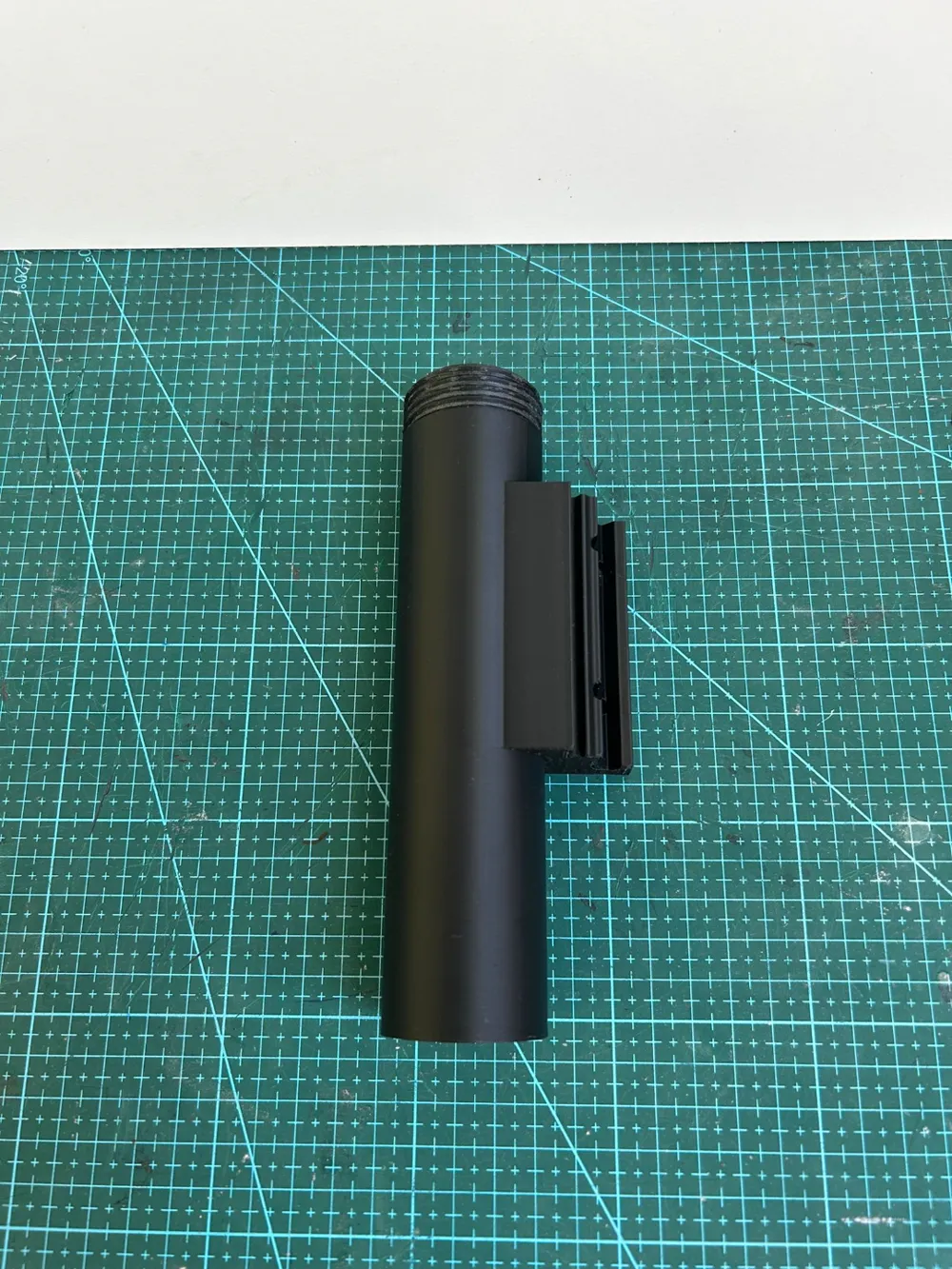

X-Bow V2.0 Cylindrical Storage Box (Mussy Bow)

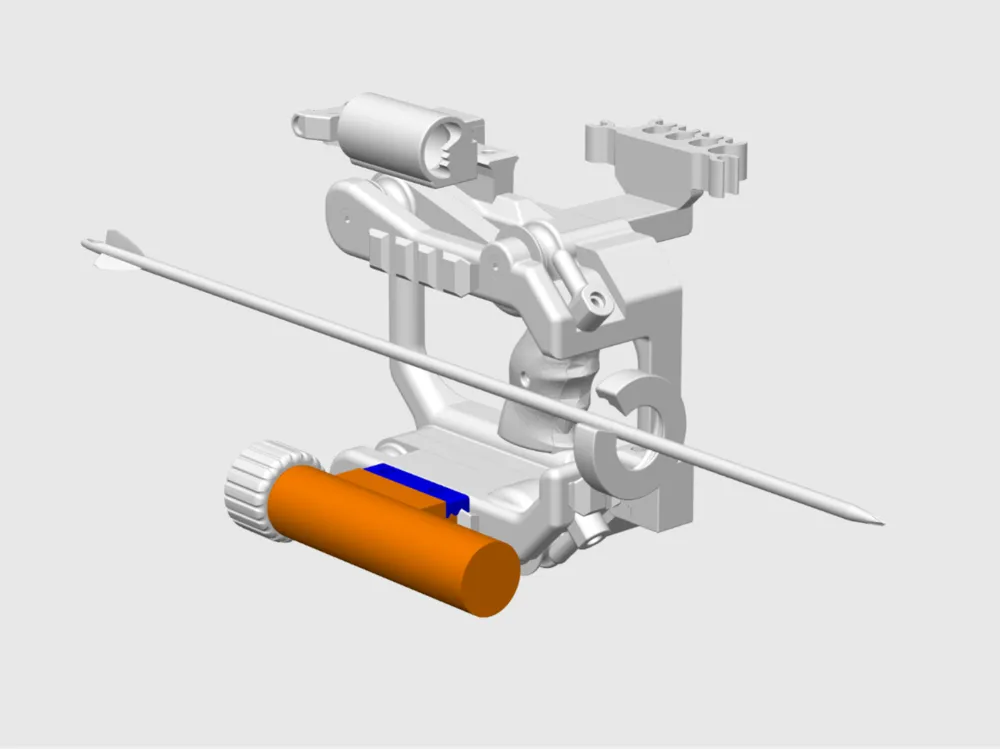

This is an accesory storage bow for Mussy's X-Bow V2.0 Edition. I wanted a cylindrical one that doesn't interfere with the shape of the bow and arm placement. It uses the same modular way to attach to the bow, just that is modified to be longer to sustain the box.

It is made to fit slingshot bands in case the one on the bow breaks.
It's big enough to fit more spare consumables and little tools like allen keys necesarry for assembling the bow.

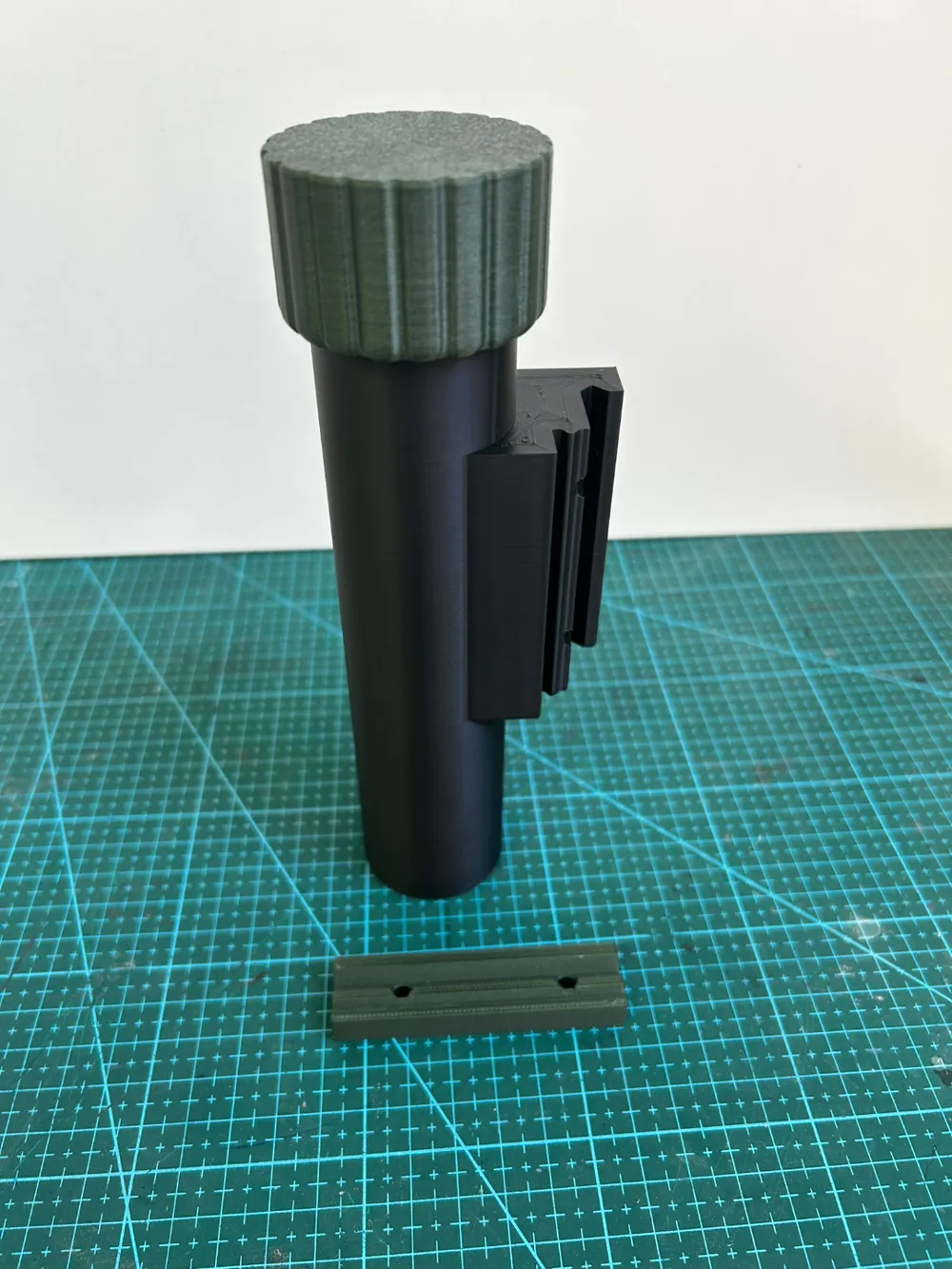

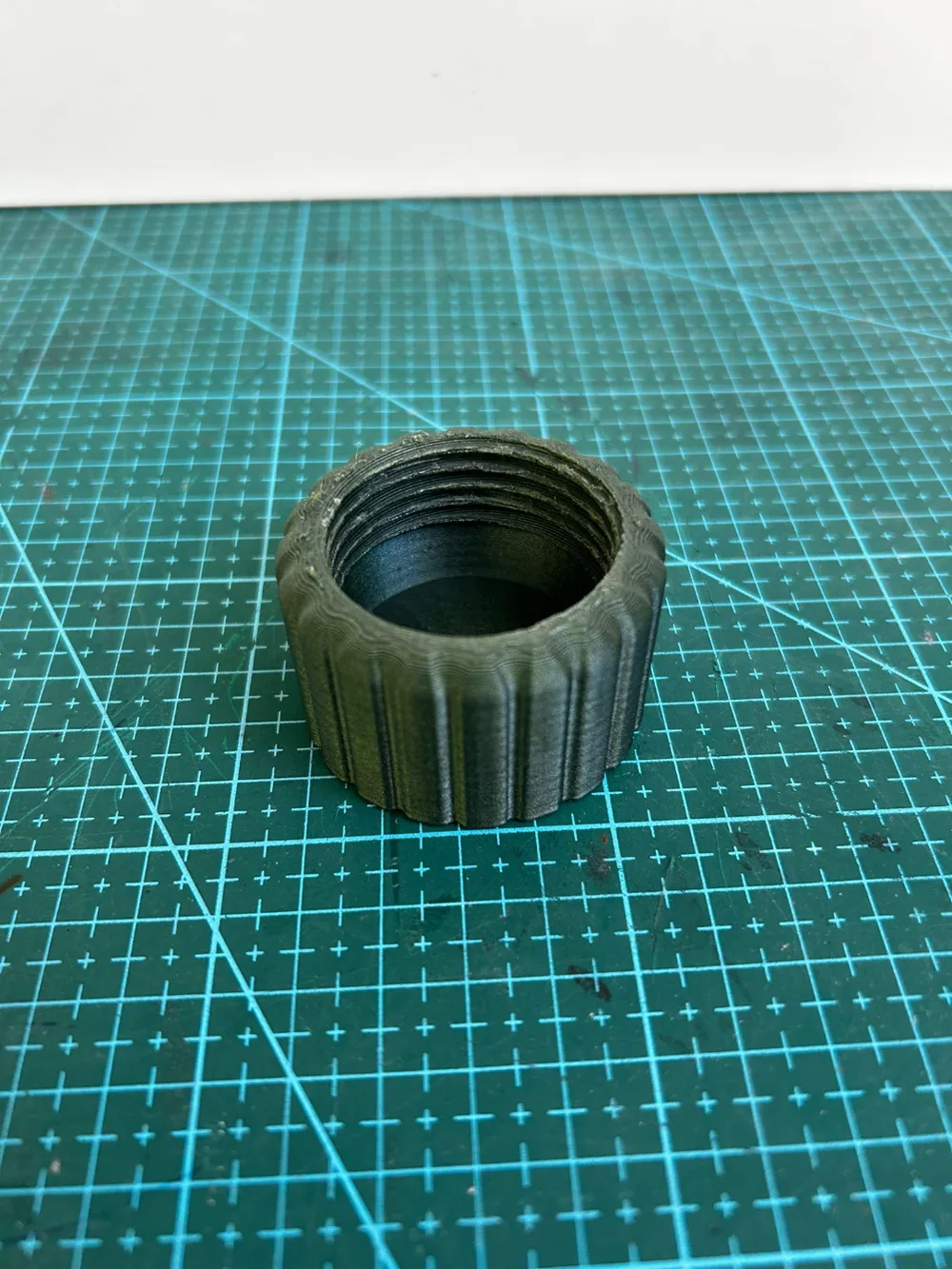

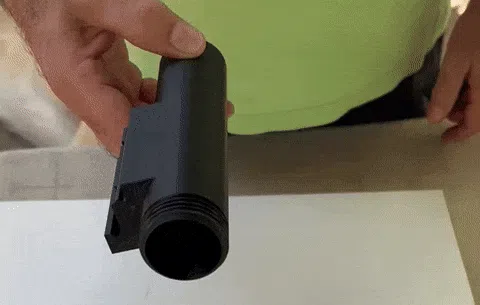

The screw cap/threaded cap when you first print it is a little stiff, but if you wear it down a little by using it ( open and close little by little ) will close completly and after that it will be easy to use. I wanted it to be tight.

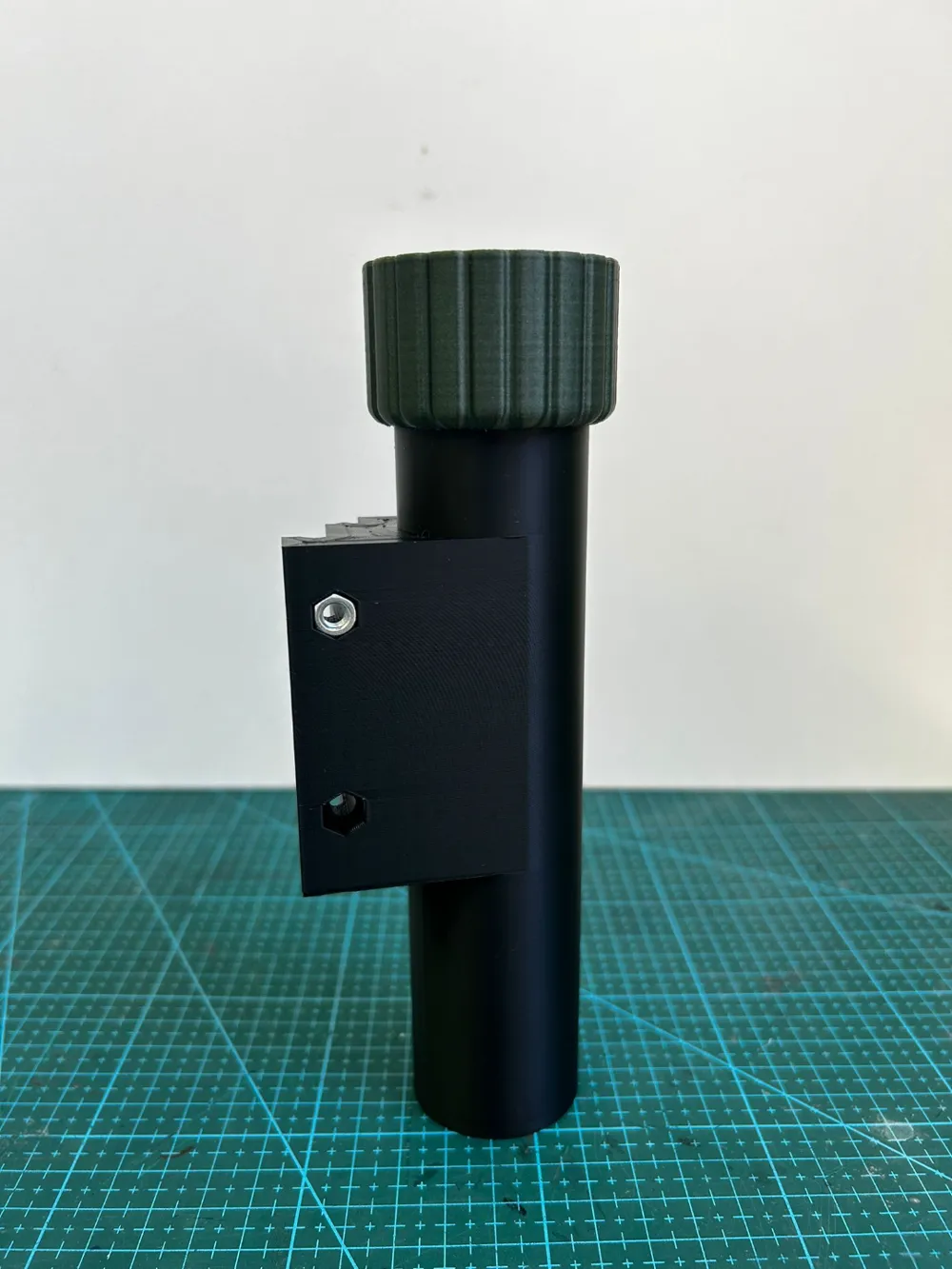

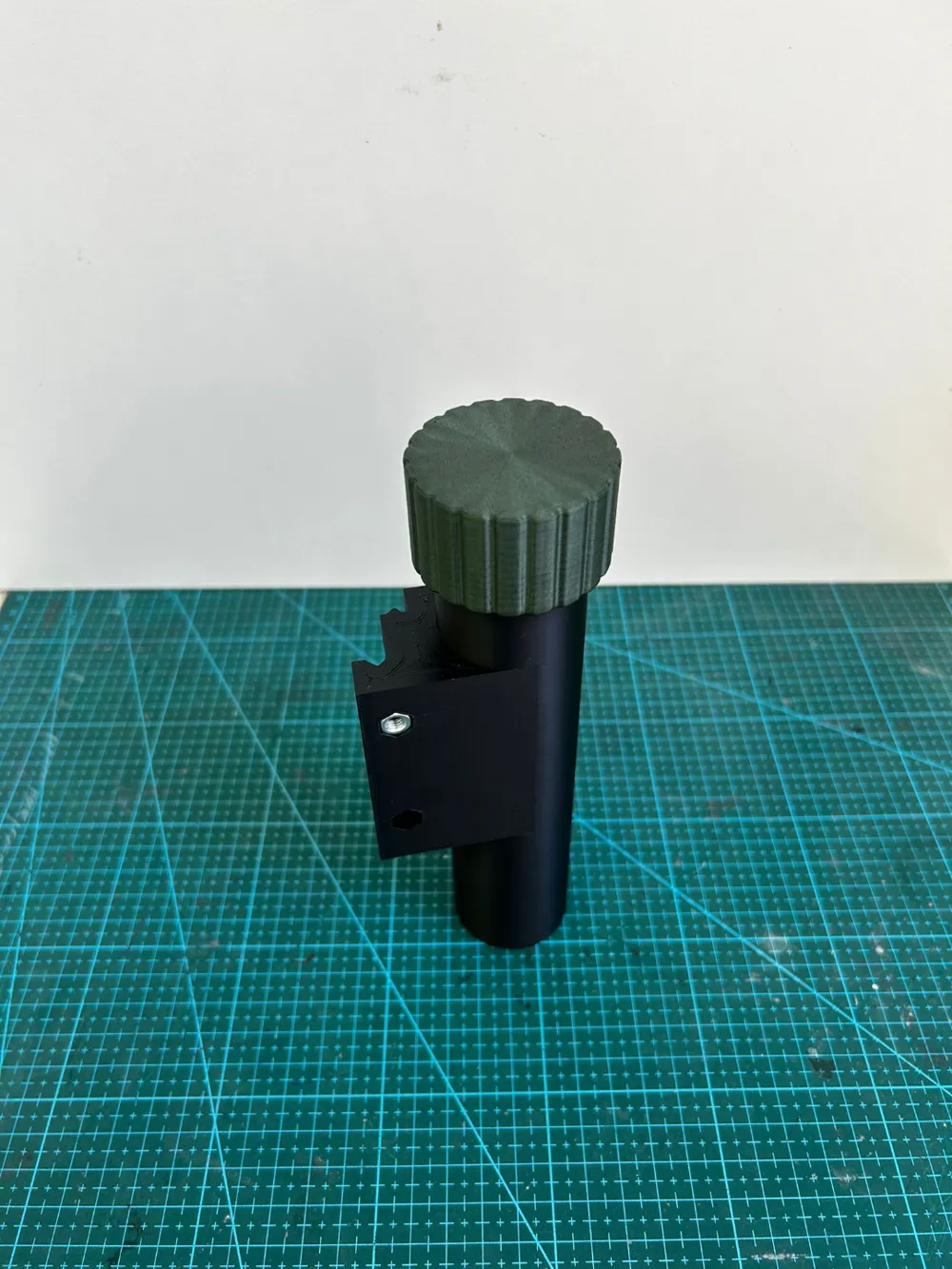

The clamping piece uses (M5x30mmL+screw nut)x2

The box does need supports (on buildplate only, i recommend normal ones, not tree), but they are really easy to get off and do not effect the look.

I printed everything with 3 walls and 25% infill gyroid. I posted the profiles for bambulab studio (3mf) along with the stl.

Model posted on Thingiverse also: https://www.thingiverse.com/thing:6733645

Mussy's Bow link: https://makerworld.com/en/models/526534#profileId-454892
