Rigol MSO5000 VESA Mount (Quick Release)

Summary

This is a VESA mount adapter for the Rigol MSO5000 series Oscilloscope. Mounting the scope above your work surface increases flexibility, frees up space, and puts the scope at eye-level.

• Tool-less, quick-release, mounting of the oscilloscope, non-destructive, no permanent modifications

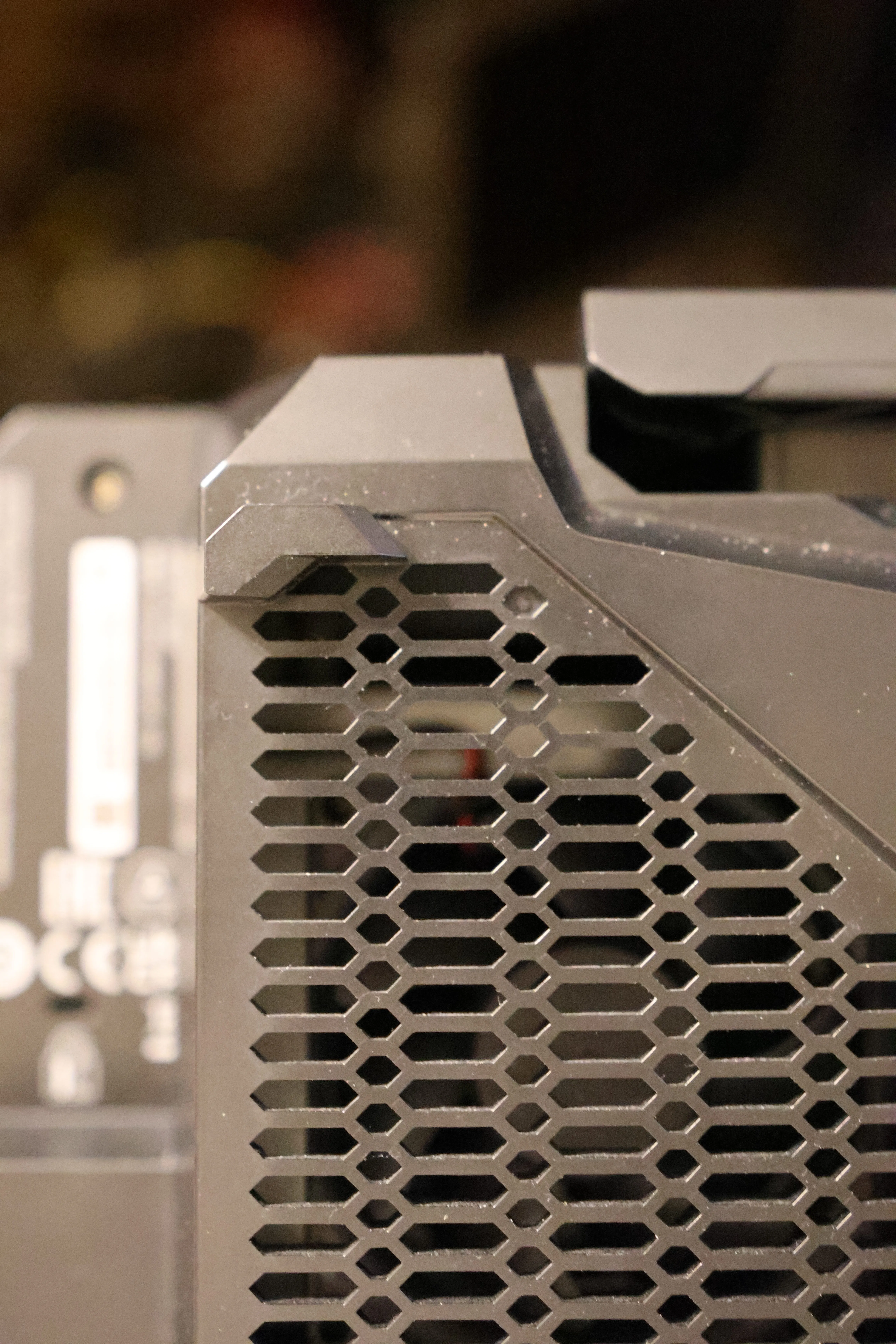

• Low-profile design, invisible from the front
• Full access to all ports/connectors

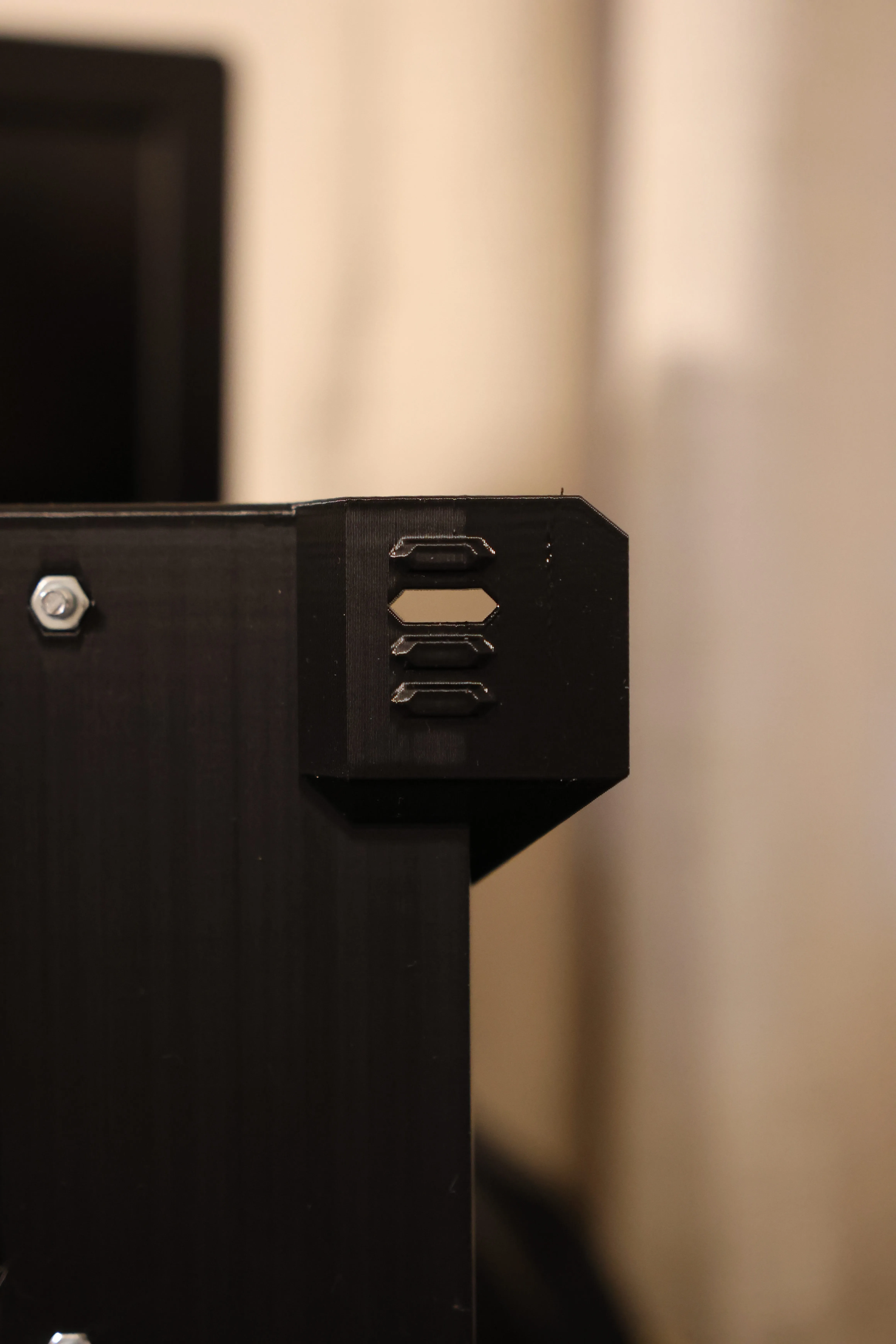

• Single-piece design with two small locking tabs to secure
• No supports needed to print - No overhangs greater than 45º
• Compatible with both 75mm and 100mm variants of the VESA mount
• Requires 4× M4 Hex Nuts and 4× 15mm (thumb)screws to mount to your stand

Questions/comments? Leave a comment here or discuss on EEVBlog Forums.

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

No

Supports:

No

Resolution:

0.20mm

Infill:

15%

Filament: PETG (Tested)


Notes:

I suggest increasing infill density around the mounting holes.

I ran into some minor bed adhesion challenges due to small contact area with build plate. A brim is recommended.

For the locking tab, print with enough wall loops to ensure the center is completely composed to wall extrusion lines (no infill) for maximum strength. For a 0.4mm nozzle, 0.20mm layer height, 0.42mm line width, this is a minimum of 4 wall loops.

I have included 3MF files with these settings for Bambu/Orca slicer.

Post-Printing

Instructions

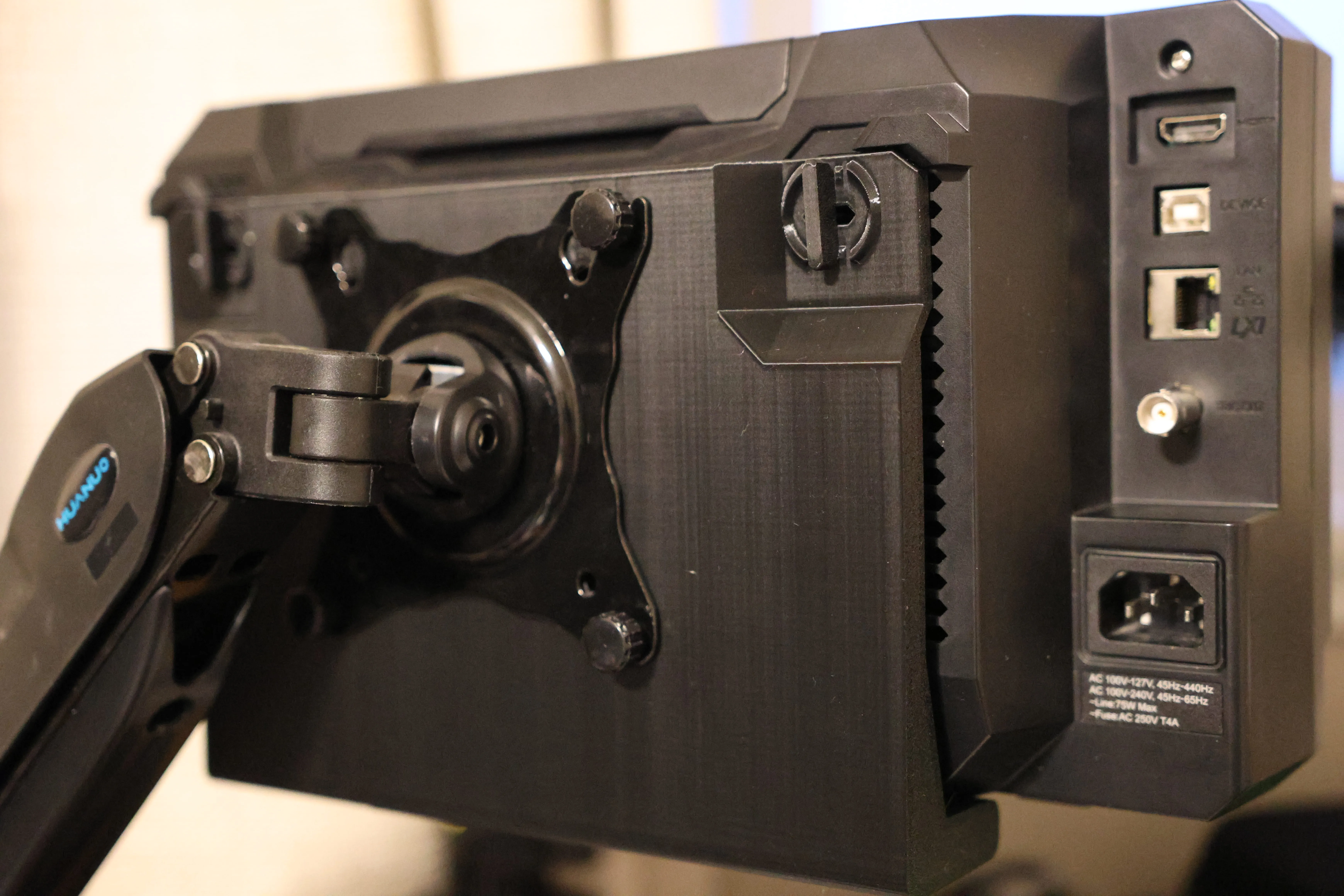

Print the main mount and 2 copies of the Locking Tabs. When placing the oscilloscope onto the mount, the two slots on the mount should perfectly line-up with slots on the back of the oscilloscope. Insert one locking tab in each of the slots and turn 90-degrees.
