L96/MB01 suppressor adapter (airsoft)
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
46
101
4
0
147
70
Released
Description
Why
My Well MB01 came with a 26mm CW threaded outer barrel, and while adapters to the more common 14mm CCW airsoft flash hiders do exist, they usually cost around 10-15 bucks+ shipping.
Features

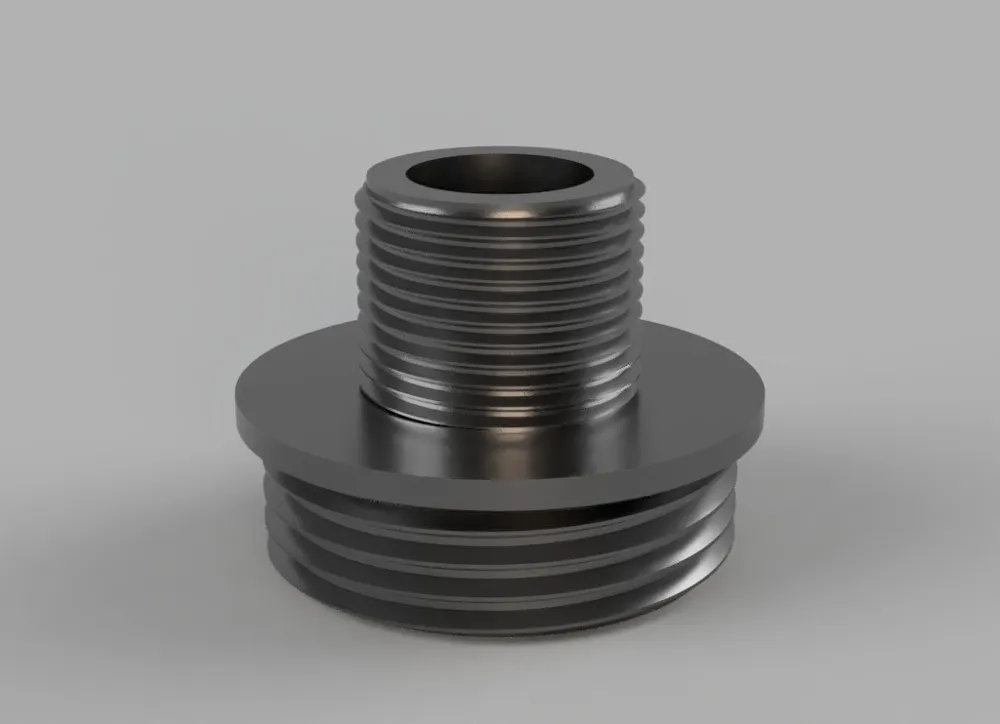

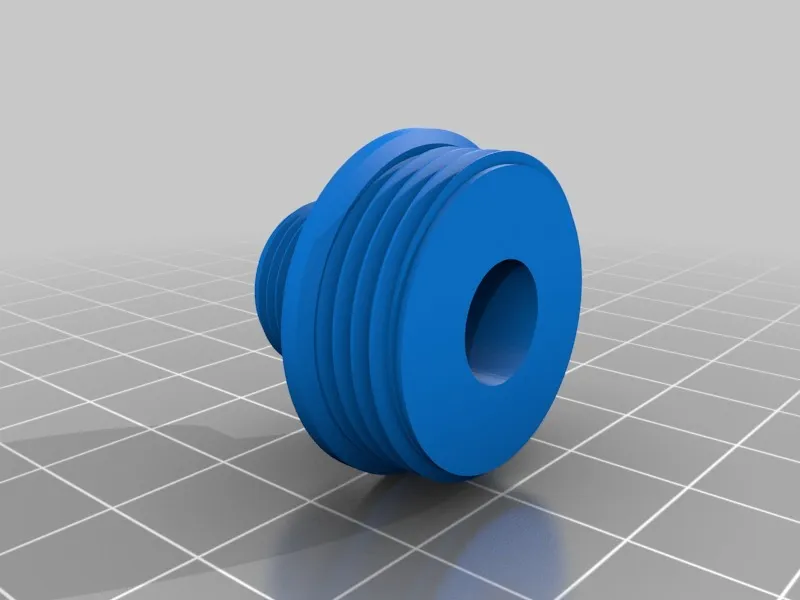

- Pre-modeled threads. The thread pitch on the L96 side isn't perfect, but that does make it fit rather snugly.

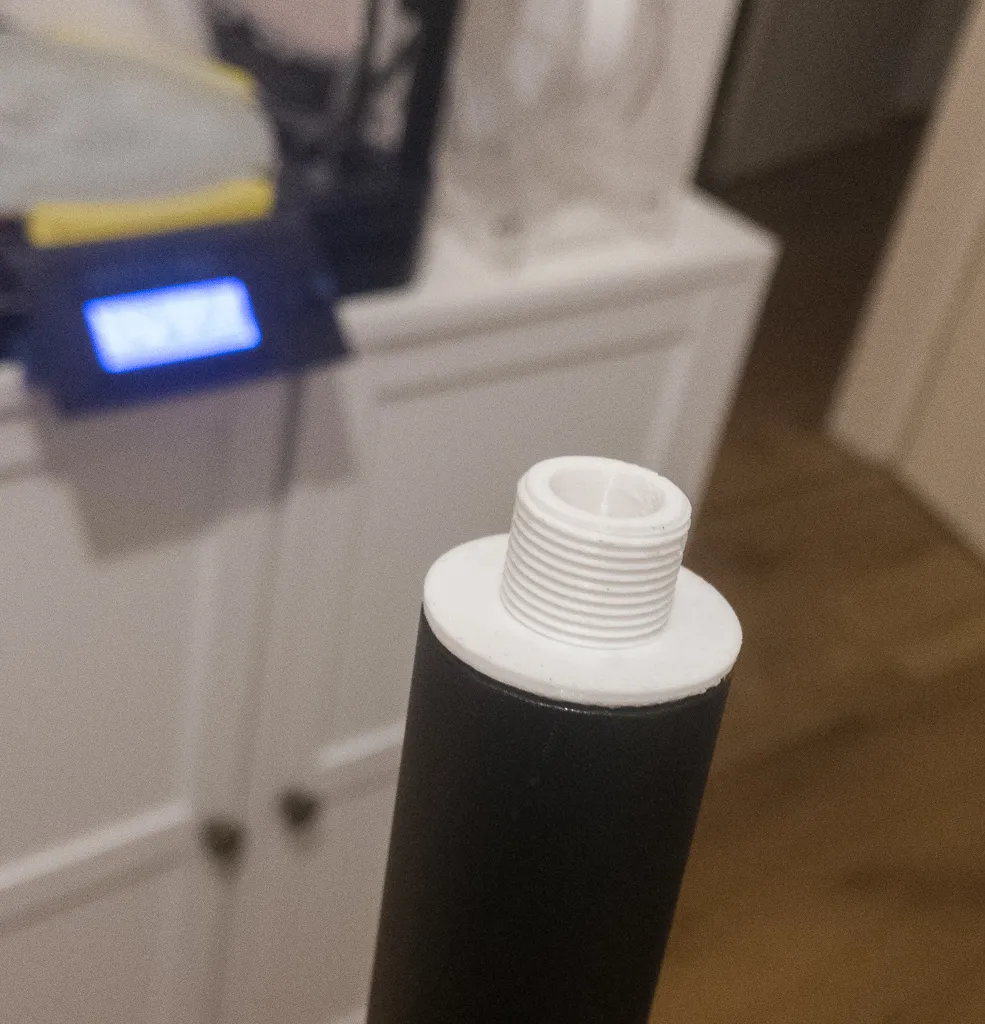

- Fits my MB01, but should also fit the MB08 and other Maruzen clones. Possibly even the MB44 series.
Instructions
- Print it in PETG with multiple walls, slow speed and little cooling to get the strongest part.
- No supports required
- .2mm layer height is just fine.
- If it doesn't fit, your printer calibration may be off. Try printing it at 99 or 101% scale if this is the case.
Open Source
As always the original design file (fusion360) is included, so feel free to improve it (or learn from it)!
