Collapsible Lightsaber With Blade Lock
IP Report
Print Profile(4)
0.2mm layer, 2 walls, 15% infill
11.1 h
6 plates
Improved Strong Button
15 min
1 plate
Individual Blade Parts
12.4 h
6 plates
Stylish, redesigned Button for Blade Lock – 0.16mm
18 min
1 plate
Open in Bambu Studio
Boost
762
1509
144
107
1.6 k
650
Released
Description

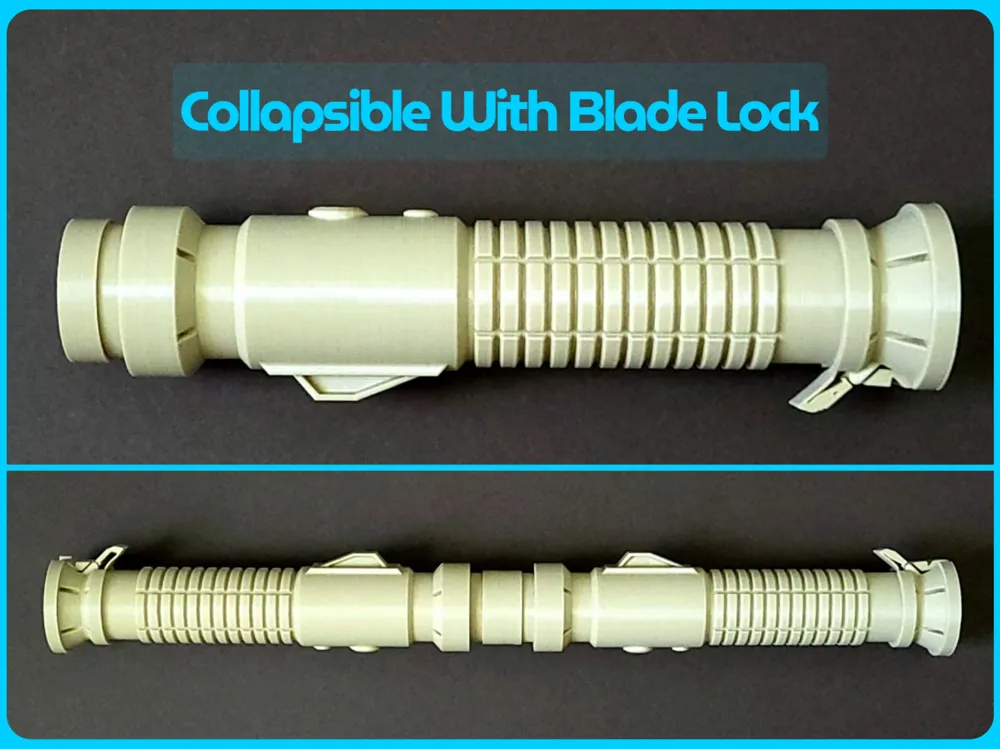

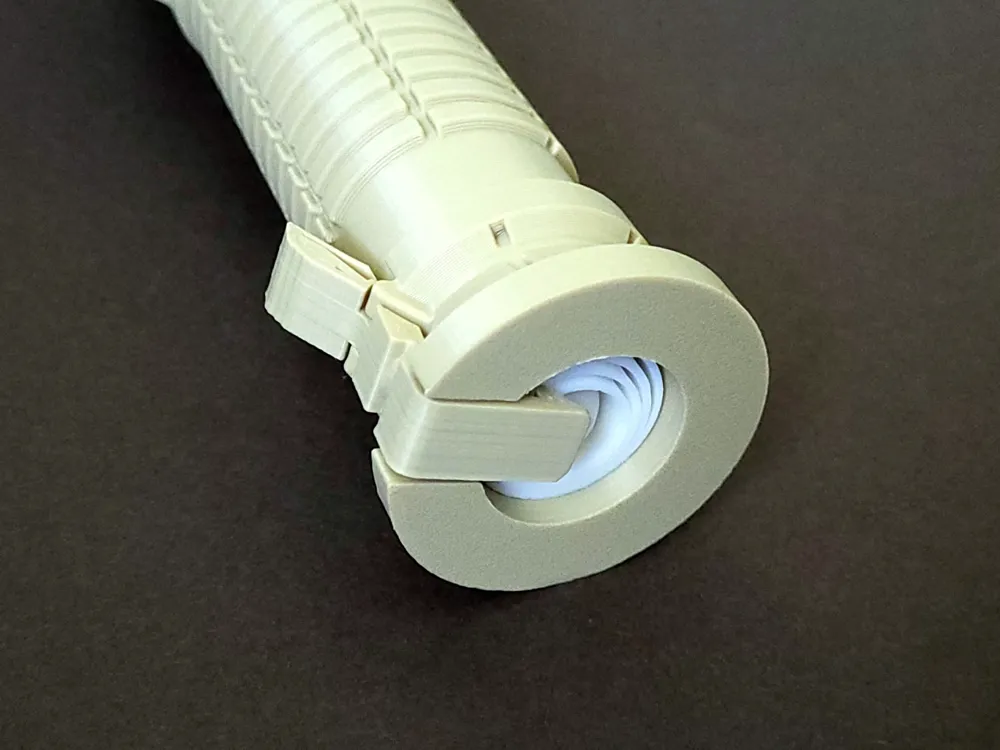

Let me introduce you to my minimal-assembly collapsible lightsaber with a lever lock.
Not including the blades, the hilt only uses 3 parts! The blade is interchangeable to be any color you like, and you can add the dual lightsaber mods to have a double sided lightsaber or a detachable dual lightsaber!
My recommended print settings:
- 0.4mm nozzle
- ≤0.2 layer hight
- 3 walls
- Grid infil
- Support (for the lever and caps)
- Pla + (for the lever)
If the lever isn't strong enough, you can attach a rubber band around the notch on the lever.
