MrJ Old Street Lamp HO Scale - Requires 0.2mm
IP Report
Print Profile(2)
Profile for std printers - Attention 0.2mm nozzle required
Designer
9.3 h
6 plates
A1 mini profile - Attention 0.2mm nozzle required
Designer
8.8 h
6 plates
Open in Bambu Studio
Boost
150
311
35
20
523
195
Released
Bill of Materials
List other parts
- 3mm_white_led x 1:
- soldering x 1:
- 1mm_heat_shrink_tube x 1:
- 30AWG_wire x 1:
- 5V_power_supply x 1:
- 222_ohm_resistor x 1:
Description

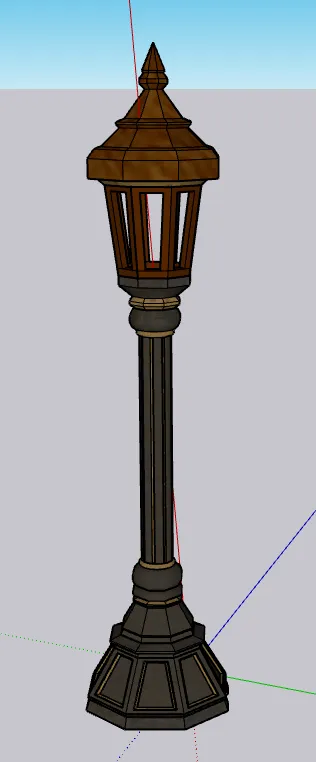

Long time ago, I wanted to build my own street lamp…

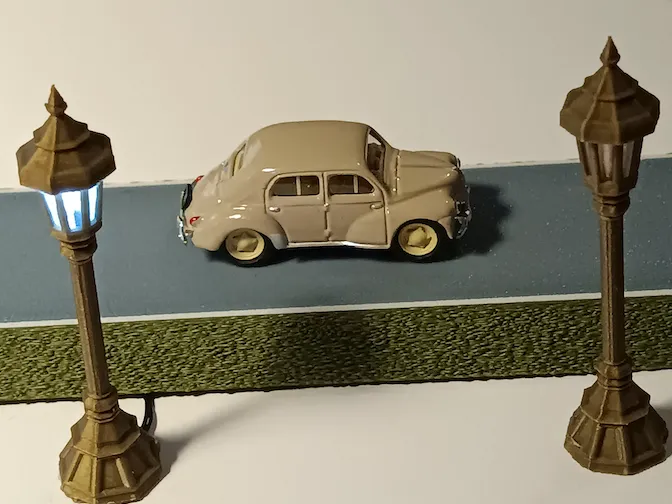

This design can easily be given a 3mm white LED lamp.

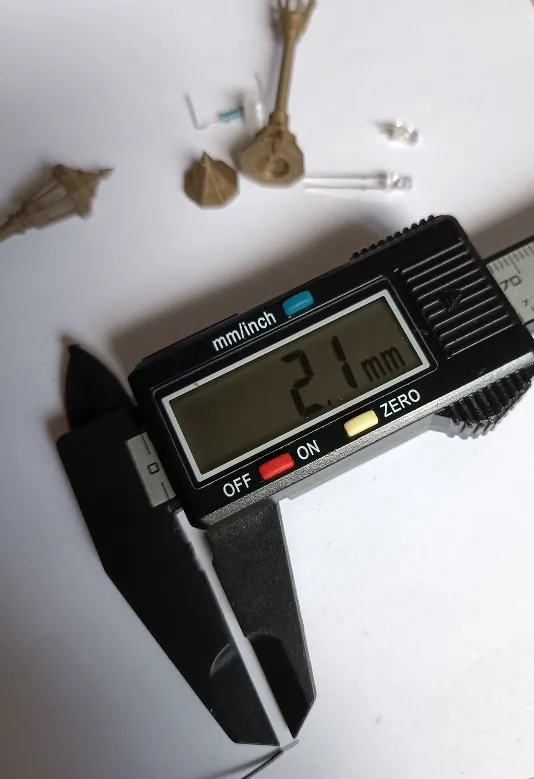

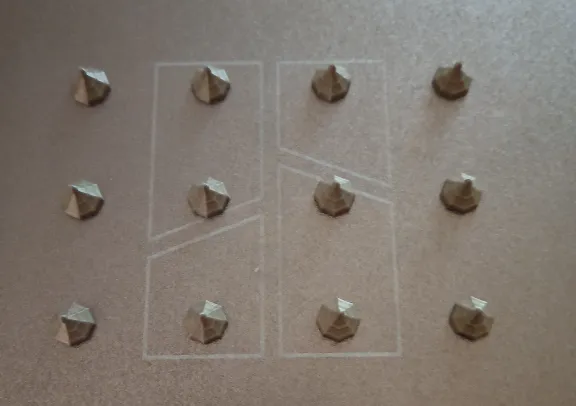

Prints need a 0.2 mm nozzle and are easy to print and assemble without glue.
The “glass” part was printed using transparent PLA, and the body and top were printed with bambu bronze PLA.

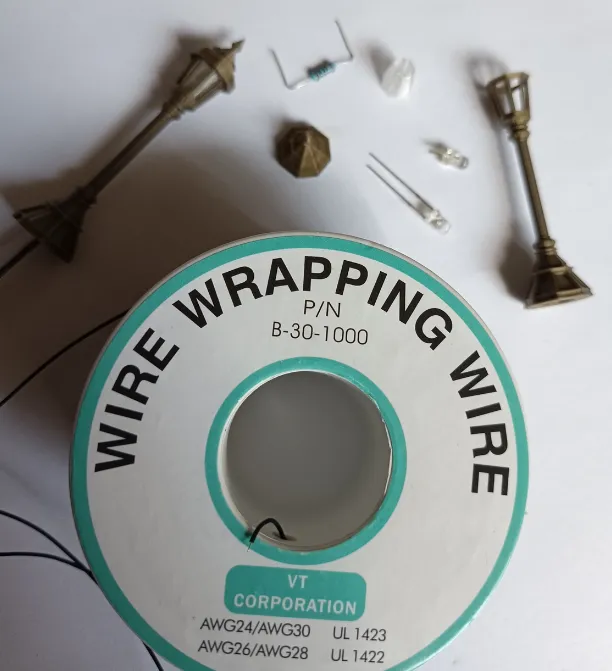

I also used very small 30AWG wire.
You'll need soldering and small heat-shrink 1mm tubes.
Instructable's coming.

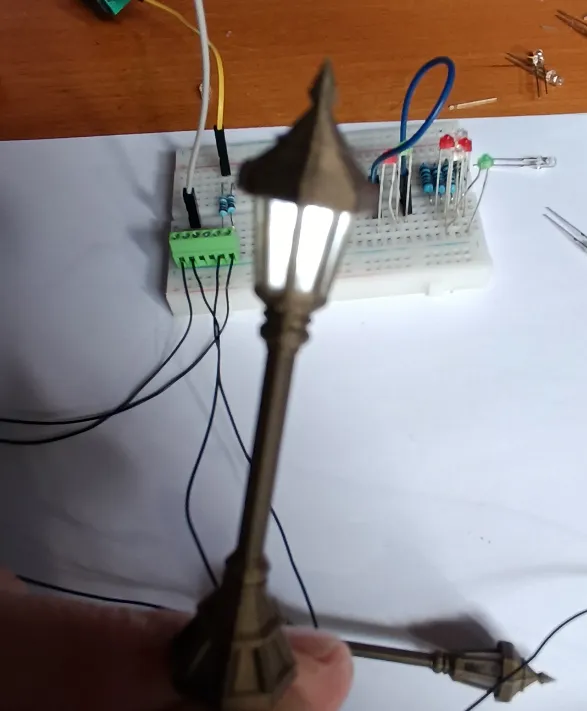

To add a cool effect and simulate an old filament bulb using an Arduino, you can use my code and see my video.
