Description

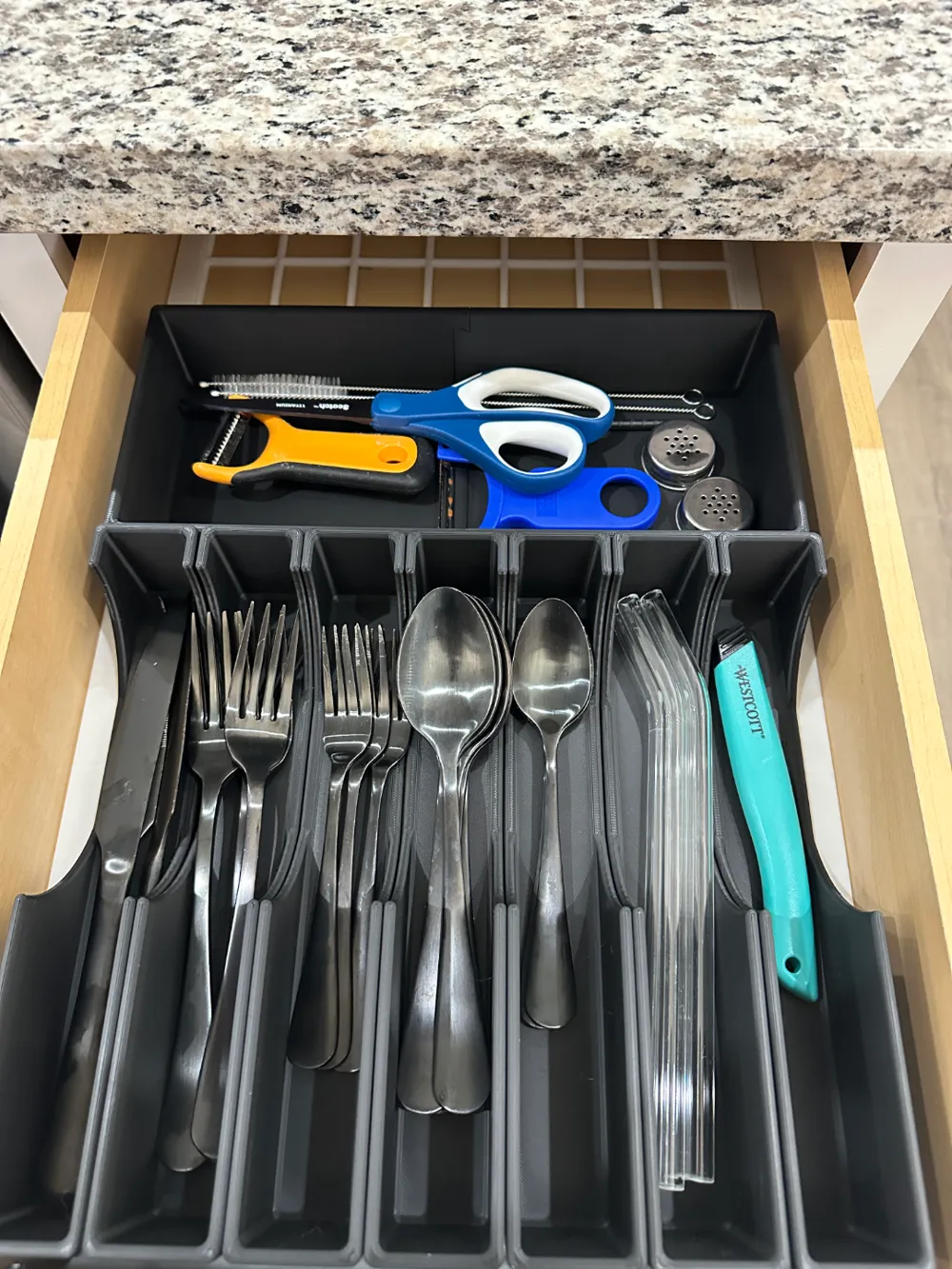

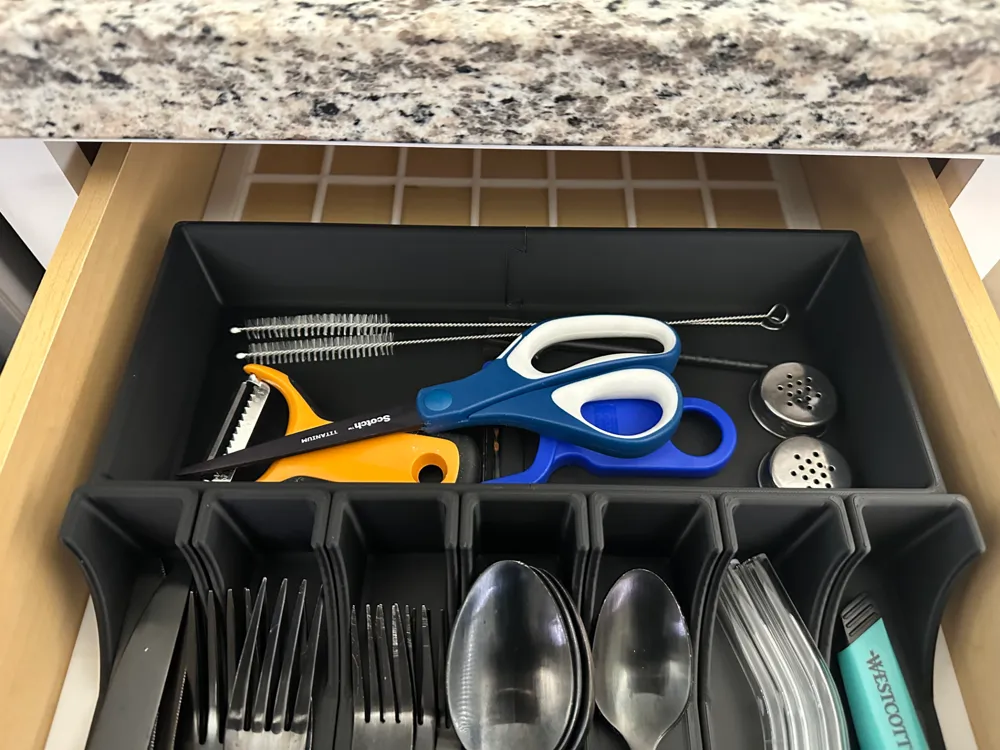

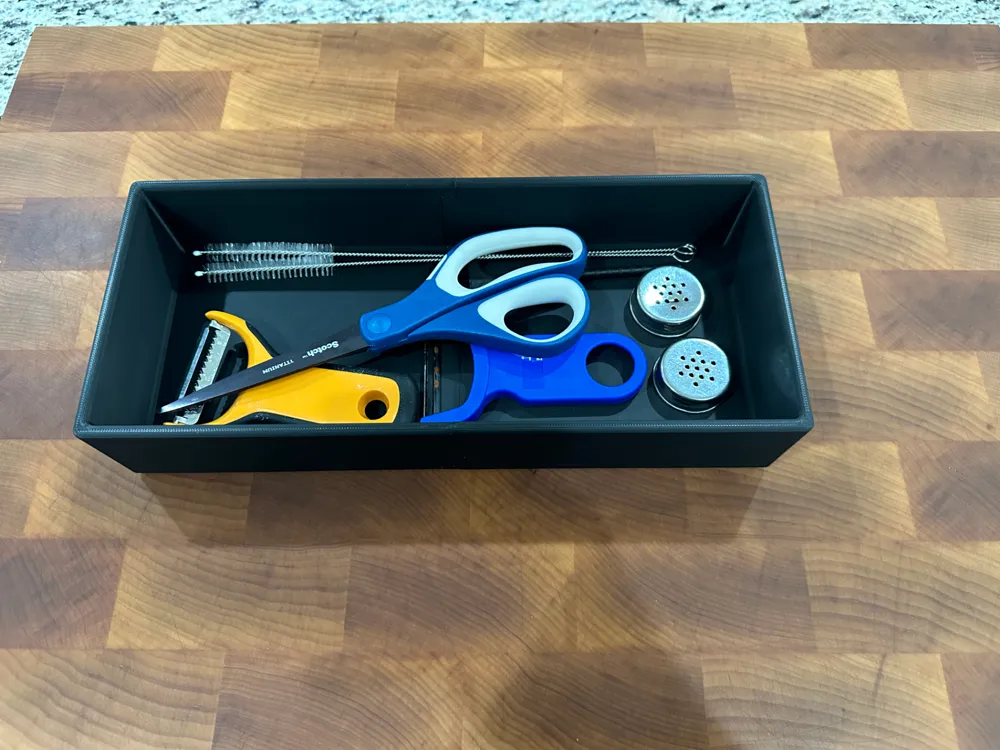

Needed a larger bin to finish up my silverware drawer. I used the fusion 360 gridfinity plugin and then made adjustments to height and filet edges to match the style of these https://makerworld.com/en/models/92411?from=search#profileId-98809. I didn't get the height exactly the same because I wanted it slightly lower since it is in the back of the drawer. The walls also came out slightly thicker because I have no idea what I'm doing in fusion360 haha.

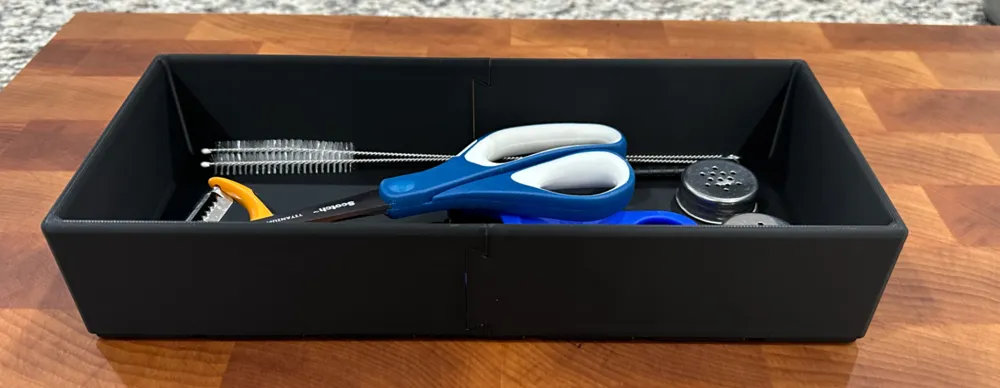

Had to print on two plates since it is too long but added in a dovetail to join them together.

gridfinity silverware

Comment & Rating (13)

@user_3831034749

Print Profile

0.2mm layer, 2 walls, 15% infill

works great.

@user_564221848

Print Profile

0.2mm layer, 2 walls, 15% infill

Thank you

(Edited)

@user_2747853102

Print Profile

0.2mm layer, 2 walls, 15% infill

Would be nice to have a hex pattern option.

@Hierotochan

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed fine, overbuilt so should be sturdy for abuse. Would be improved with connection on base not sides, but overall good design.

@CyBr0

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_1388103747

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_2616964548

Print Profile

0.2mm layer, 2 walls, 15% infill

@Ha512

Print Profile

0.2mm layer, 2 walls, 15% infill

@Jeep_dude94

Print Profile

0.2mm layer, 2 walls, 15% infill

Support Issue:everytime I break supports on the female side of dove joint it snaps the whole joint off. I’ve used support material and petg as support material. will try again after some z offset for supports and if improvement I’ll adjust the star rating.
