Bill of Materials

List other parts

Lötkolben x 1: https://amzn.eu/d/0bJwaFv
Einschmelzmutter x 1: https://amzn.eu/d/gNhSVtN

Description

Content has been automatically translated.

Show original

Boost Me (for free)

If you enjoy this model or find it useful, please leave a like or give me a boost
Thank you

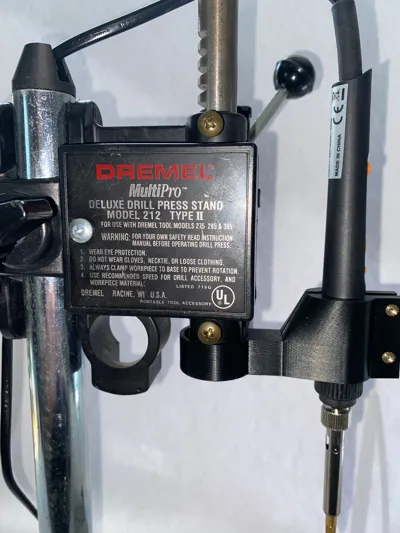

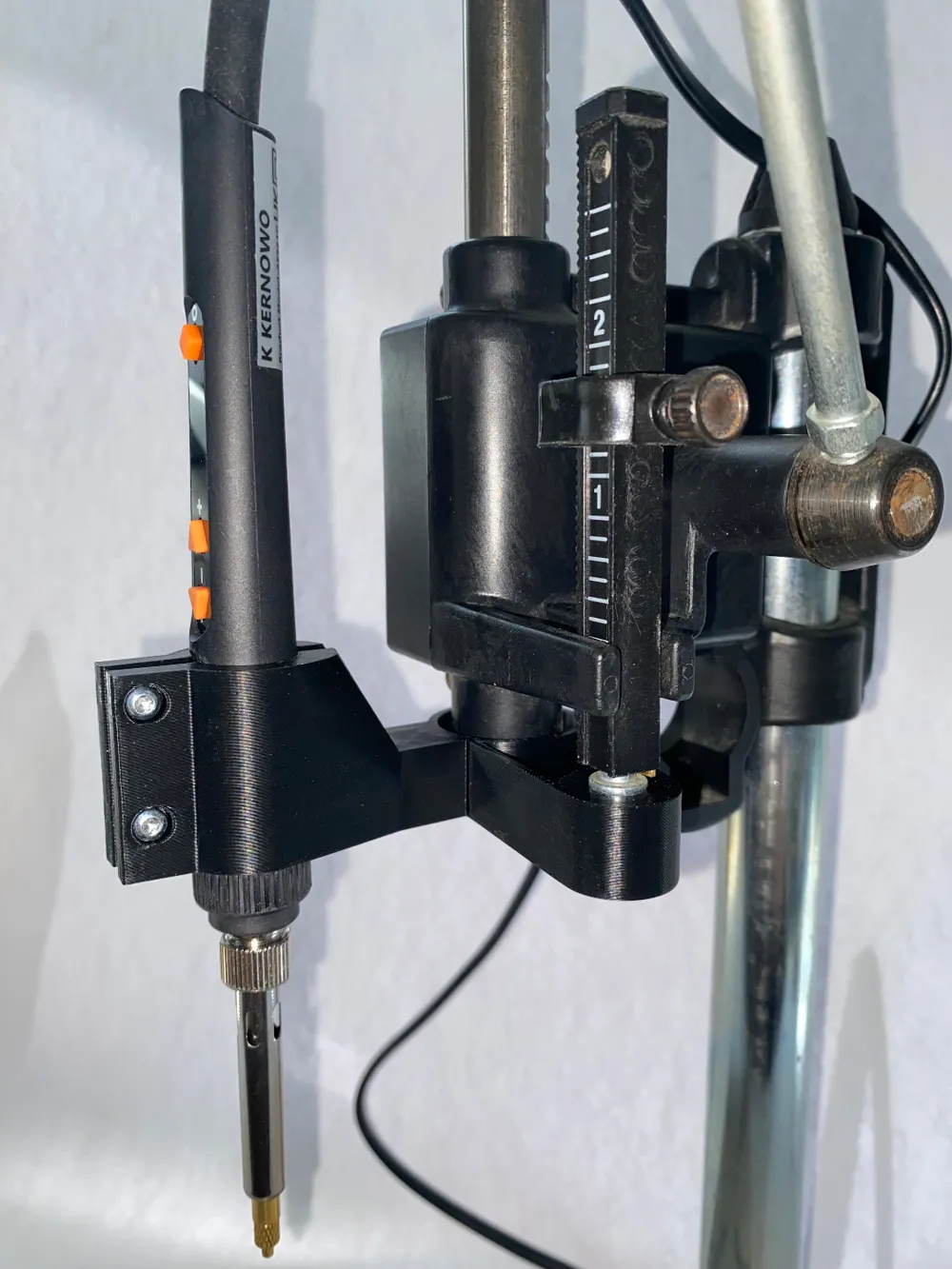

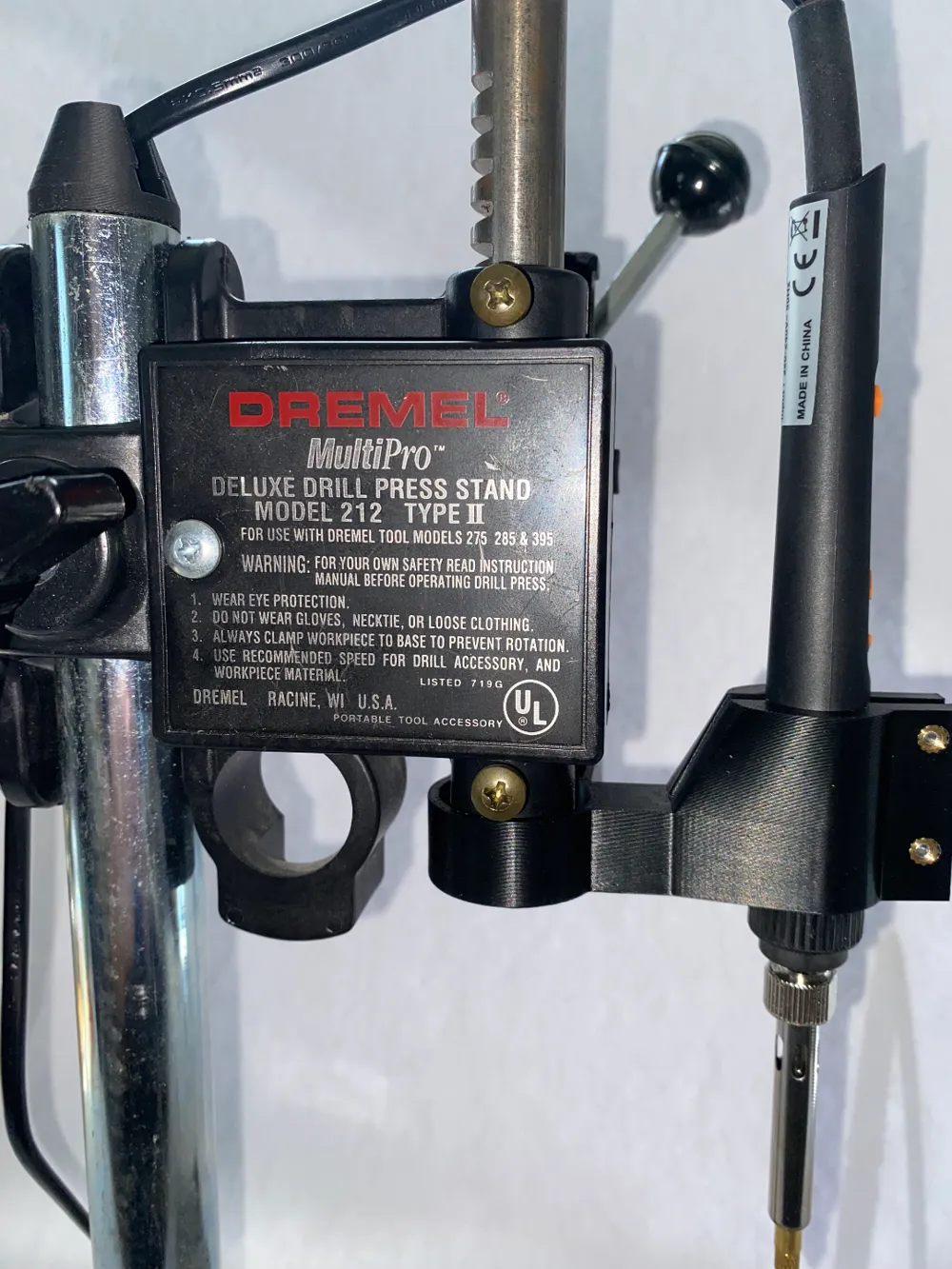

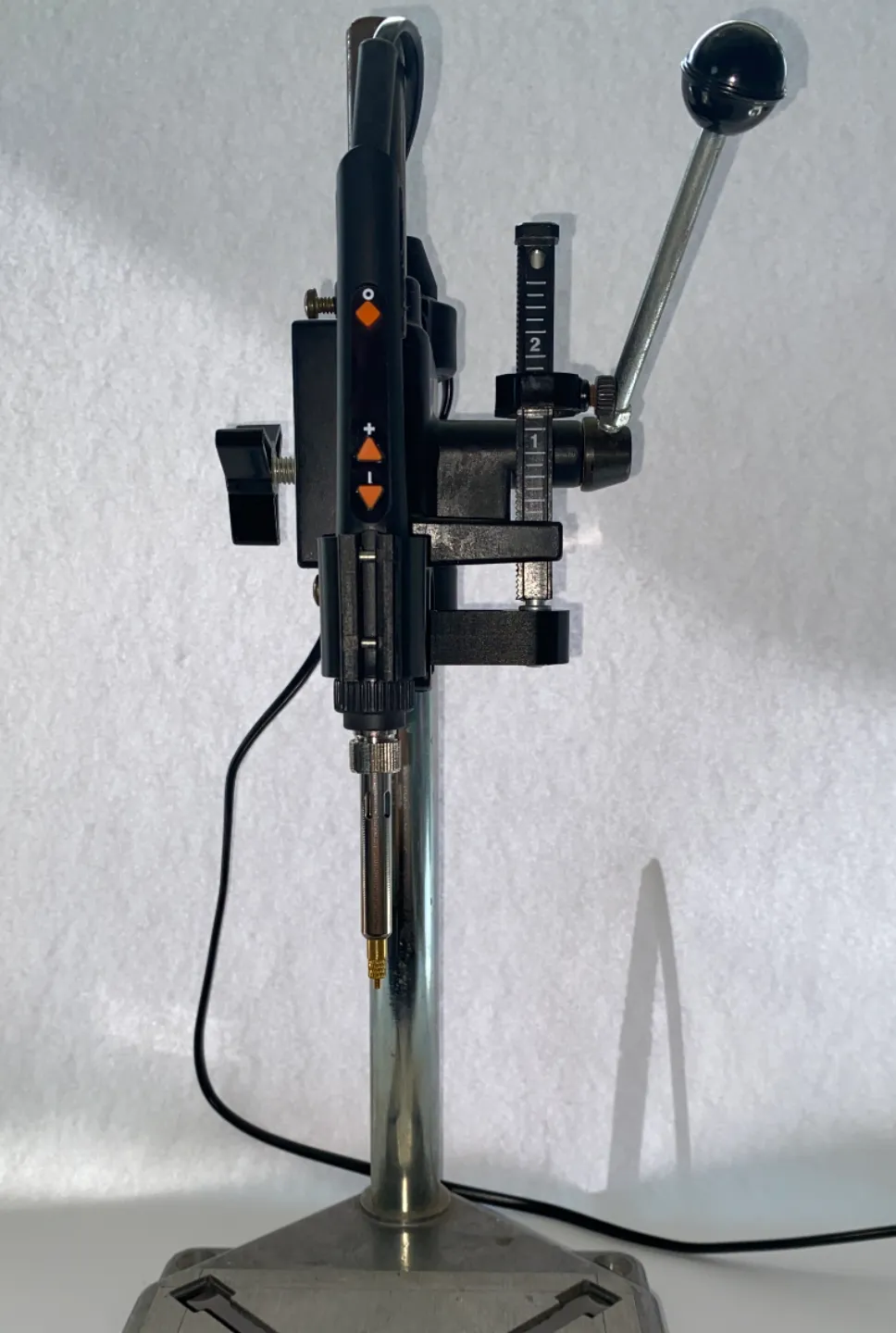

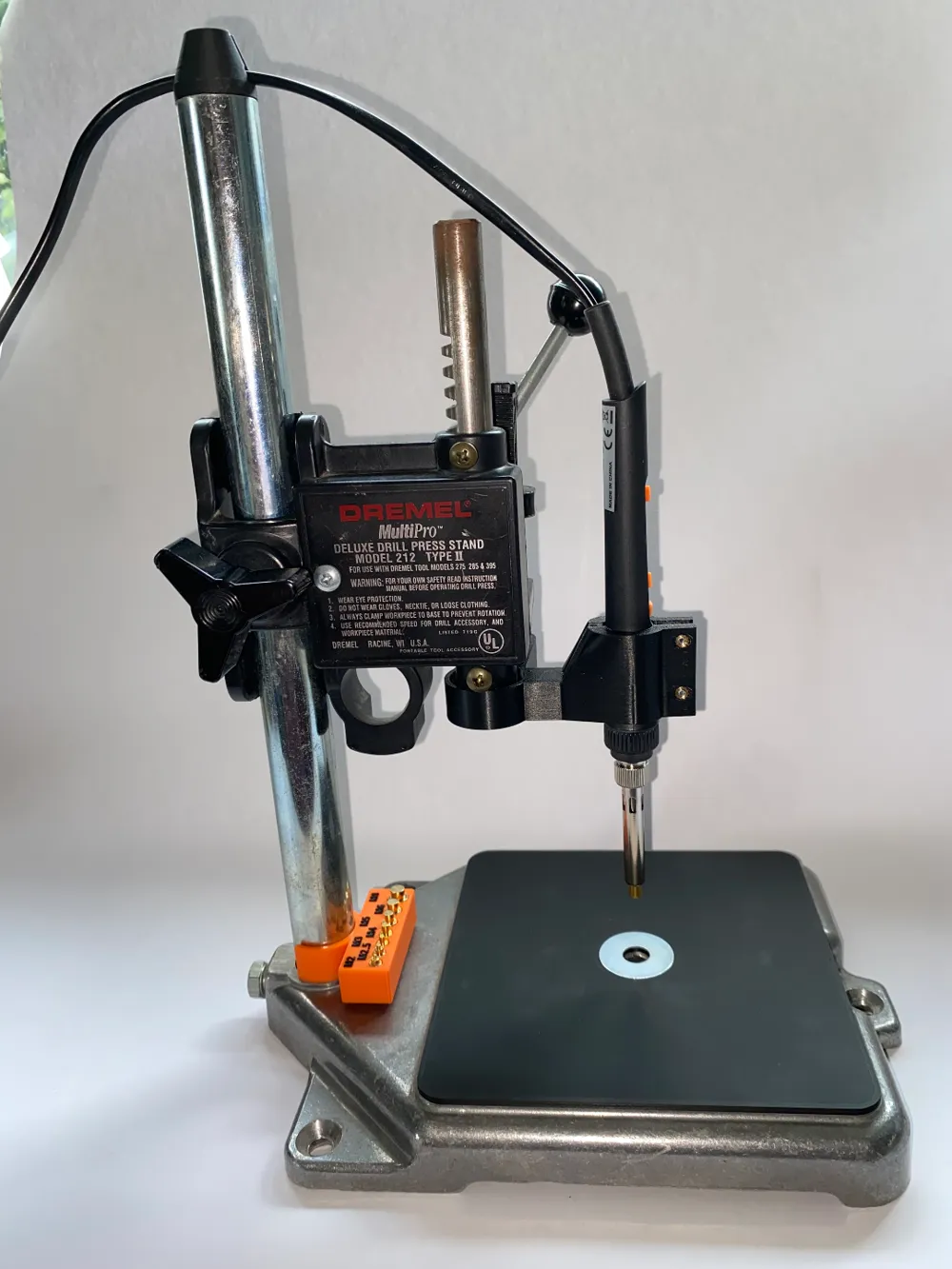

This is a soldering iron adapter for a Dremel drill stand (Deluxe Model 212 Type 2), rediscovered after being misplaced in the workshop, featuring integrated cable management. It's 3D printed using ABS for enhanced heat resistance in the soldering iron mount.

Two M3x5x4 melt-in nuts (Voron) are additionally required: https://amzn.eu/d/0bJwaFv, along with two M3x10mm screws or longer.

A compatible soldering iron can be found here: https://amzn.eu/d/gNhSVtN.

For assembly, detach the drill press mount (using two 14mm and two 11mm nuts) and attach the adapter in its place.

Crucially, before inserting the soldering iron, remove the rubber sheath (handle) and insert the iron from the underside of the mount.

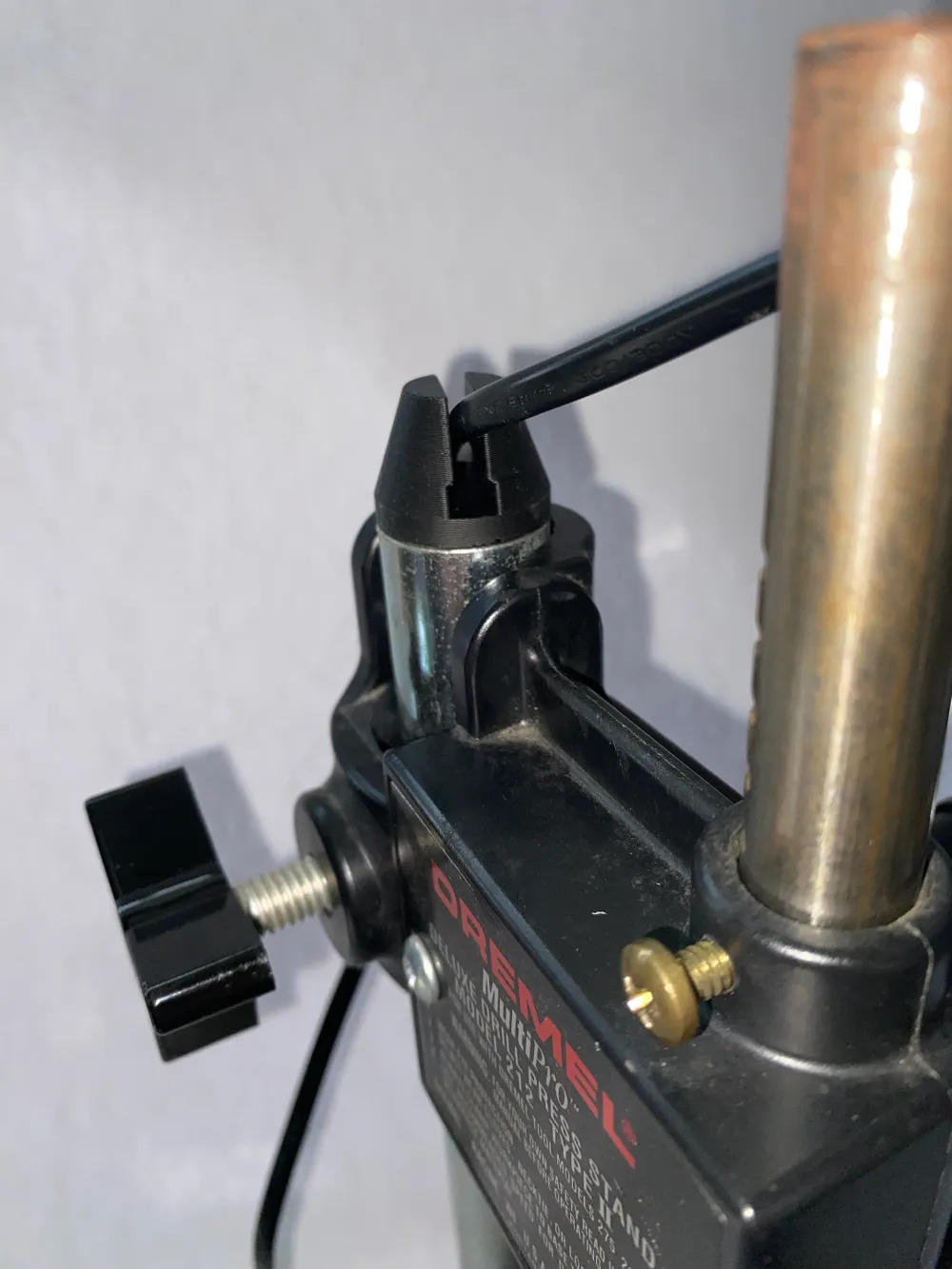

The cable guide may be printed using any suitable material and is inserted into the standpipe.

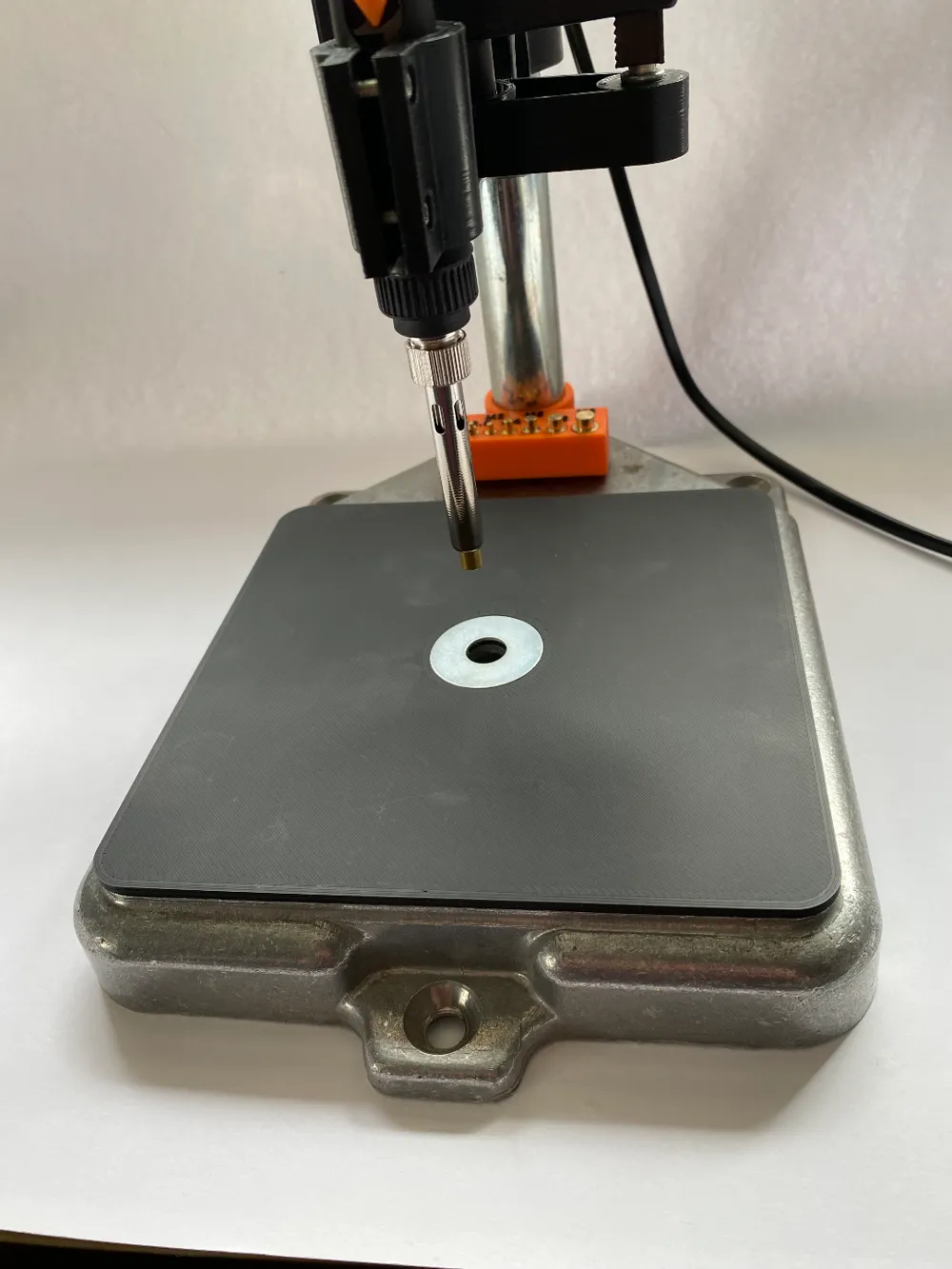

The plate precisely fits the press table. I designed it to prevent scratches from the metal table, incorporating a 30mm outer diameter, 10mm inner diameter, and 1mm thick washer. Print it upside down using PLA with PETG support, or conversely, PETG with PLA support.

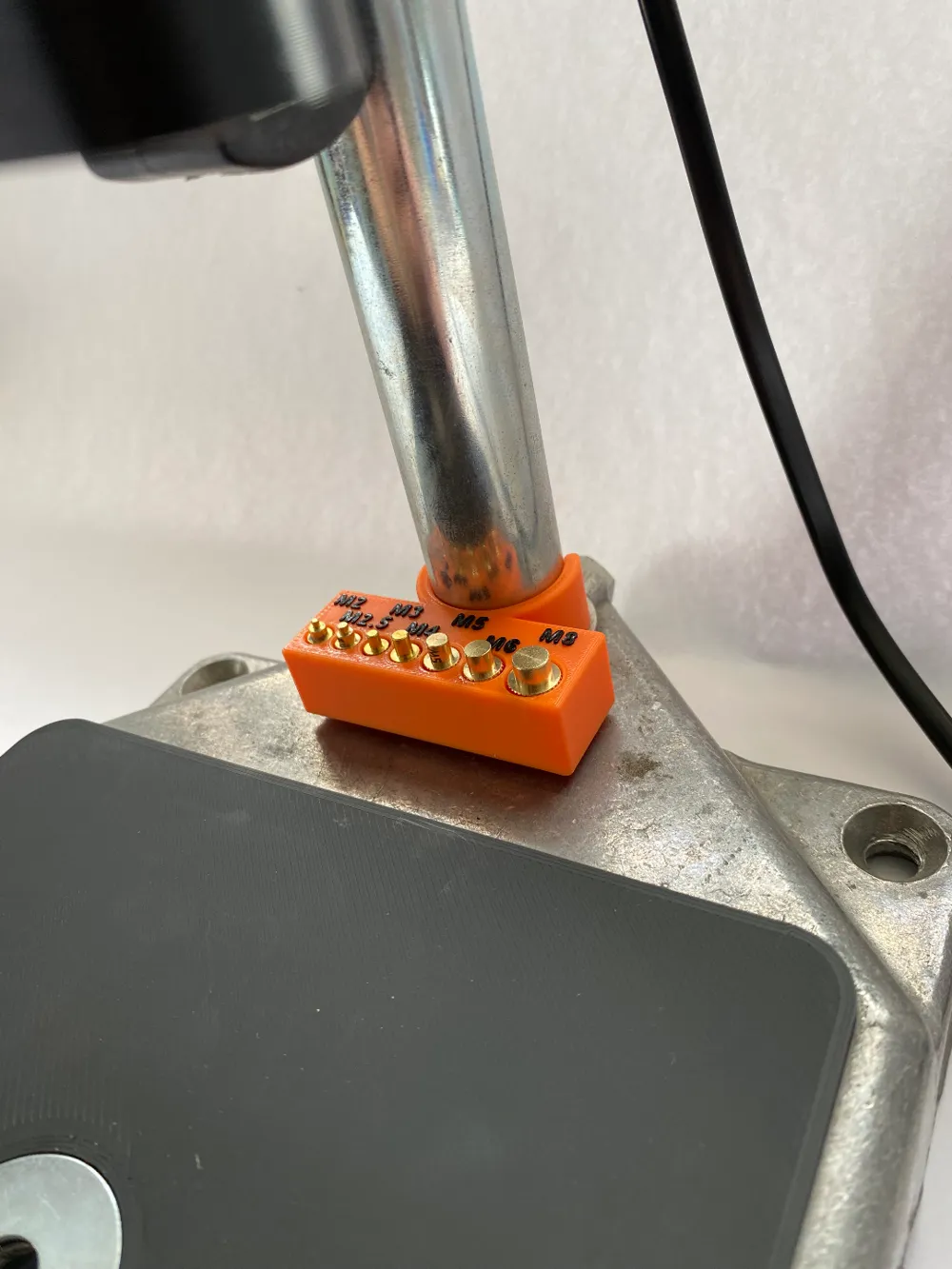

Finally, a tip holder, designed to clip onto the standpipe, is also included. Matching tips are available here: https://amzn.eu/d/bzwPxYt

stealth press

dremel press

dremel 212

soldering iron adapter

Comment & Rating (15)

@machDruck

Boosted

Many thanks for the great model with the accessories The drill stand had been sitting around for years I had to make a few adjustments to the accessories: The Ruthex heat insert tool didn't fit, and I reprinted the table plate in a version without the inserted washer I already have a lot of hardware that has accumulated, but not a washer of that size ;-) I should have checked beforehand All in all, great models that were easy to reprint I printed the adapter in ABS, the plate in PLA+, and the cable guide and holder in PETG All from manufacturer Jayo (Sunlu)

The designer has replied

Show original

@leguldor

Would the Fusion file for the plate be helpful Thank you very much for the comment and the boosts

(Edited)

Show original

@machDruck

Boosted

Replying to @leguldor :

Very gladly, with the STL import I always had a damaged model I managed with it, but the Fusion file would help me a lot if I wanted to fit another disc

Show original
