Rival MT10 RC car heavy duty body supports

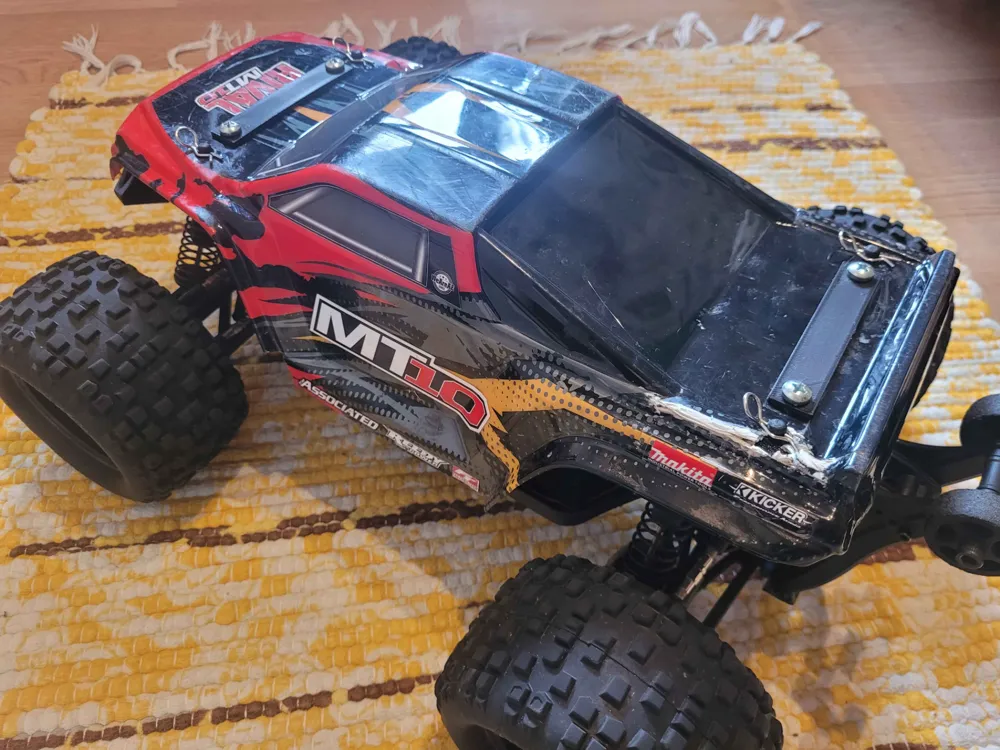

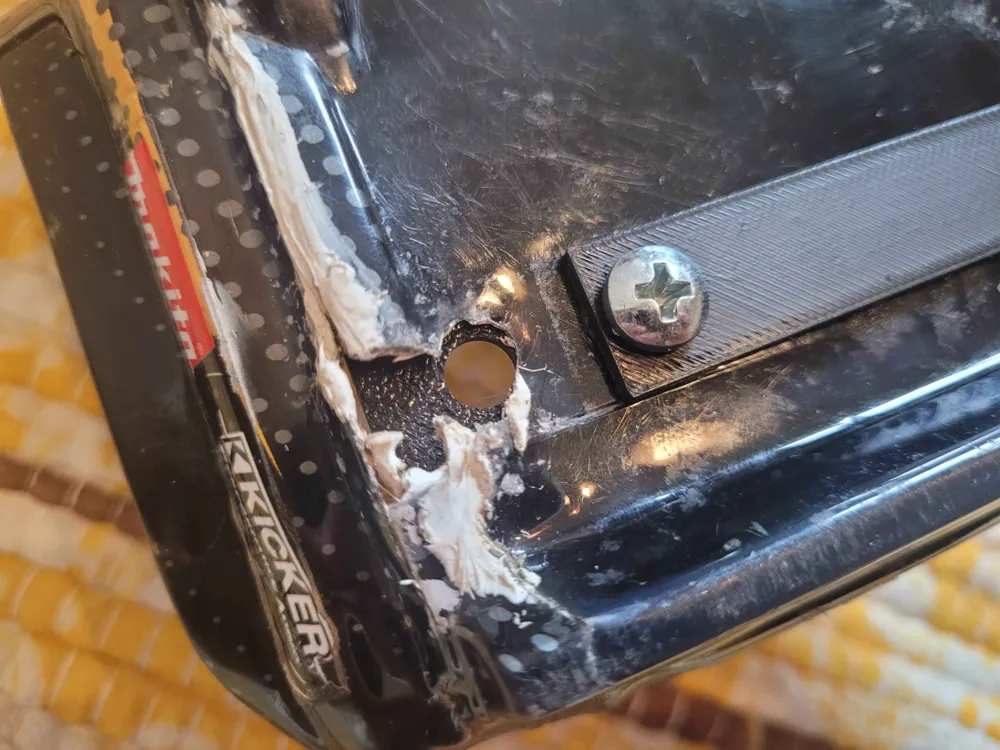

Heavy duty body support blocks for the Team associated Rival MT10. These provide a large area of contact with the actual body and massively increase the contact surface area of the body posts compared to stock. This can be used to (for example as i did) repair broken body mounting holes. Has been very good for bashing so far, if combined with the drywall tape and shoe goo method you can make the body shell VERY stong.

How to install?

Need 4x 5mm screws and nuts. For bigger screws just drill the holes bigger.

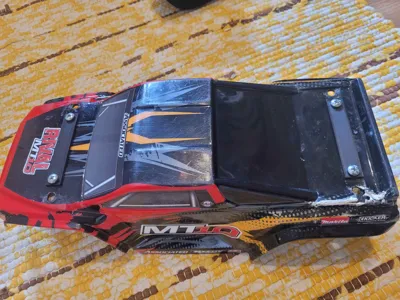

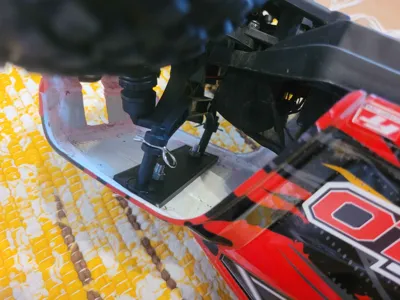

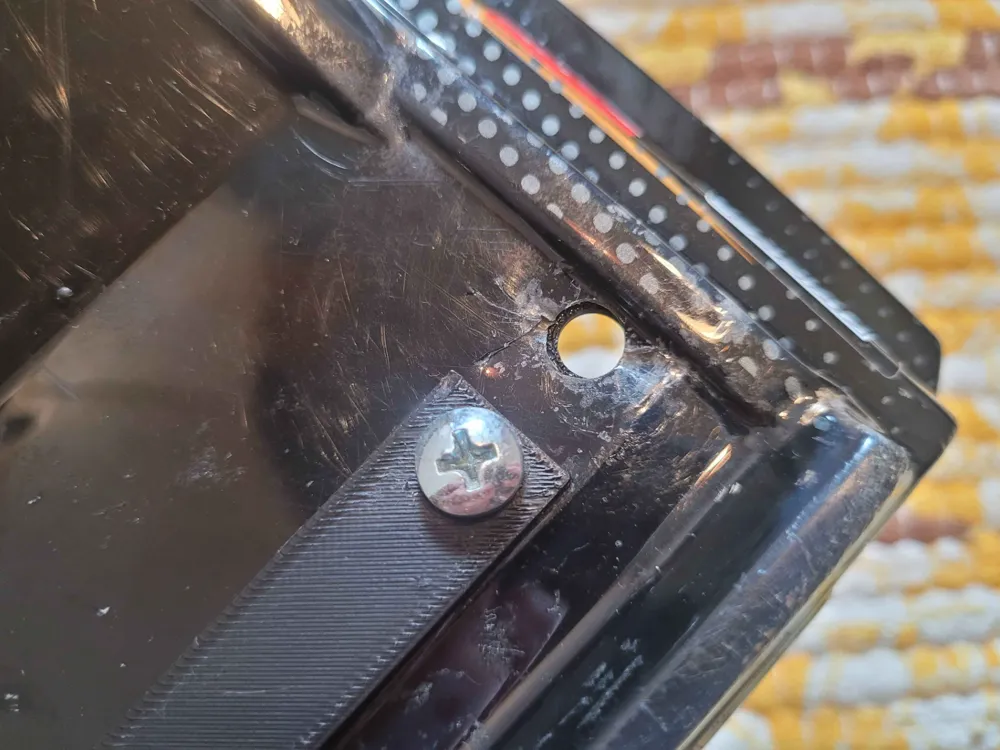

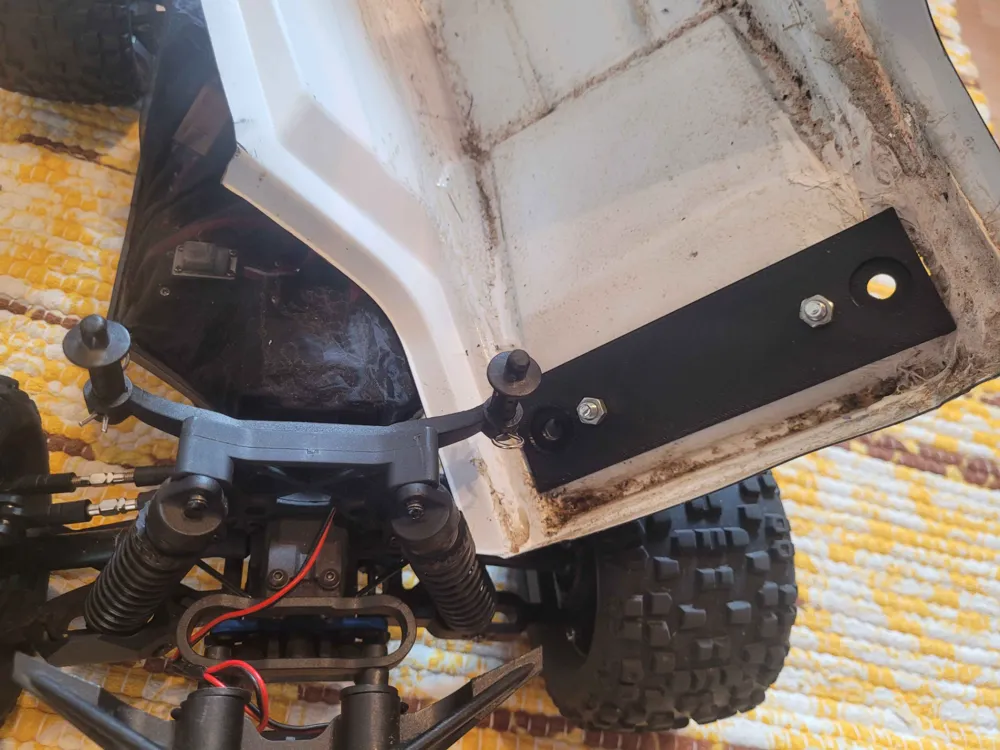

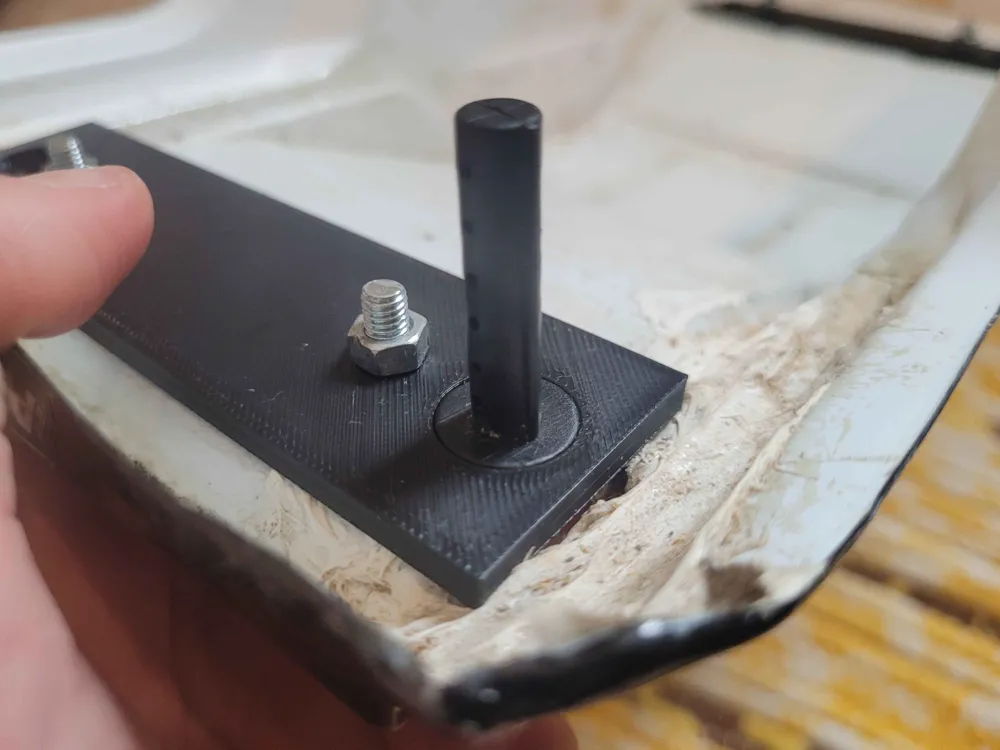

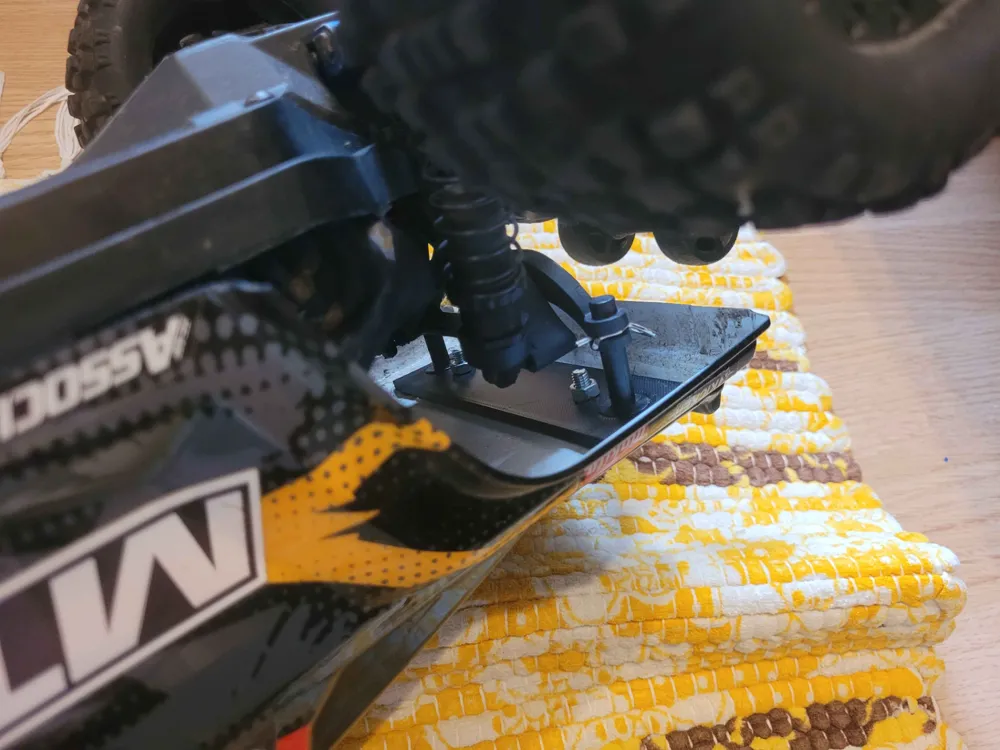

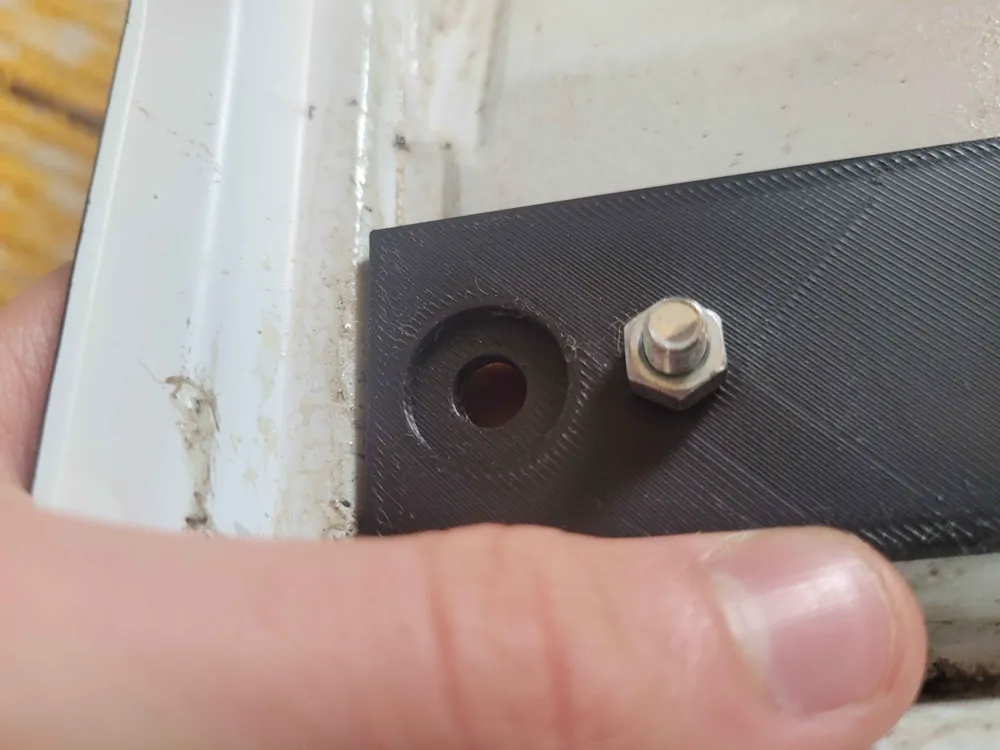

Align the plastic bit with the holes in the bottom side of the body shell (the bit that is angeled on 2 sides is for the front and the other one for the rear, the smaller 2 identical bits are screw support brackets for later). Then use a 5mm drillbit to drill holes into the body shell where the screws will be going (use the aligned plastic bit as a guide). Then take the screw support bracket and align it with the screw holes on the other side and insert the screws. Add nuts on the other side, tighten it up, repeat on the other side and take it out for a rip.
