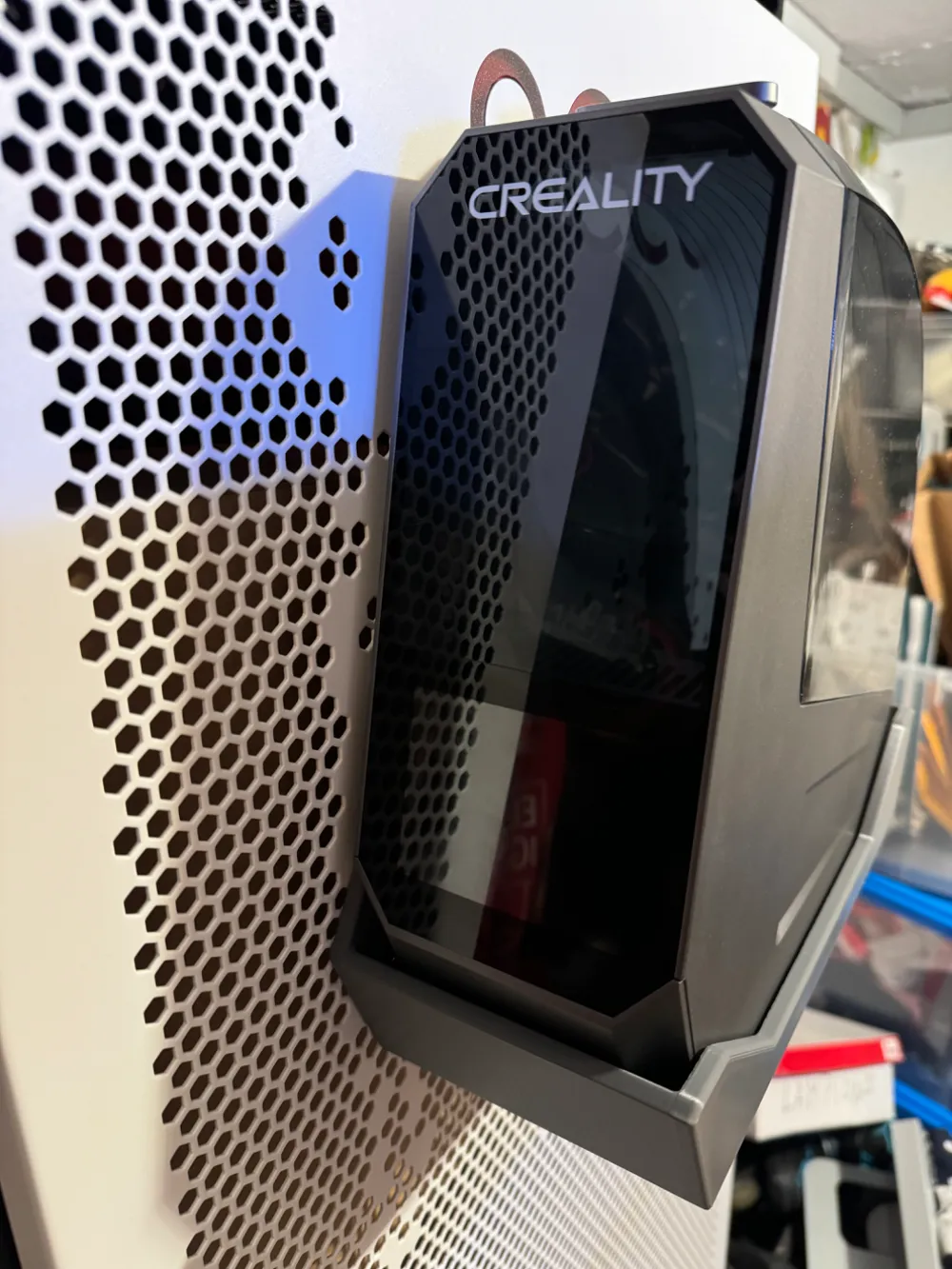

Bought a Creality Space Pi filament dryer and ran out of space.

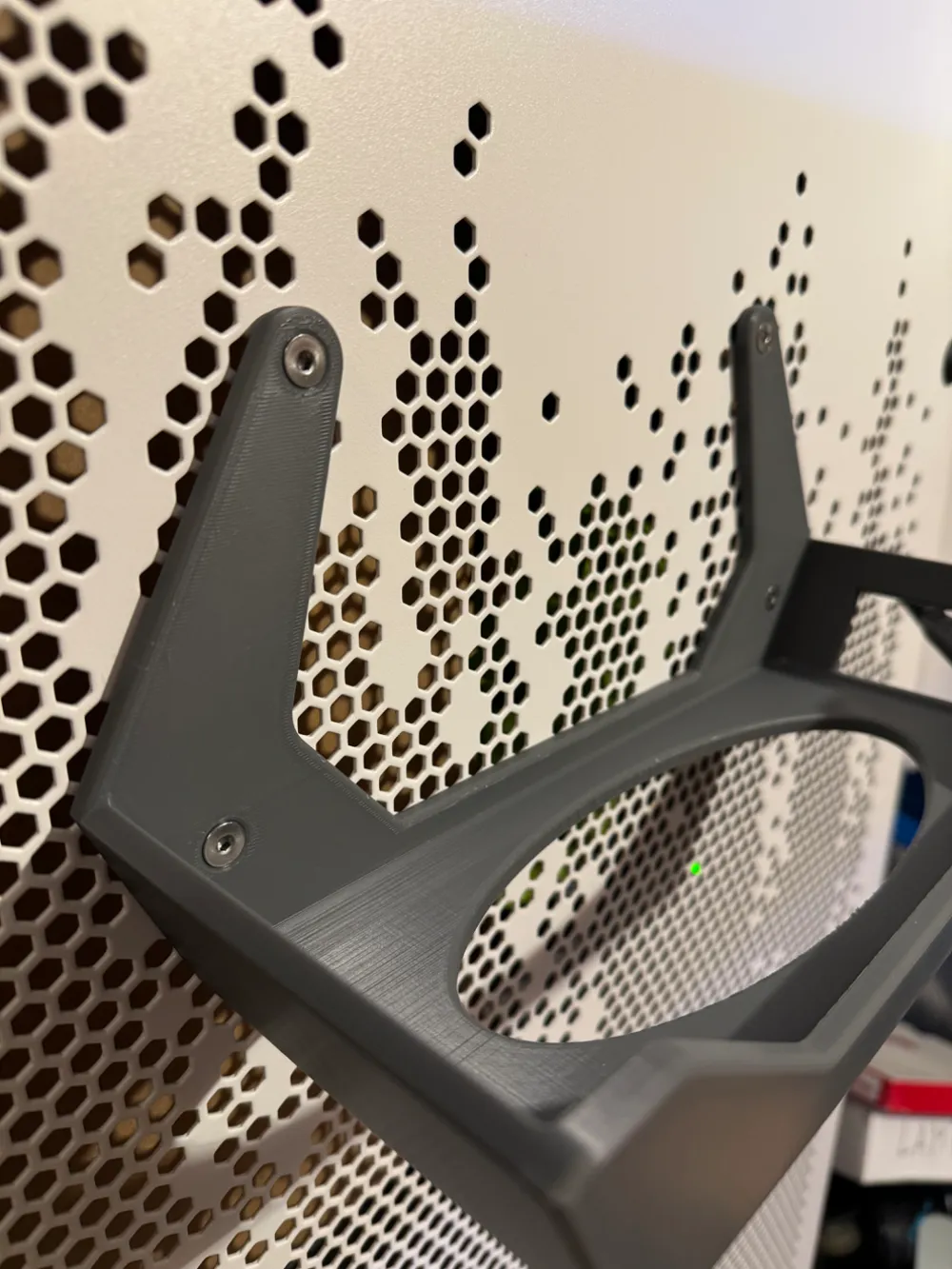

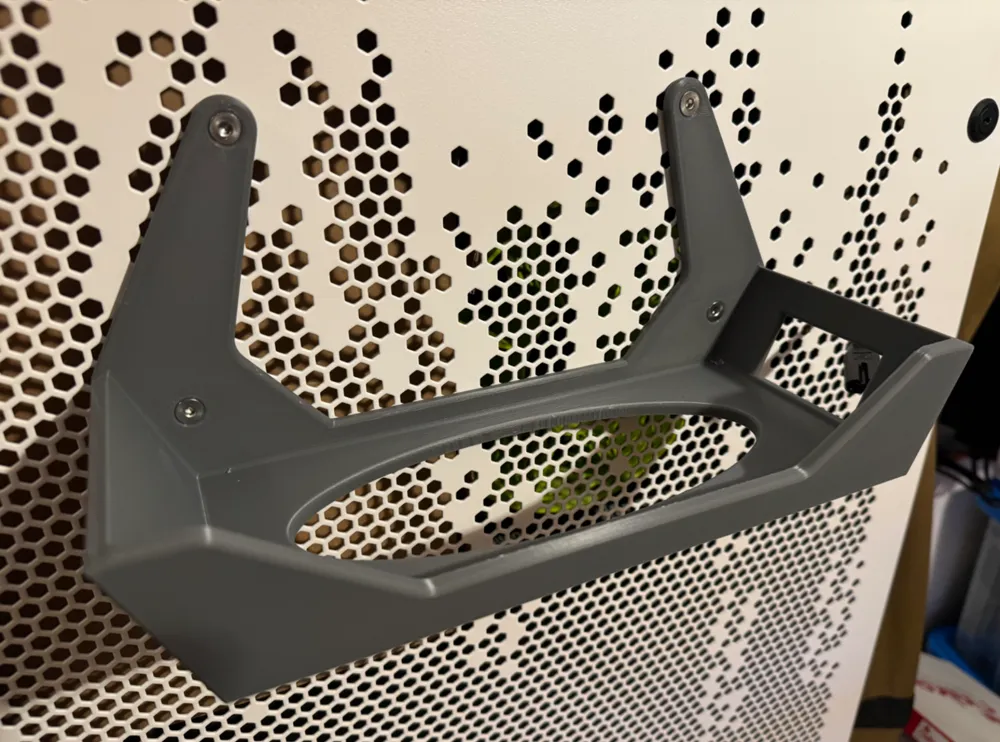

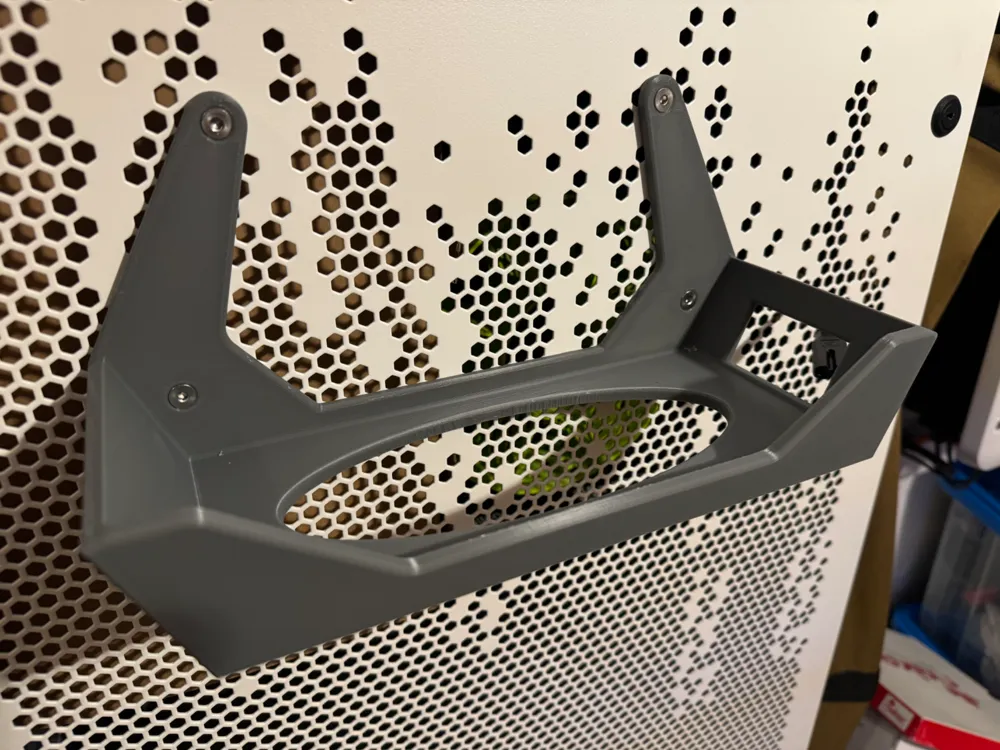

Made this holder by myself, since I couldn't find any models in the web which were pleasing or precisely fitting to this dryer.

Can be printed on 254x254mm printbeds (e.g. Bambu) if model is laid on its back and rotated a bit. Supports needed. Approximately 200g of filament (150g model, 50g supports). Printed it Gray PLA, which is a great fit to the filament dryer. M5 countersunk screws fit just fine.

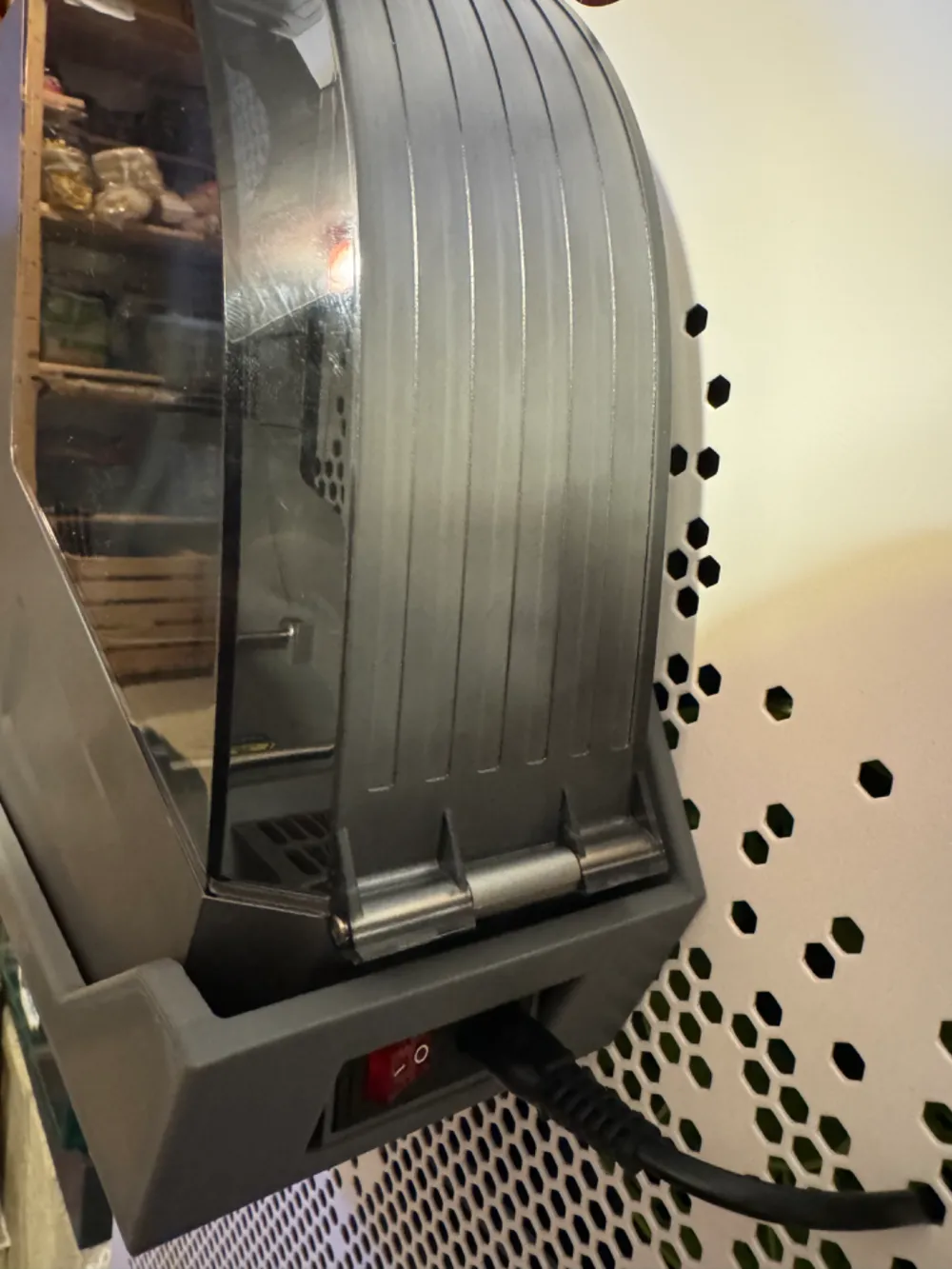

It is recommended, though, to print it with more temperature resistant materials, because this bad boy can get quite warm on the outside, especially when drying at high temperatures for very long time. Had to learn this the hard way myself.

Embedded in the Fusion model you can find a variant in the timeline, where the model is split and can be printed without supports, but needs dewels and heat inserts instead. I went with supports.
