Alex Grey "Sol Invictus" Hueforge - 10 colour

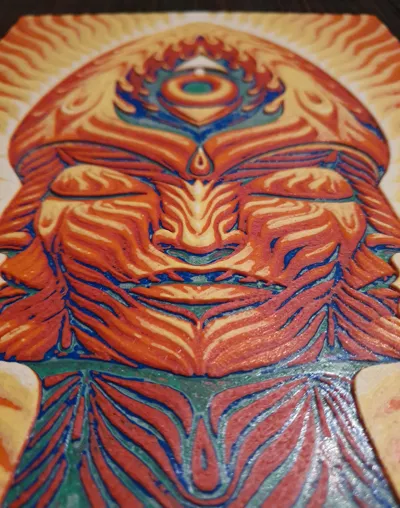

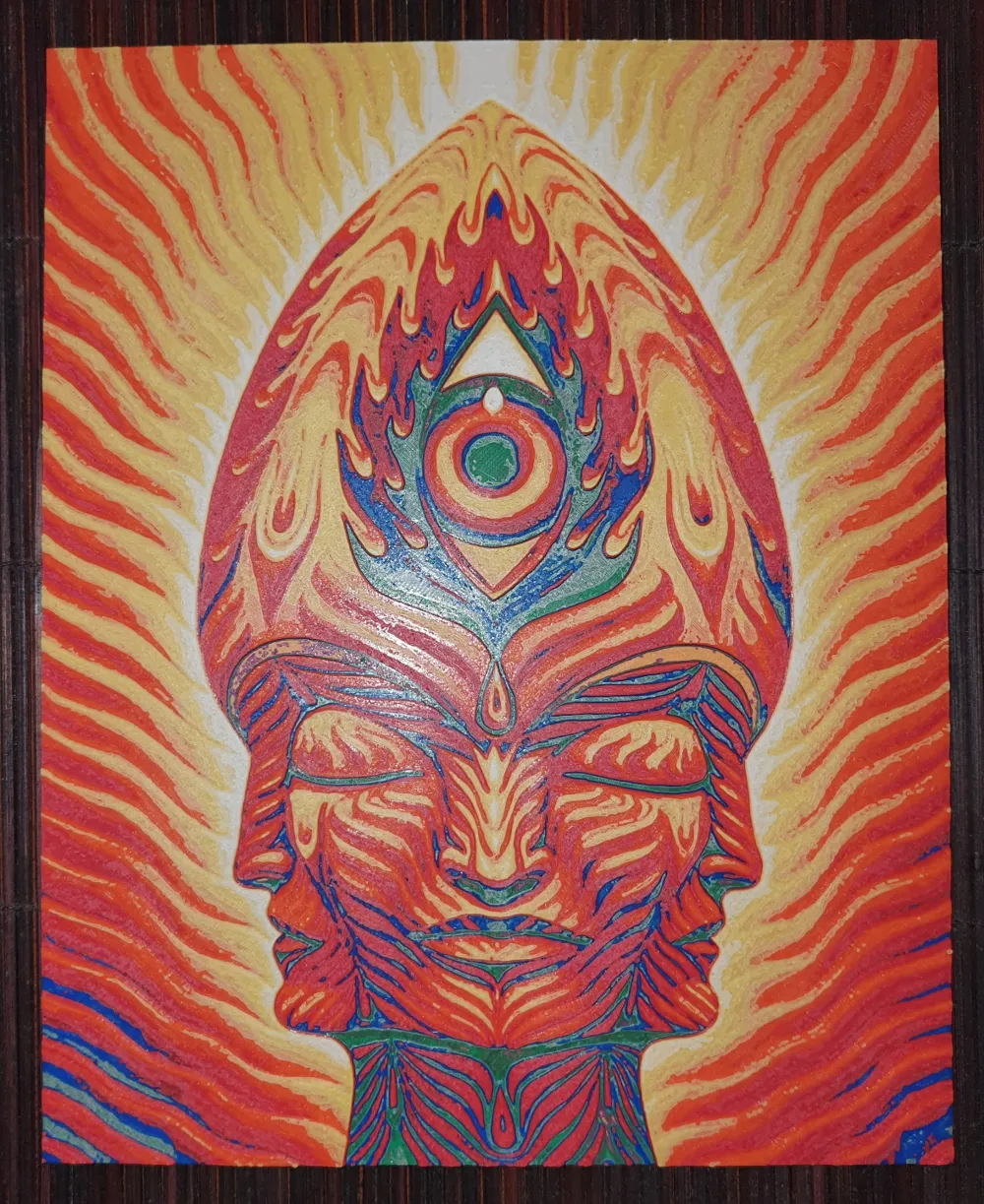

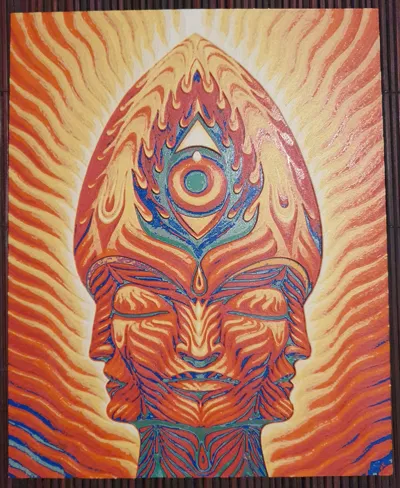

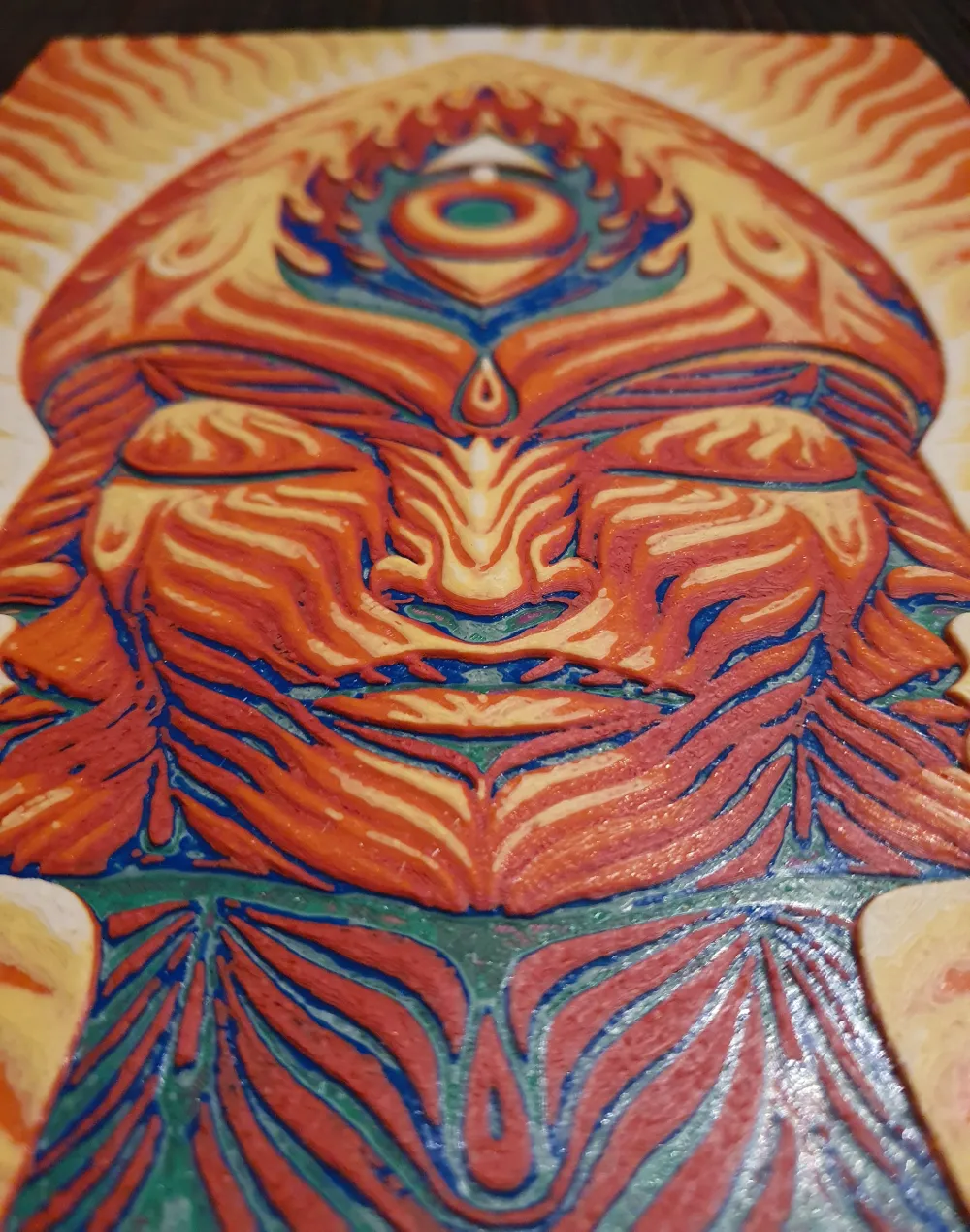

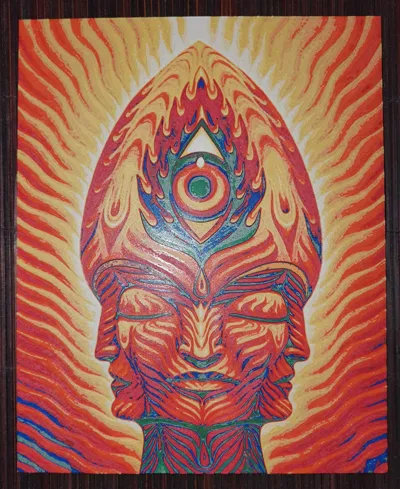

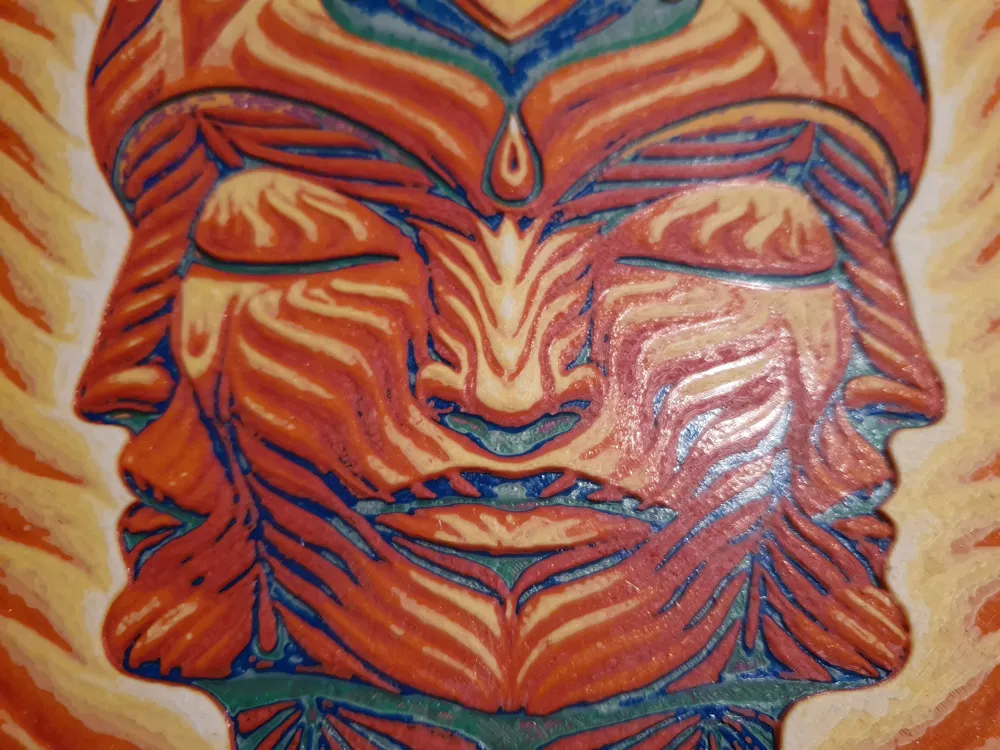

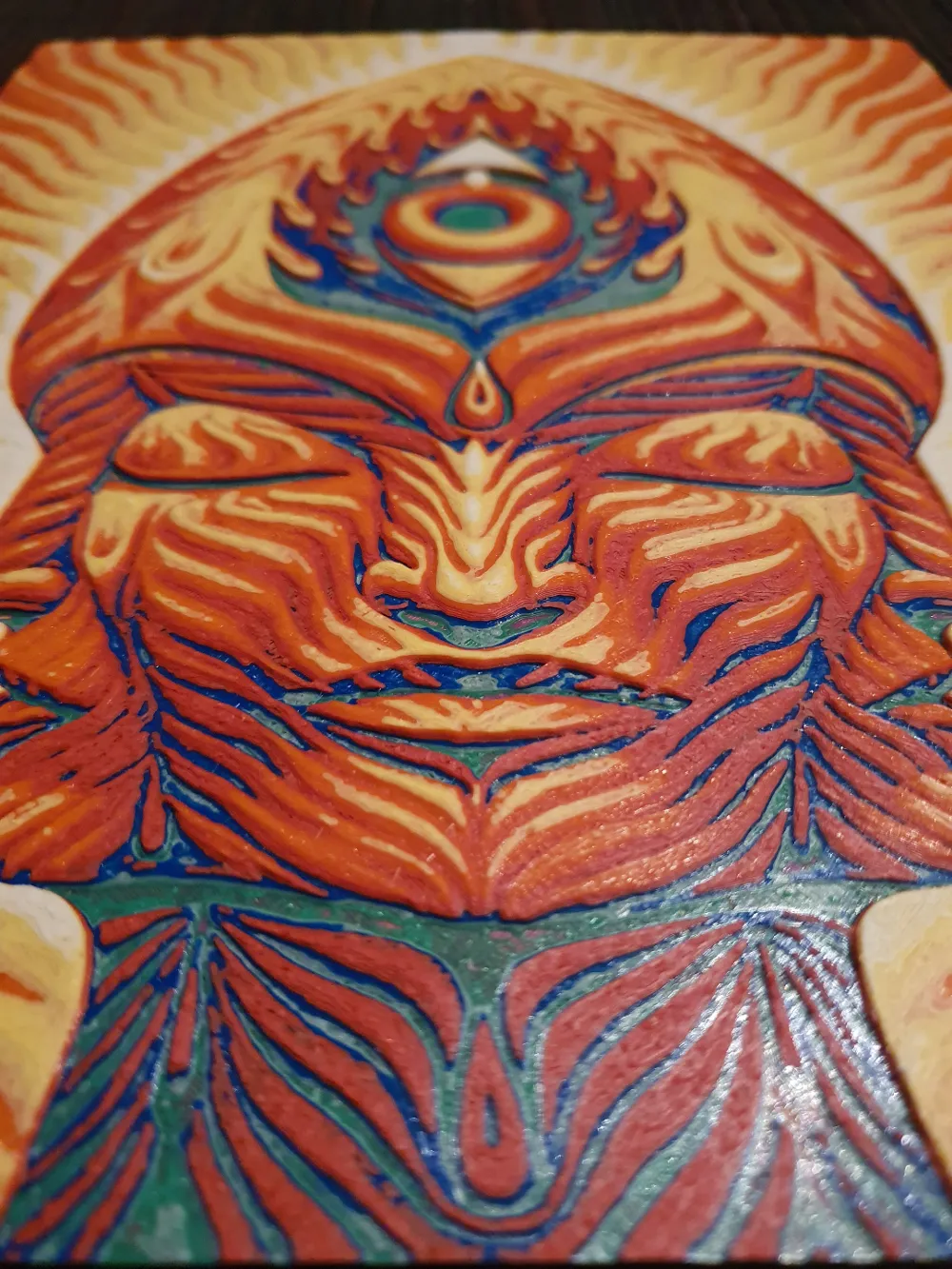

Hueforge painting of Alex Grey's “Sol Invictus”

IMPORTANT:
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

You may print at higher layer heights below the Min Depth of 0.8mm
The Max Depth is 3mm and the Actual Depth is 3.1mm

Filaments Used:
PLA PolyTerra Charcoal Black Transmission Distance: 0.3
PLA PolyTerra Sunrise Orange Transmission Distance: 2
PLA ESun Purple Transmission Distance: 4.5
PLA BambuLab Basic BambuLab Green Transmission Distance: 2
PLA ESun Silver Transmission Distance: 2.5
PLA PolyTerra Sapphire Blue Transmission Distance: 0.3
PLA PolyTerra Army Red Transmission Distance: 0.3
PLA+ Esun Orange Transmission Distance: 5
PLA PolyTerra Savannah Yellow Transmission Distance: 3.5
PLA PolyTerra Cotton White Transmission Distance: 1.5
This print uses 10 unique filaments

Swap Instructions:
Start with PolyTerra Charcoal Black
At layer #7 (0.64mm) swap to PolyTerra Sunrise Orange
At layer #12 (1.04mm) swap to ESun Purple
At layer #13 (1.12mm) swap to BambuLab Green
At layer #15 (1.28mm) swap to ESun Silver
At layer #17 (1.44mm) swap to PolyTerra Sapphire Blue
At layer #20 (1.68mm) swap to PolyTerra Army Red
At layer #25 (2.08mm) swap to ESun Orange
At layer #29 (2.4mm) swap to PolyTerra Savannah Yellow
At layer #34 (2.8mm) swap to PolyTerra Cotton White for the rest.

How to do more than 4 colours on a single AMS:

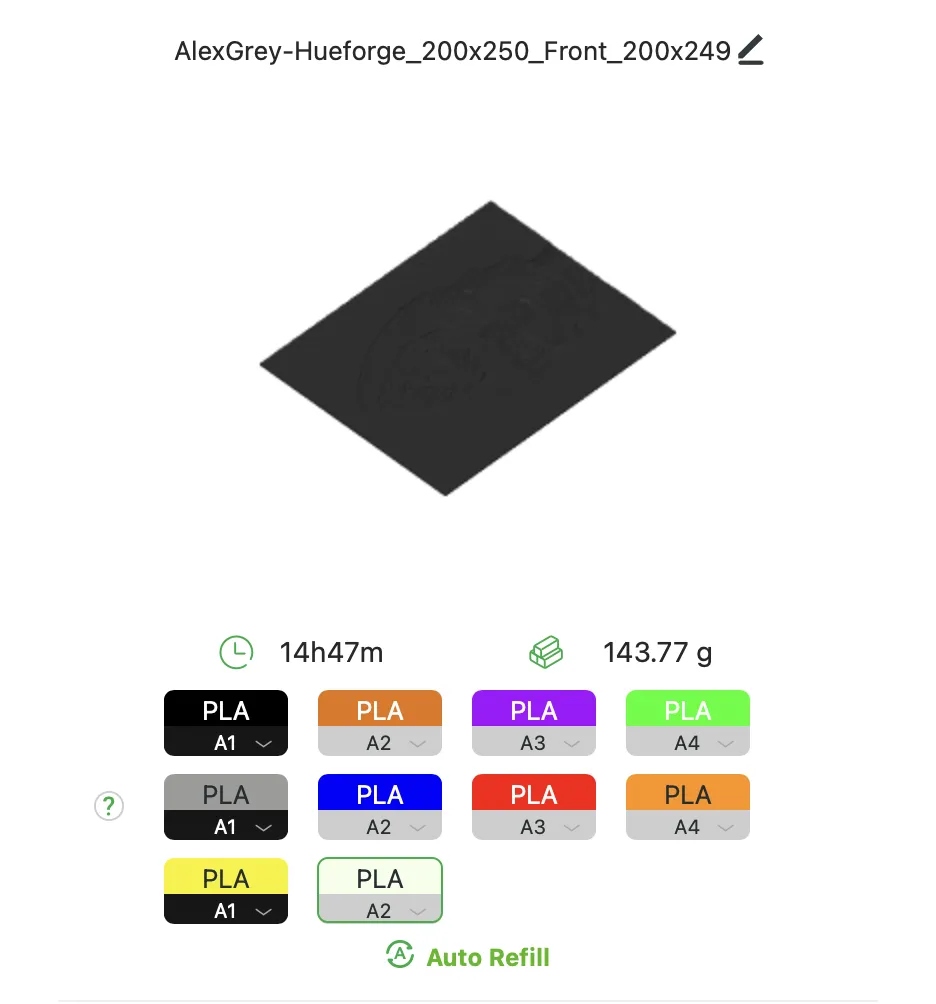

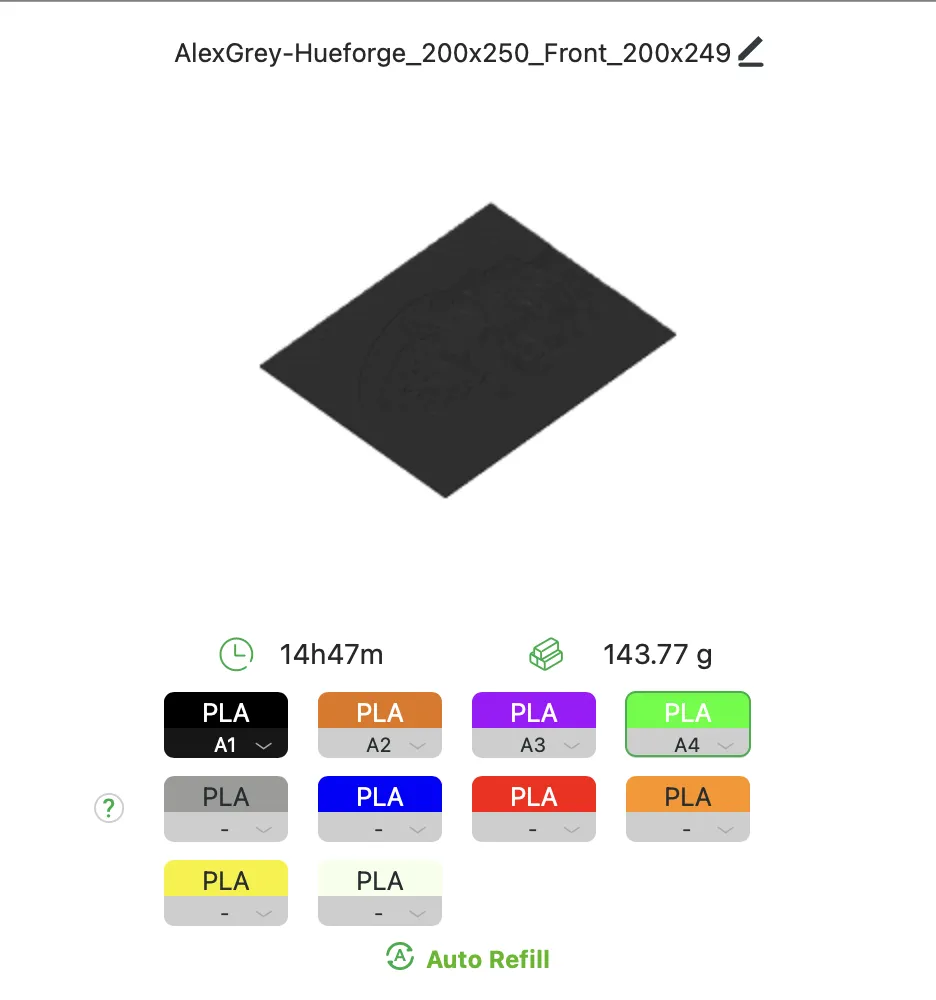

From Bambu Studio/Handy App map the rolls of filaments to a certain slot in the AMS:
Map the first 4 colours already inserted in the AMS to Slots 1 - 2 - 3 - 4


Once that's done move to mapping colors 5 - 6 - 7 - 8 - 9 and 10 to their respective AMS Slots.
[See below image for mapping order]


Added pause at layer 4 on the 4th colour and another pause at layer 22 on the 7th colour so you can switch rolls before continuing the print in case you are not able to monitor the print and switch colours as it goes.
