Search models, users, collections, and posts

French cleat workshop bin

IP Report

Print Profile(1)

All
P1S
H2S
P1P
X1E
X1
H2D
X1 Carbon
A1
H2C
H2D Pro
P2S
X2D
A2L

[122] 0.2mm layer, 3 walls, 15% infill (Gyroid)
[122] 0.2mm layer, 3 walls, 15% infill (Gyroid)
6.6 h
1 plate
5.0(21)

Open in Bambu Studio
Boost
164
654
26
20
479
227
Released

Bill of Materials

List other parts
  • M4-20mm-screw x 2:
  • M4-nut x 2:

Description

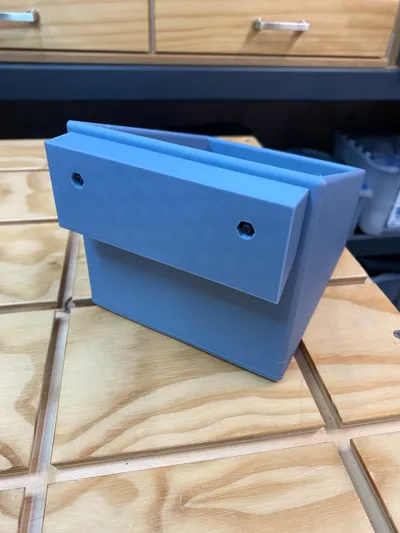

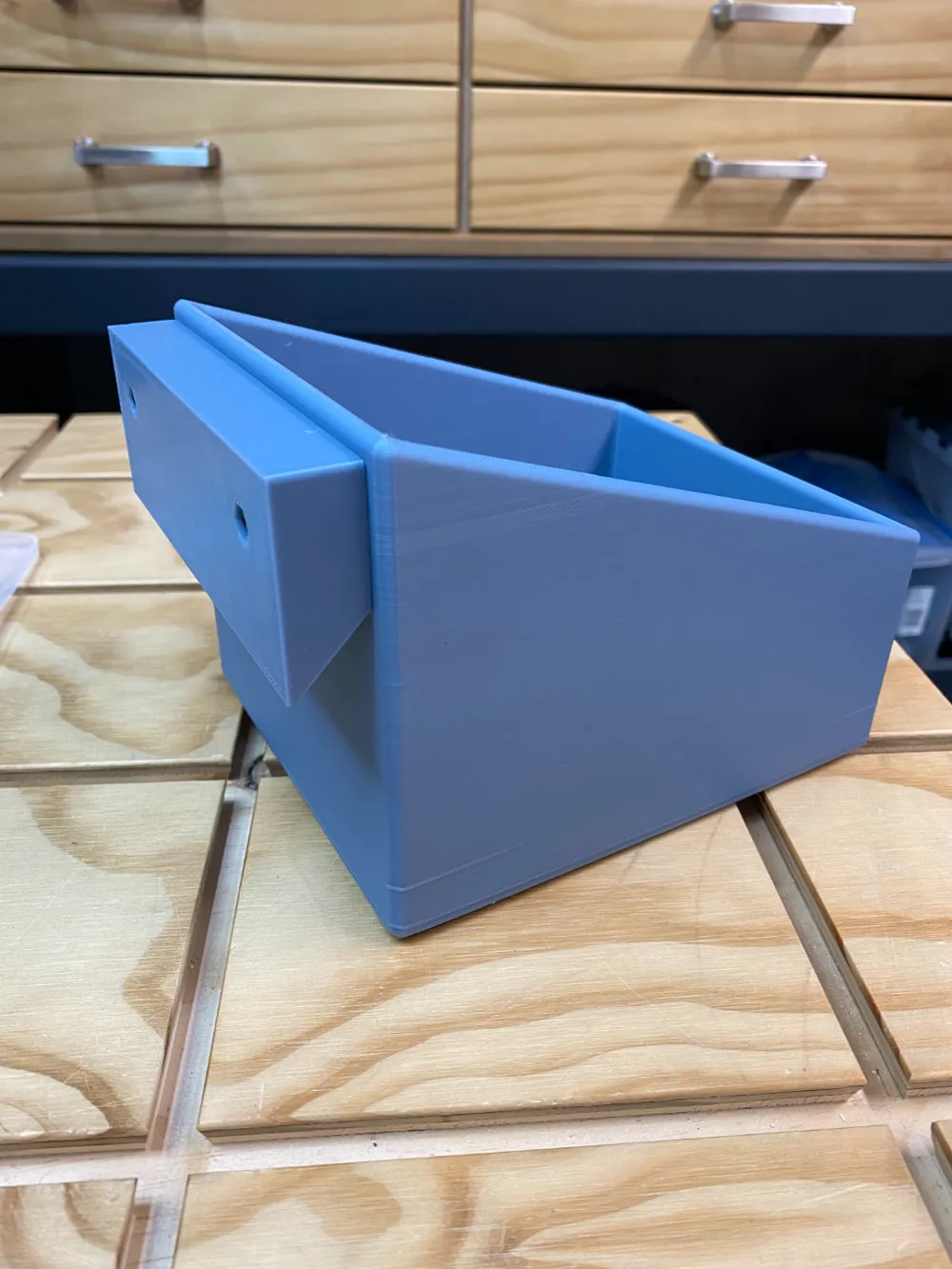

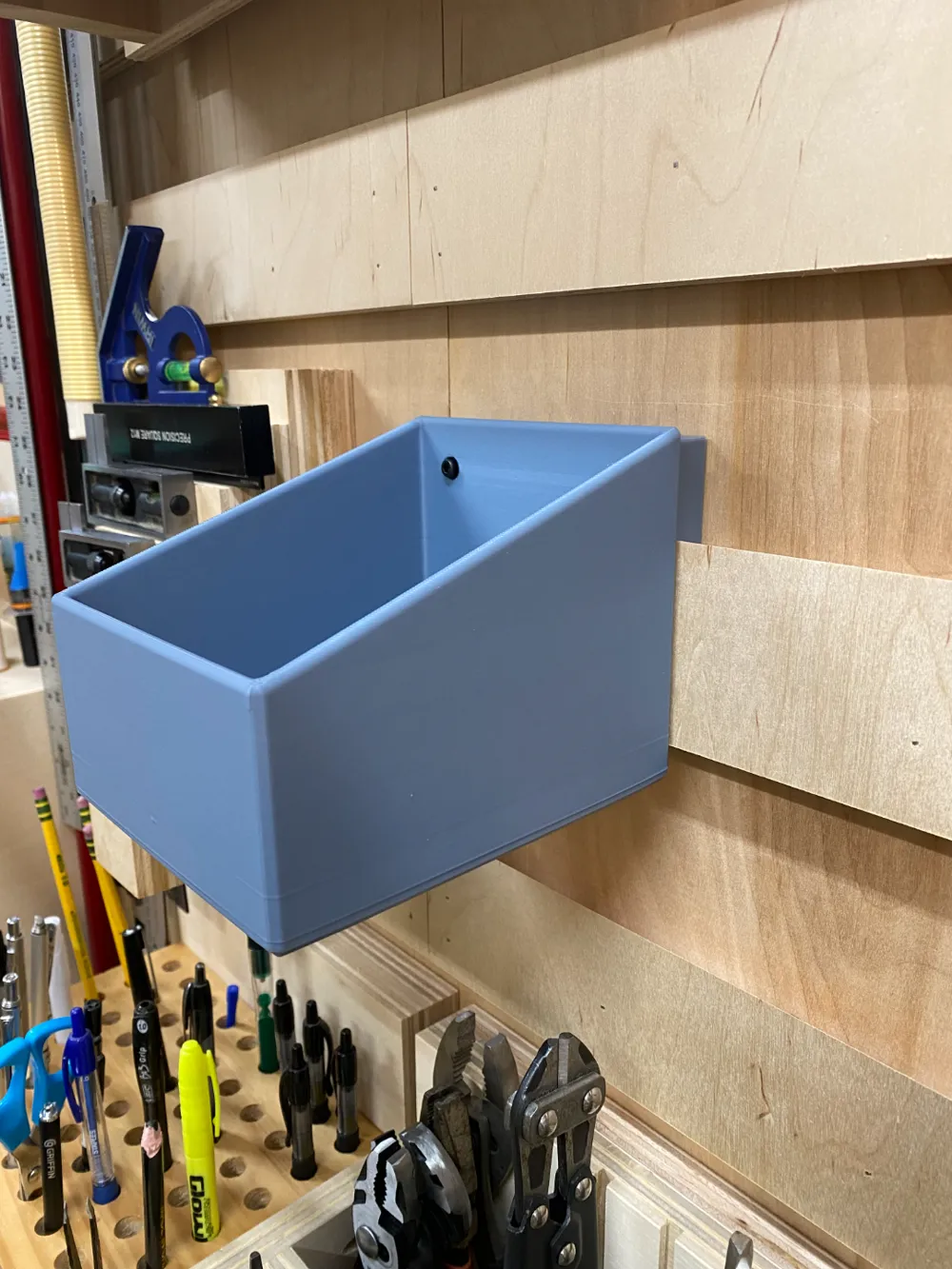

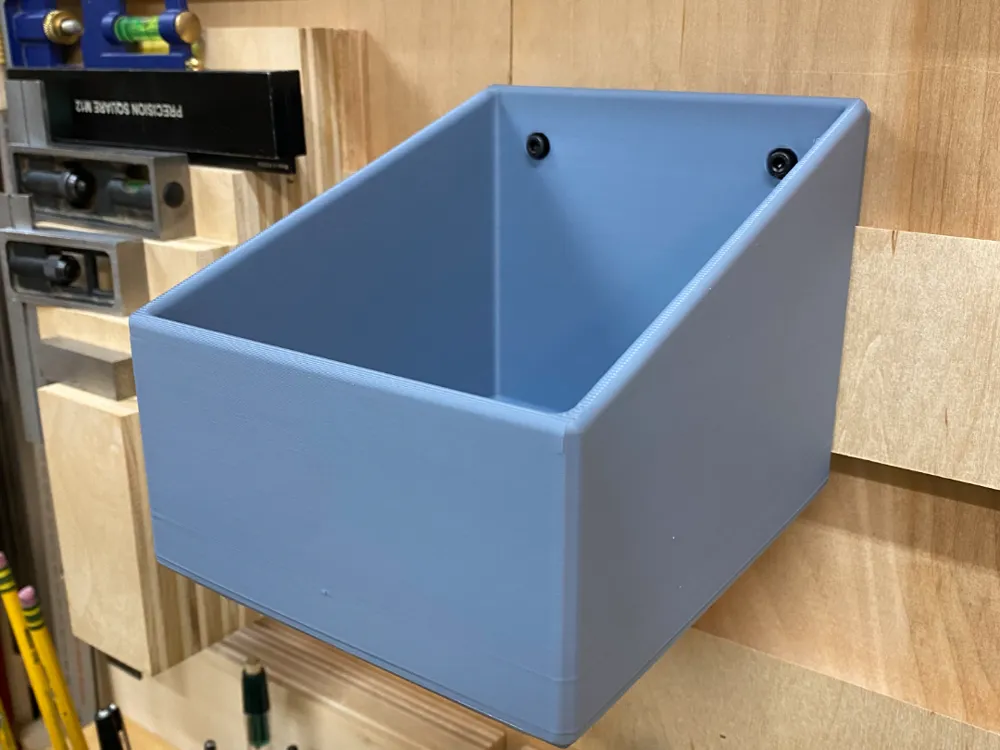

This is a general purpose bin for my French cleat wall. The cleat connects to the bin with 2 M4 x 20mm screws and nuts. The nuts are easily recessed into the cleat the help of an M4 screw and washer. Without the bin attached, use a screw and washer to pull the nut into the recess until it finds the bottom of the socket. Then back out the screw and discard the washer.



Non-3D printed parts needed: (these don't appear to be options in the drop downs, so I'm listing them here)

M4 x 20 mm machine screw (2)

M4 nut (2)

M4 washer (1) - used to recess the nut, then discard



I printed this with Hatchbox Blue Gray PLA and a 0.6 nozzle with both parts on one plate. You'll need 2 plates for an A1 Mini.
No supports needed.



I'm new to 3d printing and this is my first model publication. Any feedback on the model and/or how I'm sharing is most welcome.

Comment & Rating (26)

(0/1000)
