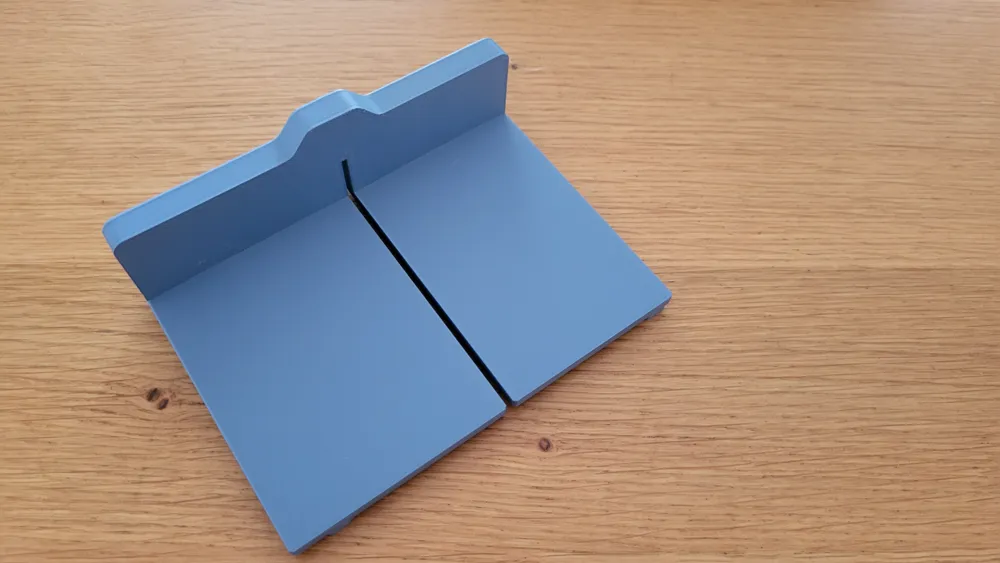

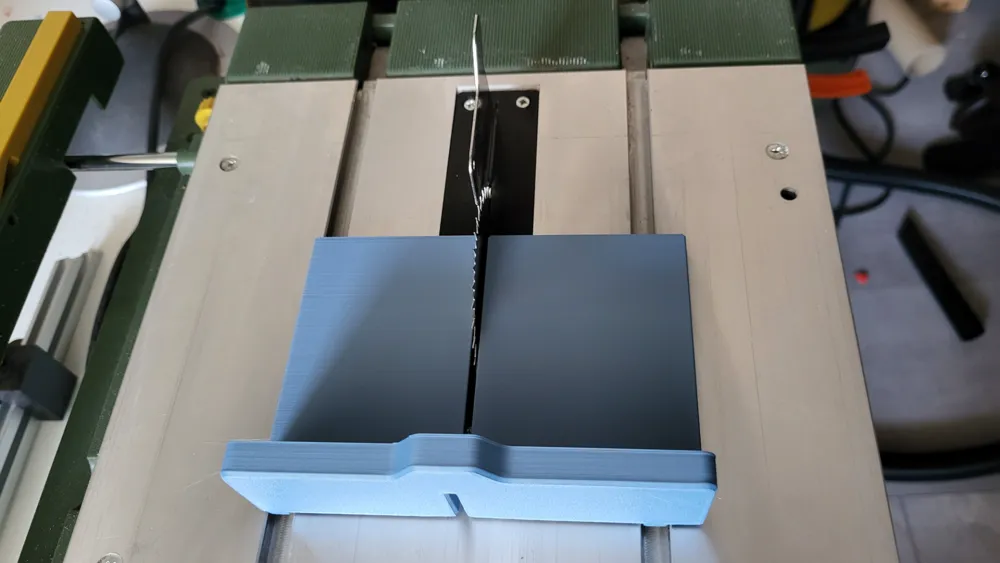

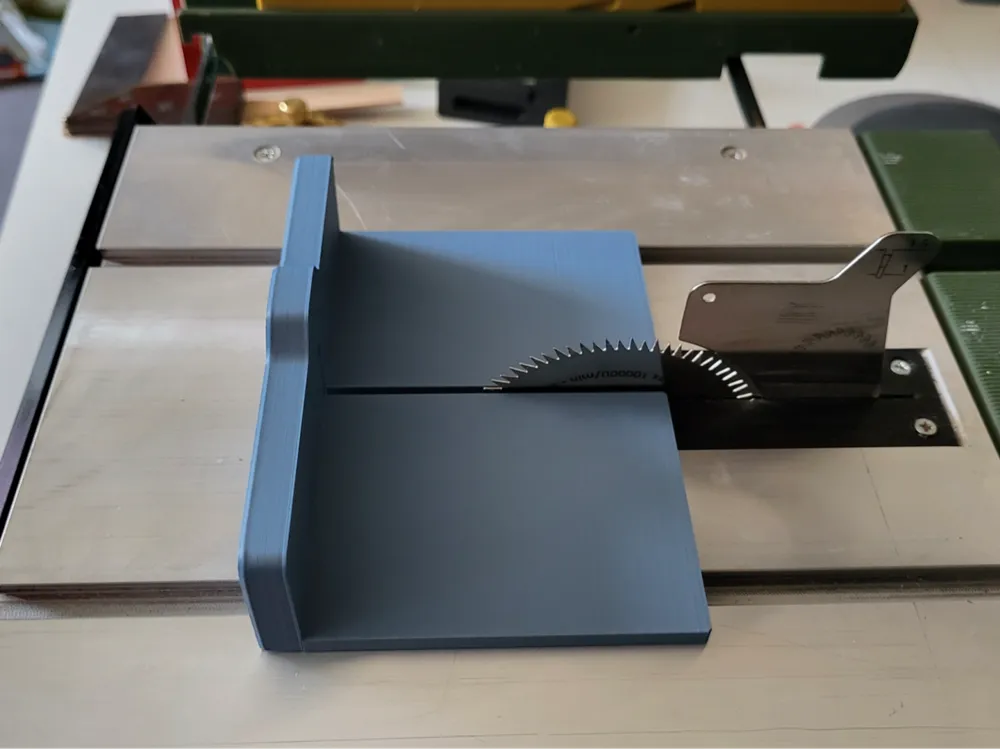

This is my first model on Makers World. This mini sized table saw sled for the Proxxon FET table saw can be printed on the A1 mini.

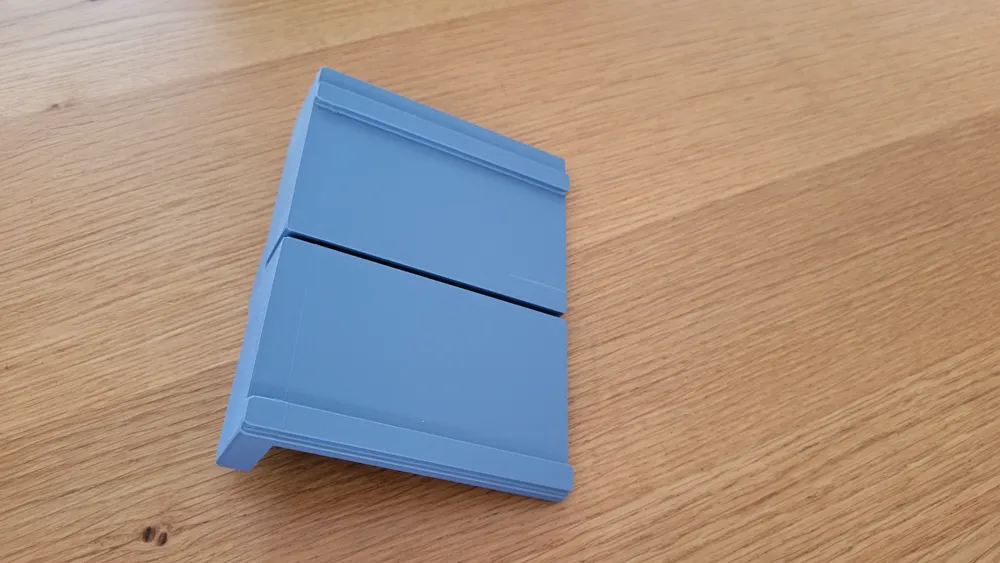

The base plate for this ‘mini’ sled is 5mm thick, 100mm in depth and 135mm wide. The slot for the blade is 2mm wide. The height should support the maximum balde diameter of 85mm. I am working on different versions (MIni, Medium and Large) which is easy as the FreeCAD model is parameterized. Also working on a base plate-less version. Just to learn the tool.

Tool"s used: FreeCAD and Bambu Studio. Sample printed on A1 Mini and P1S.

Please have a look at the updated model: https://makerworld.com/en/models/577327#profileId-497972

Suggestion are welcome!
