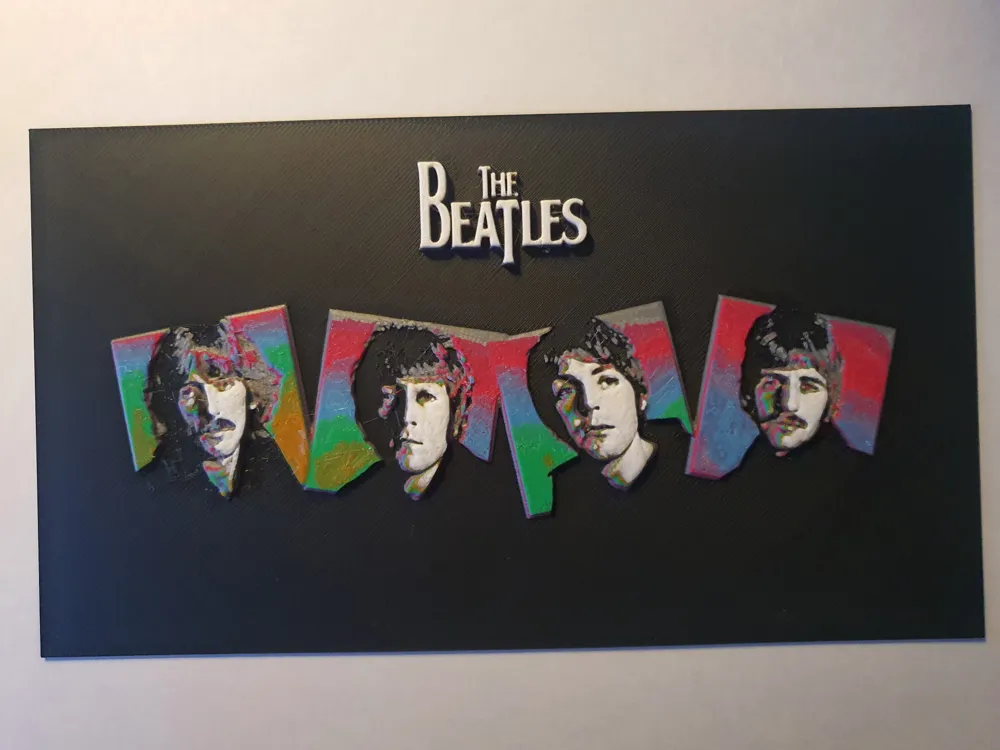

The Beatles Hueforge
Print Profile(1)
Description
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
The Model is 200x112.5mm in size
You may print at higher layer heights below the Min Depth of 0.96mm
The Max Depth is 4mm and the Actual Depth is 4.1mm
Filaments Used:
PLA PolyTerra Charcoal Black Transmission Distance: 0.3
PLA Overture Space Gray Transmission Distance: 2.1
PLA+ Esun Magenta Transmission Distance: 4.5
PLA+ Esun Space Blue Transmission Distance: 3.5
PLA BambuLab Basic BambuLab Green Transmission Distance: 2
PLA+ Esun Orange Transmission Distance: 5
PLA BambuLab Basic Silver Transmission Distance: 0.5
PLA BambuLab Matte Ivory White Transmission Distance: 3.5
This print uses 8 unique filaments
Swap Instructions:
Start with Charcoal Black
At layer #14 (1.2mm) swap to Space Gray
At layer #22 (1.84mm) swap to Magenta
At layer #26 (2.16mm) swap to Space Blue
At layer #31 (2.56mm) swap to BambuLab Green
At layer #33 (2.72mm) swap to Orange
At layer #36 (2.96mm) swap to Silver
At layer #37 (3.04mm) swap to Ivory White for the rest.

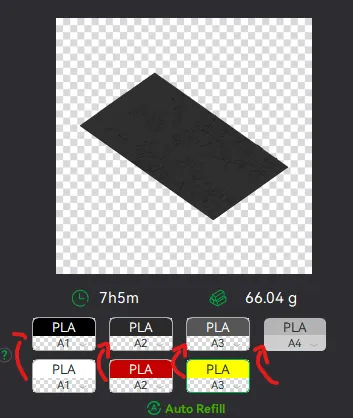

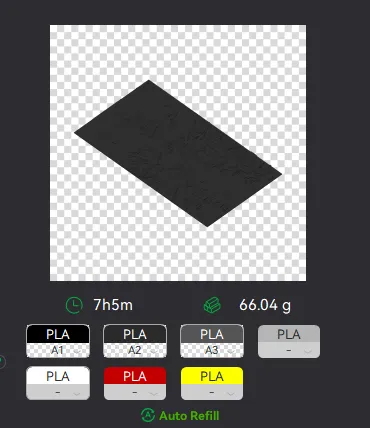

How to do more than 4 colours on a single AMS:
From Bambu Studio/Handy App map the rolls of filaments to a certain slot in the AMS:
Map the first 4 colours already inserted in the AMS to Slots 1 - 2 - 3 - 4
Once that's done move to mapping colors 5 - 6 - 7 - 8 to their respective AMS Slots
Added pause at the last layer of the 4th colour so you can switch rolls before continuing the print in case you are not able to monitor the print and switch colours as it goes.
