Alley Chat TS1 TBeam SUPREME Case by Alley Cat

Commercial Use and Attribution Notice:

© by Alley Cat and Majestic AV, LLC. is licensed under CC BY-SA 4.0.

Commercial use of this design, including promotional use, selling, and reselling to other businesses for sale, is permitted under the following conditions: Prior to any commercial exploitation, you must contact Alley Cat or MajesticAV, LLC to ensure proper attribution. This requirement extends to any sharing, distribution, or creation of derivative works, including manually crafted designs that emulate this design. Proper attribution must be clearly stated in all instances of use. For official contact methods and further information, visit Majestic AV, LLC - Alley Cat. Any other sources are unauthorized and should not be used for commercial or licensing inquiries.

Commercial Use and Attribution Notice:

Alley Chat TS1 © 2024 by Majestic AV, LLC. is licensed under CC BY-SA 4.0.

Commercial use of this design, including promotional use, selling, and reselling to other businesses for sale, is permitted under the following conditions: Prior to any commercial exploitation, you must contact Alley Cat or MajesticAV, LLC to ensure proper attribution. This requirement extends to any sharing, distribution, or creation of derivative works, including manually crafted designs that emulate this design. Proper attribution must be clearly stated in all instances of use. For official contact methods and further information, visit Majestic AV, LLC - Alley Cat. Any other sources are unauthorized and should not be used for commercial or licensing inquiries.

Disclosure: Some links on this page may be Amazon affiliate links. If you make a purchase through them, I may earn a small commission — at no extra cost to you. I only recommend gear I trust and use myself. Thanks for your support!

Suggested Print Settings:

Material: PLA+ or PETG
Nozzle: 0.4mm
Extrusion Width 0.4mm
Layer Height: 0.2mm
Perimeters: 3
Infill: 20% Grid
Top/Bottom Layers: 5
Support Material: None

3D Printing Disclaimer:

Thank you for downloading my CAD design! I want to assure you that extensive testing and iteration went into creating this design. However, please keep in mind that 3D printing involves a wide range of variables, including different types of filament, printer settings, and calibration levels. These factors can significantly impact the final print.

Before concluding that the design is flawed, I encourage you to:

• Check your printer calibration: Ensure your printer is properly calibrated.

• Adjust print settings: Try changing the print settings to achieve better results.

• Resize the model: Scaling the model up or down slightly may resolve fit issues.

If you encounter any issues or need assistance, please feel free to reach out to me. I am here to help and can provide guidance to achieve the best results. Claiming a design is bad without considering these variables does a disservice to the community and may discourage others from trying a design that could work perfectly with minor adjustments.

Thank you for your understanding and cooperation. Happy printing!

Description:

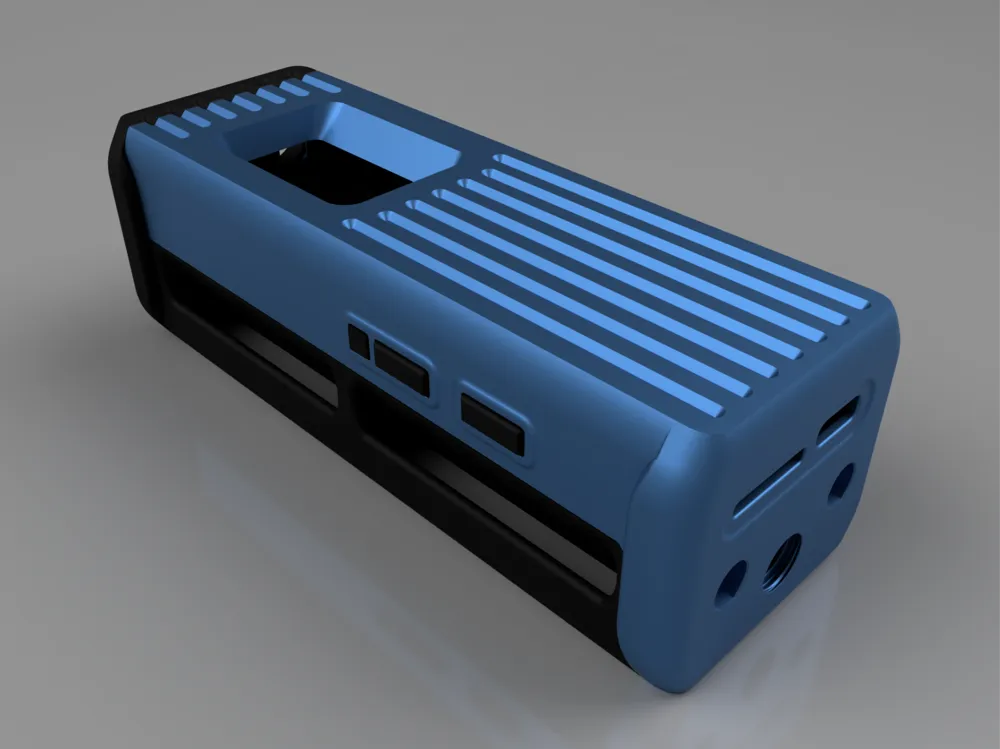

Custom case for the TBeam SUPREME V3.0 ESP32-S3 with ublox M10. Only requires 2 M3 nuts and 2 M3x8 bolts.

T-Beam Supreme Affiliate Link: Buy a T-Beam Supreme

What are all these options?

FRONT

Ridges: Looks cool.

Smooth: Looks boring.

Mount: Has threads for a ⅜" to ¼-20 adapter for tripod mount.

BACK

Nuts: Uses M3x2.4mm nuts and M3 socket head screws.

Inserts: Uses M3x5mm heat set inserts and socket head screws.

10mm: Can accept an antenna with up to 10mm base. (stock antenna, Gizont 17cm)

13mm: Can accept an antenna with up to 13mm base.

15mm: Can accept an antenna with up to 15mm base. (tacticool flex antenna)

BUTTONS

A: Middle button is higher

B: Side button is higher

C: Both buttons are higher

D: No buttons are higher

MOUNTS

Baofeng Clip Nuts: Works with a Baofeng UV5R compatible clip with M2.5x5mm screws and nuts.

Baofeng Clip Inserts: Works with a Baofeng UV5R compatible clip with M2.5x5mm screws and M2.5 heat set inserts.

Desk Stand: Holds the device at a 30 degree angle, needs two of them.

Tripod Mount: Has threaded holes to allow ¼-20 tripod adapters to be installed at various different angles.

Horizontal Molle Clip: Use two of these to mount the device horizontally on molle/pals webbing.

Vertical Molle Clip: Use part A and B to mount the device vertically on molle/pals webbing.

Video:

Suggested Print Settings:

Material: PLA+ or PETG
Nozzle: 0.4mm
Extrusion Width 0.4mm
Layer Height: 0.2mm
Perimeters: 3
Infill: 20%
Top/Bottom Layers: 5
Support Material: None

3D Printing Disclaimer:

Thank you for downloading my CAD design! I want to assure you that extensive testing and iteration went into creating this design. However, please keep in mind that 3D printing involves a wide range of variables, including different types of filament, printer settings, and calibration levels. These factors can significantly impact the final print.

Before concluding that the design is flawed, I encourage you to:

• Check your printer calibration: Ensure your printer is properly calibrated. Especially filament shrinkage.

• Adjust print settings: Try changing the print settings to achieve better results.

• Resize the model: Scaling the model up or down slightly may resolve fit issues.

Remember, these are development boards and sometimes have very fragile parts. If you encounter any issues or need assistance, please feel free to reach out to me. I am here to help and can provide guidance to achieve the best results. Claiming a design is bad without considering these variables does a disservice to the community and may discourage others from trying a design that could work perfectly with minor adjustments.

Thank you for your understanding and cooperation. Happy printing!
