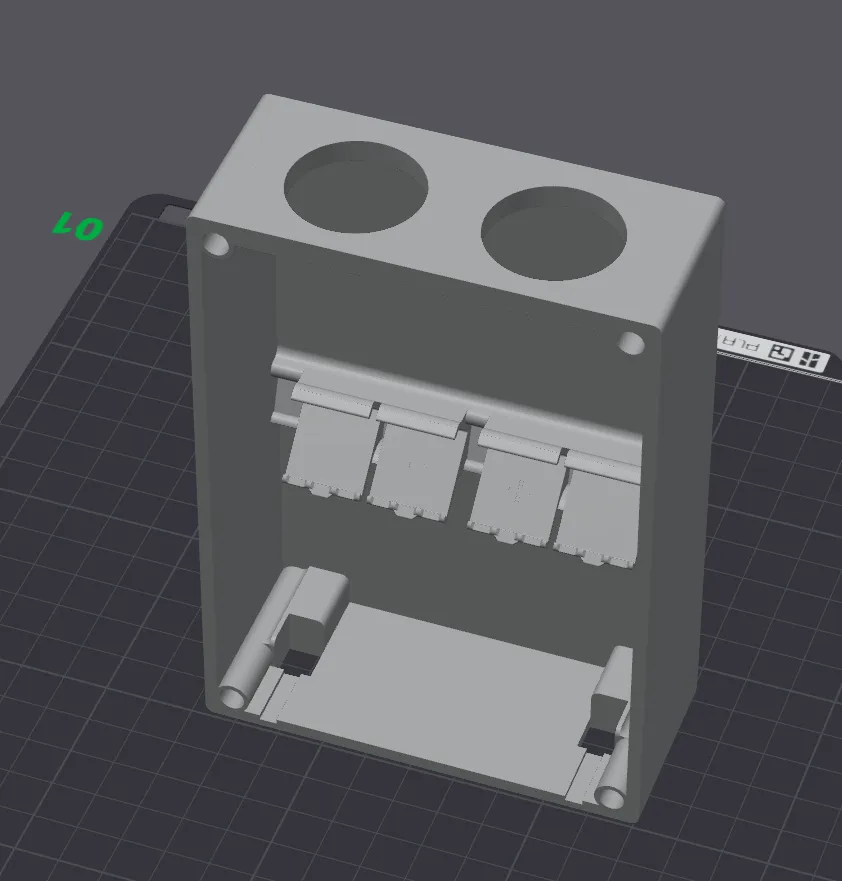

This remix is based on Pixelwave’s 12V plug box with improvements for better usability and cleaner wiring. Instead of the original DC plug, I used a 12V charger with 2x USB-C and 1x USB-A outputs, plus a dedicated on/off power button. I also added positive and negative markings for easier and safer wiring.

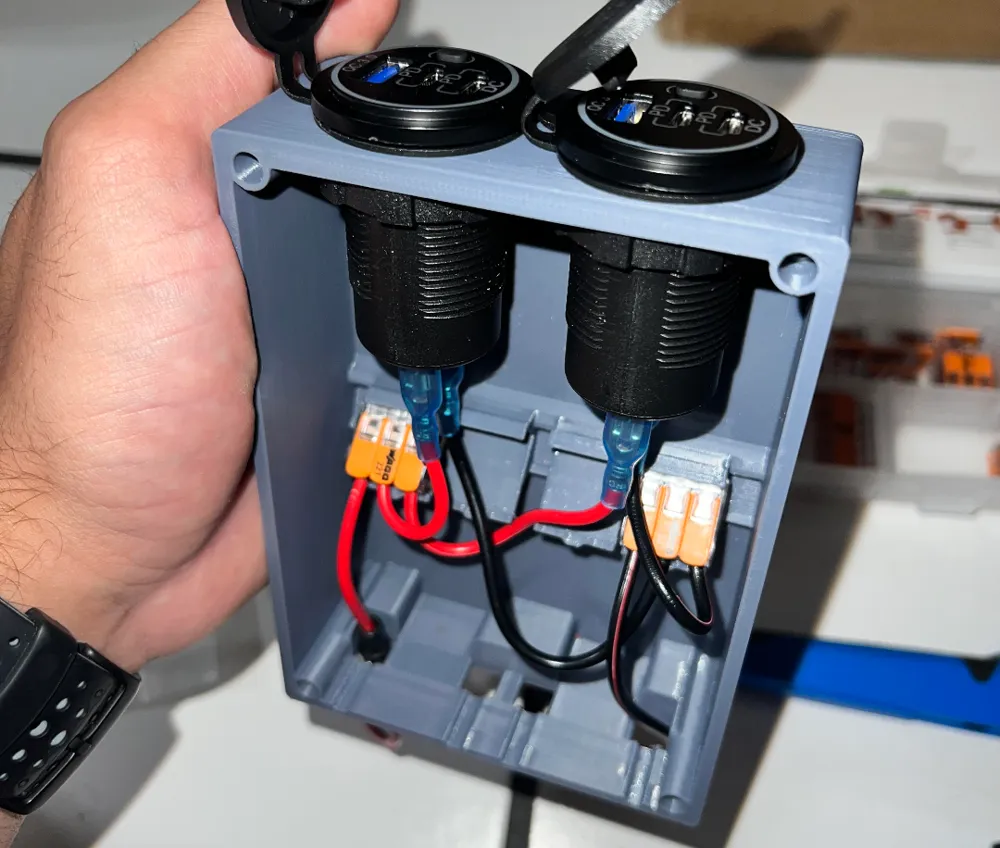

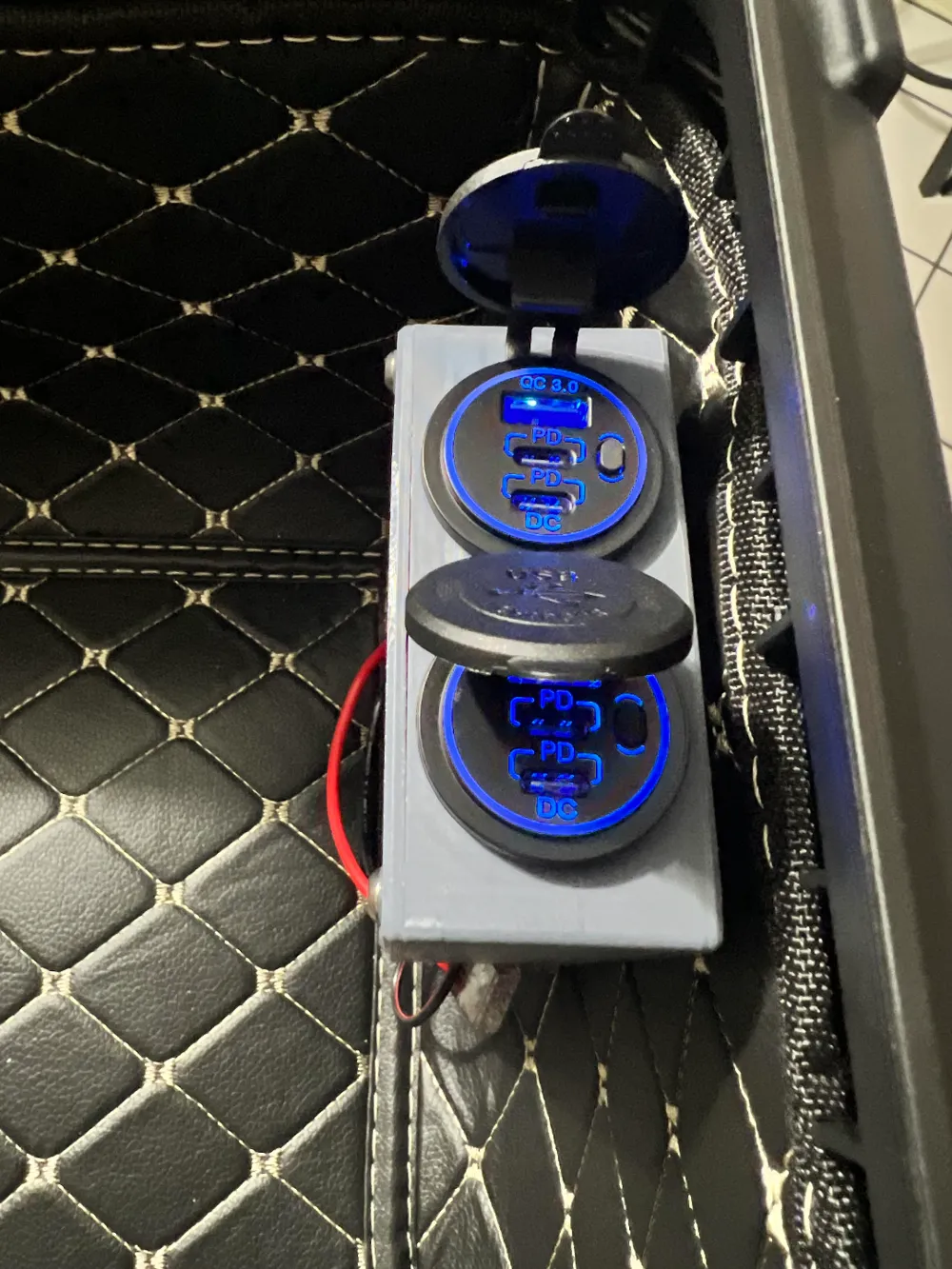

I built this plug box for the top case of my 2022 Tracer 9 GT+ motorcycle, making it perfect for long-distance trips where I need to charge drones, iPads, and cameras while on the road. The compact Wago-based wiring keeps it neat, reliable, and easy to maintain.

⚠️ Disclaimer: 12V batteries and accessories may be dangerous and cause injury if misused. Use at your own risk.
