Angle Gauge, Protractor
Print Profile(2)
Description

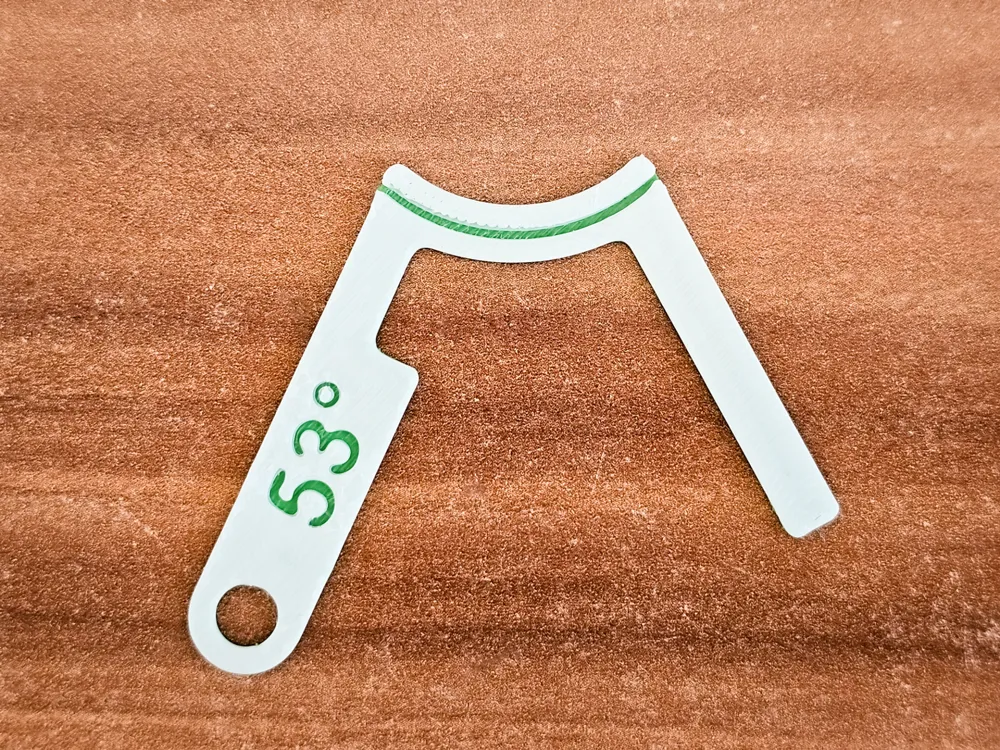

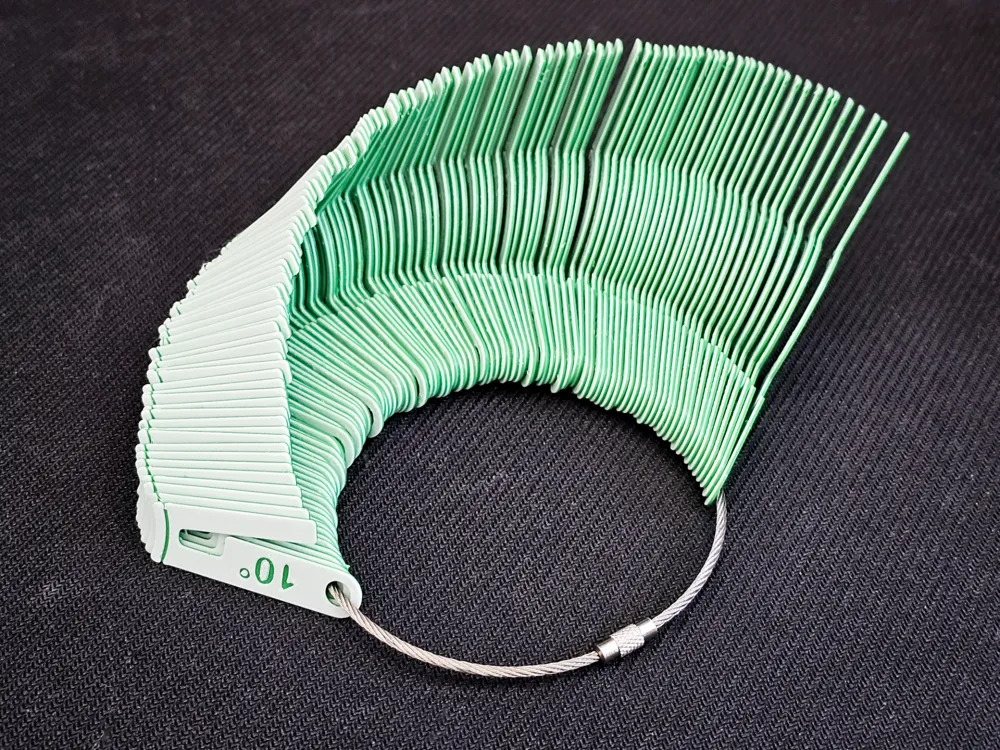

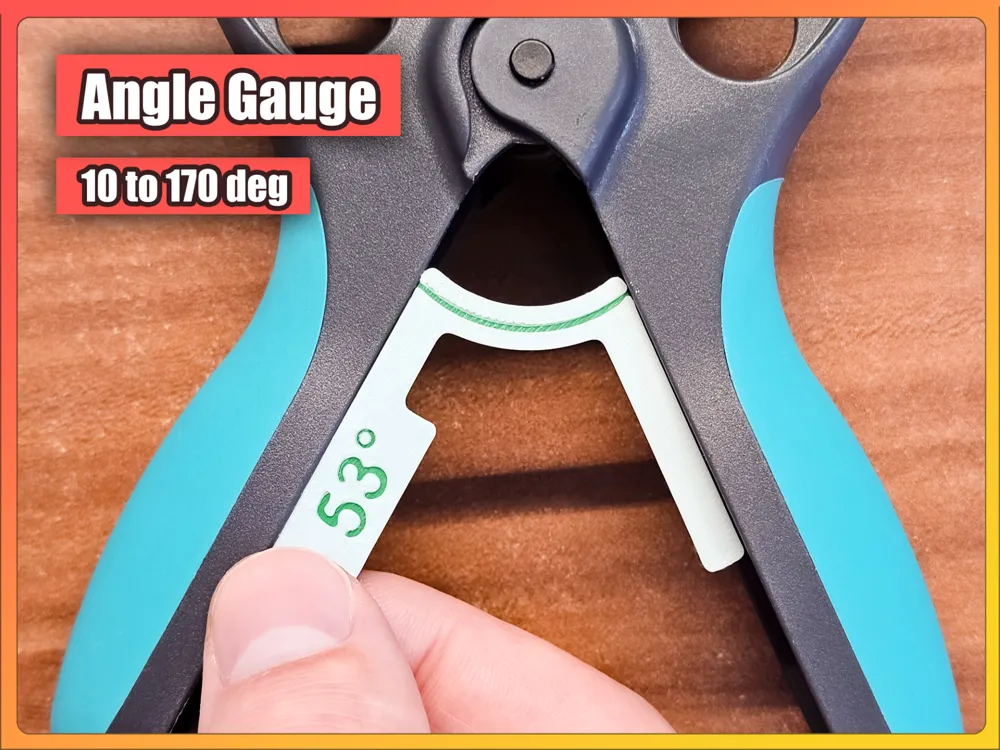

This set of angle gauges complements a digital protractor, especially in situations where the latter is too bulky. It ranges from 10° to 170° and is applicable only to interior angles. The legs measure 50mm in length from the center, though I have cut out 15mm towards the center to accommodate a wider range of scenarios. Additionally, the eyelet extends one leg by another 10mm.
Updates
14.09.2024: Added missing 95° angle model
Measurement Tools Collection
I am constantly developing more measurement tools. Check out my entire Measurement Tools collection here.
