Makita Blower Deflation Adapter, DAS180/AS001G etc
Print Profile(1)
Description

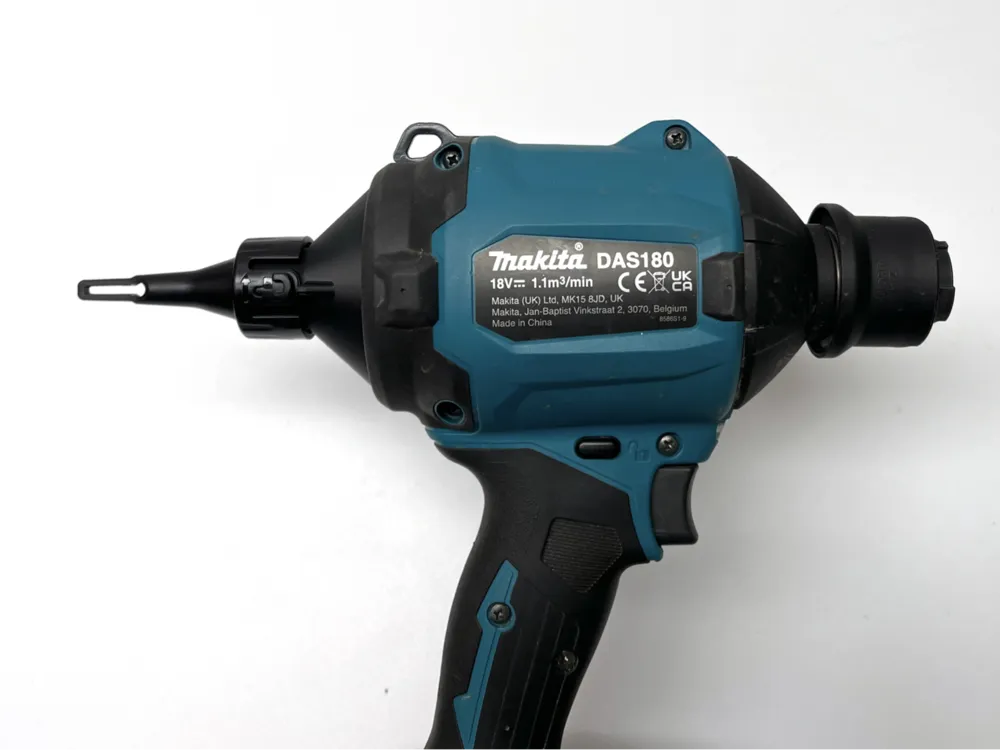

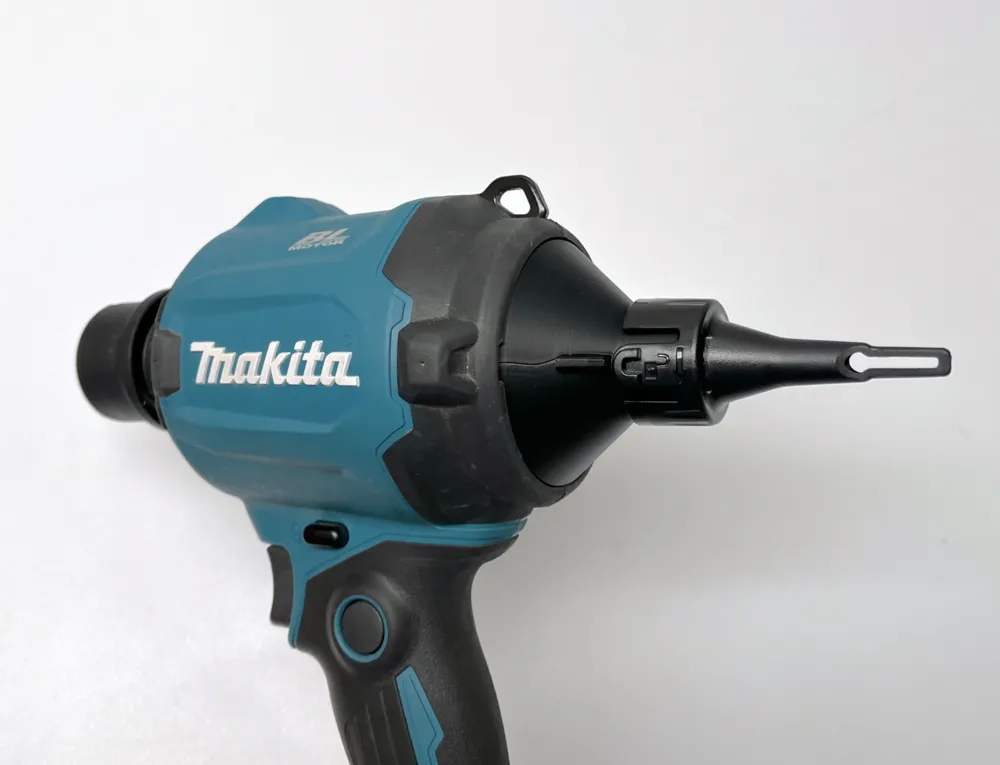

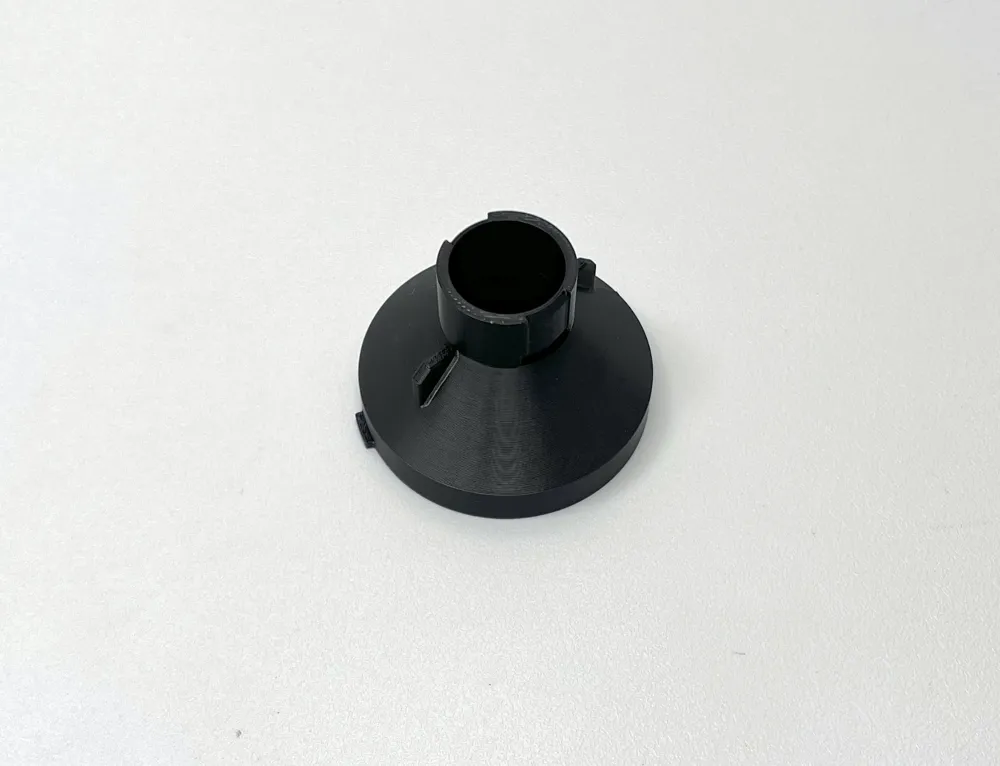

Deflation adapter for Makita dust blowers (EU: DAS180 and AS001G, US: XSA01Z and GSA01Z). Attaches on the back side of the machine and allows to mount nozzles on intake side making it possible to suck air, for example deflating inflatables. Basically the same as Makita 191X23-4 High Speed Dust Blower Deflation Hose only without the hose part. Would suggest against using it for vacuuming anything with particles, filter will get jammed fast.

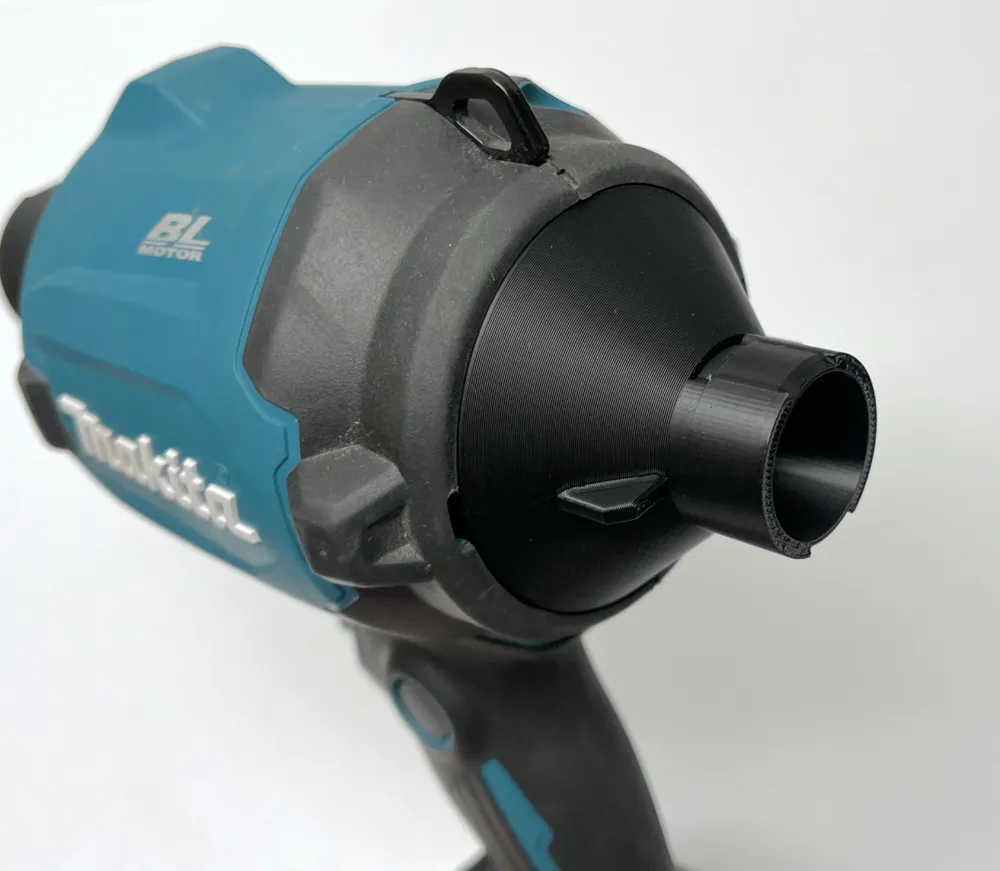

To use remove the grid from the rear of the machine by twisting and replace it with the printed part, it will lock by twisting. Align the clips on the nozzle with grooves on the adapter and push, it will lock in place. To remove a nozzle rotate 90 degrees and pull.
PLA should work, air on the intake side should be enough to keep the part cool enough, but to be on the safe side would go with PETG, ASA etc for better heat tolerance. Made mine out of PETG, no problems with it. Needs small supports for slots for nozzle clips.
