ZWO EAF TSLPR3 TS-Optics MONORAIL 3 Zoll Spacer

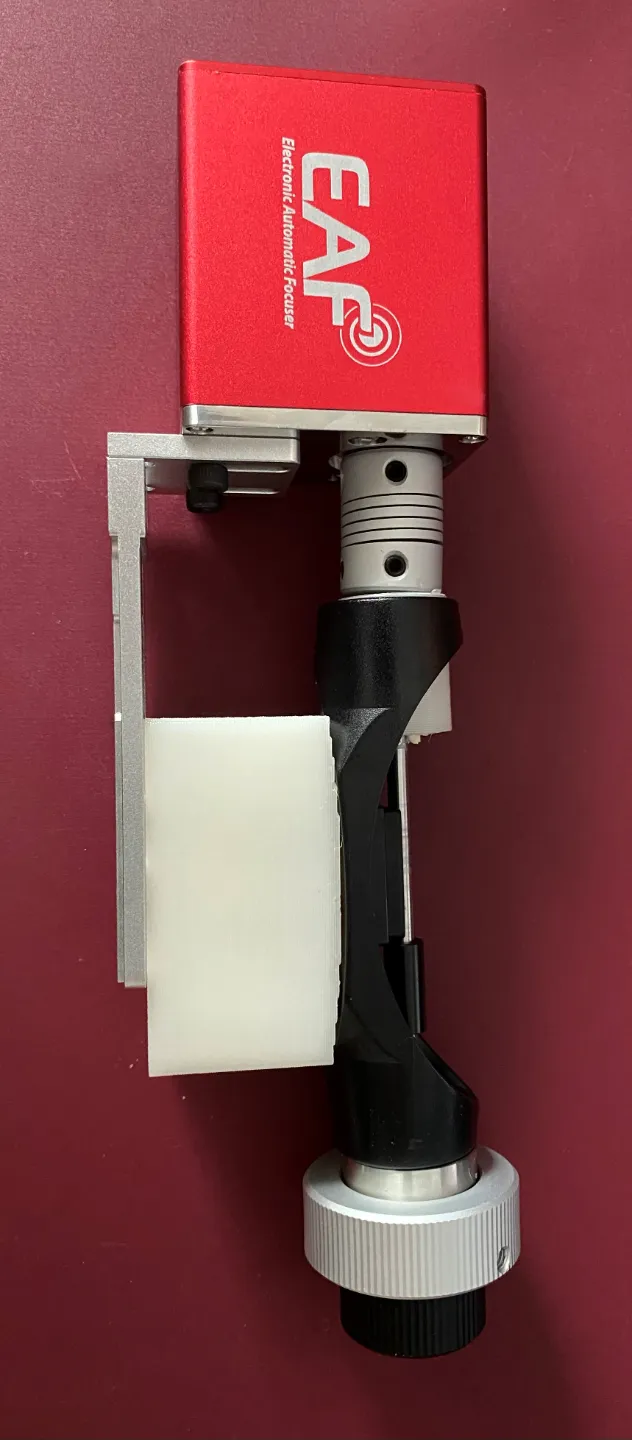

This placeholder allows the installation of the ZWO-EAF.The TS Optics construction is so bad that this large placeholder is necessary.I tried to rotate it so that you don't need the height.However, it lacks a few millimeters, so I decided on this design.
M3 screws have to be replaced by 16mm screws.

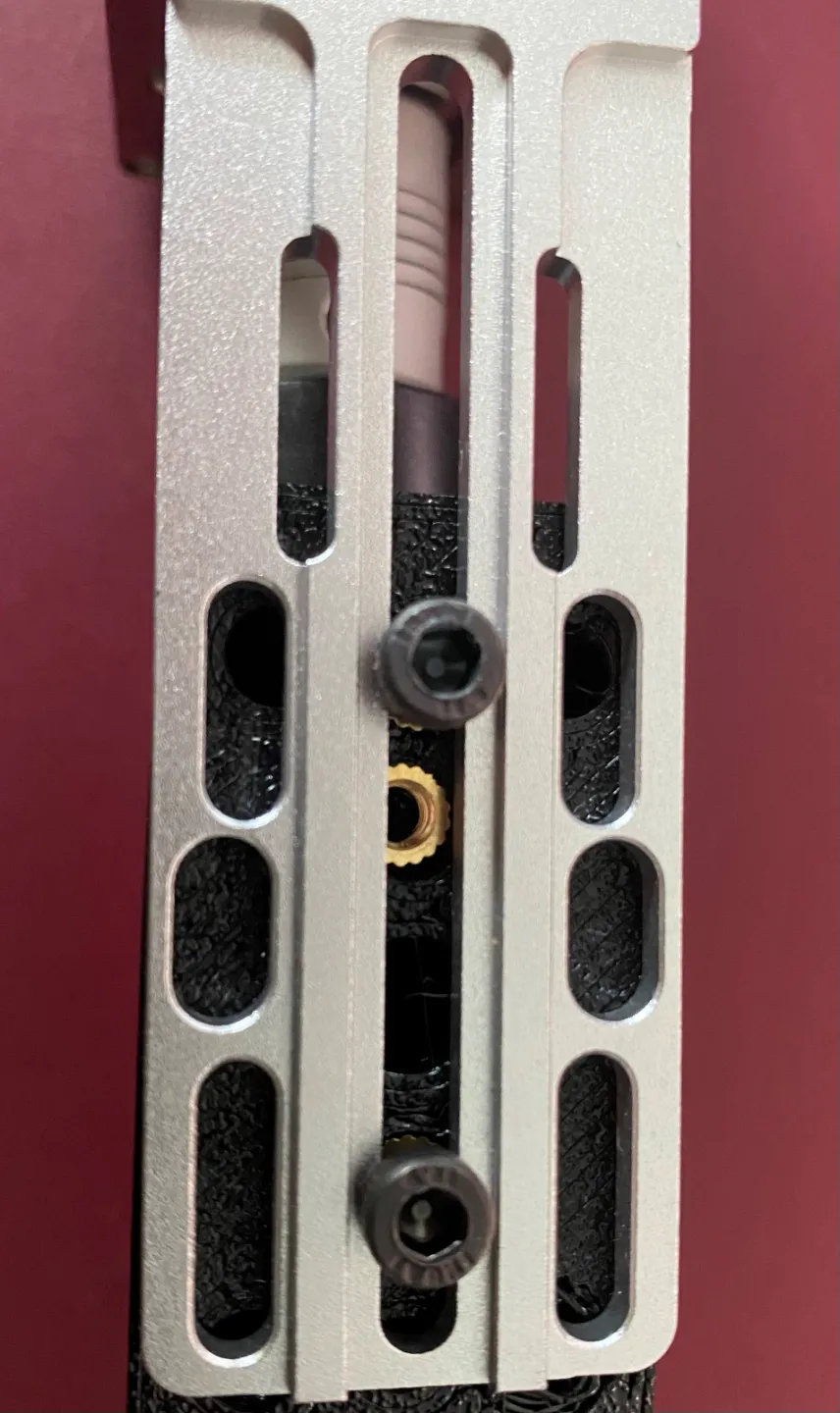

The EAF can then be screwed directly or with hotnuts in the middle of the spacer with M4 screws.
However, the locking screw must be replaced by an M4 screw.This can then only be set via hex key. You only do it once.
4x M3 16mm (fix TSLPR3)
1x M4 12mm (fix Pull-out tube)
3x M4 20mm (fix EAF) Two are also enough
