adjustable fan stand [120mm]
Print Profile(6)
Description
Boost Me (for free)
Many thanks to everyone who has left feedback and boosts so far. I really appreciate it! ♥
UPDATE (09. Dec 2024)
I have uploaded another version of the fan holder (v2) in the model folder (Download STL) and provided a new print profile. here the inner radius of the frame has been reduced to increase the compatibility with fans.
Thank YOU for your support!
--------------------------
are you looking for an optimal and adjustable mount for your PWM fan that is operated 24/7 in a grow box - which enables super flat angles so that your plants receive individual and ideal conditions? CONGRATULATIONS that you have landed HERE!
but if you are just looking for a great & stylish fan mount for another purpose - then you are still not wrong here! ;)

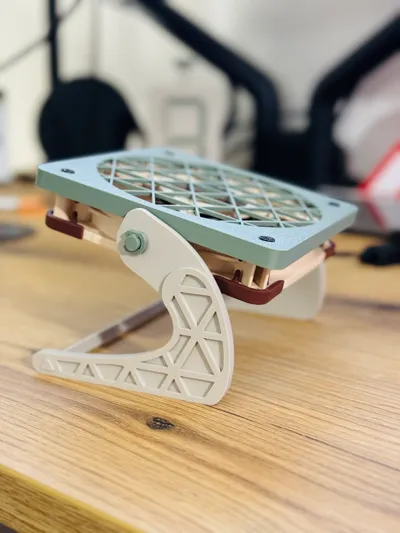

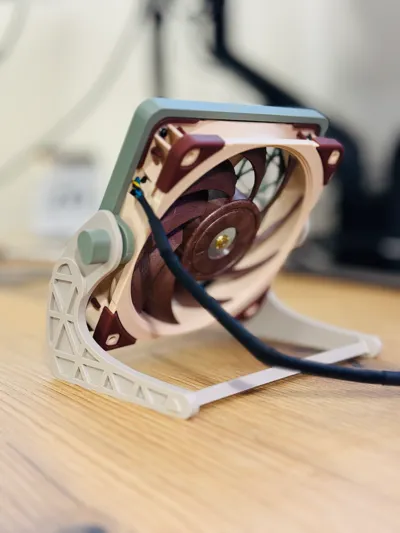

this fan stand holds a 120mm case fan. the adjustment angle is freely selectable in anytime (360°) and can easy be fixed with the help of a locking screw.
for a prettier print result, I divided the base into several individual parts so that they can be printed flat. but this means that you have to mount the cross brace with the two feet using plastic glue.
assembly recommendation
- 1) insert hexagon head screw
- 2) mount / screw on the fan (standard fan screws)
- 2) fix the first foot with the nut
- 3) attach the second foot and fix in place using the split pin
- 4) Glue in the cross strut
model is printed with PolyTerra PLA
support structure is only used for the fan holder / mounting plate
feel free to leave a like, comments with remarks or whatever you have in mind!
