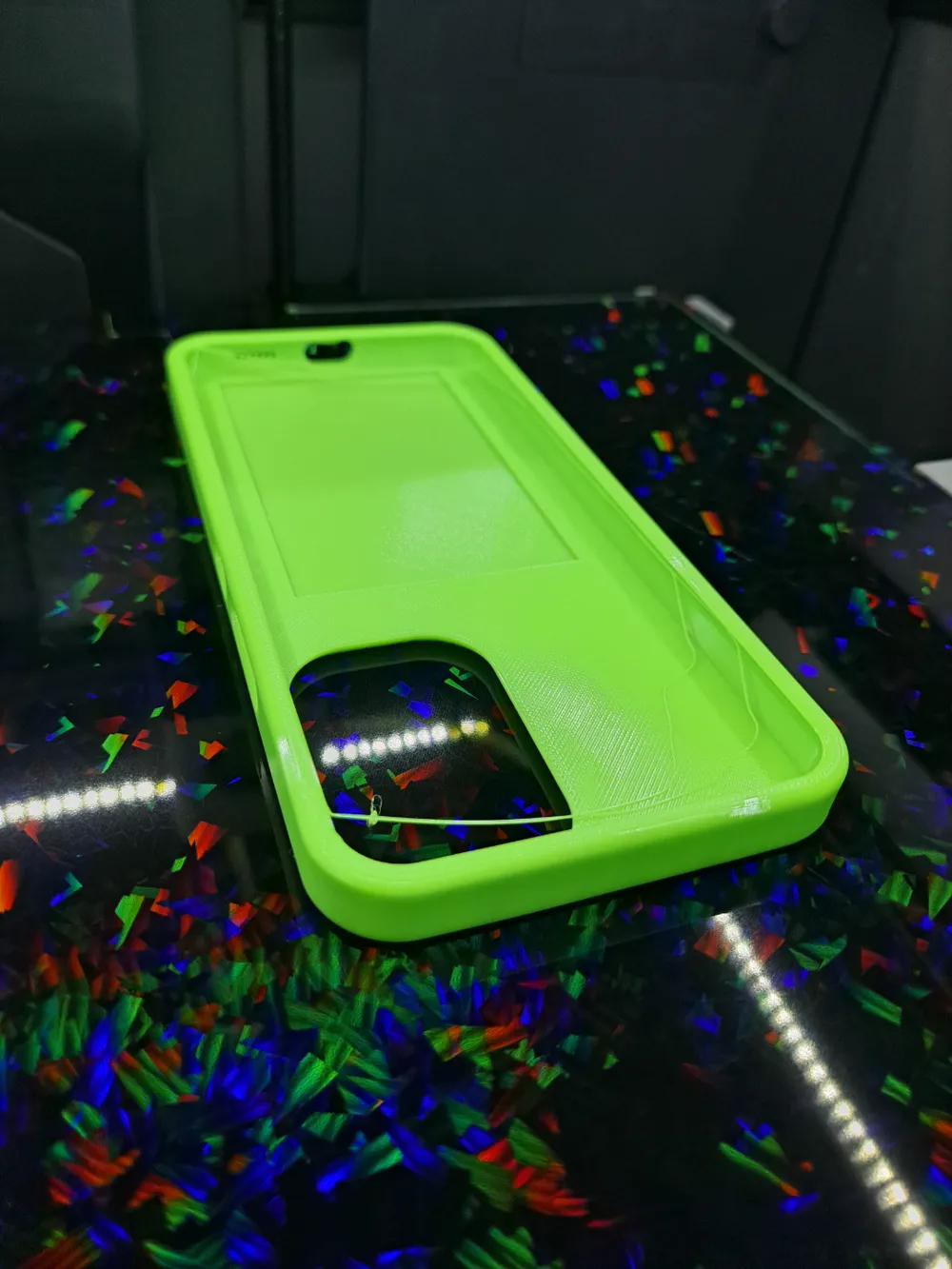

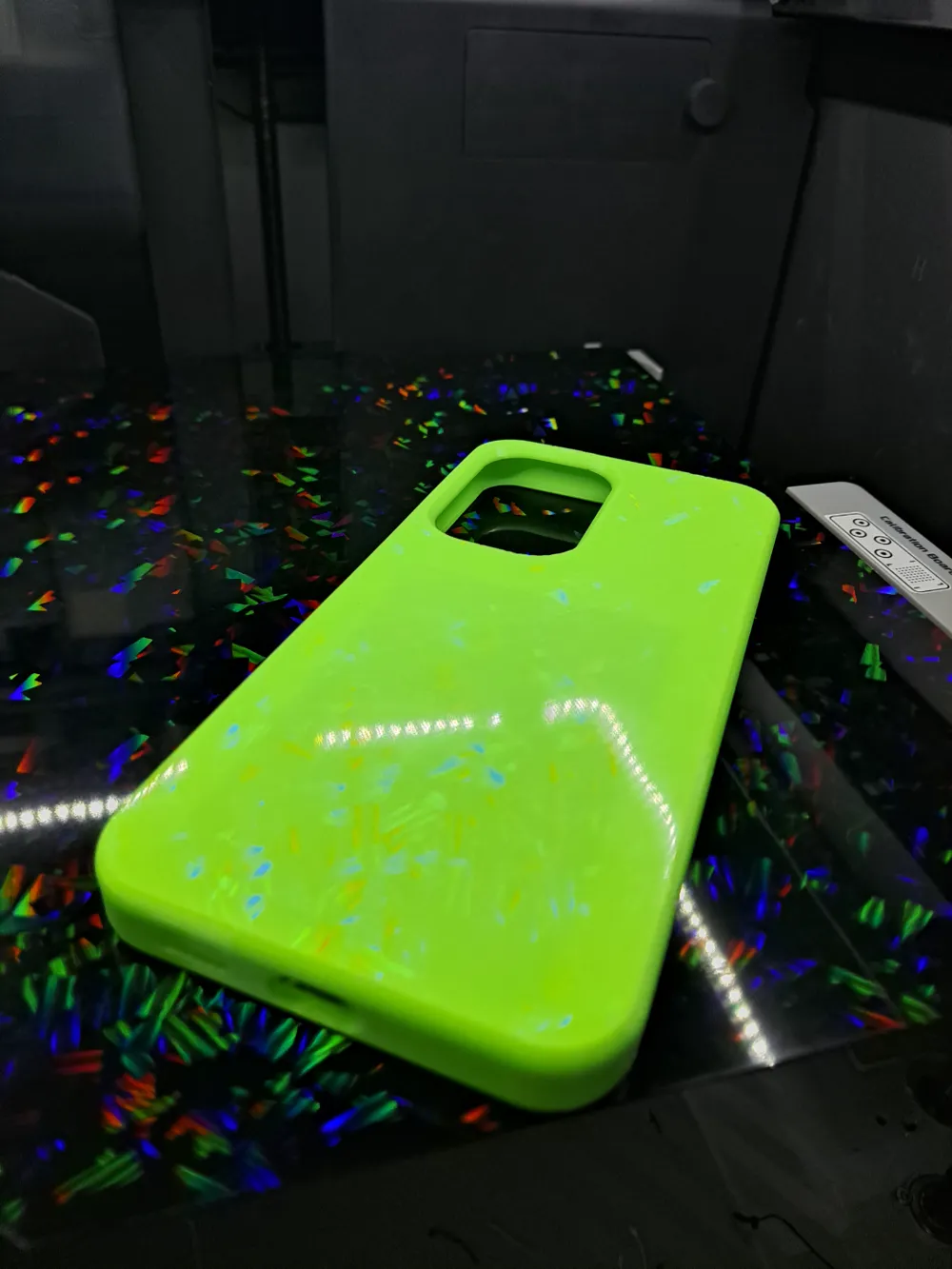

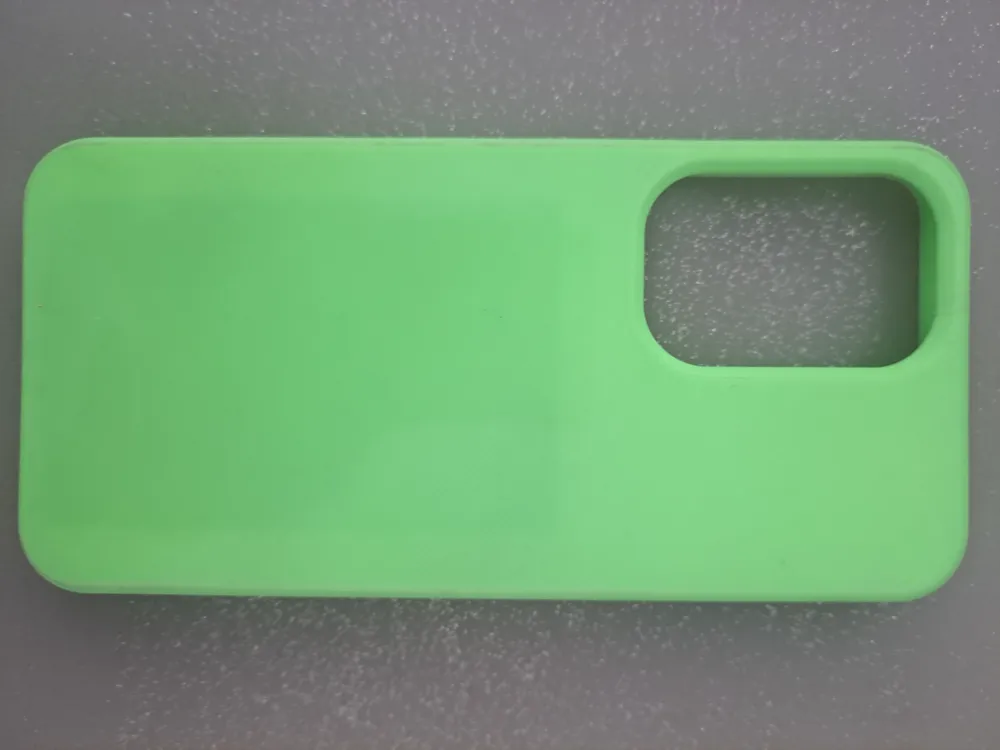

I printed without supports and the printer left a couple of strings above the volume controls that I clipped off. &nbsp;I find that cleaner than messing with supports. &nbsp;The two lines that are missing from the top are barely noticeable and certainly less visible than the marks that supports would leave behind. &nbsp;Look closely at the photo of the case in the printer and you will see the strings from the inside of the very top layer. &nbsp;If that bothers you then use supports.&nbsp;If you don't need the credit card opening you can fill that space in with primitives in Bambustudio.&nbsp;I find the key to good prints with TPU is to print very slowly. &nbsp;Set all the speeds to be equally slow as TPU doesn't flow faster for infill or corners. &nbsp;I also avoid crossing walls. &nbsp;It doesn't add much time to your project as a TPU phone case is pretty small.&nbsp;I printed on a glossy bed with some holographic colorful stuff that left a neat imprint on the case. &nbsp;It wore off within a couple of weeks of use so it doesn't show in the photos. &nbsp;The photos are of the case after being used for a month.&nbsp;This print is only for TPU or other flexible filament. &nbsp;It will not work in PLA because there's no way to insert the phone without breaking the plastic. &nbsp;Use TPU or similar flexible material only. &nbsp;I've made some PLA and PETG cases and find they break easily. &nbsp;It's better to use TPU.

0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

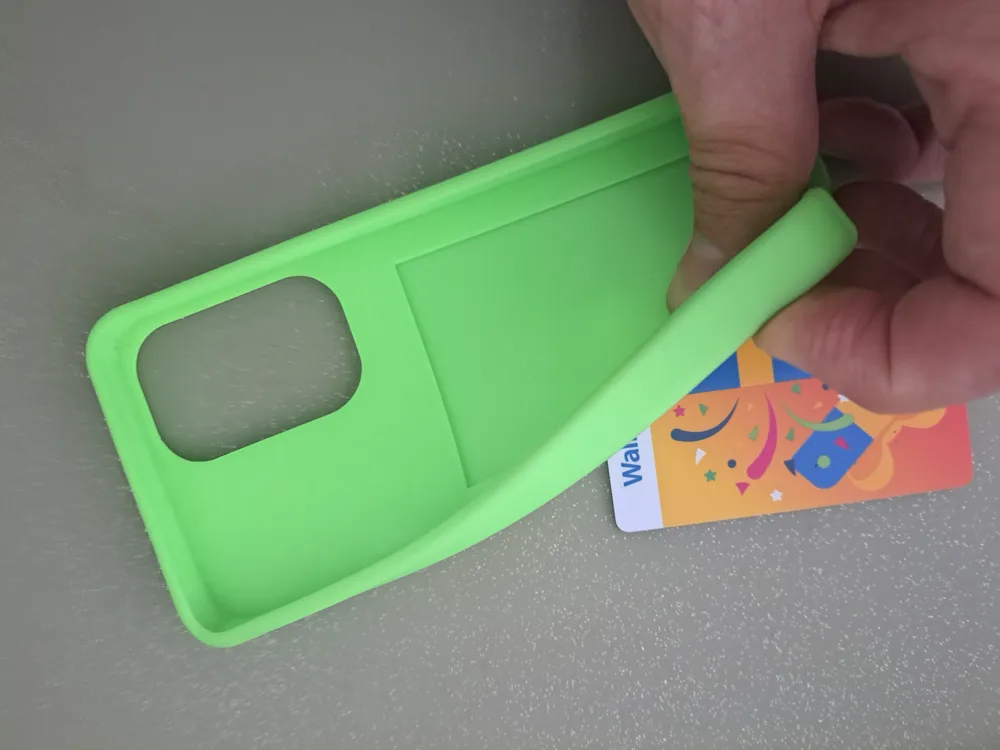

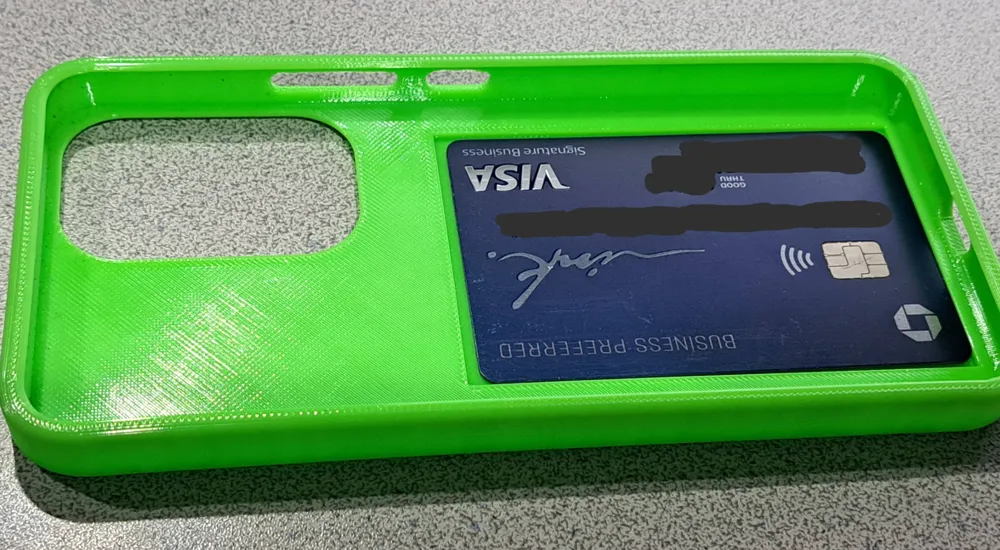

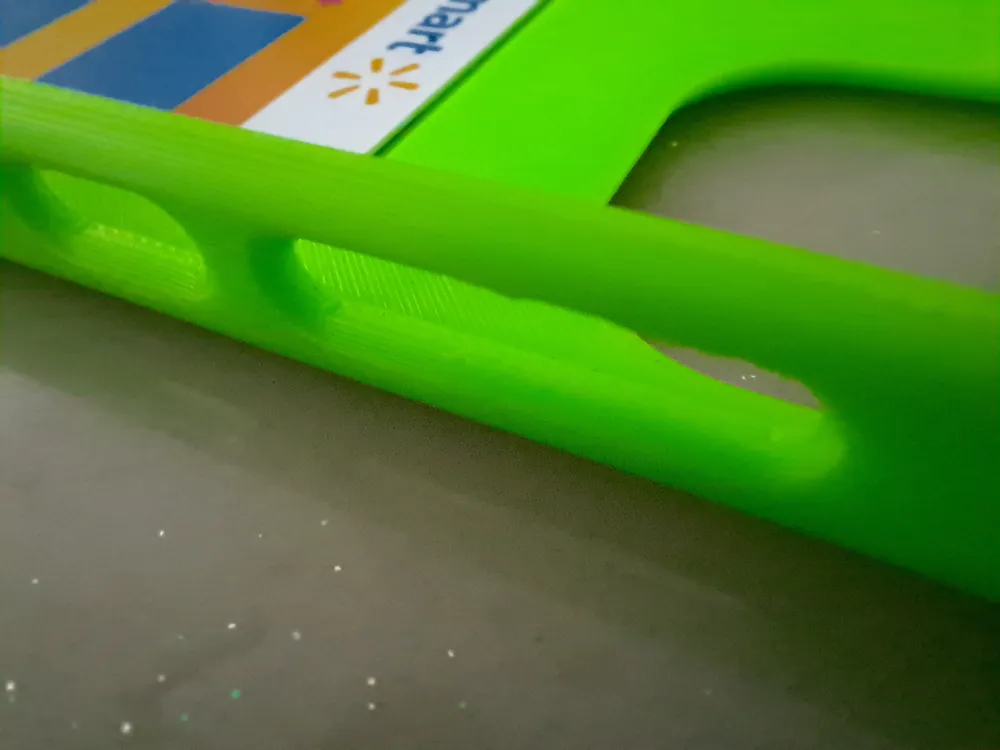

I designed a phone case in Fusion 360 as a learning experience and it printed so well that I thought I would share it. I&#39;ve been using it for a month now and it&#39;s much better than anything I&#39;ve used in the past, either purchased or printed. I like the simplicity and find it slides into my pocket easily.&nbsp;It&#39;s for the Samsung Galaxy A53 5G. I put a recess in the back for a credit card and left enough depth for a driver&#39;s license. I don&#39;t carry a wallet anymore, just the phone with those two items inside. It&#39;s great not having to worry with a wallet.&nbsp;The credit card recess is made somewhat thin so the tap-to-pay readers will work without removing the card. That depends on the filament and the darker pigments with carbon might block the signal.&nbsp;The buttons for volume and power are a bit small but are well protected. When this one wears out and I make a new one I&#39;ll probably open that area up a bunch. &nbsp;&nbsp;

Samsung Galaxy A53 5G TPU case V1
