Description

Content has been automatically translated.

Show original

German	English

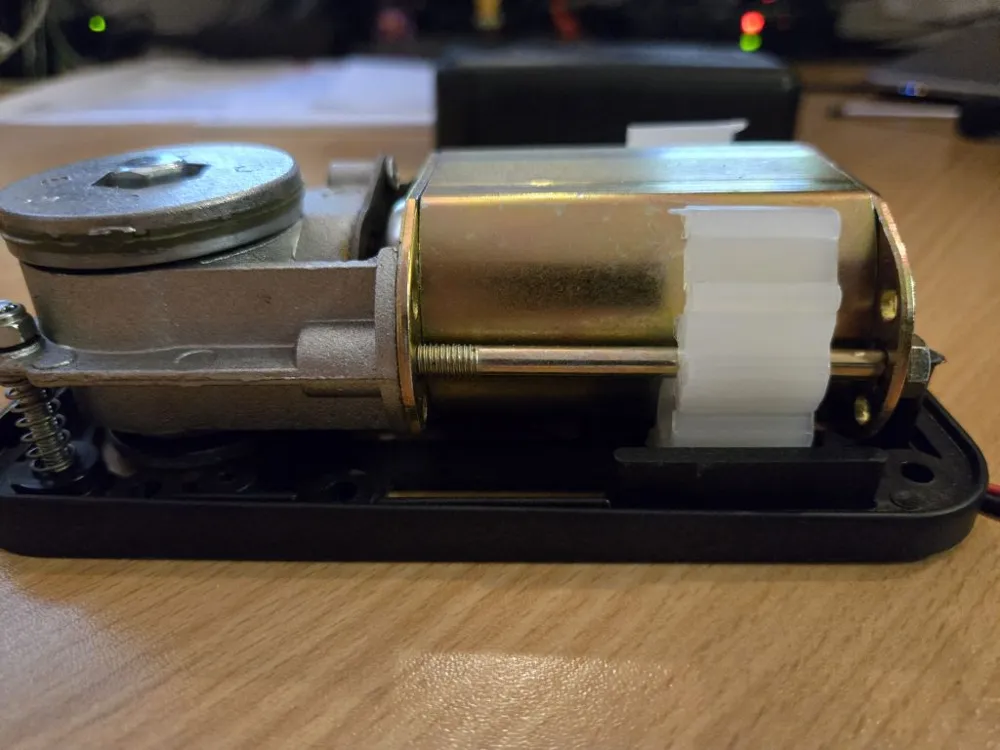

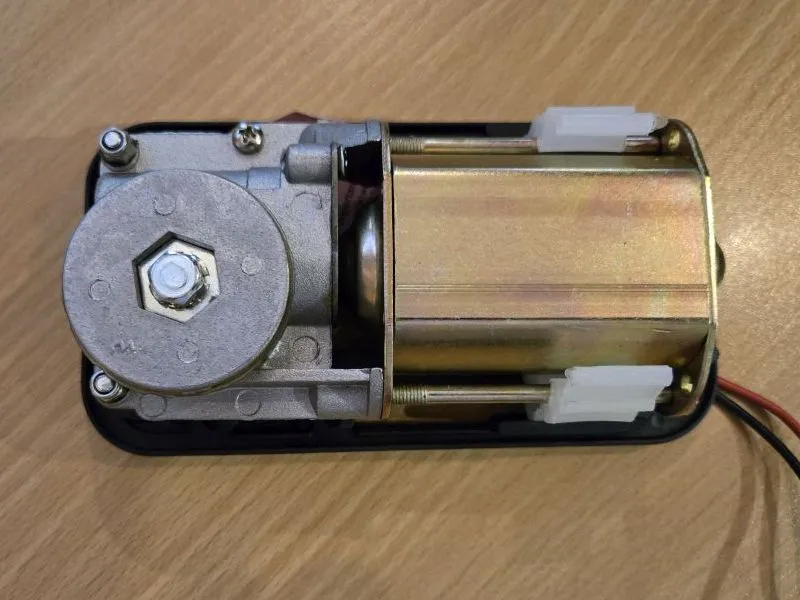

Holders for electric window regulators. For all classic vehicles from the 1980s retrofitted with electric windows (e.g., from “in.pro.”). Not limited to Audi (coupe, quattro) and VW (Golf/Scirocco).	Holders for electric window regulators. For all classic vehicles from the 1980s retrofitted with electric windows (e.g., from “in.pro.”). Not limited to Audi (coupe, quattro) and VW (Golf/Scirocco).

German

After four decades, window regulator brackets frequently exhibit significant deterioration, threatening structural failure and potential damage to the entire mechanism.
This often impacts original retrofit kits, given their comparable age.

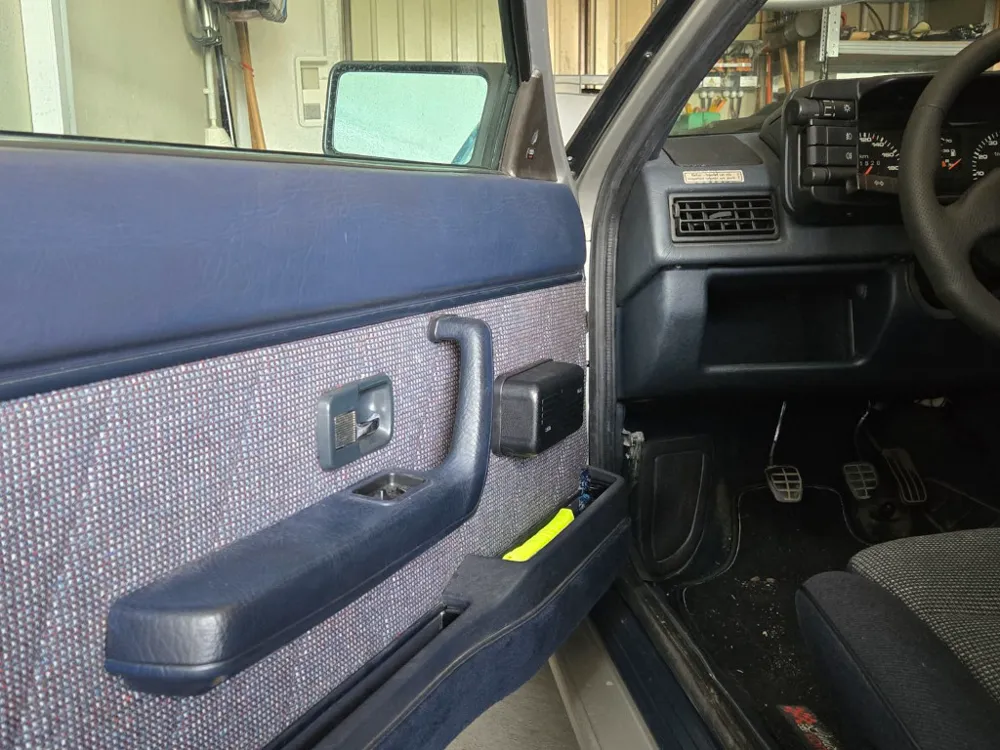

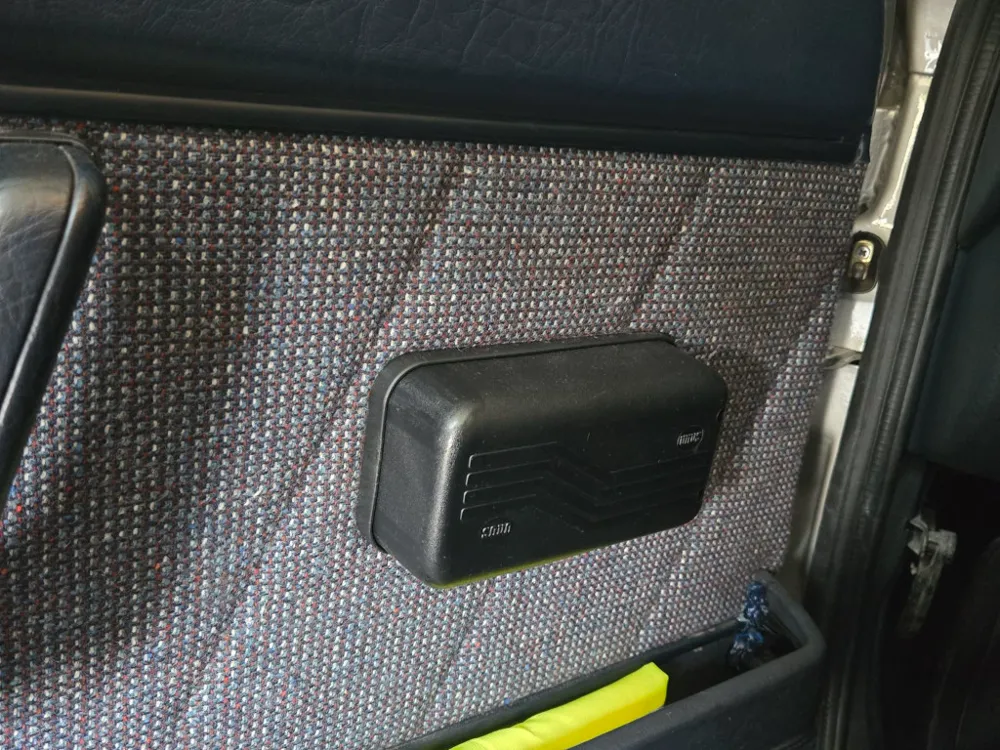

Virtually every 1980s vehicle could be retrofitted with electric windows using this kit.
The company “in.pro.” is defunct.
Determining compatibility with individual vehicles necessitates independent verification, as variations in models appear to exist.
3D printing

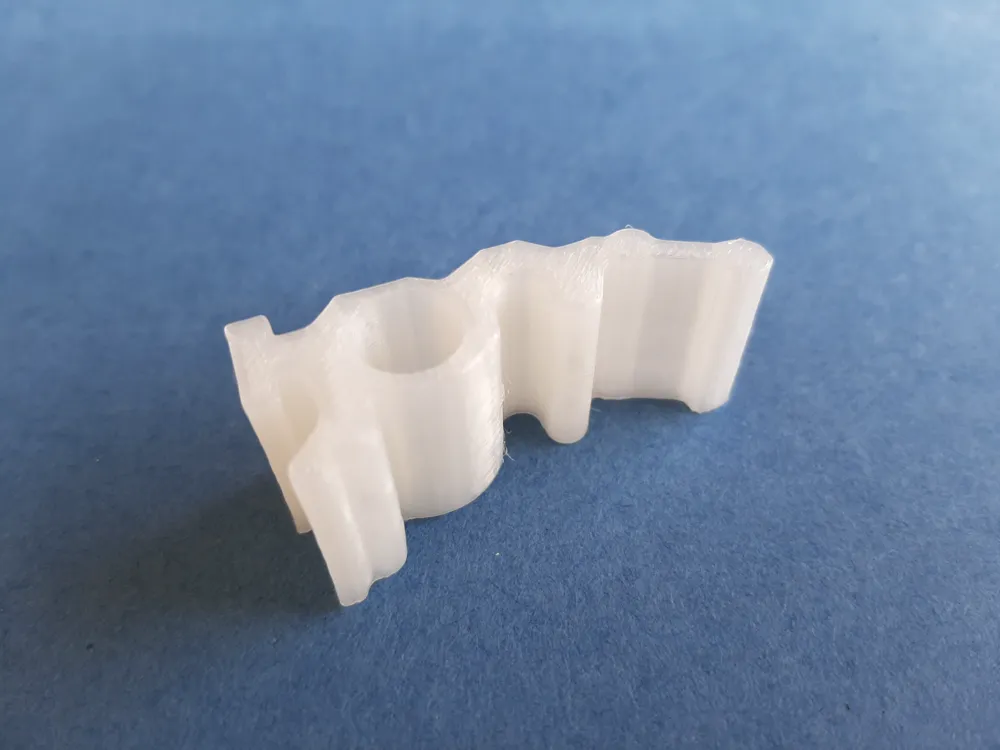

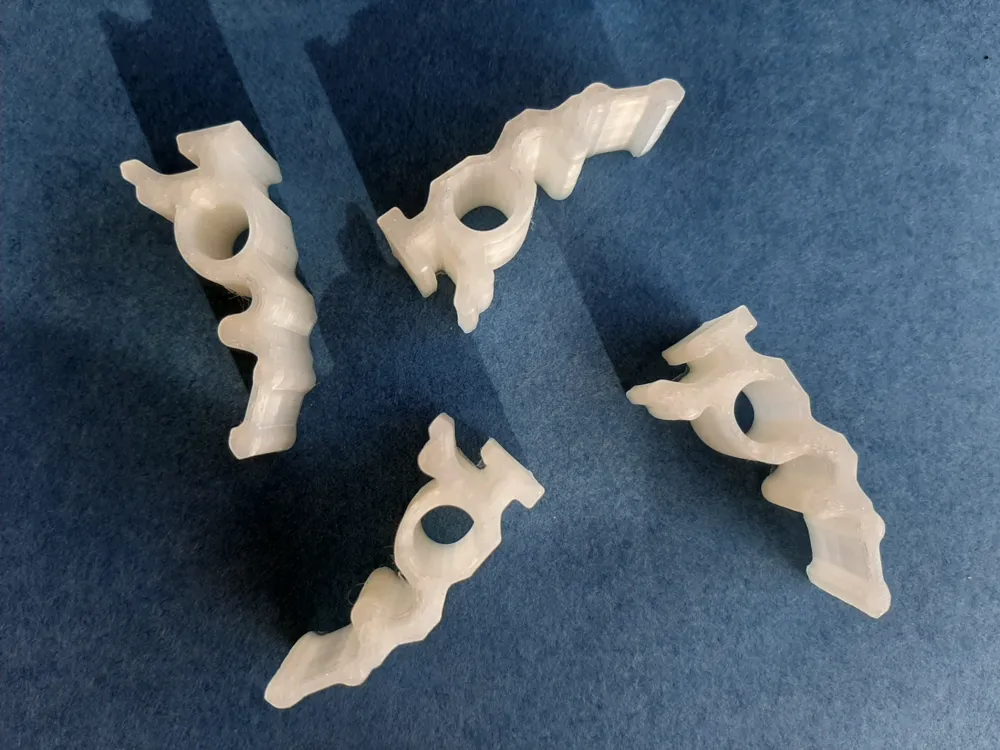

- Nylon is the recommended printing material, closely approximating the original material's properties and mechanical behavior.
- Following numerous unsuccessful attempts, optimal results were achieved utilizing an engineering plate and a 20mm brim, preceded by application of 3DLAC adhesive spray to the print bed. Nylon adhesion to the print surface presents a significant challenge.

English

After four decades, window regulator brackets frequently exhibit significant deterioration, threatening structural failure and potential damage to the entire mechanism.
This often impacts original retrofit kits, given their comparable age.
Virtually every 1980s vehicle could be retrofitted with electric windows using this kit.
The company “in.pro.” is defunct.
Determining compatibility with individual vehicles necessitates independent verification, as variations in models appear to exist.
3D printing
- Nylon is the recommended printing material, closely approximating the original material's properties and mechanical behavior.
- Following numerous unsuccessful attempts, optimal results were achieved utilizing an engineering plate and a 20mm brim, preceded by application of 3DLAC adhesive spray to the print bed. Nylon adhesion to the print surface presents a significant challenge.
