Oil Barrell Drip Tray with funnell holder

IP Report

Print Profile(1)

All
X1
P1S
P1P
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
13.5 h
1 plate
1.0(1)

Open in Bambu Studio
Boost
26
81
4
0
41
13
Released

Description

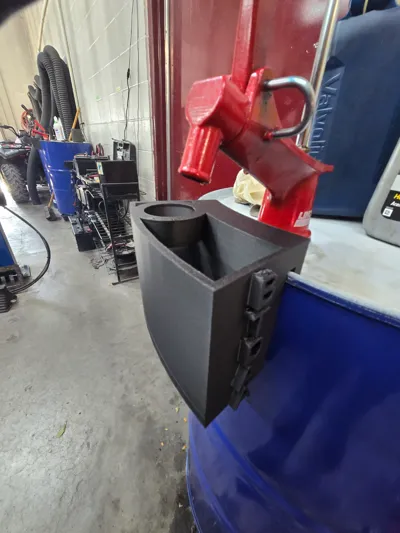

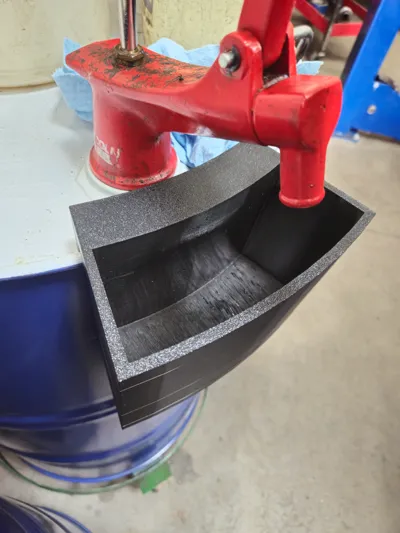

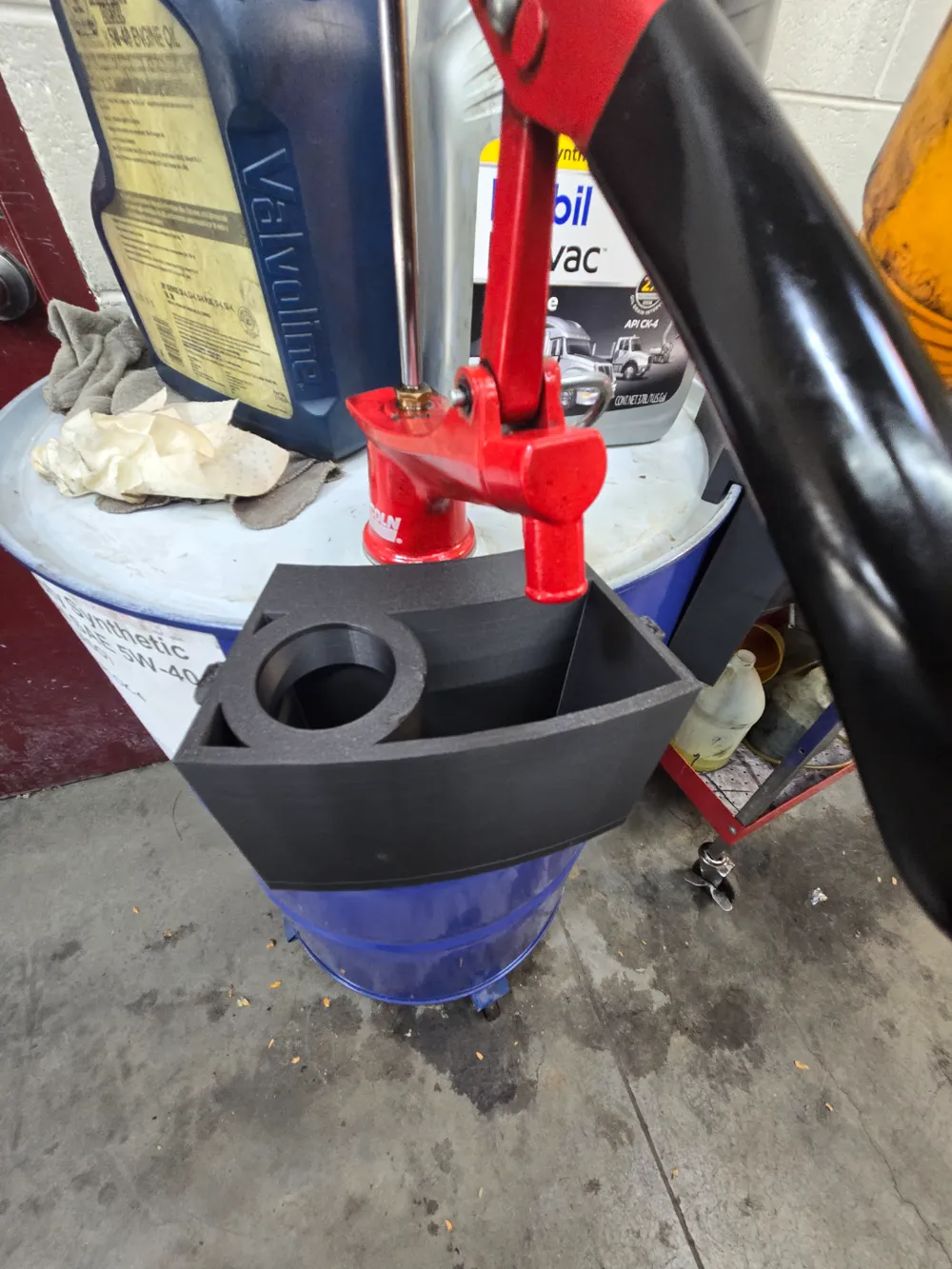

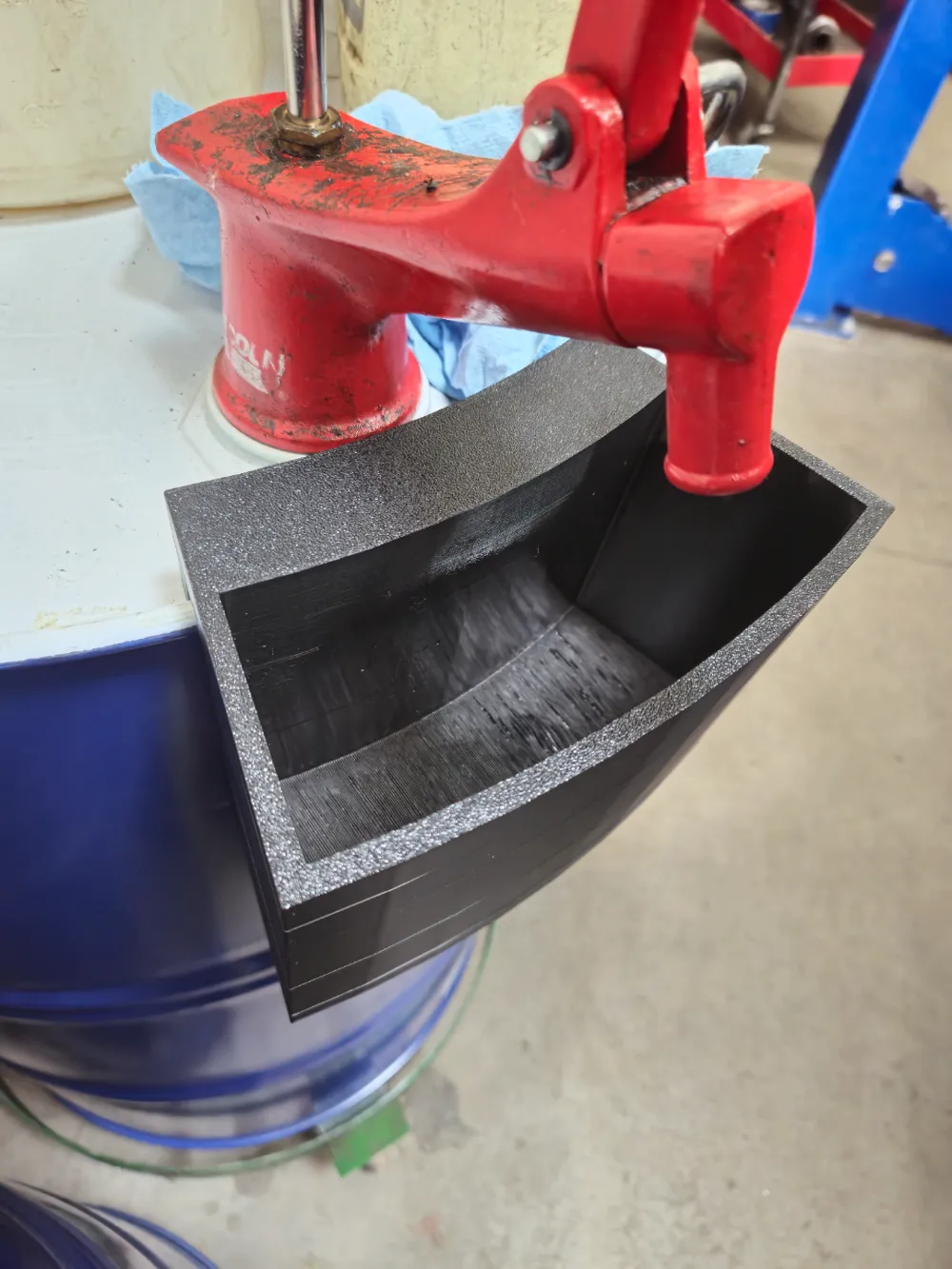

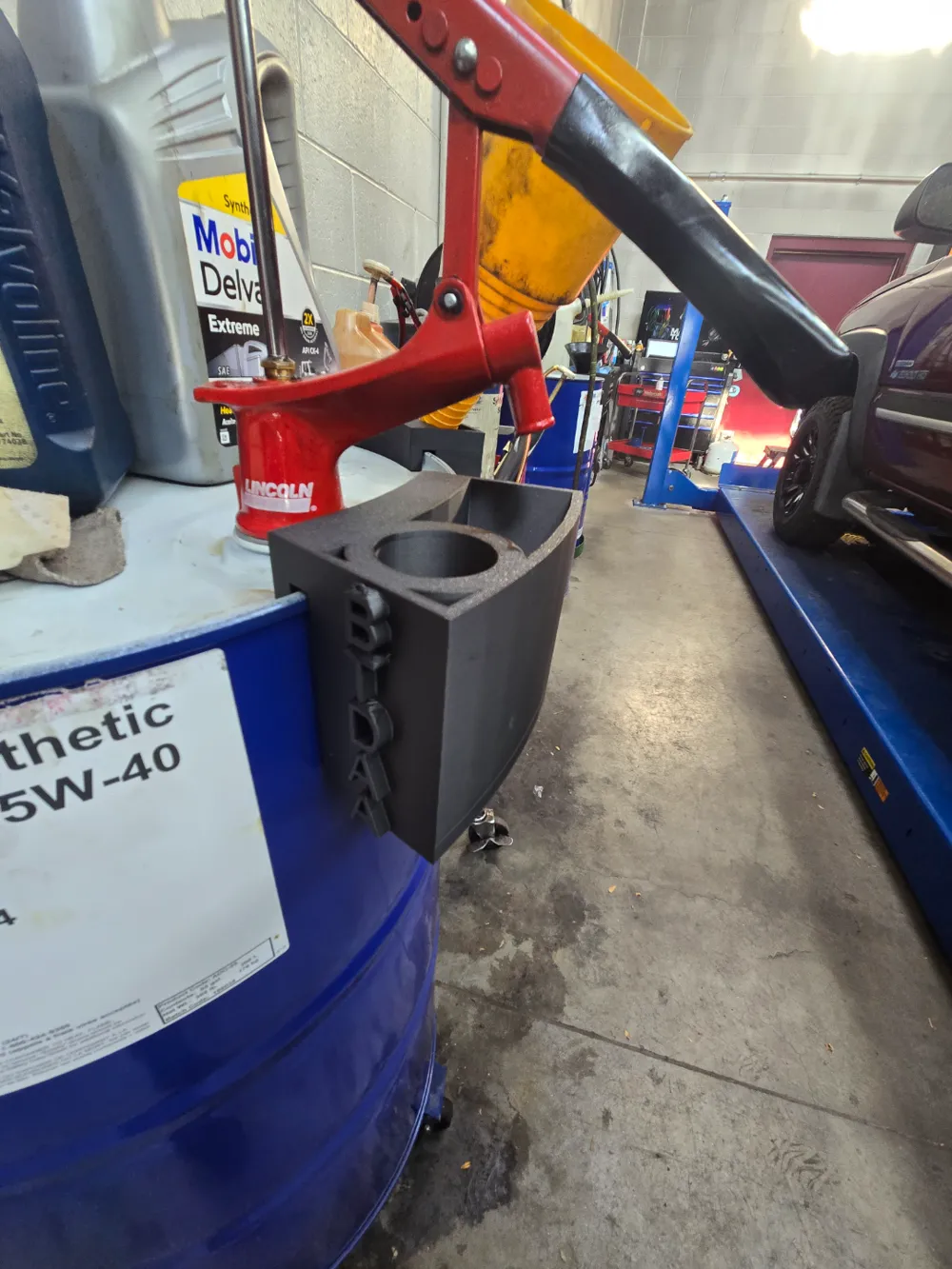

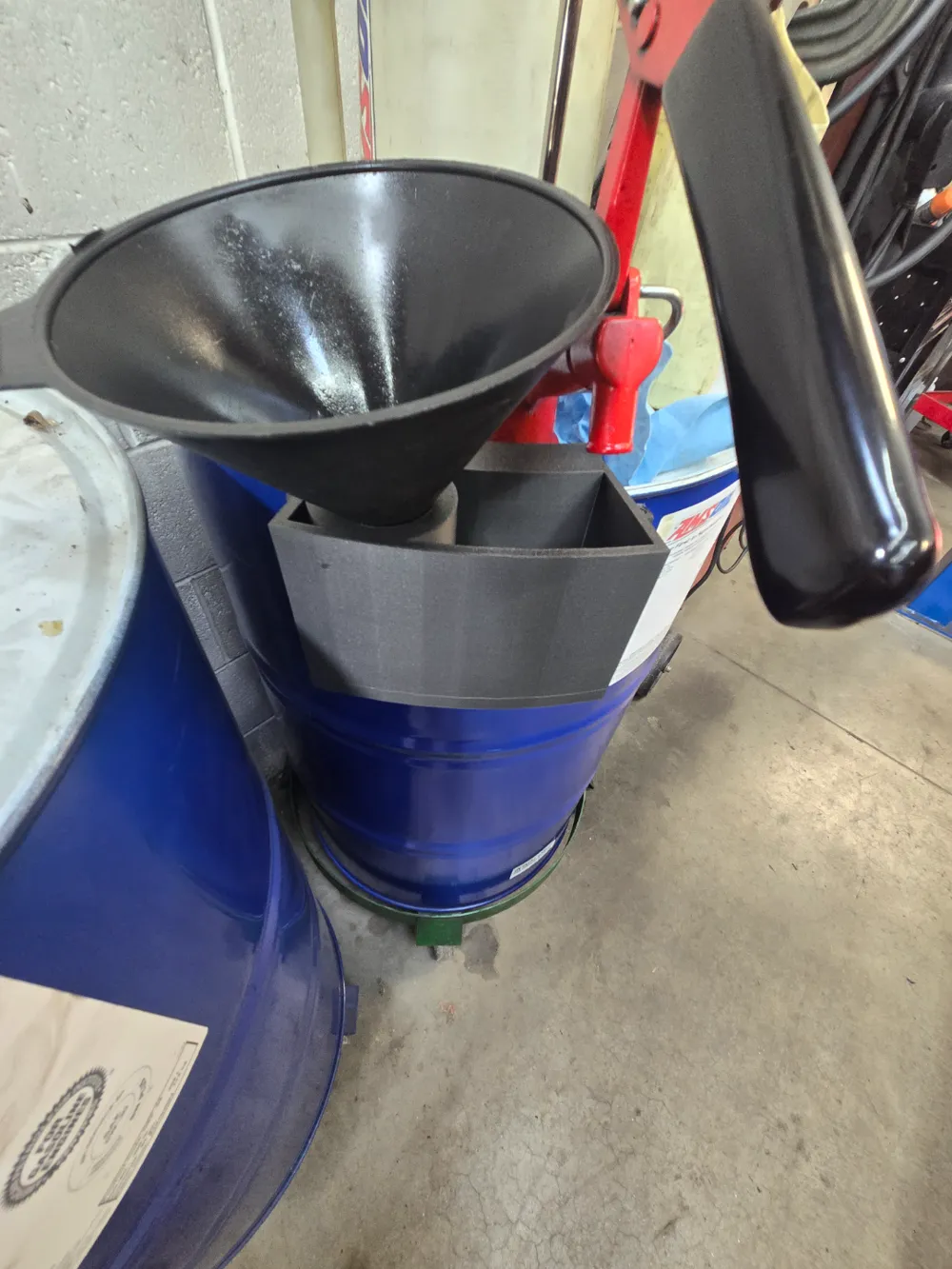

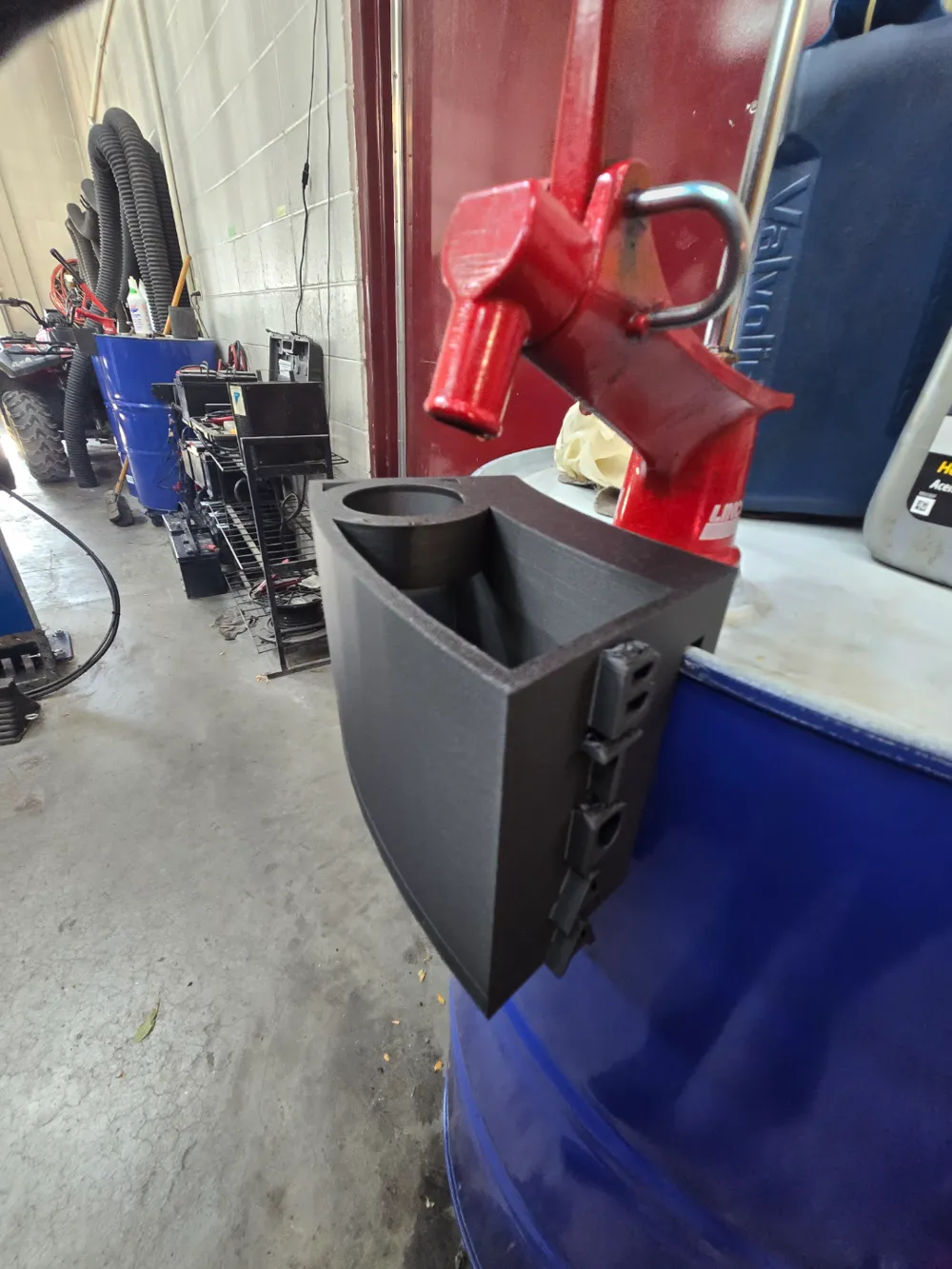

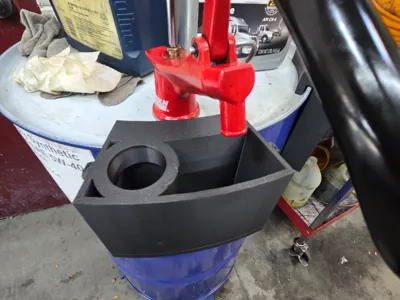

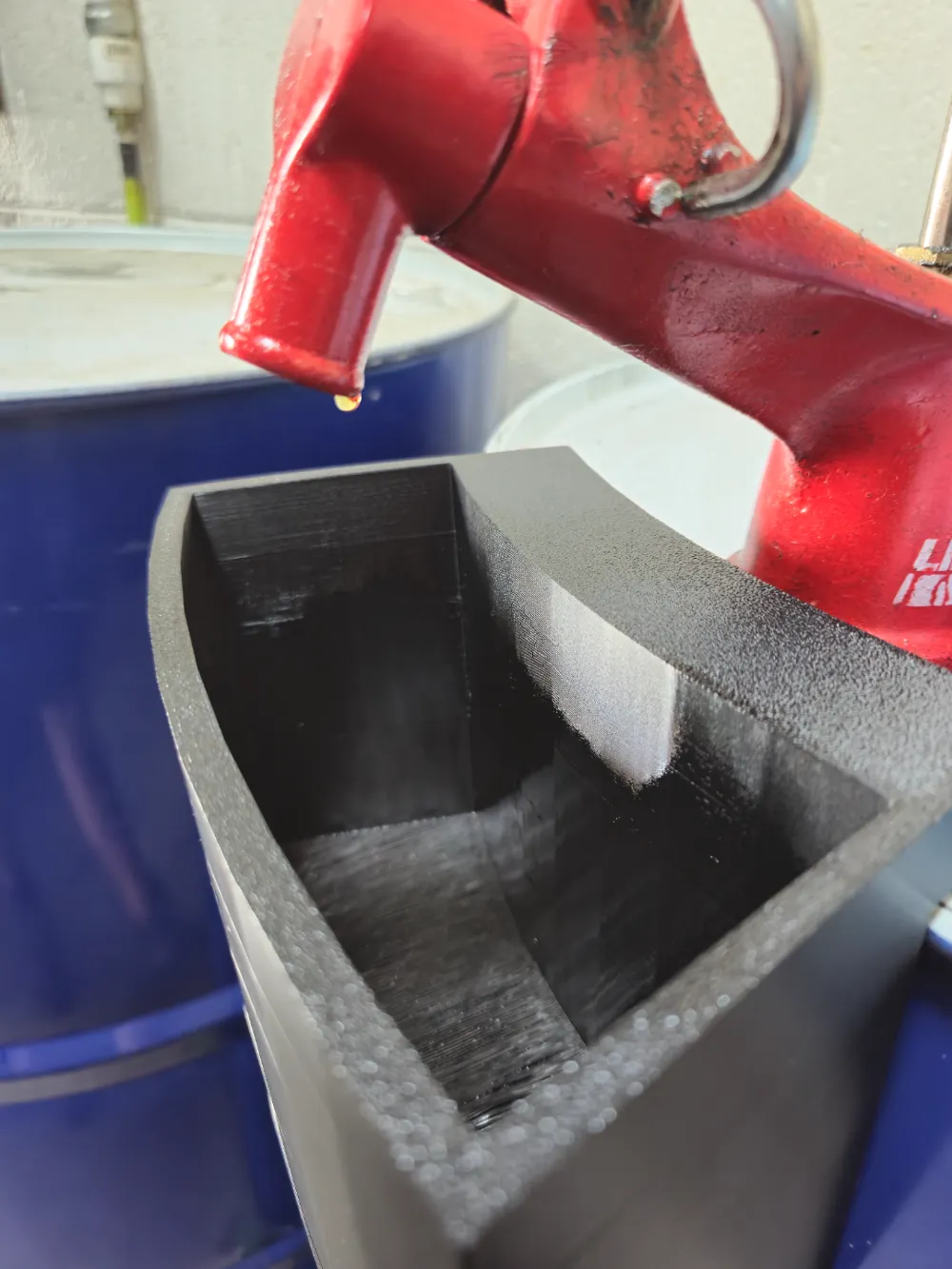

Oil Barrell catch can for oil drips. Works perfect on 55 gallon barrell using lincoln oil pumps. Will likeley work with other models. My early design had no place for a funnell to drain but the final version has a spot for a funnell to drain. I used a thin layer of epoxy inside to make sure it was fully sealed but have found it not necessary. I tested several without a sealant and so far not a single drip. But a layer of epoxy to seal it off inside would be ideal for long term use. Use ABS or any other filamant that is oil resistant for long term durability.
