Utility Case Low Boy

If you like my work and enjoy my models please consider leaving me a tip/donation, It helps me to continue creating awesome models for you for free.

https://paypal.me/muddymaker

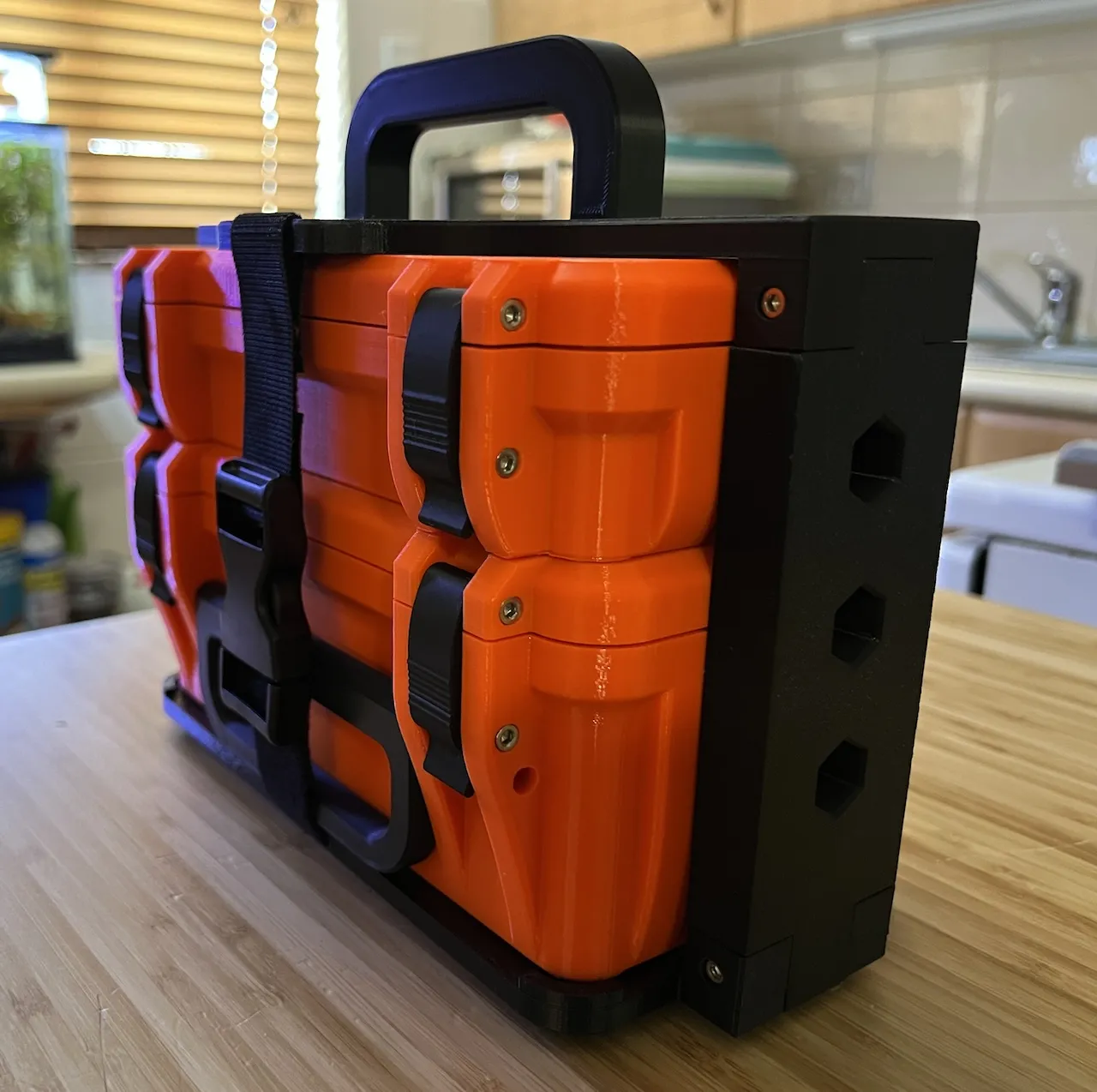

UPDATE Feb 2nd: Utility Case Low Boy Carry Rack System 2.1 can be found here: https://www.printables.com/model/726807-utility-case-low-boy-carry-rack-system-21

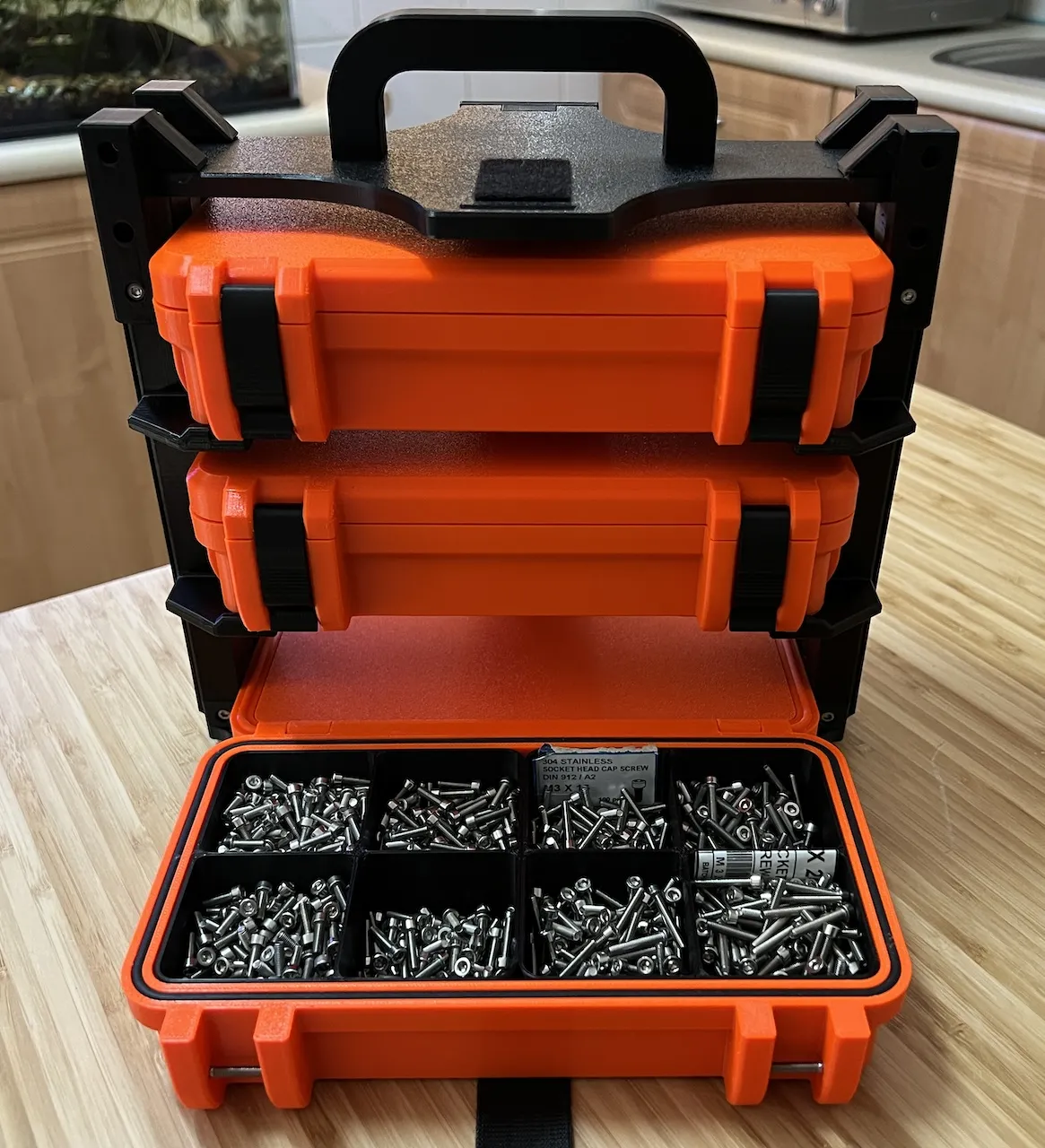

UPDATE Jan 30th: Utility Case Carry Rack System for this case and the Utility Case Double Decker Case can be found here: https://www.printables.com/model/719640-utility-case-carry-rack-system

UPDATE January 6th 2024: Added a smaller TPU seal for those folks having printer tolerance issues. The file is titled as TPU Seal 2.3mm-smaller size. The same print instructions apply, ie, 1 to 2 perimeters/walls and 0% infill.

UPDATE December 21st 2023: Added the tray inserts step file for people that want to personalise their utility cases to their requirements.

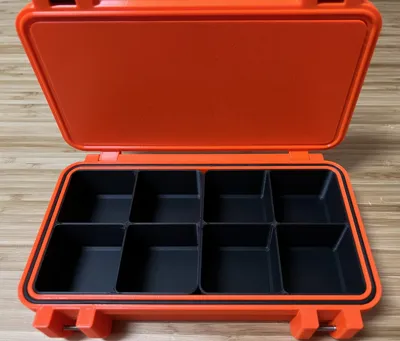

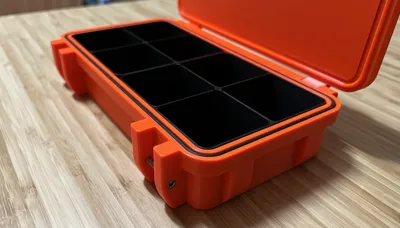

UPDATE December 13th 2023: Added internal trays and a lid insert to keep your things from falling out of the trays in transit. The trays can be mixed and matched and they fit either the left or right side of the case. The lid insert can be affixed to the inside of the lid with double sided tape if you want to keep your case versatile and modular, or you can superglue it in place for a permanent addition.

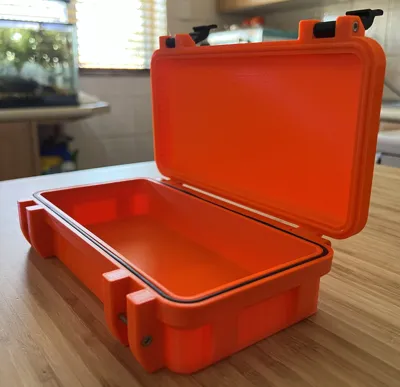

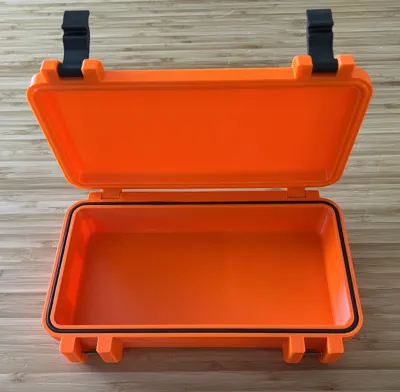

Utility case low boy.

Internal dimensions are 196.85mmx95.25mmx35mm

You'll need 6 M3X25mm fasteners, they all screw into the plastic.

Print the clips with PETG@100% infill.

If you print the optional TPU seal, print with 1 to 2 perimeters/walls and 0% infill, the seal needs to be squishy otherwise you will have trouble closing the lid.

No supports are needed.

Happy printing.
