AntiVibration Base Cover

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
16.1 h
3 plates
4.9(9)

Open in Bambu Studio
Boost
91
205
18
8
93
26
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
20x10x3 mm (10PCS) - CB004
List other parts
  • M4x10 x 24:

Description

  • ⚠️ Important Notice – Please Read Before Printing an AMS Riser

    Due to a license change by benlevi, the original creator of my AMS Riser V2, I am no longer able to update the description of this model. I have already reached out to Support about this issue, but they were not able to help me – because of the license change, this situation is simply how it is, there is nothing more I can do on my end to modify the listing.


    I'm currently receiving an increasing number of complaints from users who have printed the Riser V2 for the Bambu Lab P2S or X2D


    ⚠️ Compatibility – please double-check before you print:

  • Riser V2P1S, P1P, and X1C
  • Riser V3P2S and X2D

    Printing the wrong version will result in fitment issues, as the printer dimensions and mounting points differ between generations.

    Thanks for your understanding, and sorry for any confusion caused by the locked description – my hands are tied here, but I hope this notice helps clear things up!




The Poop Bin is now released too

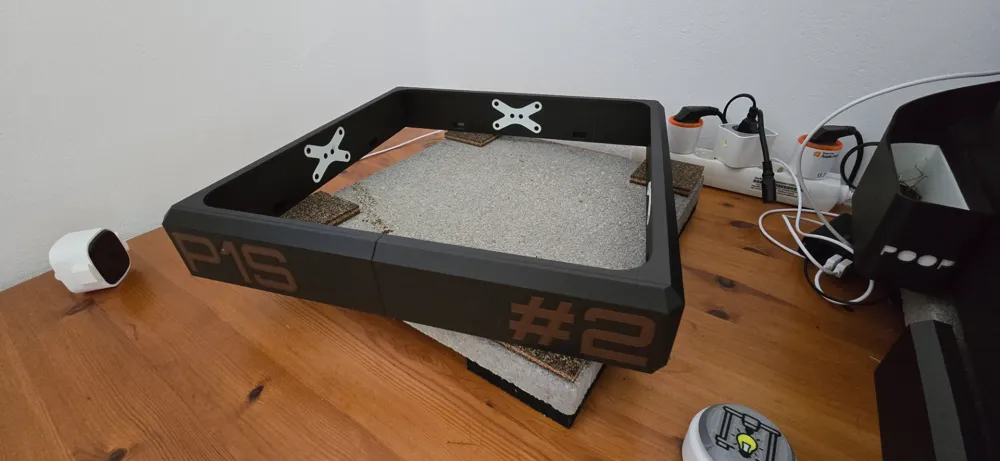

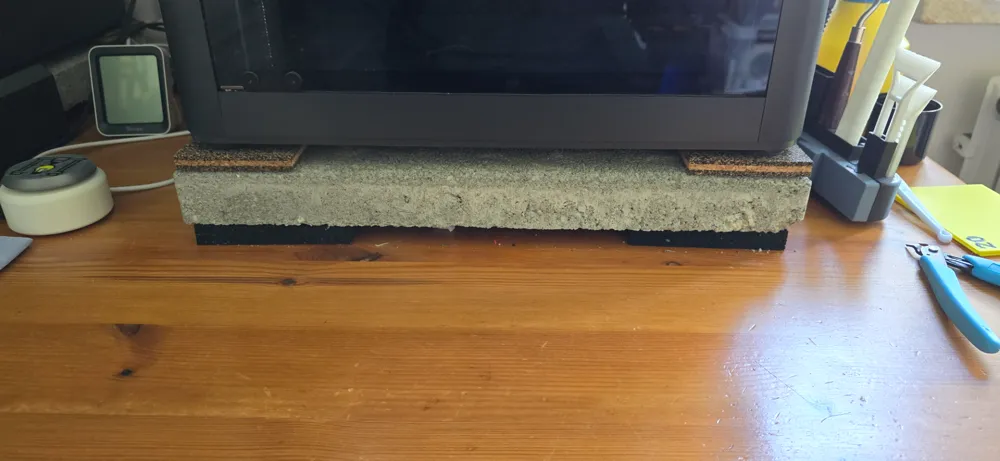

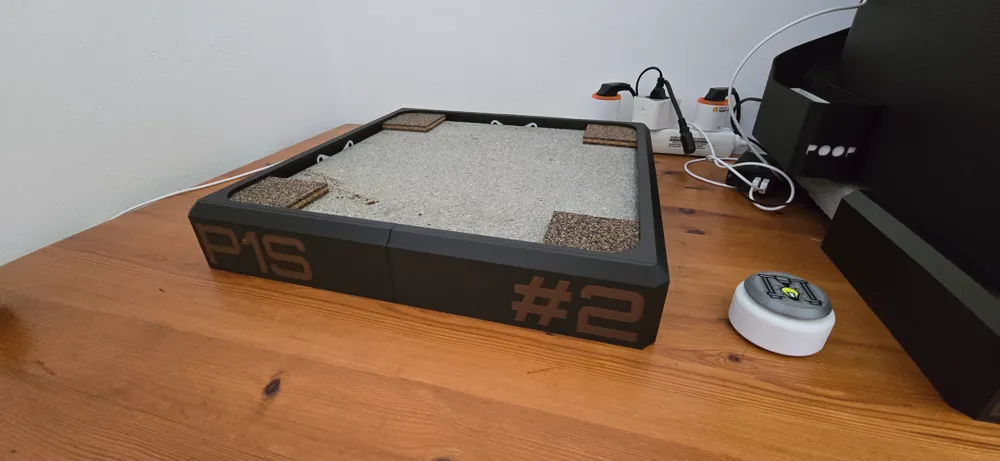

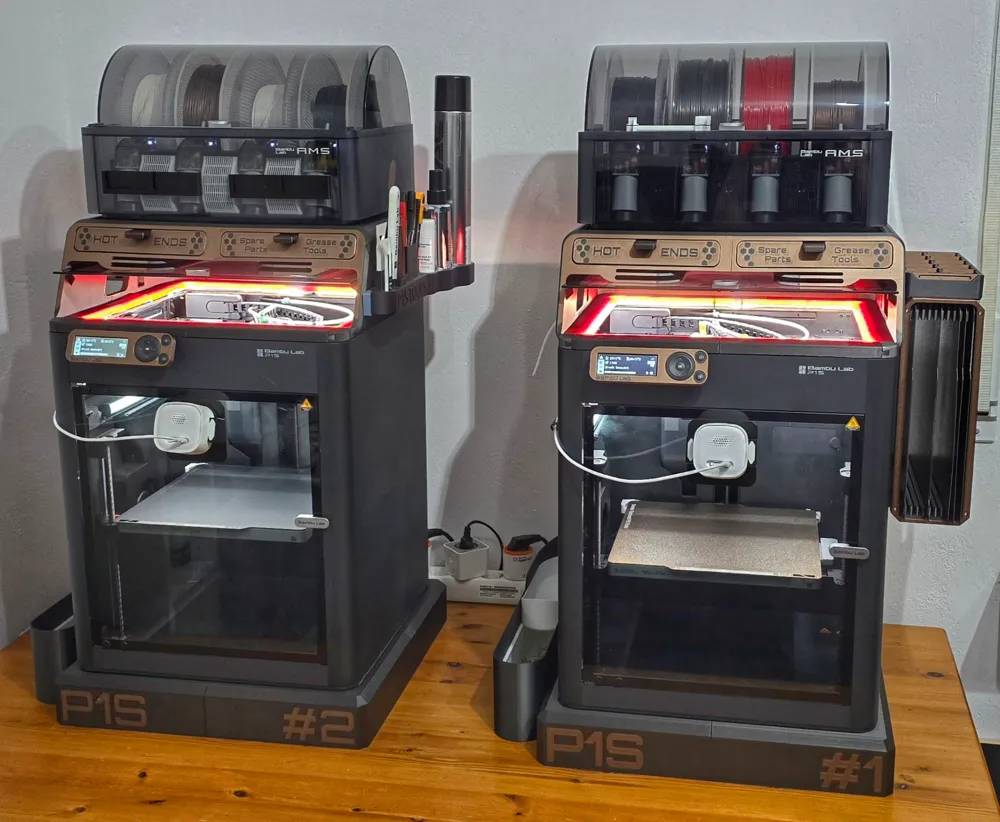

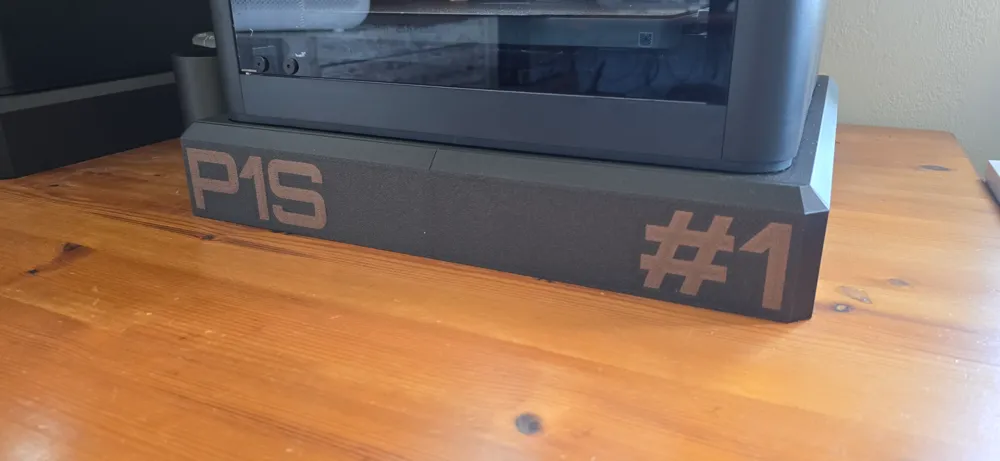

I've designed a cover to hide the unattractive concrete block under my printer. It's compatible with P1S, X1C, and other printers with similar dimensions. The cover consists of four main parts and four connectors. You can insert either 2 20x10x3 or 20x10x5 magnets into the main parts to attach accessories. The inner height up to the collar is 63mm, and the inner dimensions are 400mm x 400mm. Each connector requires 4, preferably 6, M4x10 or M4x12 countersunk screws.



Required non printable Items:
16x (better 24x) M4x10 or M4x12 countersunk screws


Optional non printable Items:
up to 8 20x10x3 Neodym Magnets



What is used for my Ant Vibration Base:

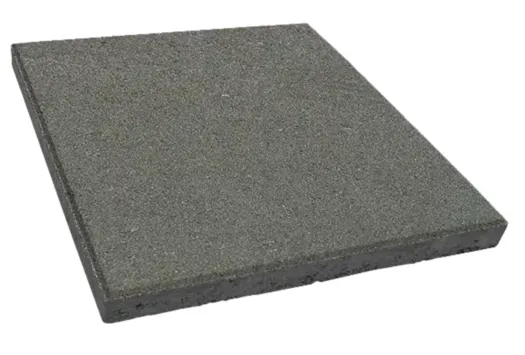

40cm x 40cm x 4cm

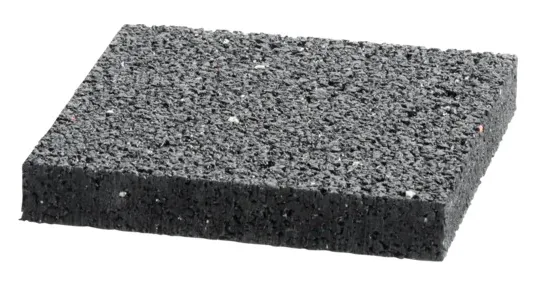

Non-slip mat 4-set anti-vibration pad 10 x 10 x 1.5 cm


Hornbach:
Anti-Rutschmatte 4-Set Antivibrationspad 10 x 10 x 1.5 cm

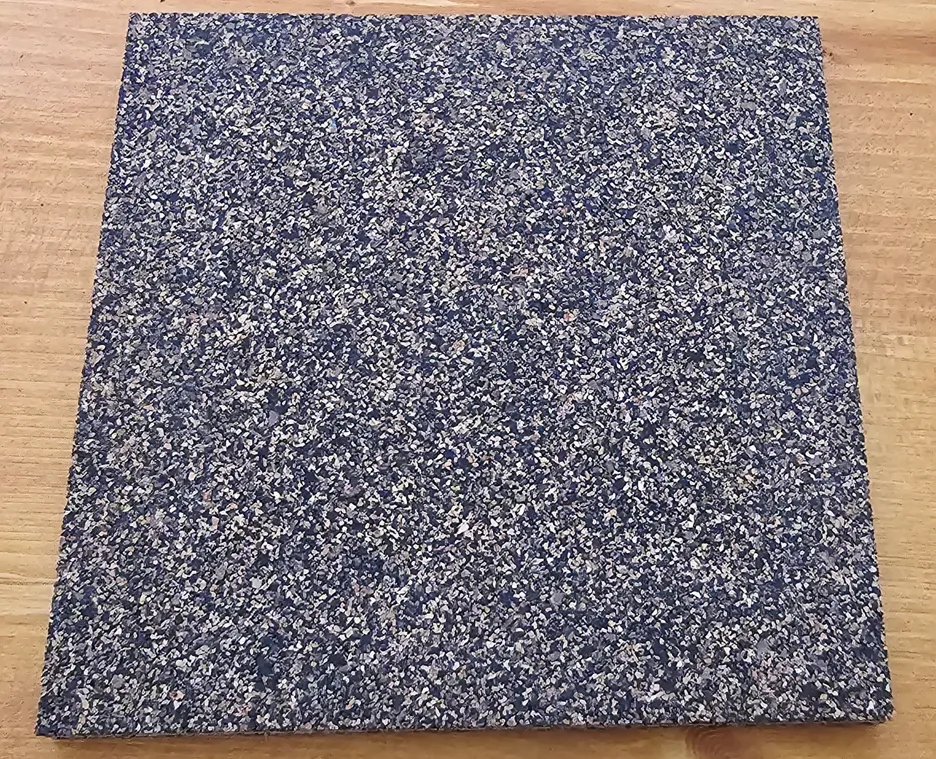

Cork 10mm thick








A heartfelt thank you to the entire Makerworld community! Your creativity, continuous support, and inspiring collaborations mean the world to me. It’s amazing to be part of such a dedicated and innovative group. Let's keep making great things happen together!
