2x4 drawer brick 500%



2024-07-31_597c551de4804

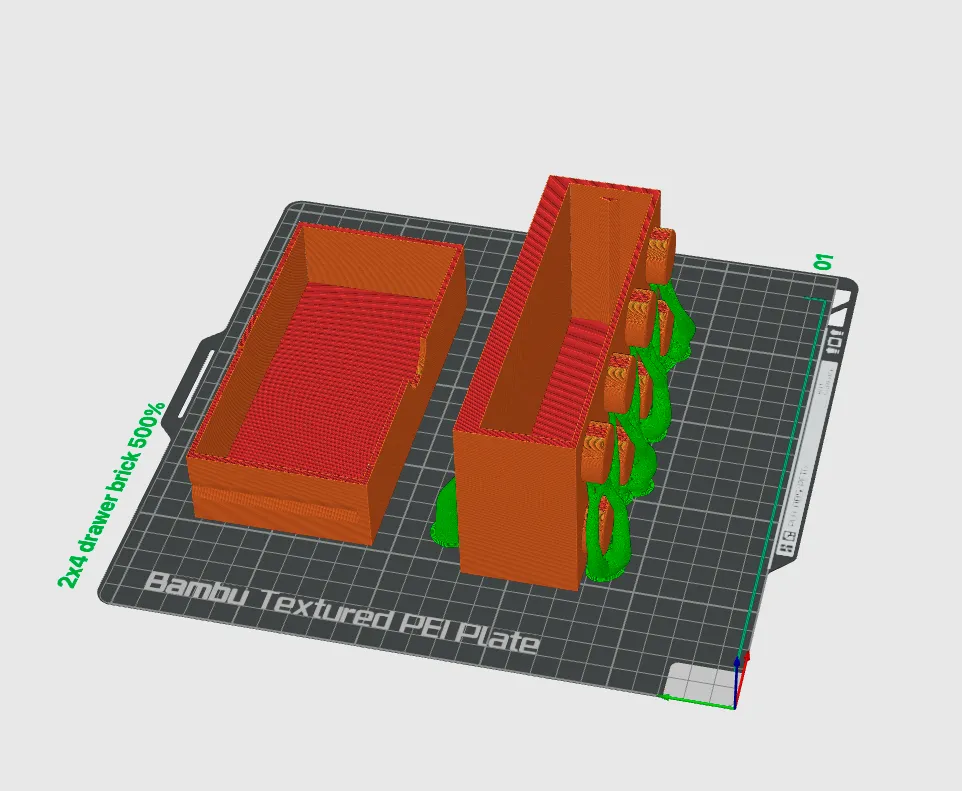

<ul><li>0.2 layer height</li><li>wall loops 2</li><li>classic wall generation</li><li>8% gyroid infill</li><li>support Tree (auto)</li><li>Pre scaled at 500% but if you import the STL yourself you'll need to scale them (any size but tested/designed for good clutch power at 500%)</li></ul>

1 drawer 2x4 @ 500% - 0.2mm layer, 2 walls, 8% infill

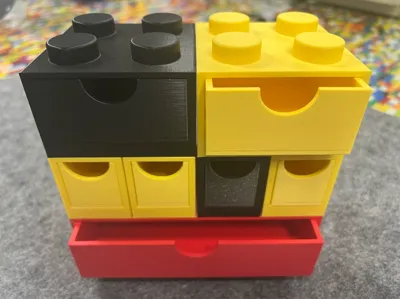

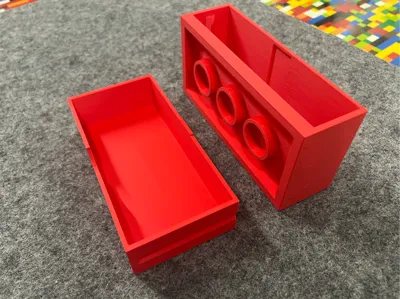

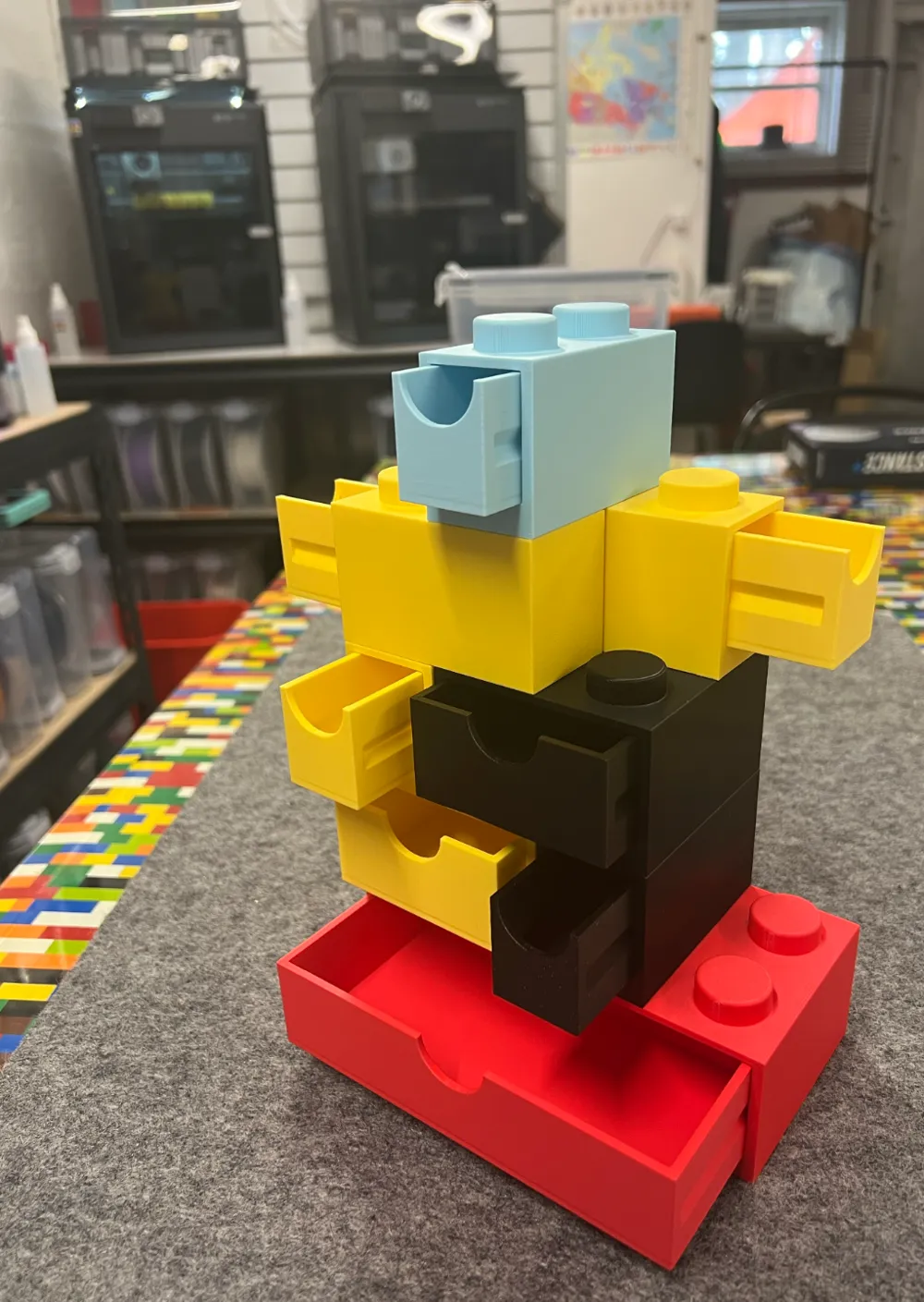

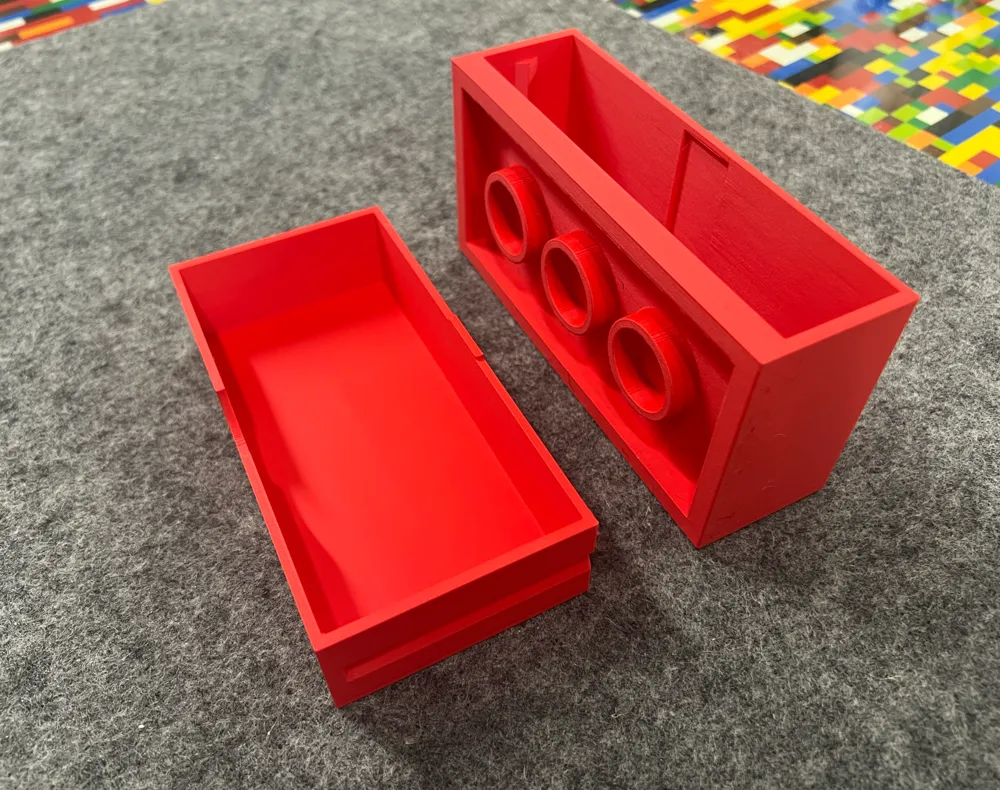

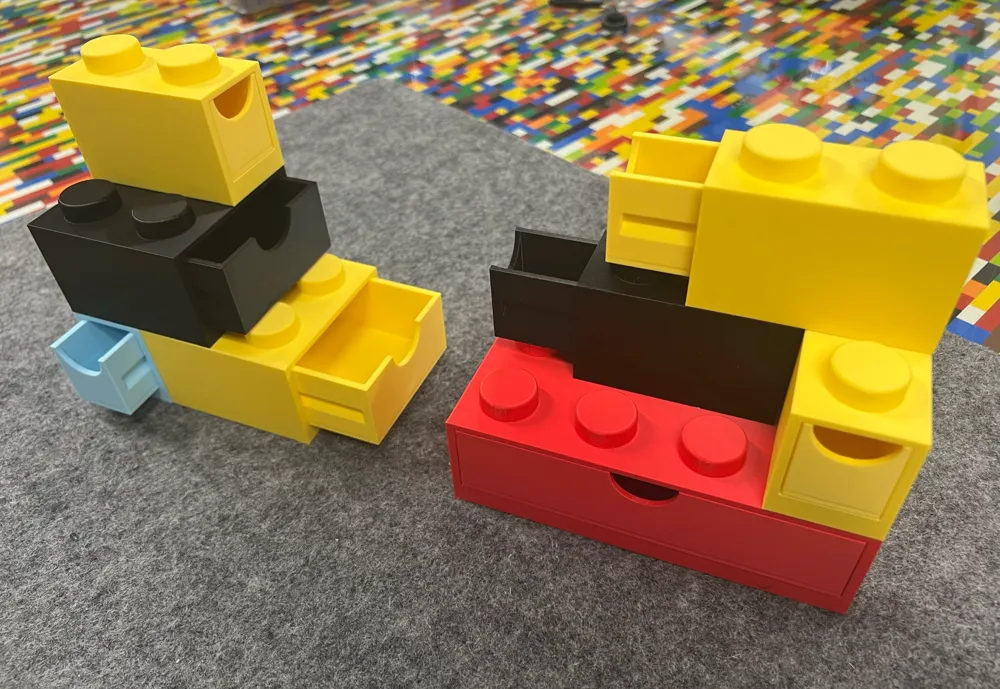

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Thanks for encouraging me with a little Boost</boostcontent></boostme>Finally got around designing proper brick drawers accurate in proportions and with a satisfying clutch power Has large opening to fit finger, studs are accurately spaced and allow smaller brick to stack in the middle. Entirely redesigned in Onshape in 1:1 scale but intended for being printed at 500%  Other files available are the 1x1 brick , 2x1 brick and the 2x2 brick

Print Profile(1)

Description

Comment & Rating (44)

License

Remixes (1)

Related Models

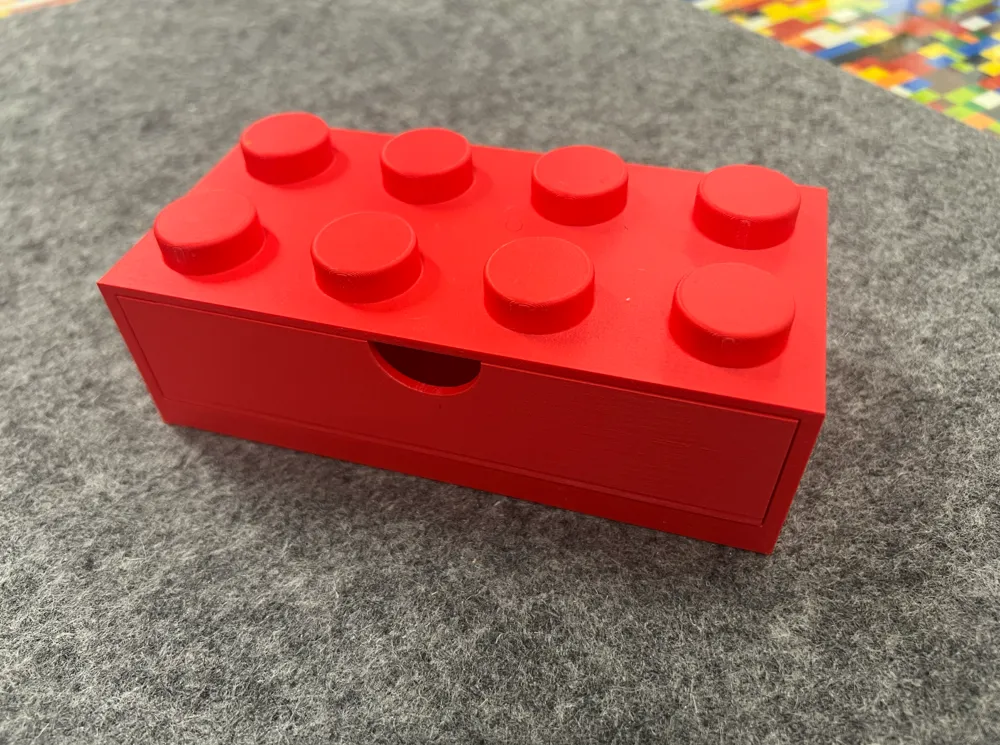

2x4 stackable brick drawer
