2024-07-31_b007816fdf4e8

0.24mm layer, 2 walls, 5% infill




tobu778




Printed with “0.20mm standard Profile” on 4 plates.One color filament.Model painted with Montana Gold.&nbsp;&nbsp;

0.2mm layer, 2 walls, 5% infill

Rigby810

Top Screw.JPEG

Down the barrel with screw.JPEG

Lower Screws.JPEG

My son sent me this model to print off since he is going to be Jack Sparrow for Halloween, and he can&#39;t be Jack Sparrow without his trusty flintlock pistol! As we were printing this, I realized that the screws to go in the 2 holes on the trigger guard on bottom and the 1 screw hole on the top at the back of the barrel, did not have a screw in the original profile. I read the comments and saw other people were asking about it, but no one had an answer. I threw one together in Tinkercad that would match the screw heads on the side plate. &nbsp;<ul><li>I would not change the orientation, print it how it is with support and it will turn out great. </li><li>I printed it with adaptive layer height so that the head of the screw looks nice and smooth. </li></ul>

Flintlock Pistol Screw

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

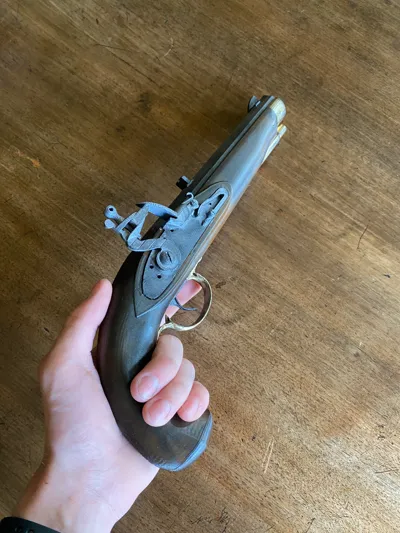

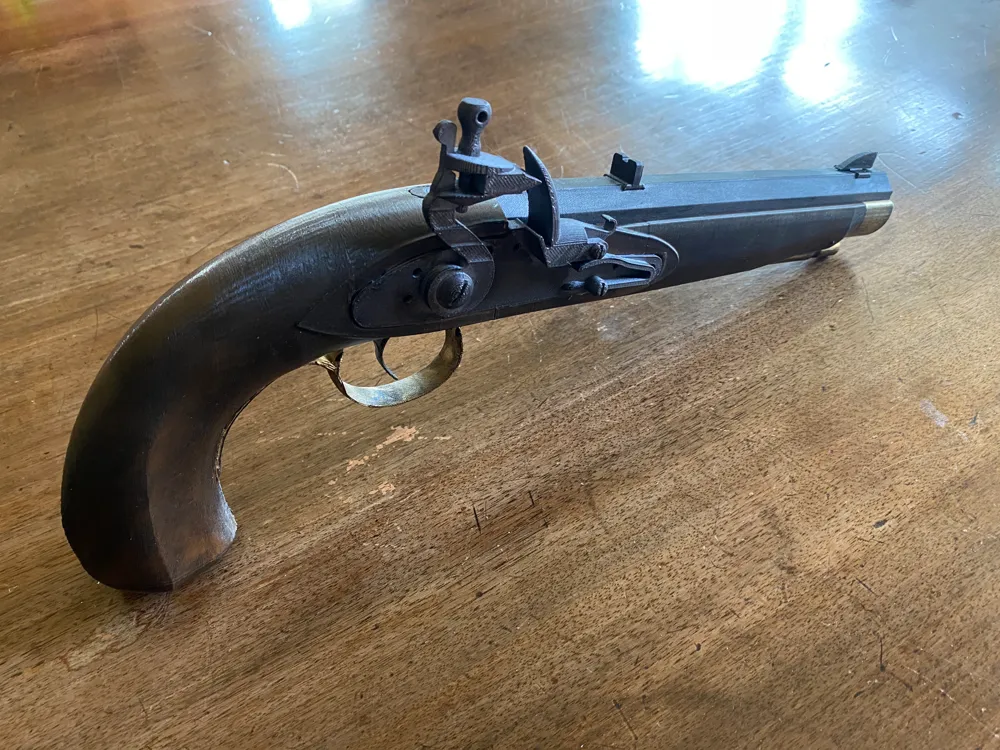

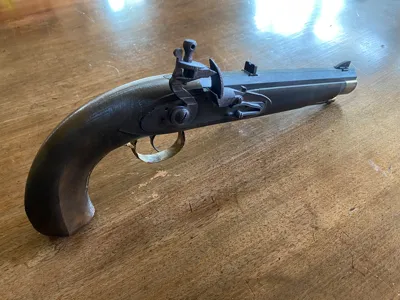

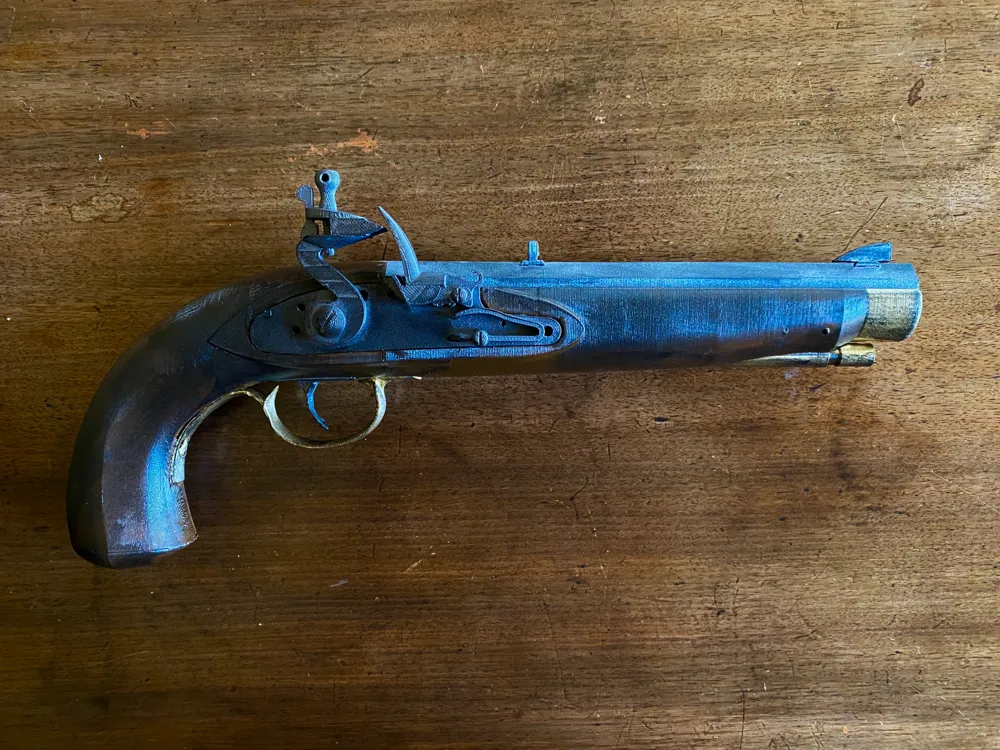

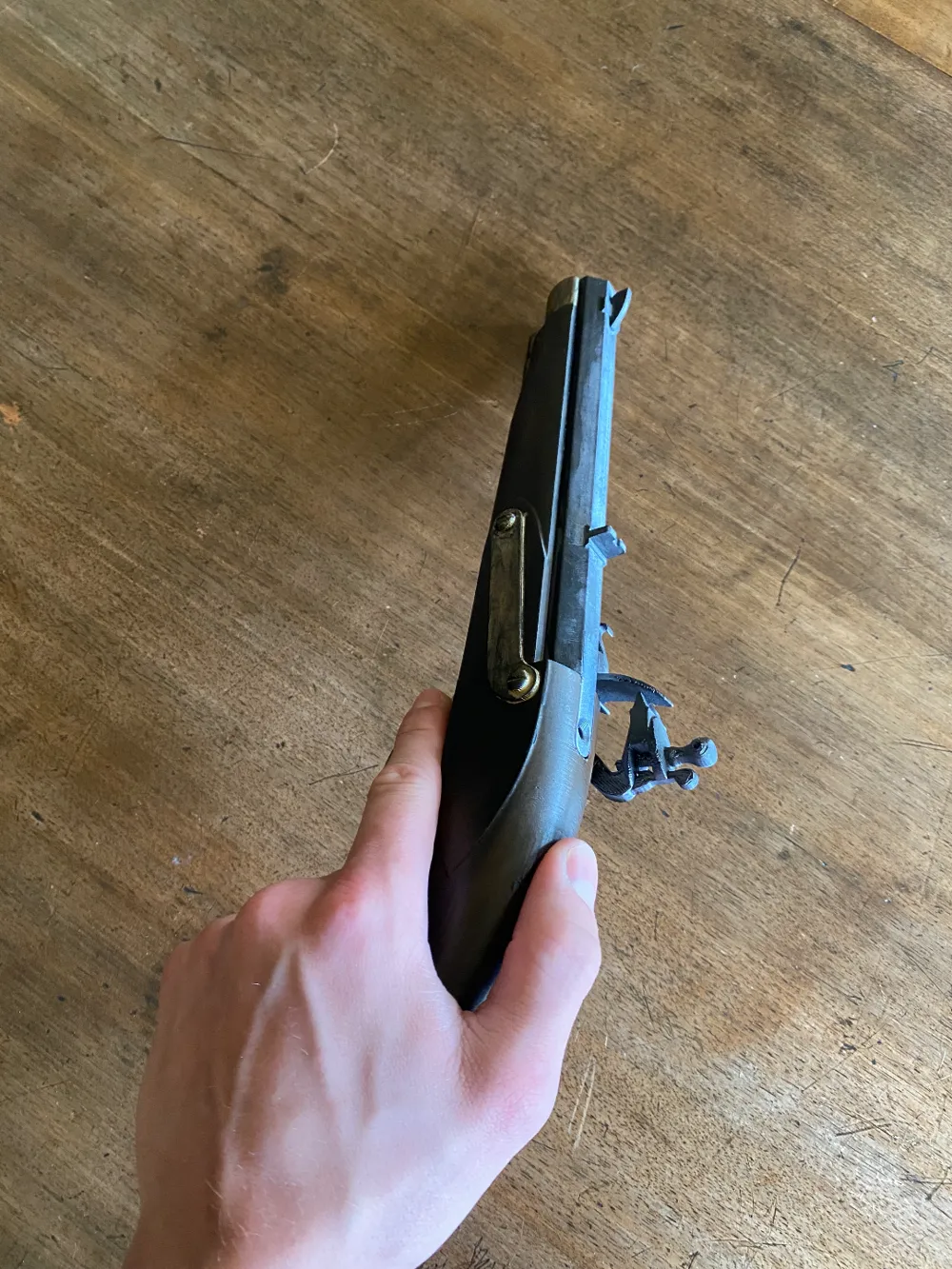

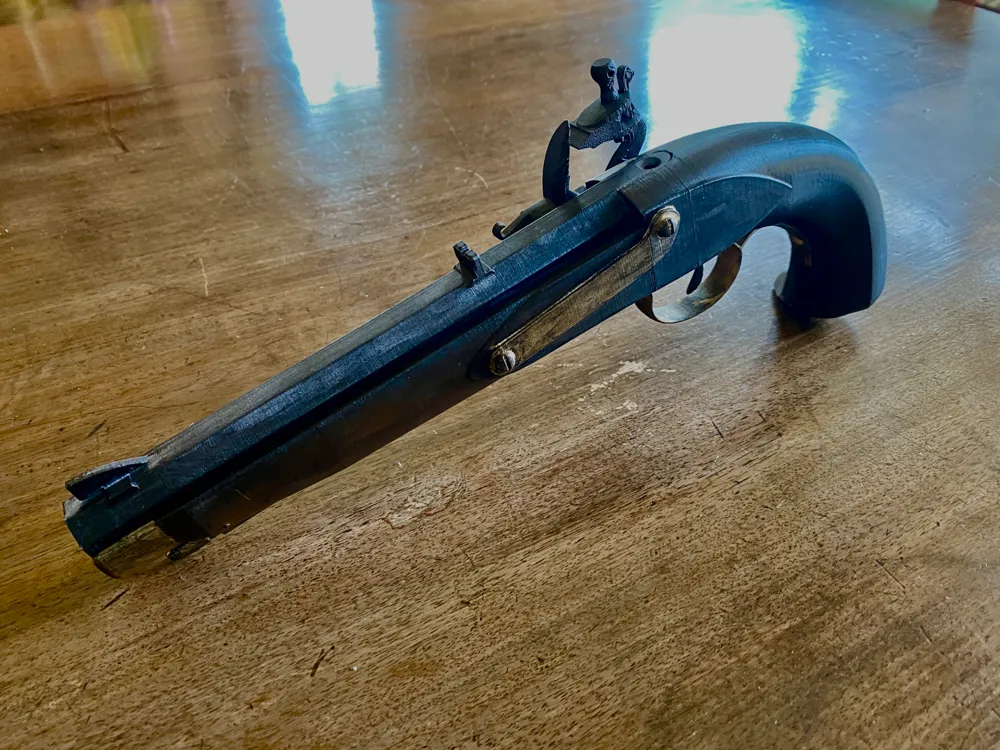

I designed this flintlock pistol as a prop for theatre shows. After printing several different models i have concluded the most time consuming part is the painting. Masking the whole gun to tape a tiny section gold takes forever. So i took inspiration from the others i had printed to make this model which prints in separate components and therefore can be sprayed individually and glued together at the end.&nbsp;Edit: Assembly is using superglue!

Flintlock Pistol 1.0
