Air conditioner conduit 120 / 130 / 140 / 150 mm
Print Profile(2)
Description
Boost Me (for free)
If you like this model, I would appreciate a boost ;-)
Thank you and have fun!

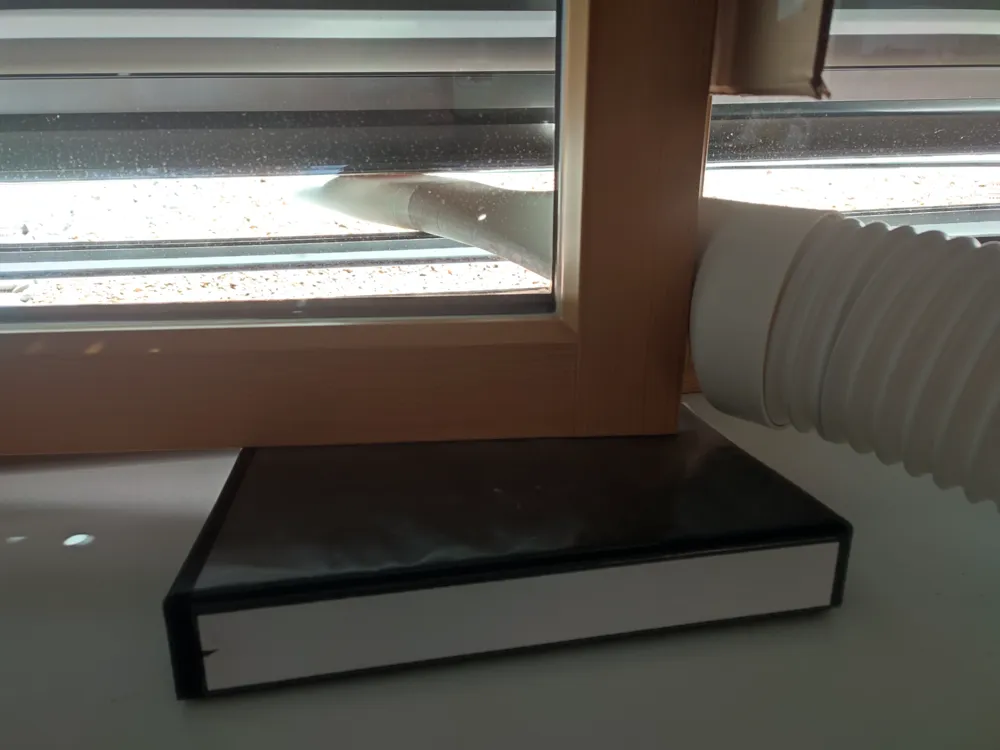

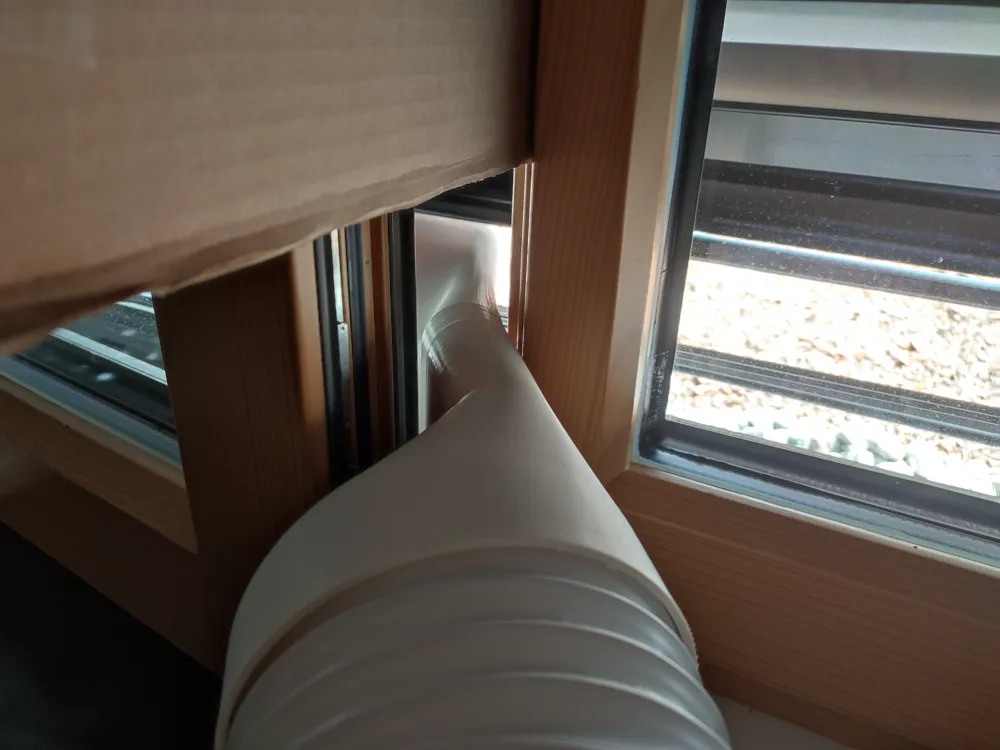

When the exhaust hose needs to be guided through the window and the blinds, a single hose is often insufficient. This leaves the window wide open, allowing warm air to enter.

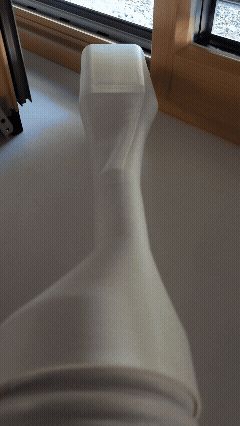

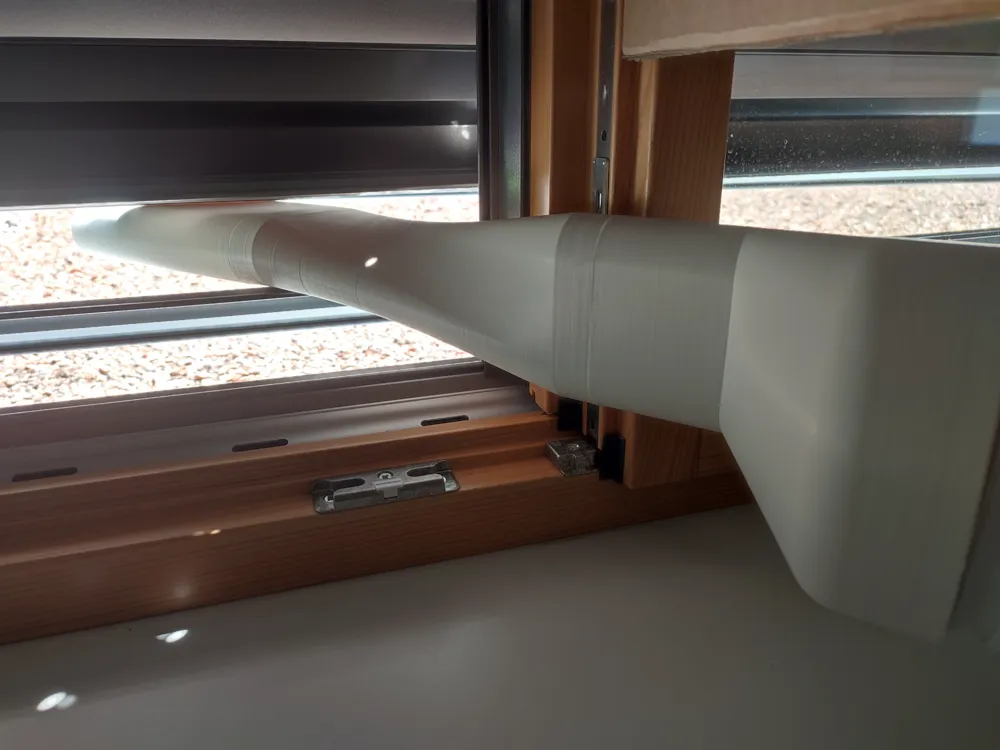

The extra-long "snorkel" allows you to open the window only minimally while directing the warm air outside through the closed blinds.

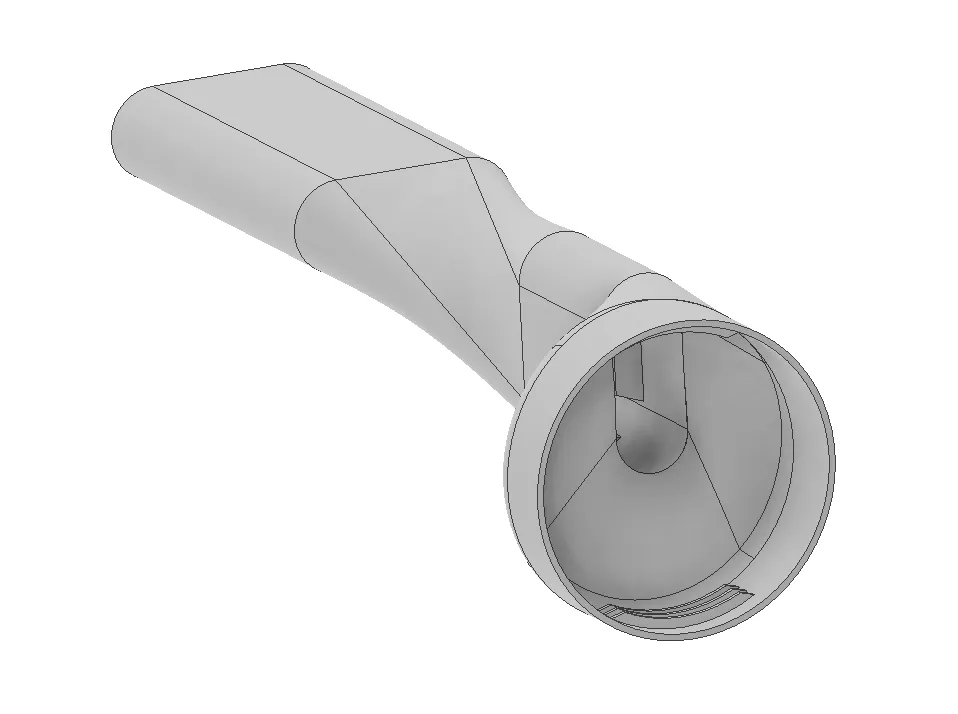

The adaptor consists of three parts that can be clicked together. Adhesive can be used optionally but is not required.
Important Note: PLA is not suitable for this, as it deforms quickly. We used ASA - PETG should also work well. The pictured part was printed with the Bambu 0.2 mm Strength profile, but this is not necessary – 0.2 mm Standard is sufficient.
