bolted flanges for I-beam scale 75 mm
IP Report
Print Profile(1)
0.08mm layer, 4 walls, 15% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
32
79
1
2
80
22
Released
Description

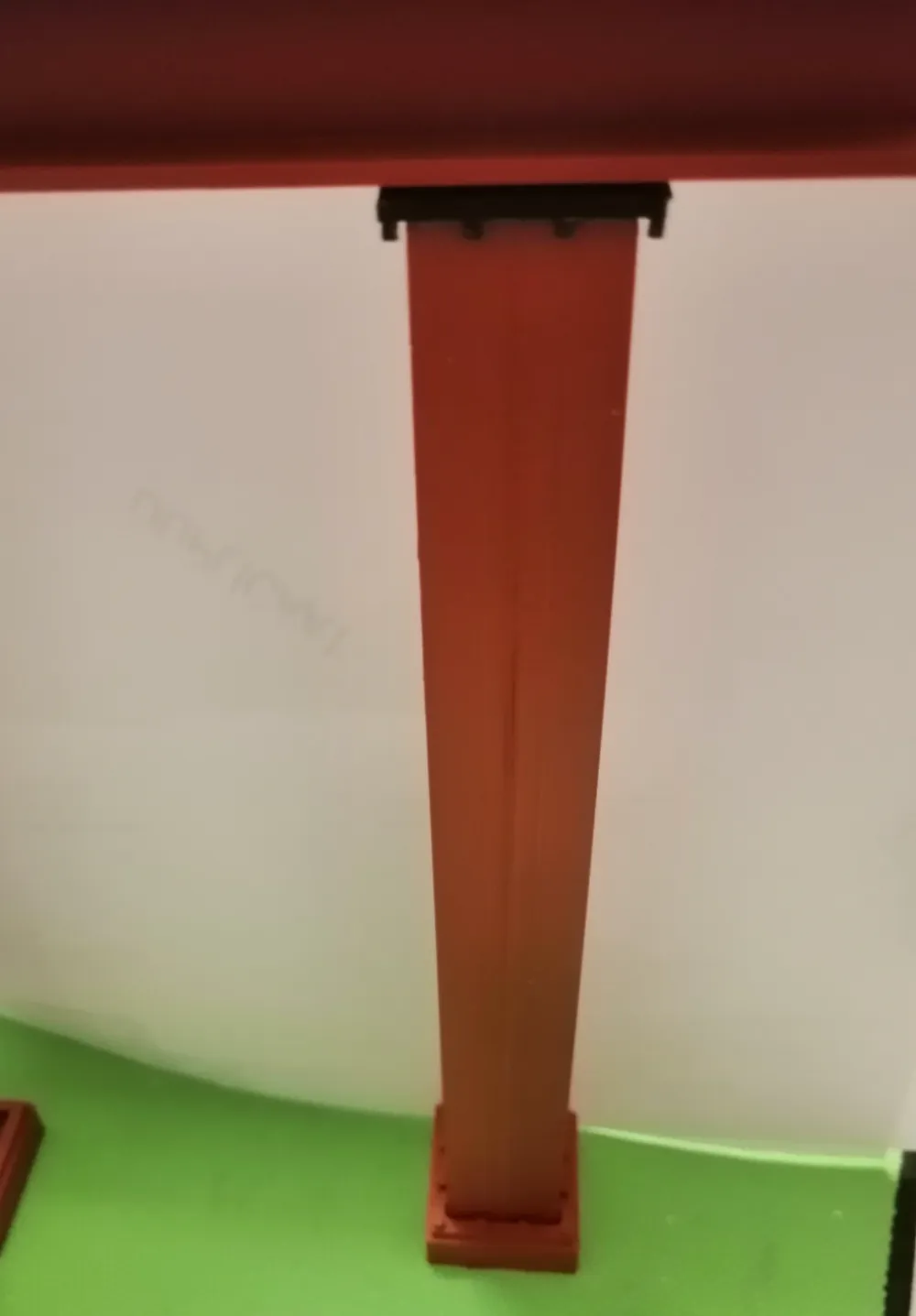

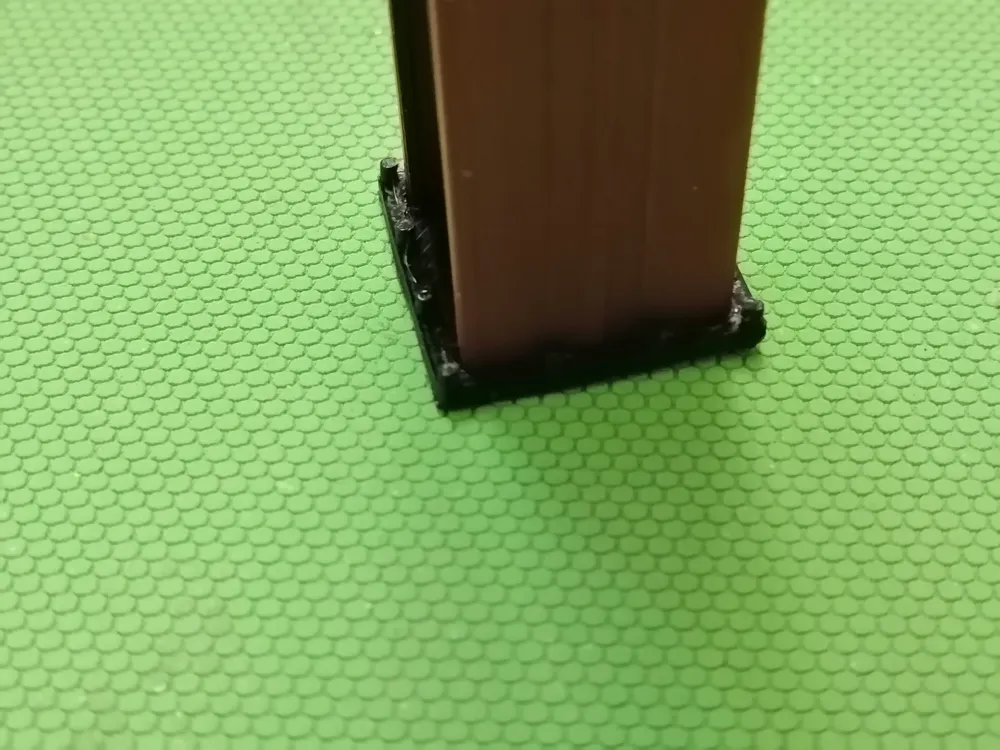

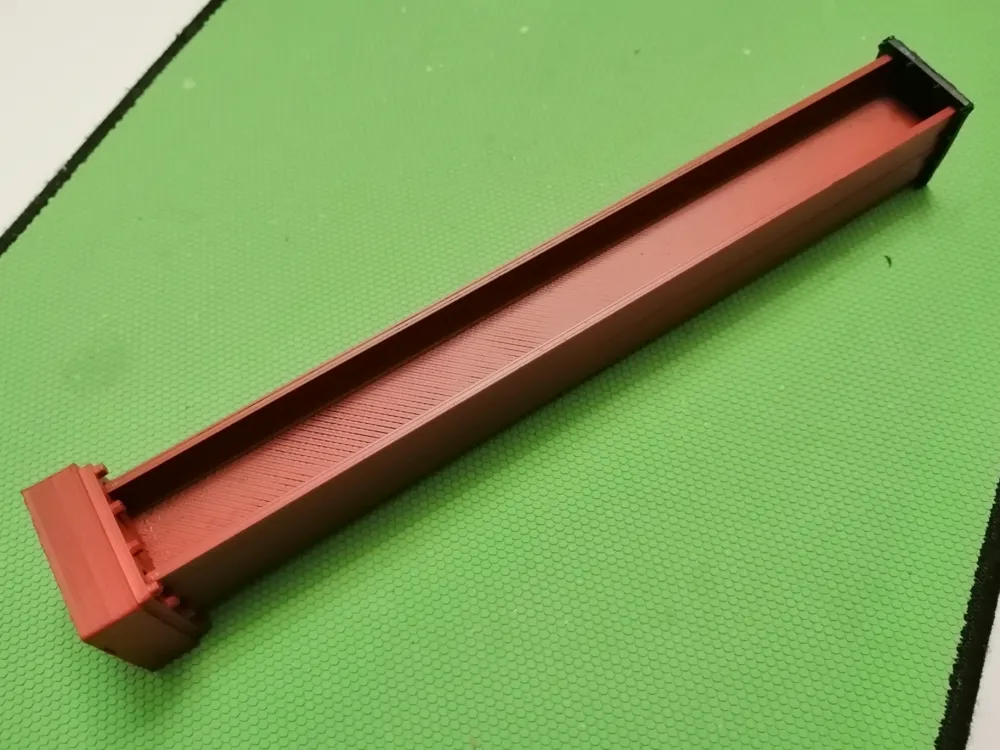

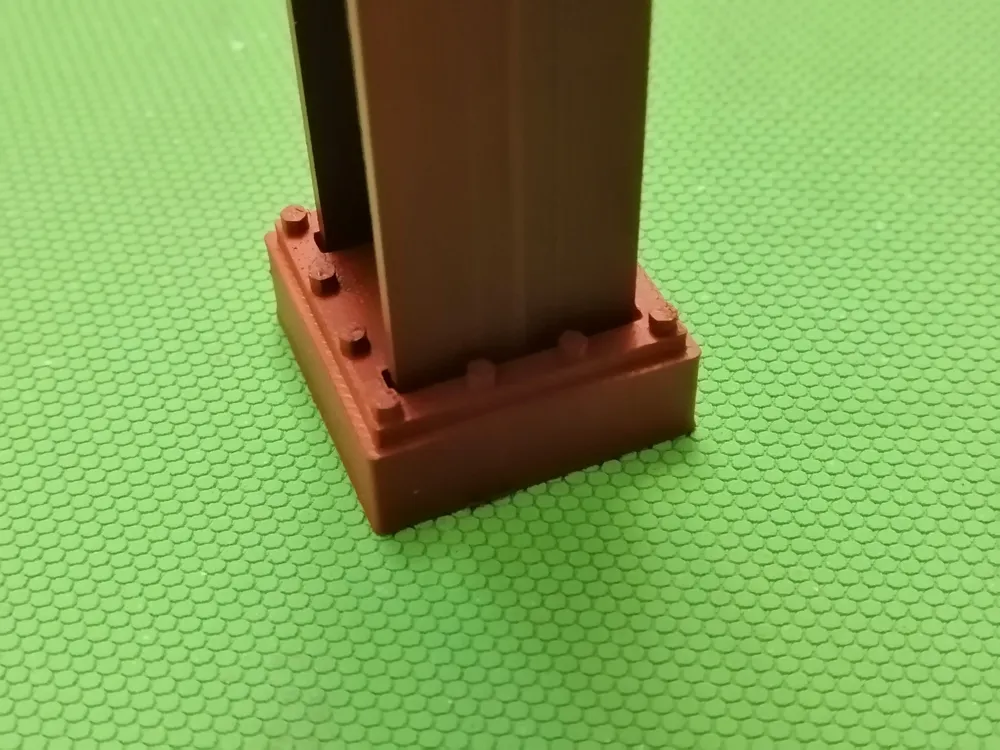

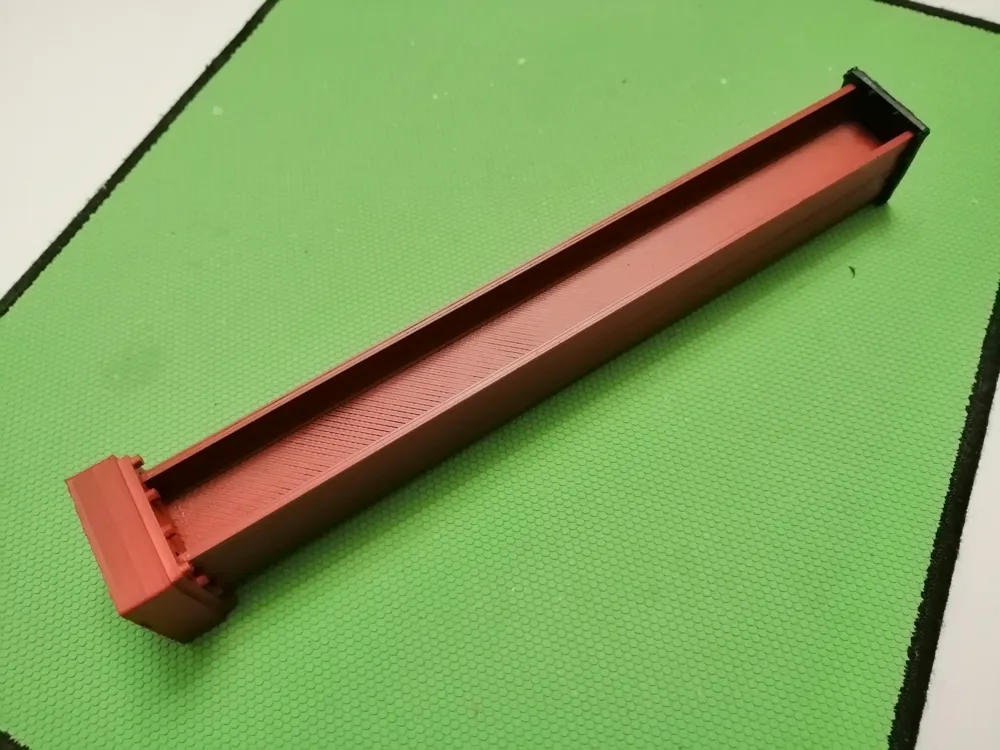

This project consists of a top and bottom flange with bolts to attach 2 I-beams (20x20, scale 75mm) together. The bottom one consists of a concrete block with the flange bolted to it and the top one is a simple flange with bolts. The fit snugly over the Ibeams i uploaded and put together, you will get quite a realistic industrial construction. You will need some superglue and for more realism, it's best to make some damage (cuts, scrapes, holes,…) to the concrete block.
There are 2 of each on the plate so you have enough to connect 2 vertical and 1 horizontal beam
