cover


EU 37 Right


EU 37 Left


EU 38 Right


EU 38 Left


EU 39 Right


EU 39 Left


EU 40 Right


EU 40 Left


EU 41 Right


EU 41 Left


EU 42 Rigth


EU 42 Left


EU 43 Right


EU 43 Left


EU 44 Right


EU 44 Left


EU 45 Right


EU 45 Left



0.6 nozzle and 95A TPU. Overture is good, many others are too stiff, uncomfortable and break fast.&nbsp; Keep this profile filament presets. If the overhang fails, reduce temperature (as low as 200°C depending on the filament)&nbsp;&nbsp;Shoe:<ul><li>layer height: 0.28mm</li><li>line width sparse infill: 0.9mm</li><li>wall loops: 0</li><li>top shell layers: 0</li><li>bottom shell layers: 0</li><li>sparse infill density: 43%</li><li>Infill pattern: Grid</li><li>Infill anchor: 1000 (unlimited)</li><li>Max infill anchor: 1000 (unlimited)</li><li>Infill direction: 0°</li><li>Detect narrow internal solid infill: no</li><li>Speed sparse infill: 18 mm/s</li><li>Reduce infill retraction: no</li></ul>&nbsp;Filament:<ul><li>Retraction: 2.4mm</li><li>Wipe: no</li><li>Z hop: 1.2mm, Normal type</li><li>Max volumetric speed: 6 mm^3/s </li></ul>

EU 37 - 45 sizes

EU 46 Right

EU 46 Left

0.6 nozzle and 95A TPU. Overture is good, many others are too stiff, uncomfortable and break fast.&nbsp; Keep this profile filament presets. If the overhang fails, reduce temperature (as low as 200°C depending on the filament)  Carefully check that all settings transfer when switching printer in Bambu Studio&nbsp;&nbsp;Shoe:<ul><li>layer height: 0.36mm</li><li>line width sparse infill: 0.9mm</li><li>wall loops: 0</li><li>top shell layers: 0</li><li>bottom shell layers: 0</li><li>sparse infill density: 43%</li><li>Infill pattern: Grid</li><li>Infill anchor: 1000 (unlimited)</li><li>Max infill anchor: 1000 (unlimited)</li><li>Infill direction: 0°</li><li>Detect narrow internal solid infill: no</li><li>Speed sparse infill: 18 mm/s</li><li>Enable support: no</li><li>Reduce infill retraction: no</li></ul>&nbsp;Filament:<ul><li>Retraction: 2.4mm</li><li>Wipe: no</li><li>Z hop: 1.2mm, Normal type</li><li>Max volumetric speed: 6 mm^3/s </li></ul>

EU 46 size

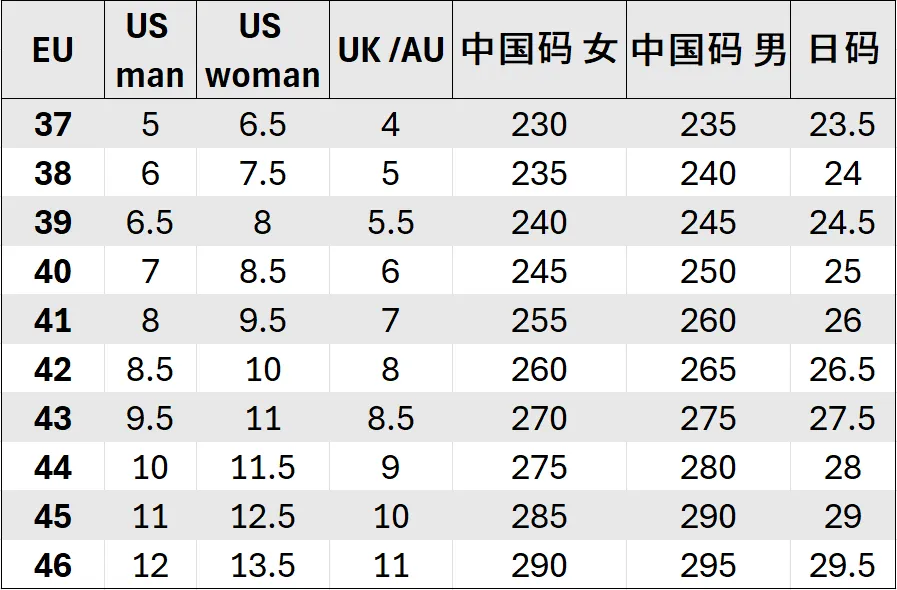

Size chart<figure class="image image_resized" style="width: 55.01%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000559996/design/2024-11-28_cc725b45ba806.png"></figure>

G0 barefoot shoes
