Kove 450 Rally Tablet Mount
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
8
15
3
0
31
8
Released
Description

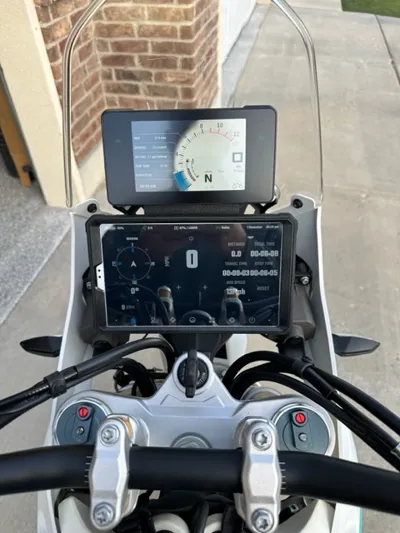

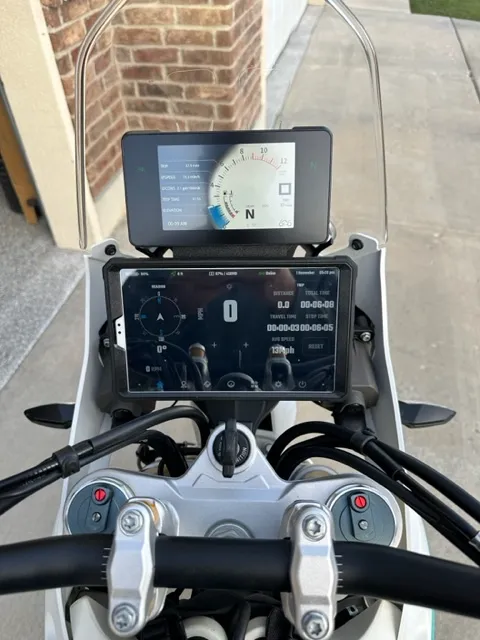

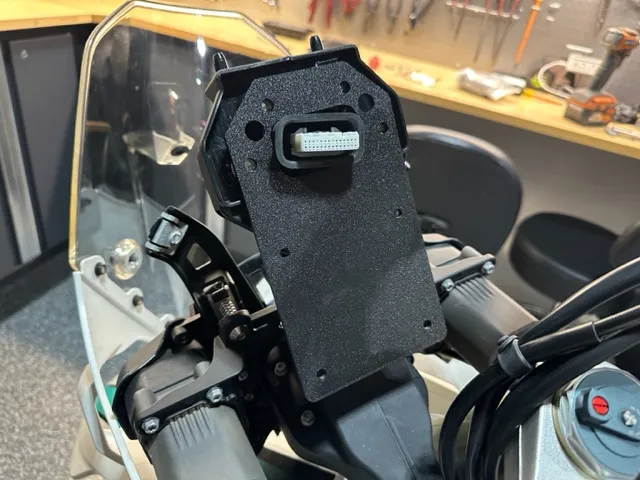

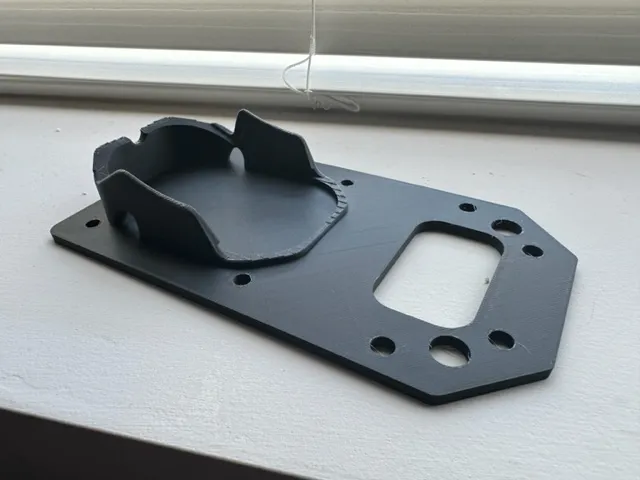

This is a tablet mount for the Kove 450 Rally (Non pro version) that can be 3D printed. I am mounting a Samsung Tab A7 Lite in a rugged case with it. I printed with 3 walls and Gyroid infill. No supports or brim. I have printed the one in the video with PLA filament but I think a more UV and heat resistant filament like PETG or ABS would be a better choice.

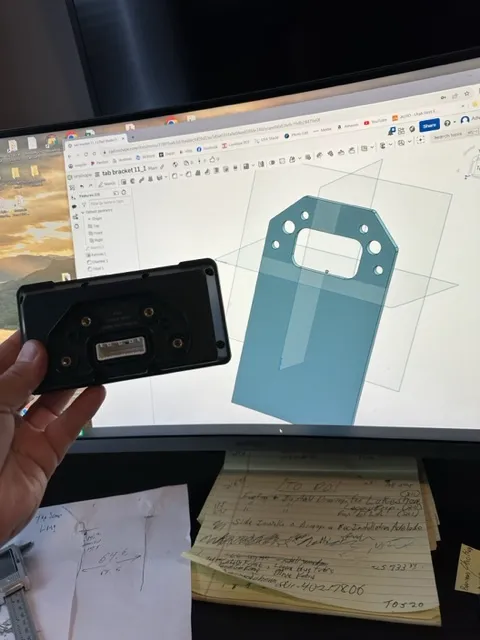

This was designed in OnShape CAD an online free 3D modeling software. You are welcome to open the file there and copy / modify it to meet your needs. It is public and named: KOVE 450 Rally Tablet Bracket.
The case I used is a Fintie Shock Proof case for the A7 Lite found on Amazon. Video of this design on YouTube by Adventure Mikes Garage
License
This user content is licensed under a
Creative Commons AttributionRemixes (3)
