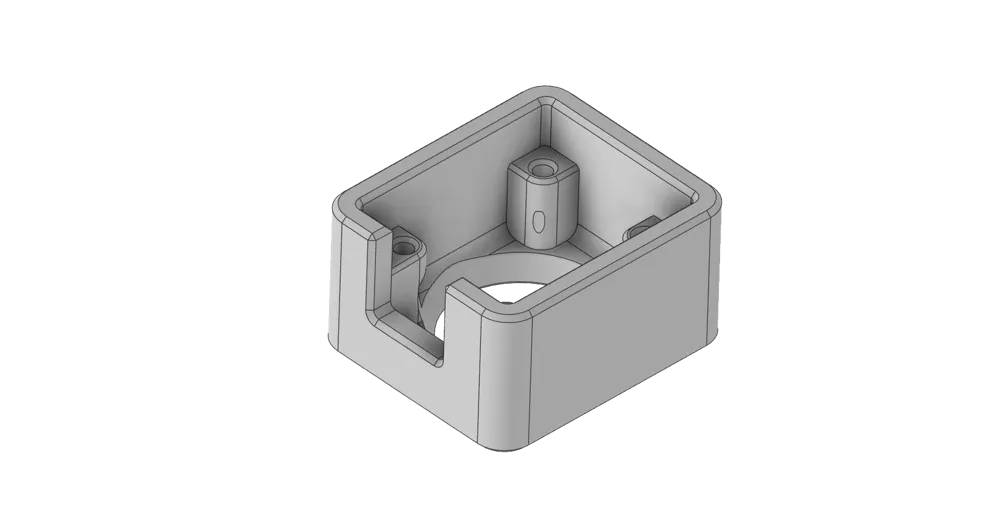

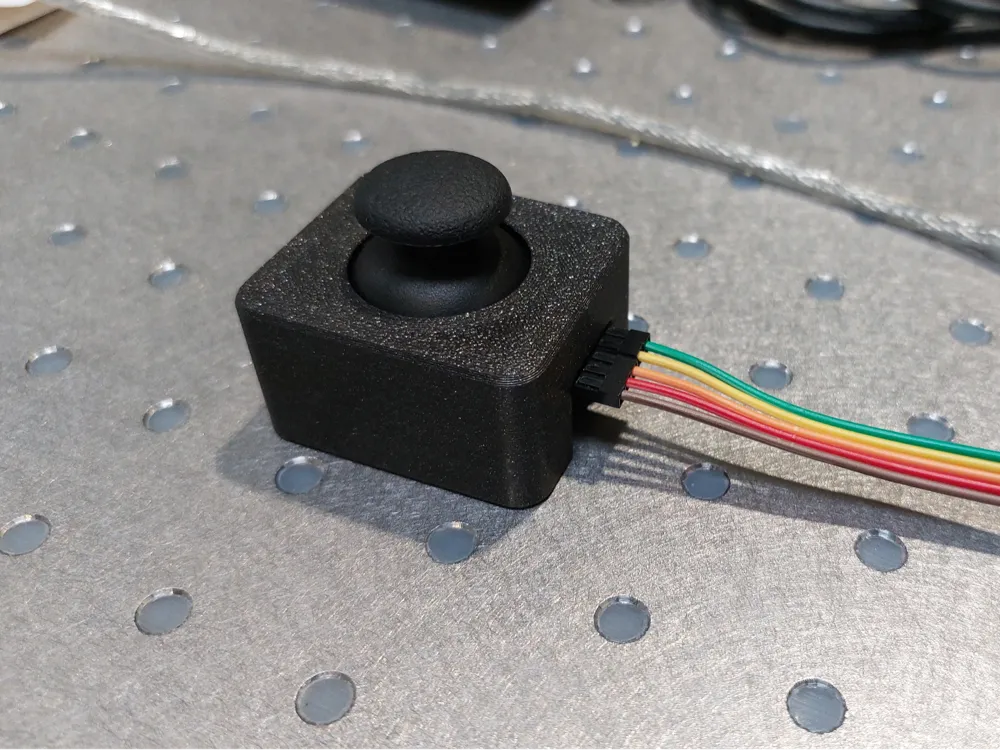

A Simple Case to Protect a Joystick Module for Arduino / DIY Projects.

The Controller Used:
https://www.amazon.de/HALJIA-PS2-Gaming-Joystick-Achssensormodul-Taster-Steuerung-Abschirmung/dp/B06Y1HB7KR

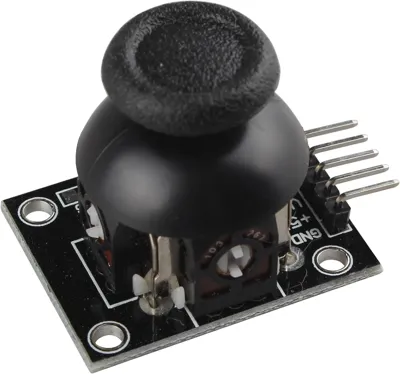

Any Module that looks like this should be fine:
https://grabcad.com/library/ky-023-joystick-module-1

Uses 4x M3 Screws for mounting.

Feel free to request any modifications in the comments :)
