Hey there,

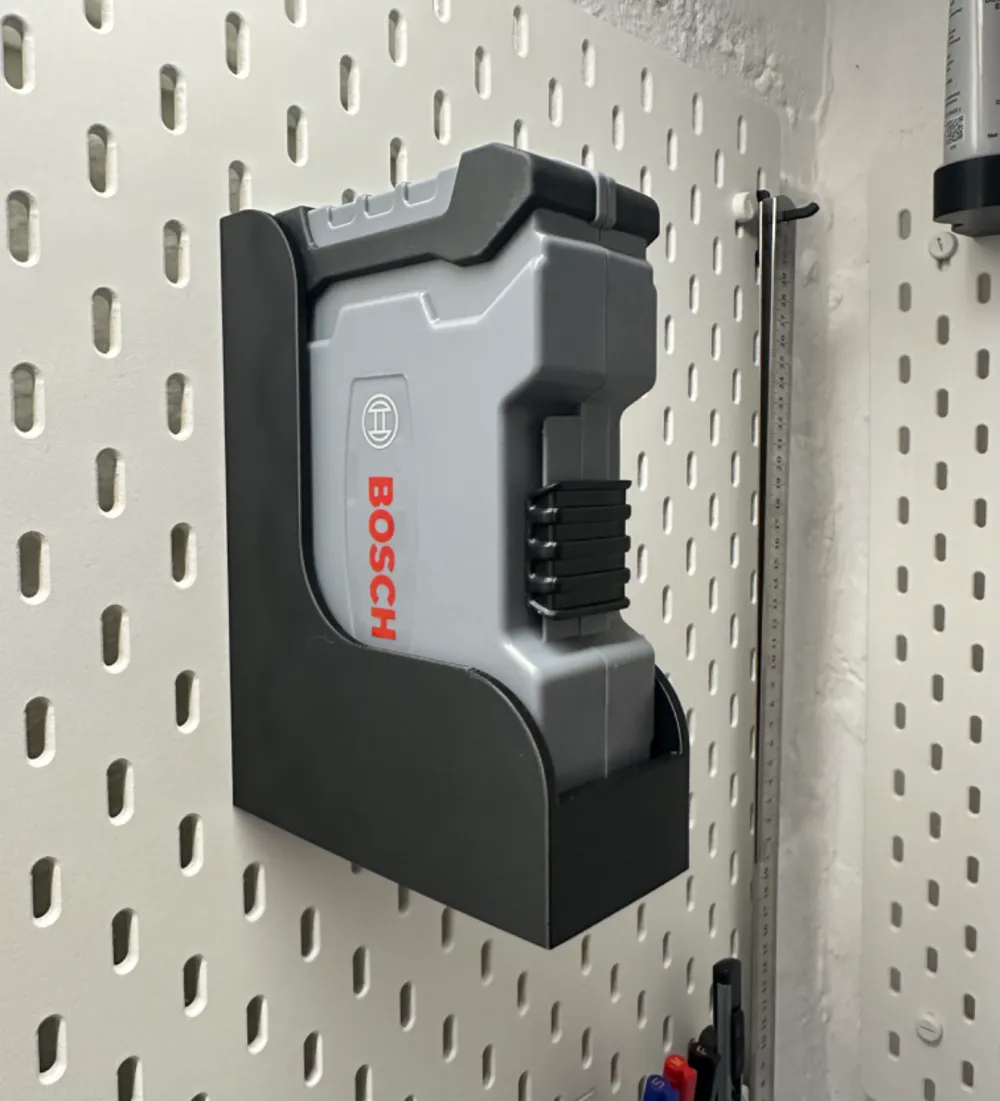

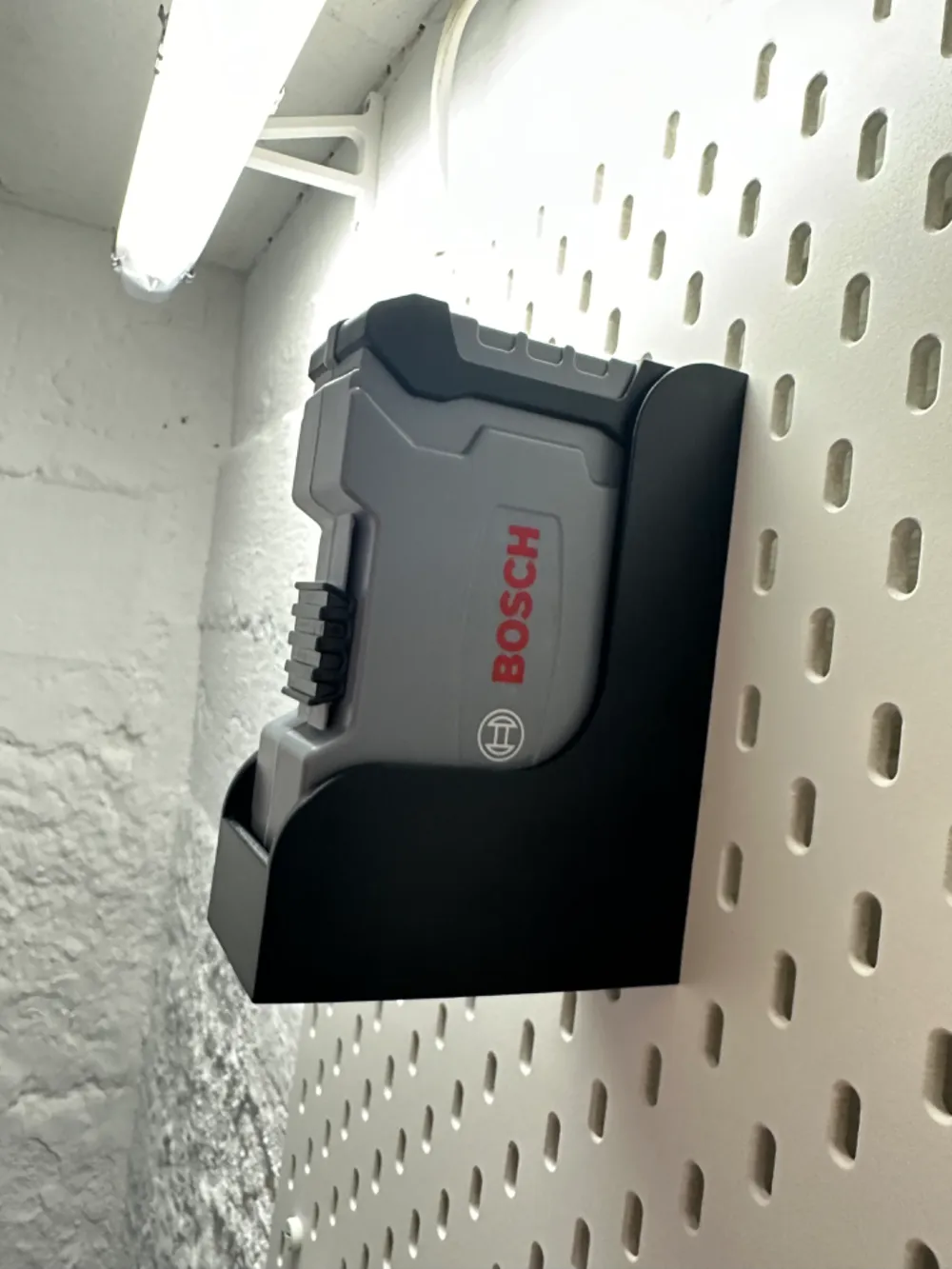

The bit holder is suitable for the bit set from Bosch as shown in the pictures. The bit sits tight in the holder. I recommend ABS for stability.

update 27.07.24: added an .stl with an more lose fit for the bitbox

Layer height: 0.2

Loop walls: 3

Infill: 25% Crosshatch

Support: Tree (auto)

I recommend an 12mm brim

Comment & Rating (40)

@vangorkum

Print Profile

0.2mm layer, 3 walls, 25% infill

works great

@lilalolo

Print Profile

0.2mm layer, 3 walls, 25% infill

Top hat fitted immediately

Show original

@user_68619906

Hi I have these boxes Can you tell me the width of yours Best regards

Show original

@guido.nowatzki

Print Profile

0.2mm layer, 3 walls, 25% infill

A magnificent design, my heartfelt thanks for sharing

Show original

@PeterHall

Print Profile

0.2mm layer, 3 walls, 25% infill

Good fit, happy with it!

@user_2243620396

Like the design! Just printed two of them :) it is a really tight fit, need two hands to get it out. Maybe make it 2mm wider?

The designer has replied

@chris.krsslt

Done. Let me know if it work well. I haven't tested it yet, now there is 2mm more space for the bitbox. :)

@user_2243620396

Replying to @chris.krsslt :

Wow! What a fast response and very well thought solution. Just printed it and it works so much better for me now. Now I only need to think of something to do with the two tight fit version that I already printed xD

@danno242000

Print Profile

0.2mm layer, 3 walls, 25% infill

Perfect!

@user_2962569071

Print Profile

0.2mm layer, 3 walls, 25% infill

Fits very snugly. Maybe enlarge by half a percent. But I don't know if the hooks will still fit then

Show original

@user_3158451690

Print Profile

0.2mm layer, 3 walls, 25% infill

Print the relaxed version in case you have a doubt. Just big enough to make it practical to take and stow away the box without letting it wobble.

@user_2450575084

Print Profile

0.2mm layer, 3 walls, 25% infill

Sehr gut. Danke
