Saturn V

I'm looking to improve the publication of my models on makerworld, if you like or dislike my models and if you have 5 minutes to lose, can you please fill out this form.

🚀 About the Model

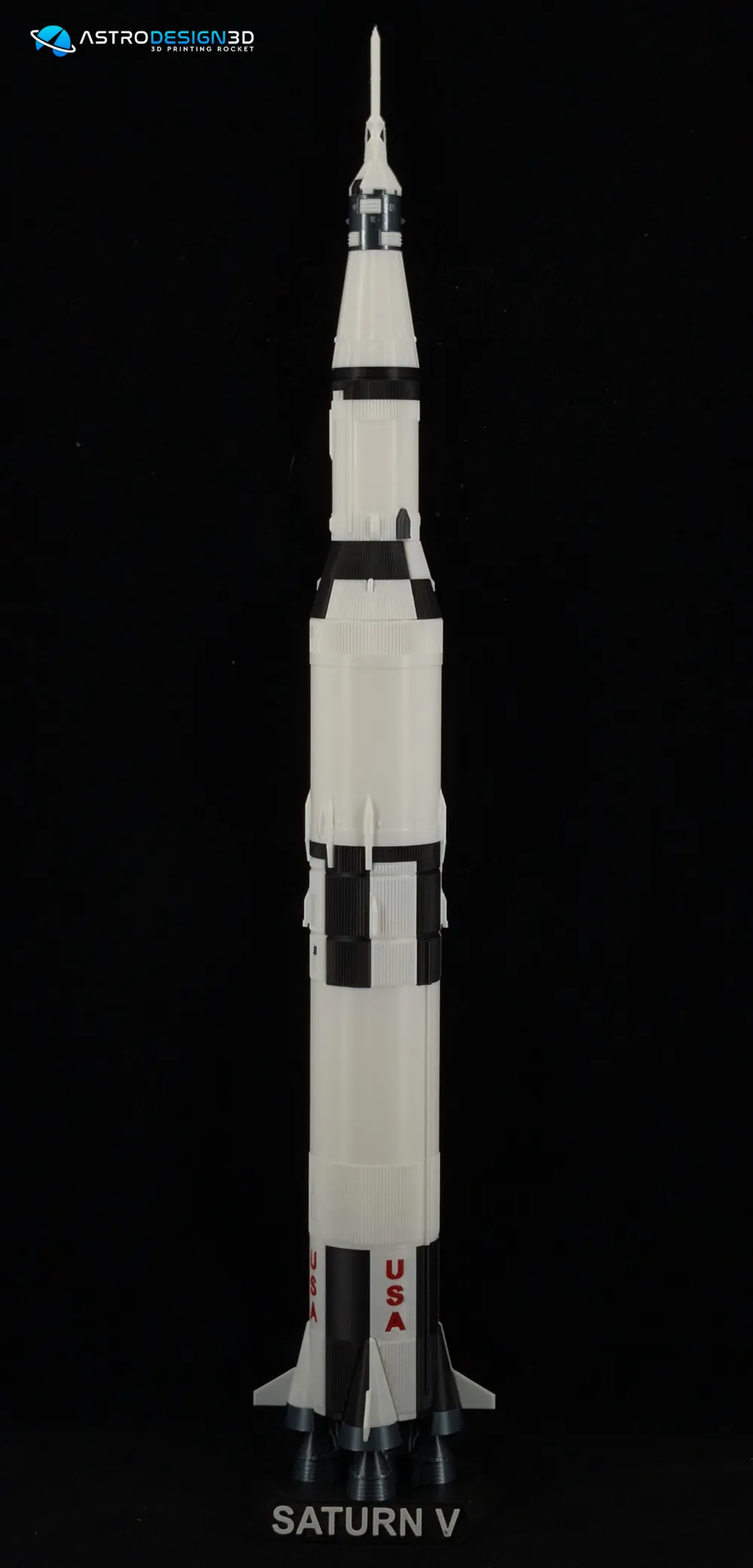

This is a faithful replica of the Saturn V, it's a static model: 100% of the parts are printed, you only need your filament and glue.

• Structure: Sections fit together using alignment connectors to ensure straight gluing.

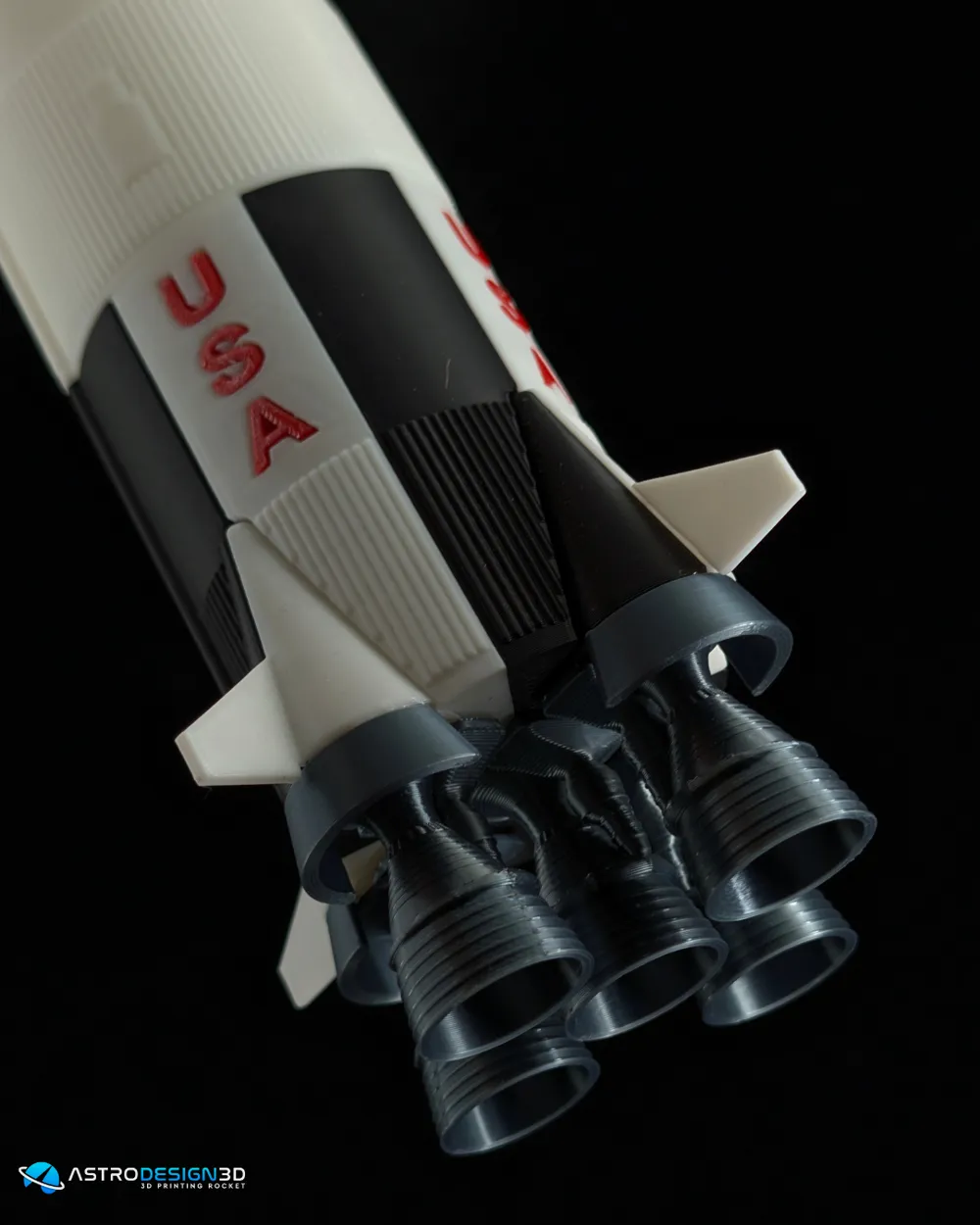

• Details: Spacecraft,Service module, USA Letters, and F1 engines.

📊 Tech Specs

• 📍Scale: 1:200
• 📏 Dimensions: 56 cm (Height) x 5 cm (Diameter)
• ⏱️ Print Time: ~11 hours
• 🧱 Difficulty:
  • 🖨️ Printing: 3/5 (Brim on small parts)
  • 🛠️ Assembly: 2/5 (Gluing and alignment)

🎨 Filament:

• ⚖️ Total Weight: 190g
• ⚪ White: 185g
• ⚫ Black: 75g
• 🔘 Silver / Grey: 30g
• 🔴 Red: 5g

⚙️ Print Settings

• Material: PLA recommended.
• Infill: 10% (Gyroid pattern advised).
• Walls: 2 walls minimum.

📂 Files Included

• Saturn V By Color : Parts are sorted by color for easier printing.
• STL Folder: Files are sorted by block.

⚠️ Critical Preparation

Before starting the print, follow these 2 steps to ensure success:

• 🧼 Cleaning:Wash your printing tray, as a greasy tray will cause deformation and parts to come detach!
• 📏 Calibration: Calibrate your your printer

💡 Assembly Tips

• Connector Adjustment (VERY IMPORTANT): Every printer has different tolerances.
  • If connectors are too tight: Re-print them by reducing X/Y scale to 98% or 99% in your slicer.
  • If connectors are too loose: Increase X/Y scale to 101% or 102%.
• Gluing: Use liquid or gel Superglue

White Marks: Glue can leave white residue (vapors) on black PLA. Ventilate well or use very little glue on visible edges.

💖 Support the Project (It's Free!)

This model represents dozens of hours of design and testing. Here is how you can support my work:

• 🚀 Boost: If you love this model, give me a boost.
• 📸 Post a Make: I love seeing your Starships in the wild! Upload a photo of your print.
• ⭐ Rate & Like: A rating and a "Like" really help with visibility.

Choosing your Spacecraft configuration

There are multiple configuration options available for this model, depending on your printing and assembly preferences.

We offer two assembly configurations:

The choice is made in the "SM+CM" print profile.

• Choise 1 - Spacecraft_Empty_White : Full tower on the top of the capsule (Simple settings)
• Choise 2 - Spacecraft_Empty_White : Empty tower on the top of the capsule (Complex settings)

The choice is made in the "S-1C" print profile.

• S-1C_Thrust_Structure_White_x1: Parts with space for red USA letters.
• S-1C_Full_Thrust_Structure_White_x1 : Pieces without lettering USA red
