TR8x8 nut set
IP Report
Print Profile(1)
0.15mm layer, 4 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
41
96
6
4
183
71
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
The TR8x8 lead screw (8mm diameter, 4 thread starts, 8mm travel per rotation) is a mainstay of hobby linear motion control, used in many 3D printers, CNC devices, and other projects. These acme screws are inexpensive and available in a wide array of lengths.

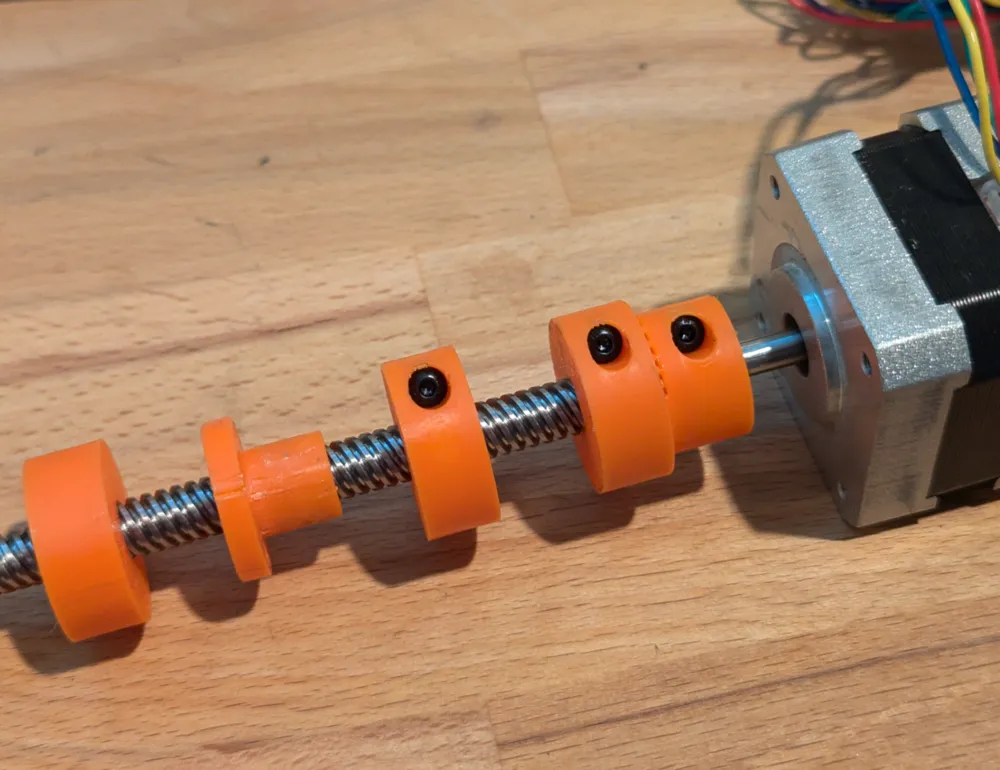

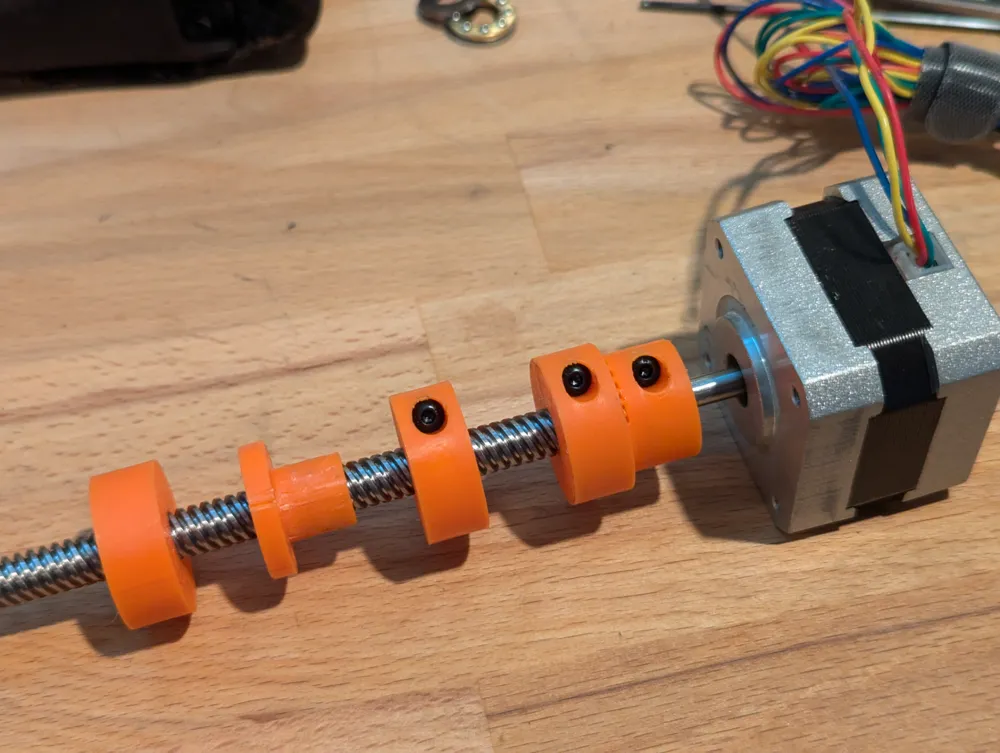

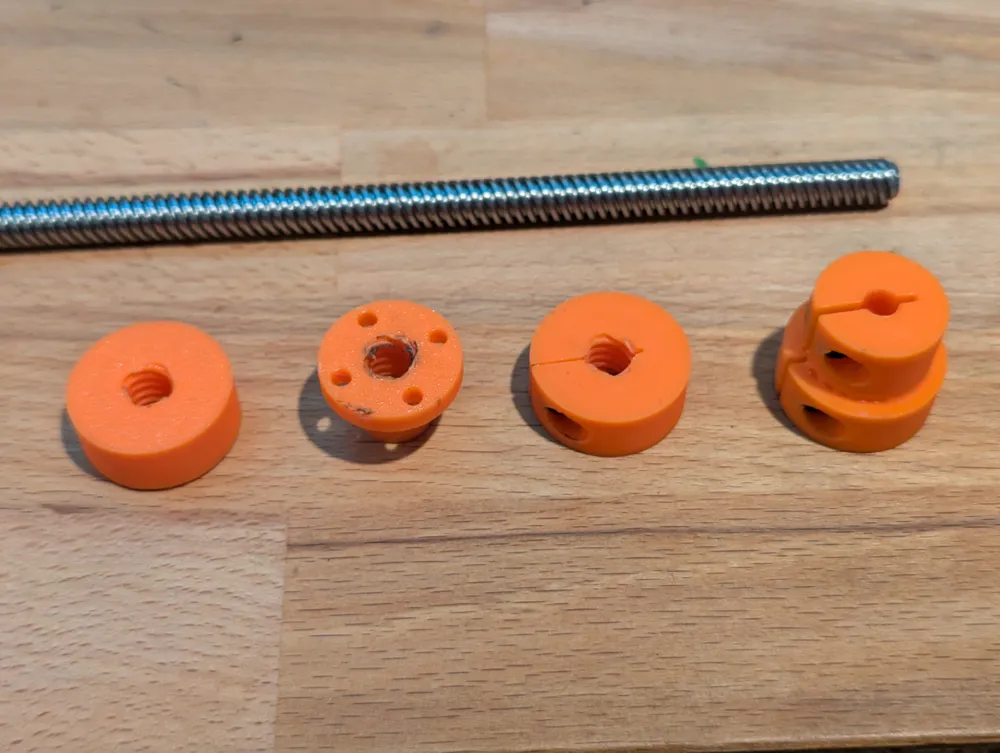

This set of parts will help you to interface with a TR8x8 lead screw. It includes:
- One flanged lead screw nut (Prints with a tight fit, some wear-in required)
- Two motor couplings for 5mm servo shaft (Clamped using M3 hardware, with two sizes of nut insert)
- Two clamping shaft collars (Clamped using M3 hardware, with two sizes of nut insert)
- One TR8x8 nut primitive (for combining with your own parts to produce custom hardware)
