TEC-9 Disc Shooter V2.0
Print Profile(8)
Bill of Materials
- Lubricating grease 润滑脂 x 1: https://t.hk.uy/bFrA
- 1.75mm filament 耗材丝 x 1: 10cm
- Spring（0.8*19*100mm） 弹簧 x 1: Used for spring-loaded magazines https://tb.cn.hn/F3S
Description
Membership
Subscribe as a member and start offline sales
Boost Me (for free)
Motivate authors to create more high-quality models
此模型已加入CC BY-NC-SA 4.0 共享协议，仅限个人玩耍，商业用途请联系本人获取授权。
中文站：https://makerworld.com.cn/zh/@QYM3D
Filament: PETG

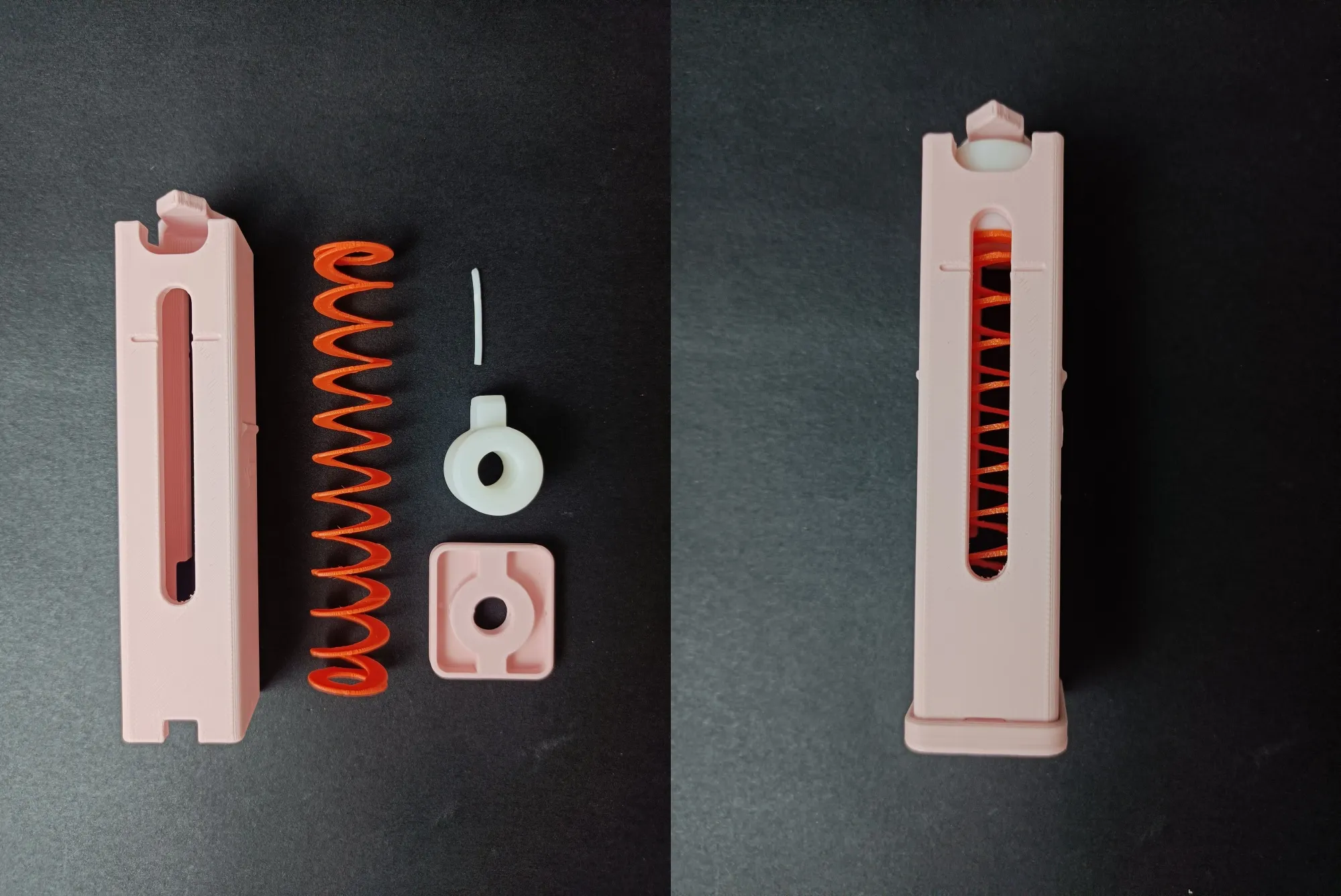

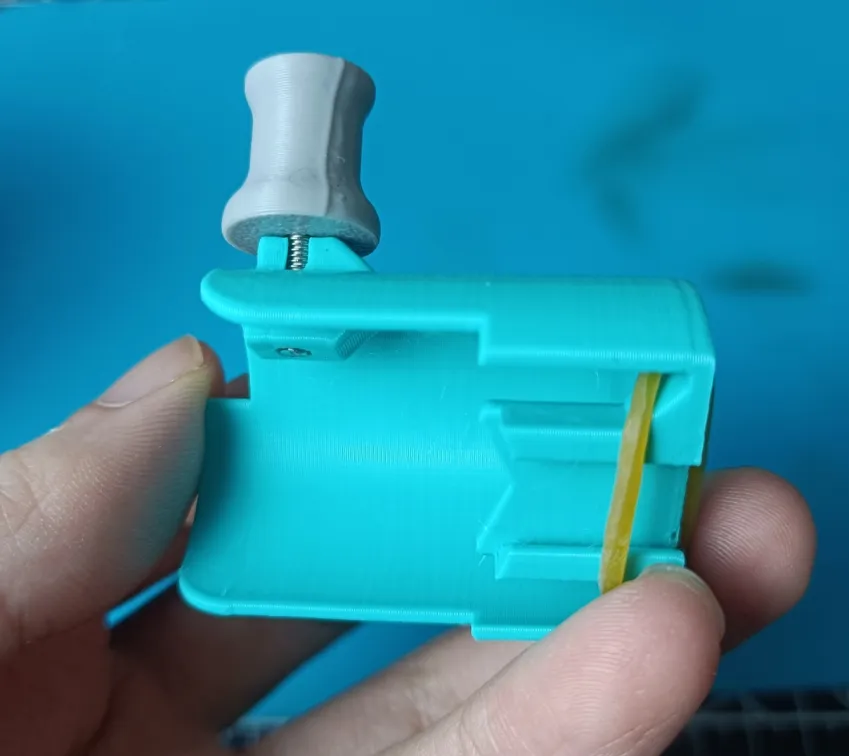

——————————Updated: T-15 Spring magazine (print version) ——————————
Replace the metal spring with a filament printing spring
Project Link：https://makerworld.com/zh/models/497751-t-15-tec-9-disc-shooter#profileId-481950
——————————T-15 MOD has been updated——————————
Project Link：https://makerworld.com/zh/models/828658#profileId-772695

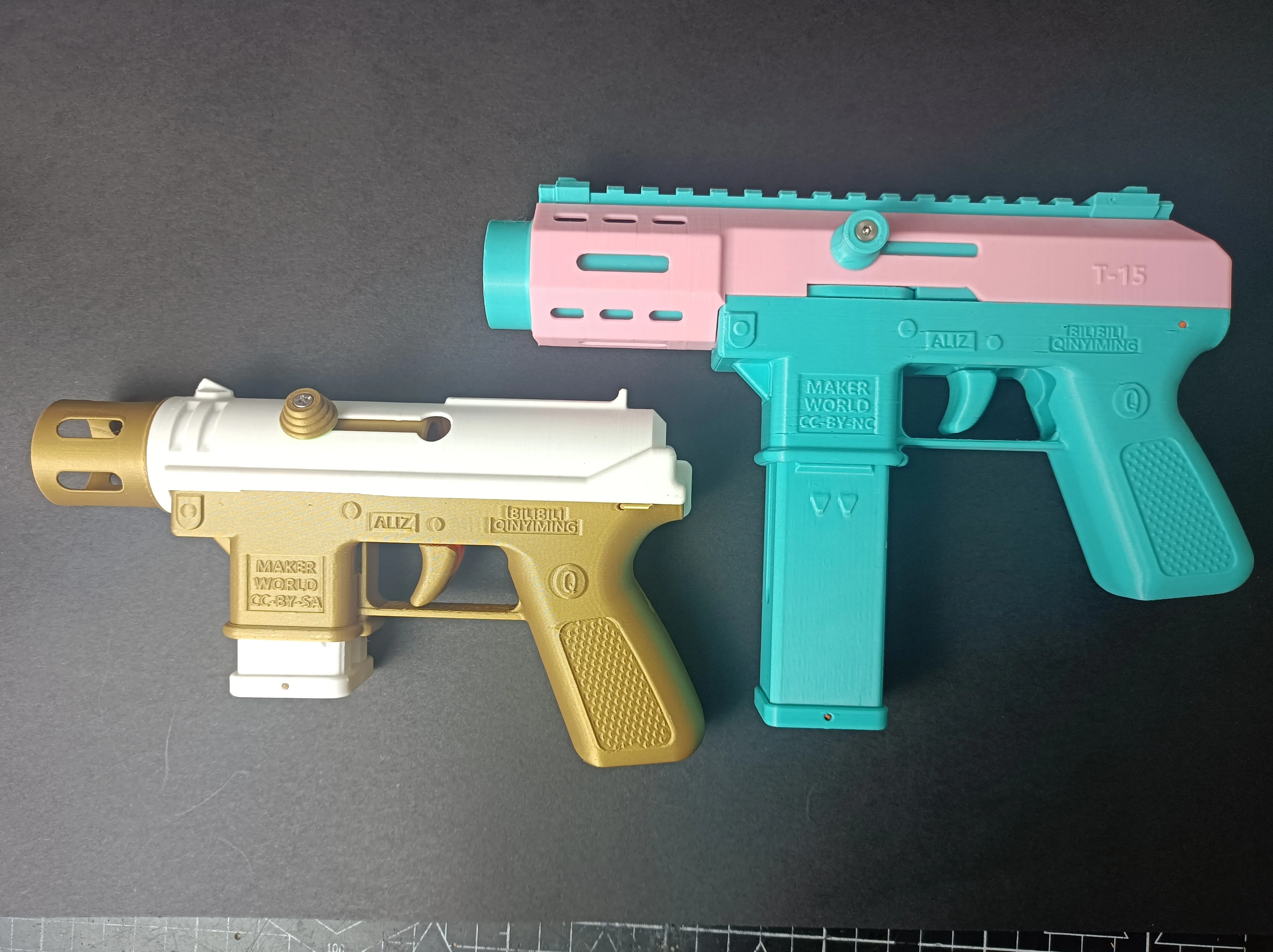

——————————TEC-9 mini has been updated——————————
Project Link：https://makerworld.com/zh/models/828658#profileId-772695
——————————V2.5 has been updated——————————
Upgrade :
1. Slightly shortened the length of the gun barrel.
2. The shell throwing baffle has added a limit, so you don't have to worry about tightening it too tightly and getting stuck in the shell now

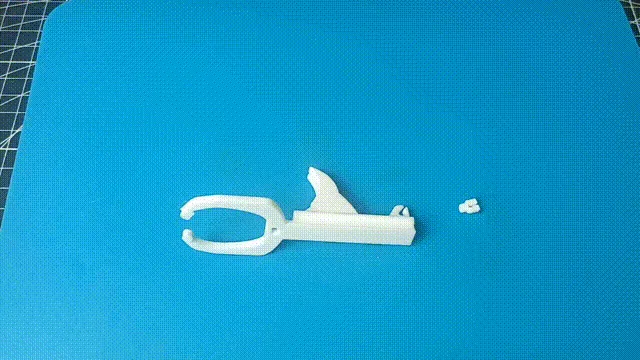

3. Trigger rubber band changed to filament fixation for easier installation

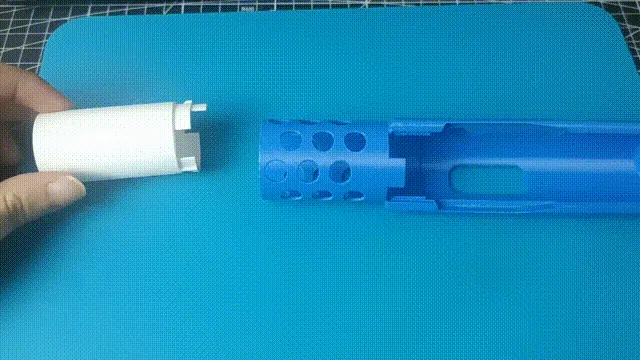

4. The gun barrel is fixed with a rotating buckle, making installation simpler
Tips:
1. Trigger with 28cm diameter rubber band folded in half double strands
2. The installation method is the same as V2.0 except for fixing the barrel and trigger rubber band.
Boost Me (for free)
If you like this work, please Boost Me to support him in creating more excellent works
——————————————————————————————————
V2.0 fixed multiple minor issues with v1.0, comprehensively improving the user experience
Upgrade :
1. Trigger optimization: reduces the chance of jamming, increases trigger cover to improve hand feel
2. Ballistic optimization: Enhanced launch power, more precise shooting
3. Magazine optimization: reduces the probability of jamming and loading difficulty,added spring magazine
4. Gun barrel optimization: direct insertion, no longer requiring filament fixation

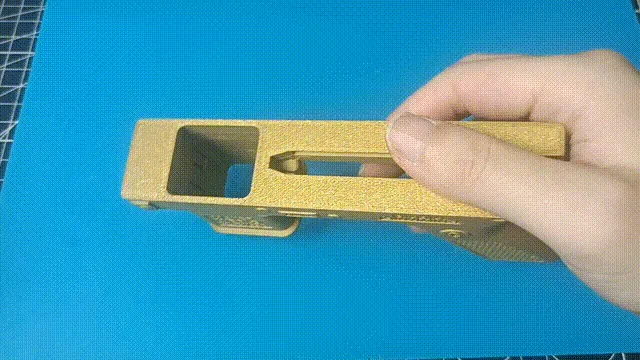

5. Optimization of Pulling Handle: The screw is reinforced to prevent it from breaking easily, and the throwing shell window is fixed with rubber bands. Now you can pull the pulling handle to the bottom
Tips:
1. Lubricating the trigger rail can greatly reduce the chance of jamming, and removing the pull handle and ejection window also has a certain effect.
2. If you notice that the frisbee is starting to fly randomly or its power is decreasing, replacing the trigger with a new one can solve the problem
3. The assembly method of version 2.0 is roughly the same as version 1.0, except for the difference in the ejection window part.
4、The trigger is best printed with reinforced material（for example:BambuLab PLA-CF）, as PLA Basic is prone to breakage
5、The shell can be made of BambuLab PLA Matte to present a good visual effect
Assembly video:

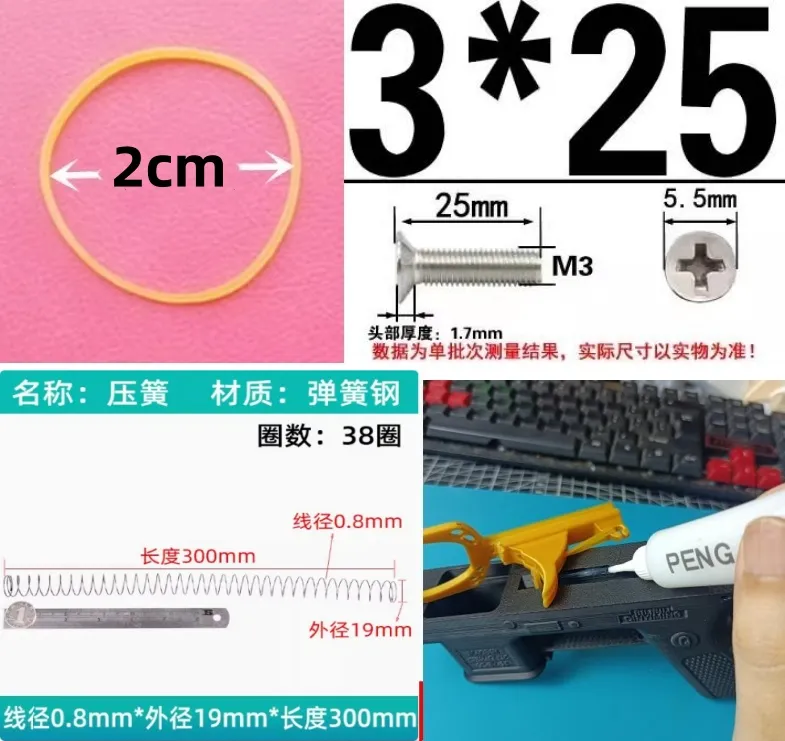

Trigger uses 2cm diameter rubber band, magazine uses 2.8cm diameter rubber band
You still need a 1.75mm filament of 10cm to fix the cover
Optional upgrade：
Spring（0.8*19*100mm）Cut the appropriate length by yourself
Purchase link for reference only
Boost Me (for free)
Motivate authors to create more high-quality models
