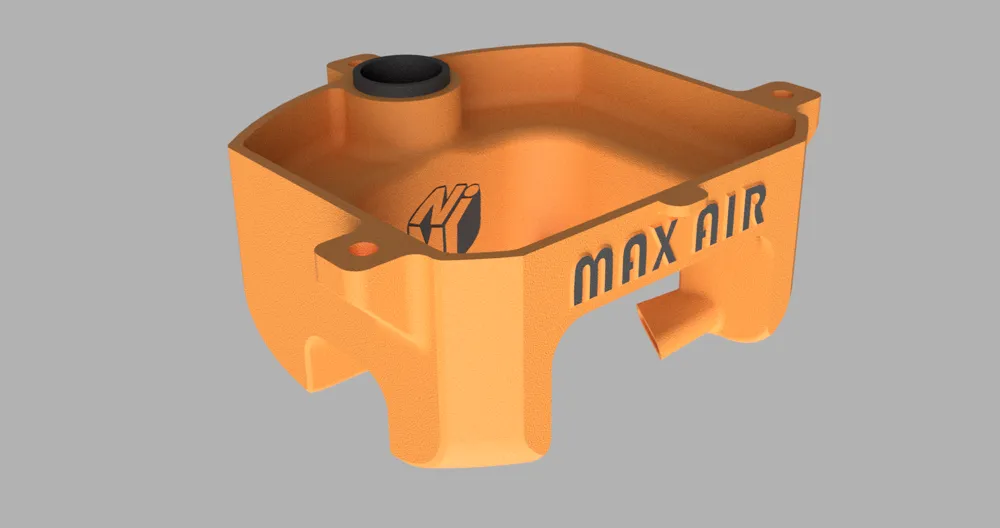

FLSUN T1 - MAX AIR Ported Duct - Noise Reduction

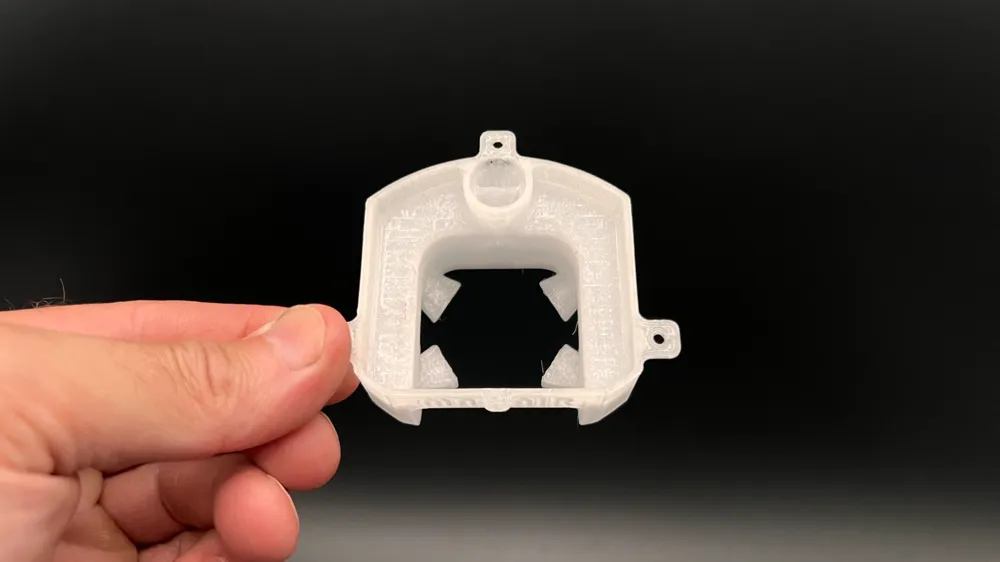

This is a plug-n-play installation for the ductwork for the FLSUN T1, remove the original by taking out the three mounting screws. Add the collar to the 3D print, it only fits in one place… I hope you can find the right hole. Install the new one with the original screws.

You'll need to recalibrate for input shaping after the install due to a slightly different weight and center of gravity.

This provides better cooling for overhangs and bridges. It also allows better flow with less friction and restriction of the fan, which means the fan speed can be turned down from 100% to 80% with the same (slightly better in my testing) results. This works as a combo system with the BLOW MASTER to reduce the sound coming from the machine during the print due to the loud CPAP style fan.

Printed with ABS or PC for best results

0.16mm LH

0.4mm Nozzle

Supports required

3 or possibly 2 walls if you want it lighter, maybe even 1 wall if you have the guts

Any type of infill at 25% min.

Enjoy!
