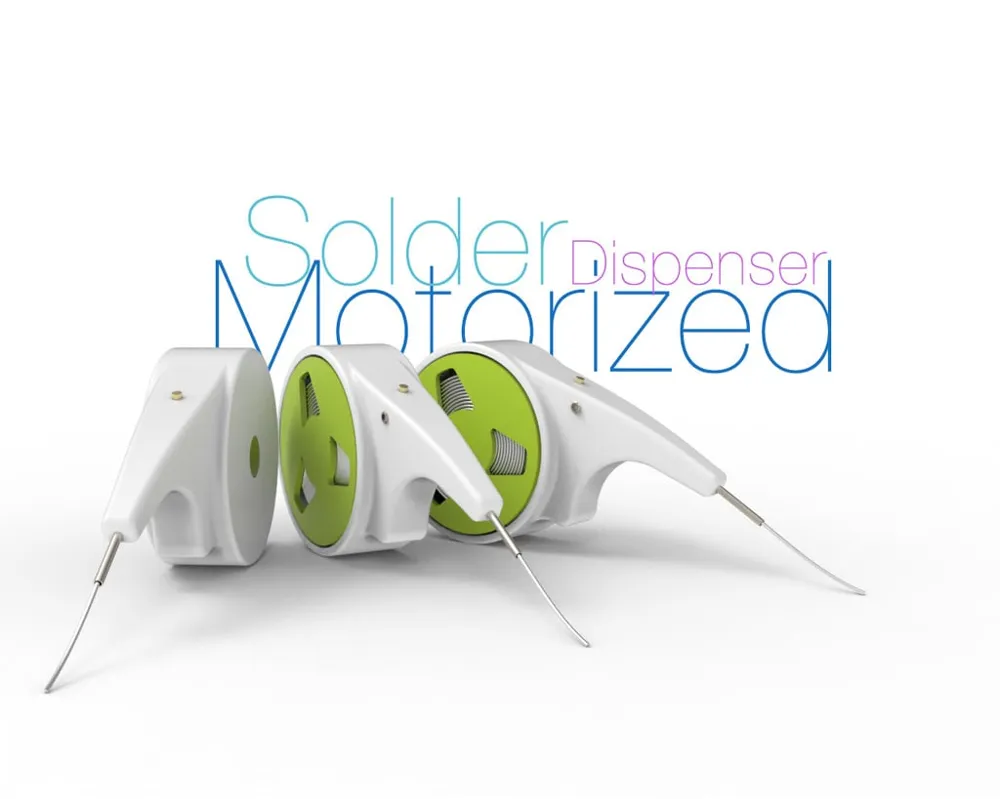

Motorized Solder Dispenser

This project was created a year and a half ago. I printed it, but I have not collected it until today, somehow everything was not up to it. Yes, and there are many other projects that are unfinished, which I am gradually completing. Today it's the turn to present this wonderful tool to you.



Its dimensions are almost the same as those of the previous mechanical dispenser , with the exception of the protrusion under the motor. But this protrusion had practically no effect on ergonomics, it is convenient to use the tool in this version as well. It lies wonderfully in the hand.



A small motor with a three-section planetary gearbox has a huge torque. And as a feed roller, I used a roller from a Cricket lighter, it fit perfectly in size.



The battery charge module can be used from a ready-made charger by cutting off one piece. But at the moment I have created my own modules, which I already actively use where battery charging is required.



See the video for details:

If you liked this thing - let me know by putting like!


Parts links below:

• Planetary Gearbox Motor D 6mm
• Button 5x5
• Lipo Battery Charger
• Type-C Connector 14 Pin Female Socket
• Li-Po Battery 100mAh 350829
• Round Magnet 9x5mm
• LEDs 0805
• UV Glue
• Set Screw M2.5
• TopZeal Filament ABS

Links to used tools:

• NOGA deburring tool and Blades
• Thread Screw Tap M2.5
• UV Glue Repair Lamp
• Mini Wireless Grinder
• DT71 Mini Digital Tweezers
• TE01 TC01 MINI MTweezers
• Niimbot D110 Label Maker Printer
